Chicago Pneumatic CP 0006 / CP 0006 SVR

CP0006 — parts list and exploded diagrams (PDF)
Request a Quote1-800-241-9669
← Back to tool detailsOpen original PDF ↗Download original

Match the model and version on the drawing to your tool. Include the part number or diagram callout when requesting a quote.

All 16 PDF pages appear below. Scroll inside the drawing to see each page, or open the original PDF ↗ for searchable text and full-resolution detail.

Fit drawing. Pinch to zoom on touchscreens.
Page 1 of 16

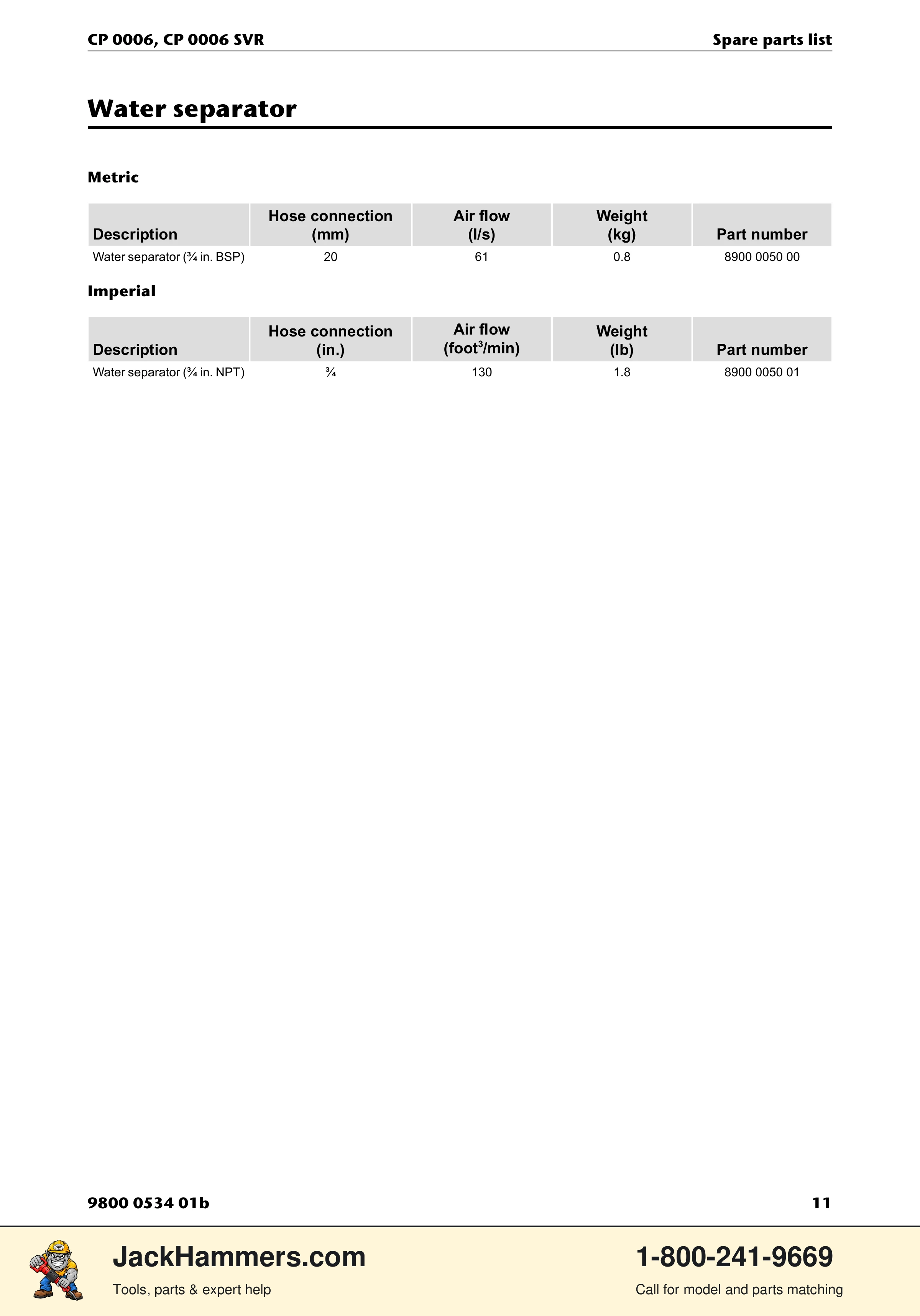

Chicago Pneumatic CP 0006 / CP 0006 SVR PDF page 1 of 16
Page 2 of 16
Chicago Pneumatic CP 0006 / CP 0006 SVR PDF page 2 of 16
Page 3 of 16
Chicago Pneumatic CP 0006 / CP 0006 SVR PDF page 3 of 16
Page 4 of 16
Chicago Pneumatic CP 0006 / CP 0006 SVR PDF page 4 of 16
Page 5 of 16

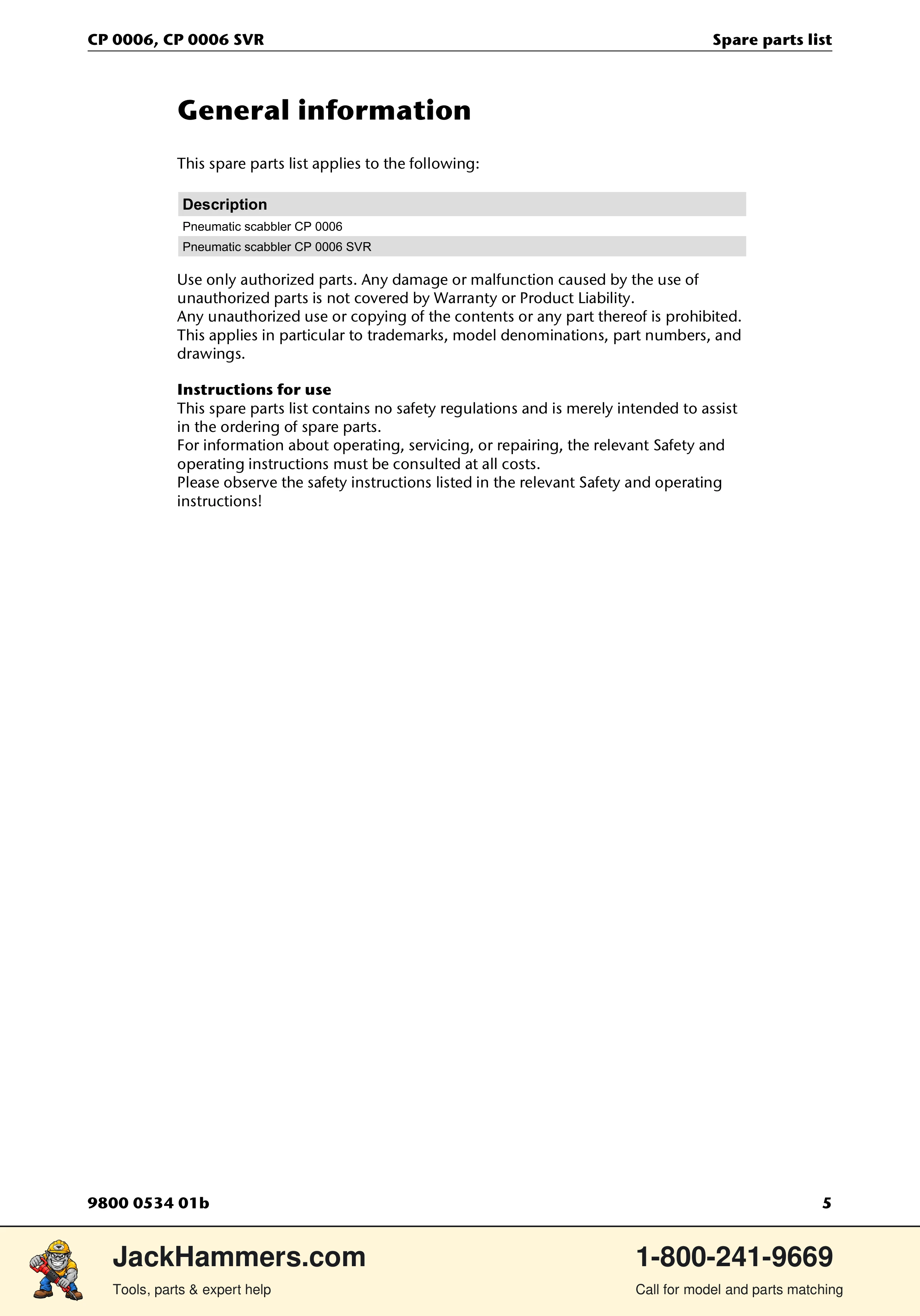

Chicago Pneumatic CP 0006 / CP 0006 SVR PDF page 5 of 16
Page 6 of 16

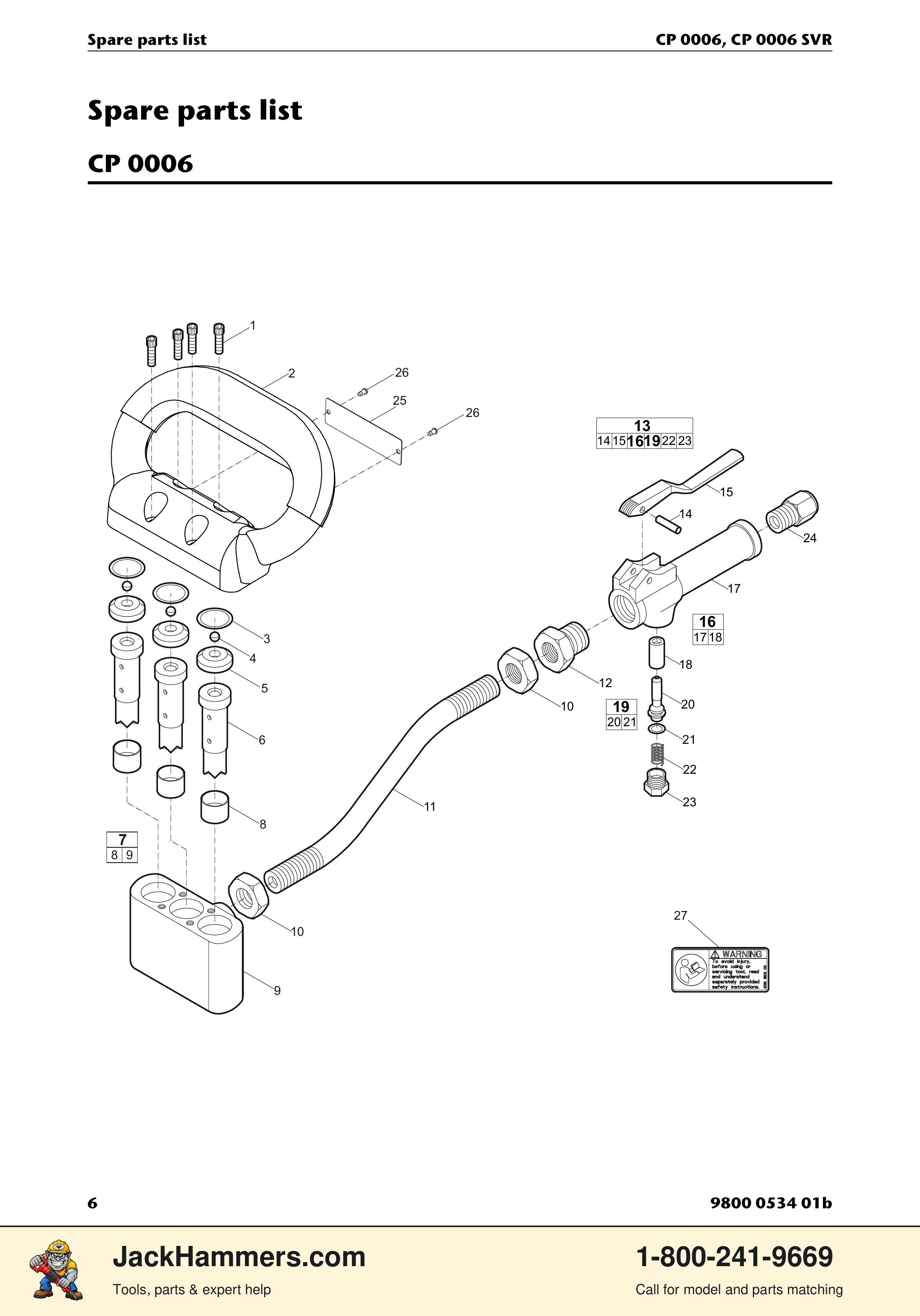

Chicago Pneumatic CP 0006 / CP 0006 SVR PDF page 6 of 16
Page 7 of 16

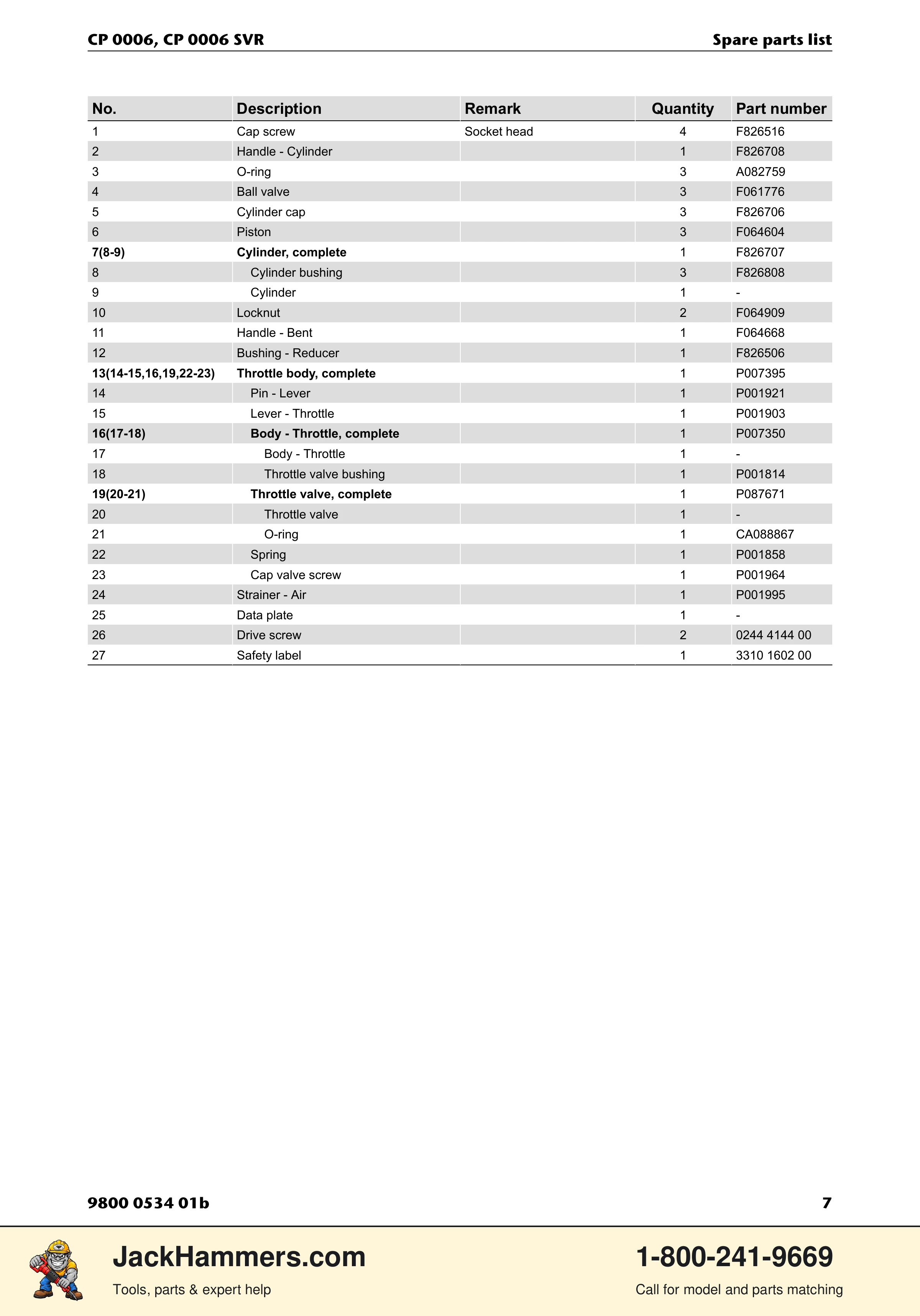

Chicago Pneumatic CP 0006 / CP 0006 SVR PDF page 7 of 16
Page 8 of 16

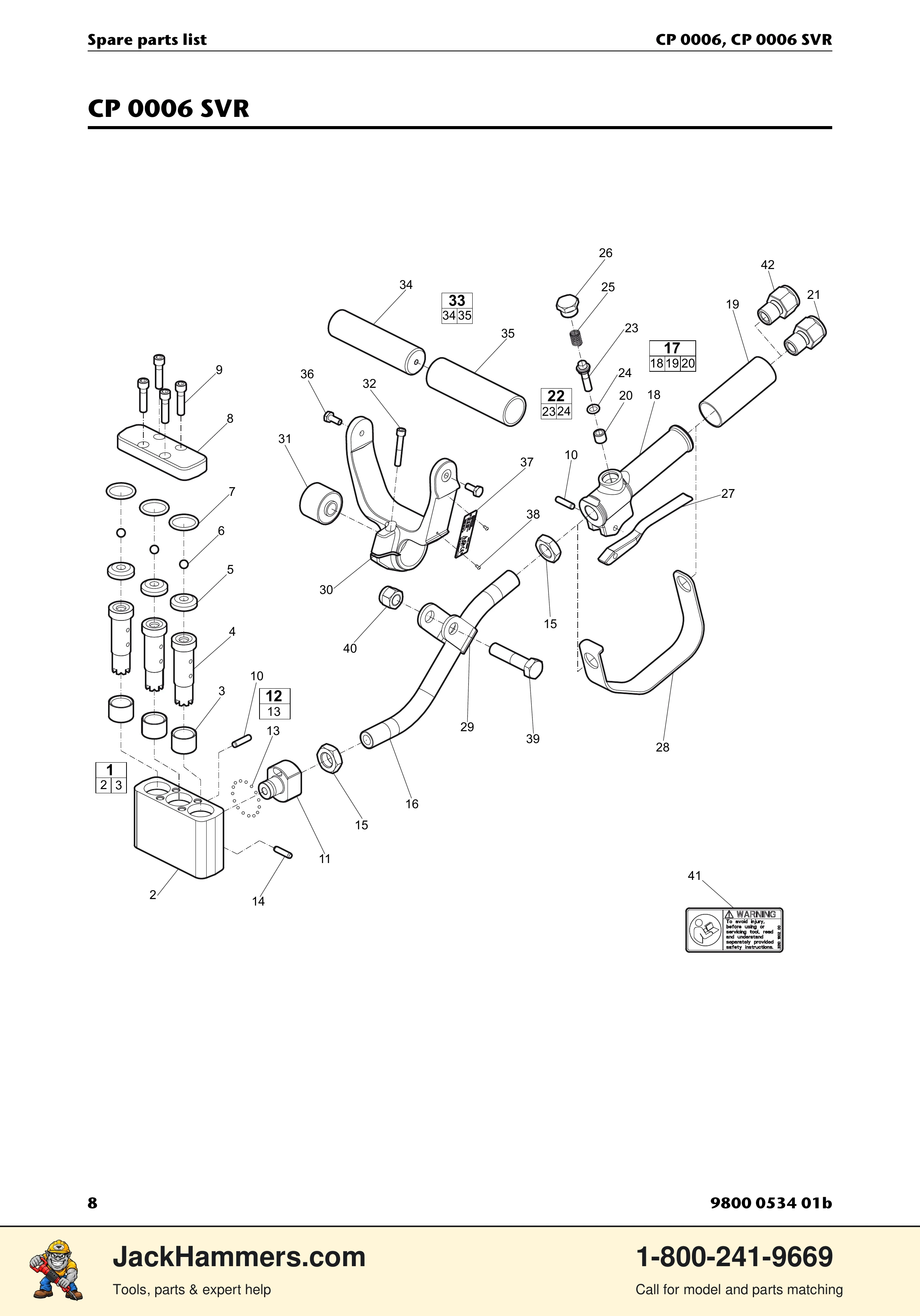

Chicago Pneumatic CP 0006 / CP 0006 SVR PDF page 8 of 16
Page 9 of 16

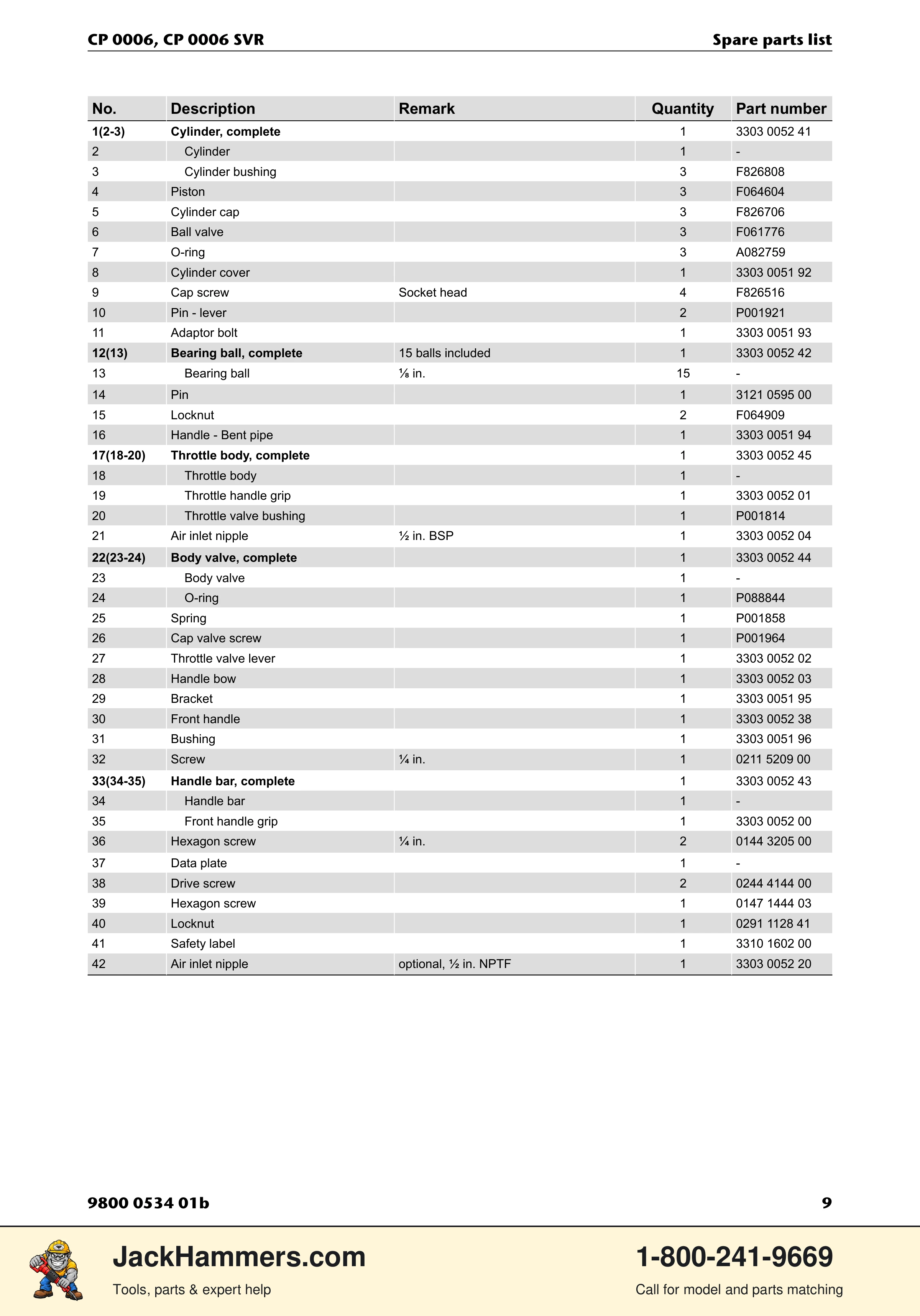

Chicago Pneumatic CP 0006 / CP 0006 SVR PDF page 9 of 16
Page 10 of 16

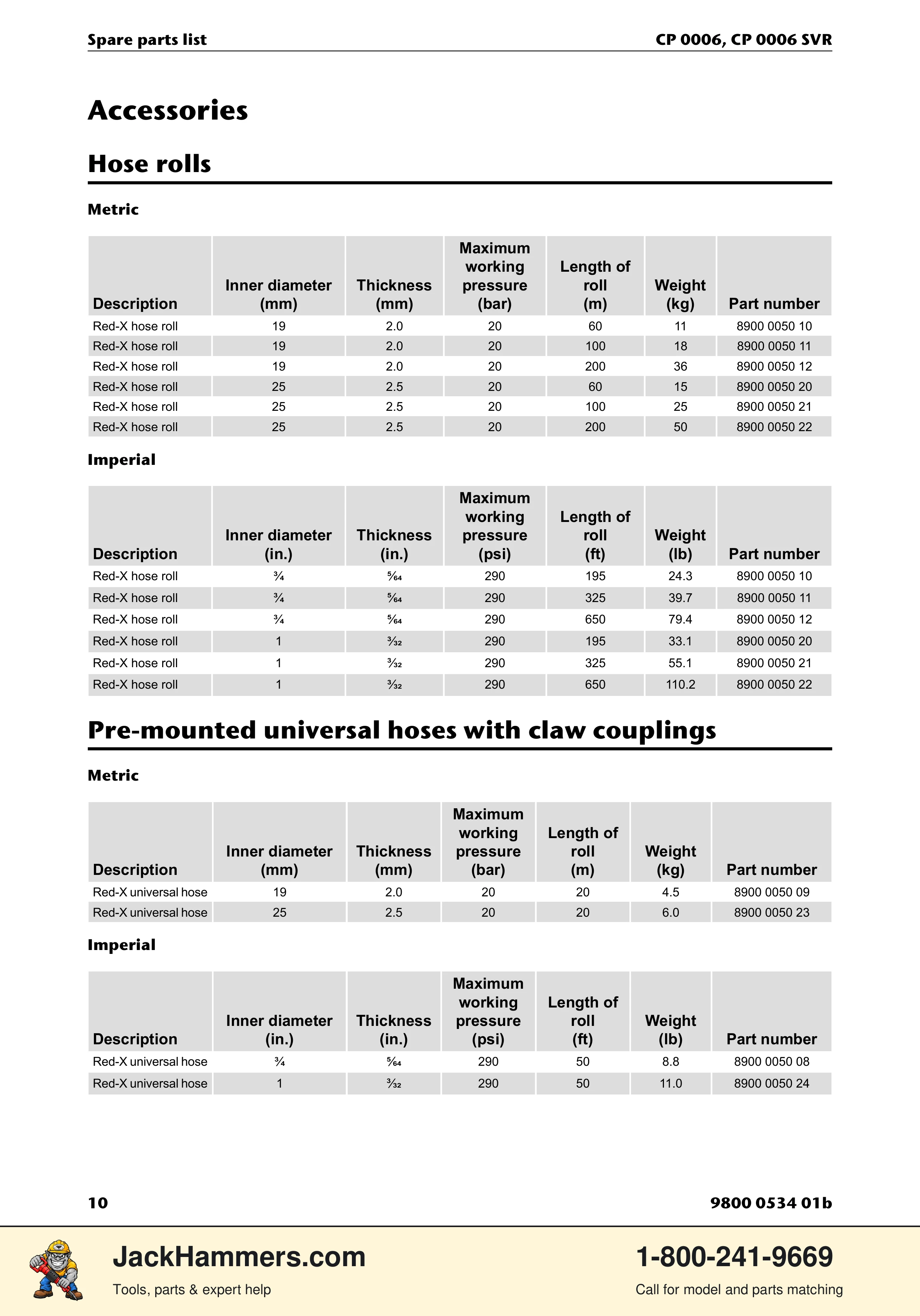

Chicago Pneumatic CP 0006 / CP 0006 SVR PDF page 10 of 16
