Chicago Pneumatic CP 6120 — Parts Drawing | JackHammers.com

← Back to tool details Open original PDF ↗Download original

Match the model and version on the drawing to your tool. Include the part number or diagram callout when requesting a quote.

All 13 PDF pages appear below. Scroll inside the drawing to see each page, or open the original PDF ↗ for searchable text and full-resolution detail.

Jump to PDF page

Fit drawing. Pinch to zoom on touchscreens.

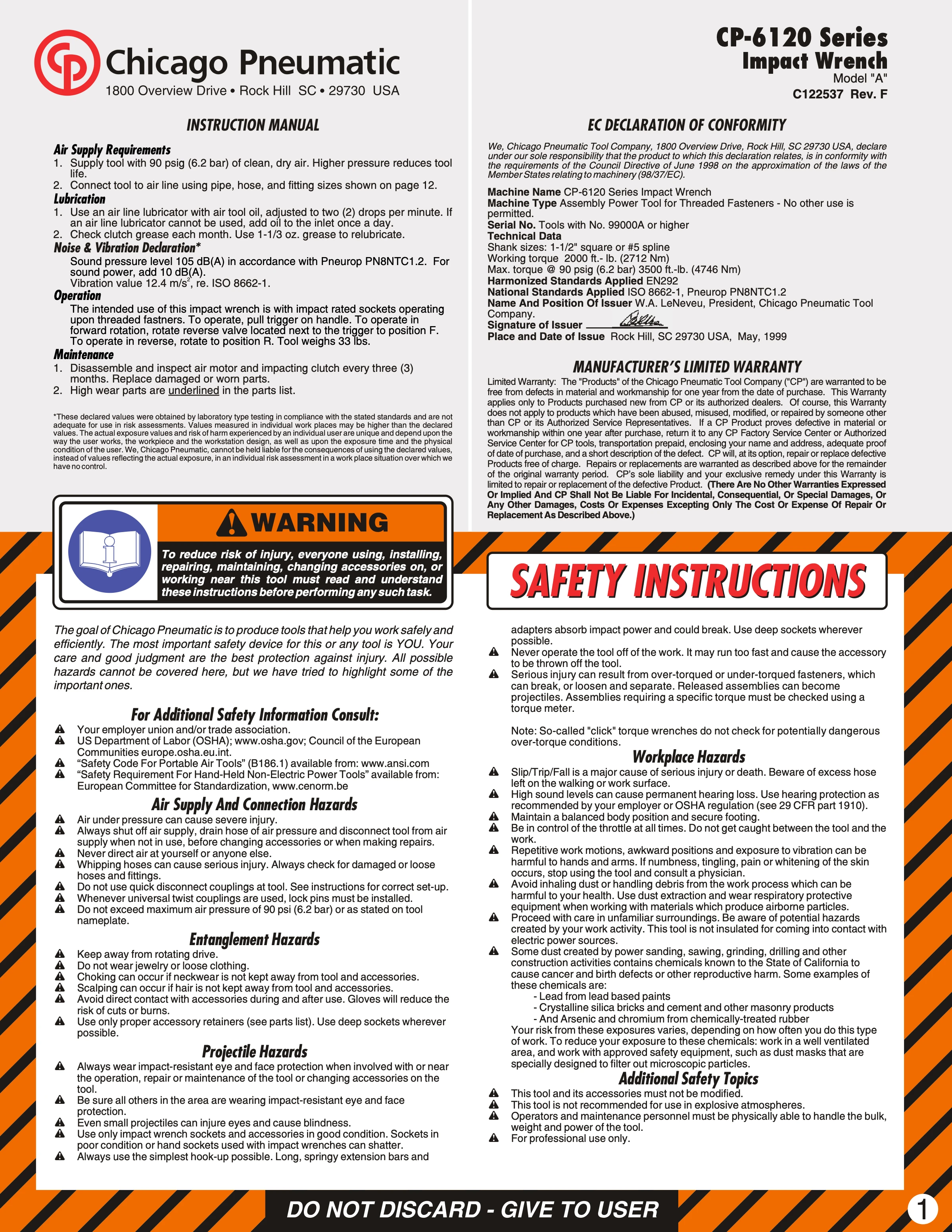

Chicago Pneumatic CP 6120 PDF page 1 of 13 — Page 1 of 13

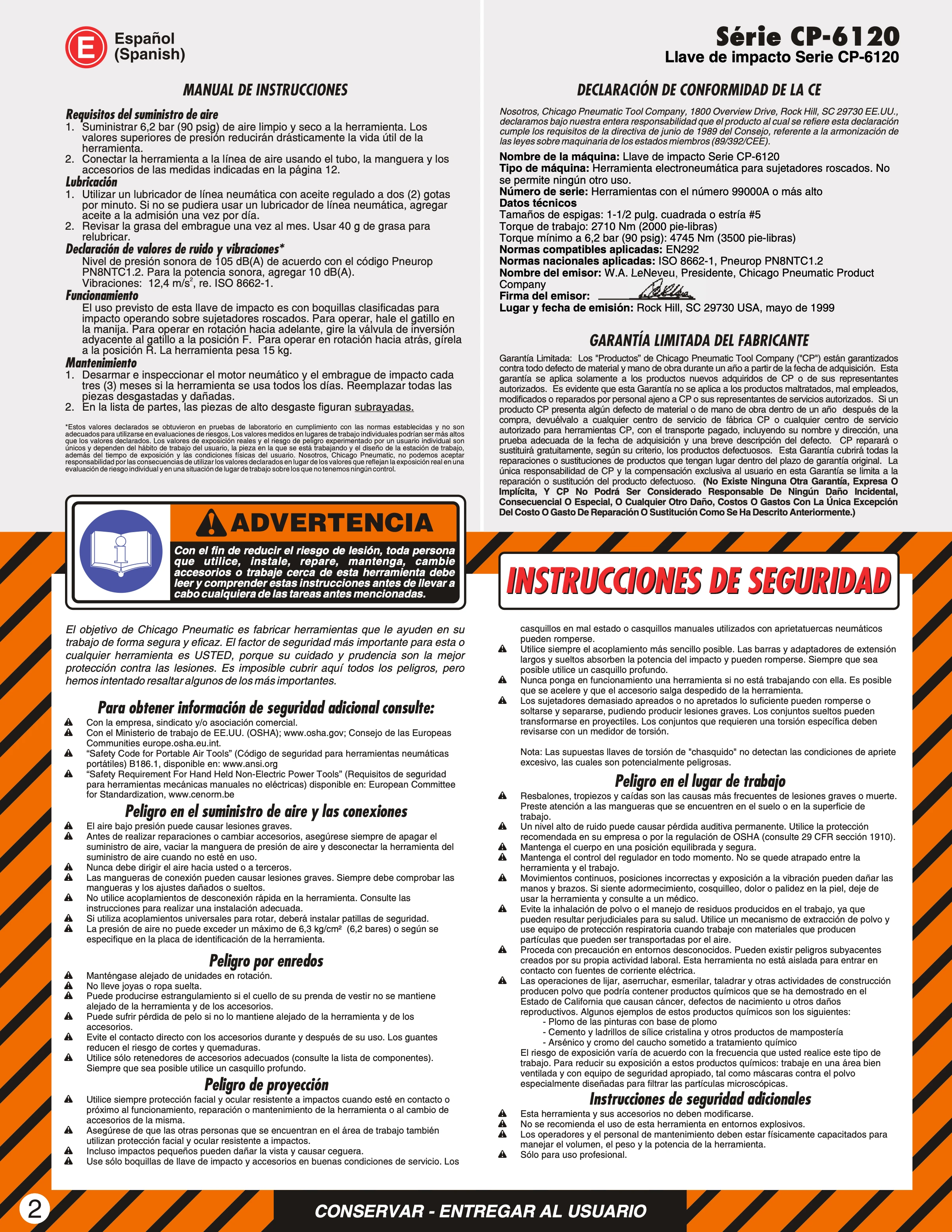

Chicago Pneumatic CP 6120 PDF page 2 of 13 — Page 2 of 13

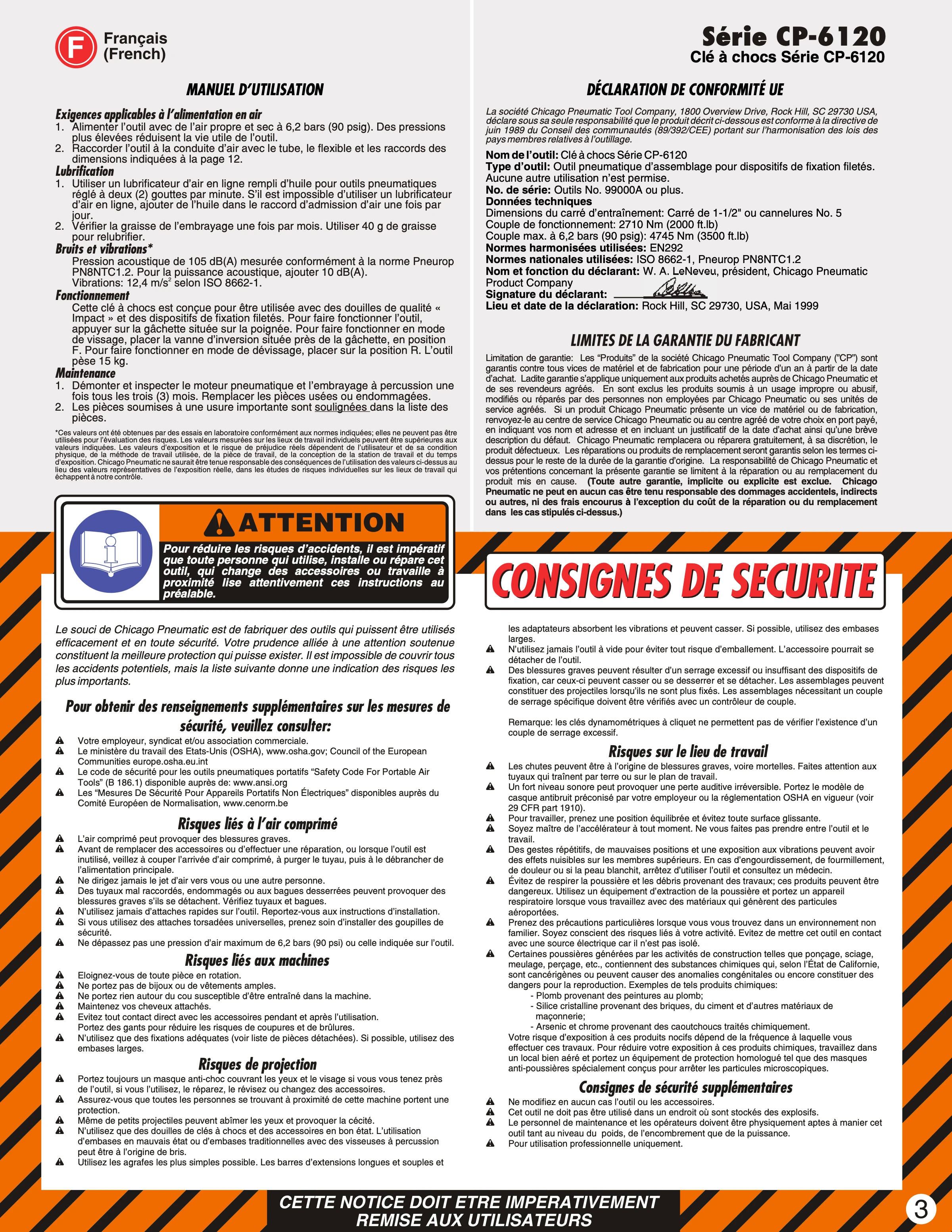

Chicago Pneumatic CP 6120 PDF page 3 of 13 — Page 3 of 13

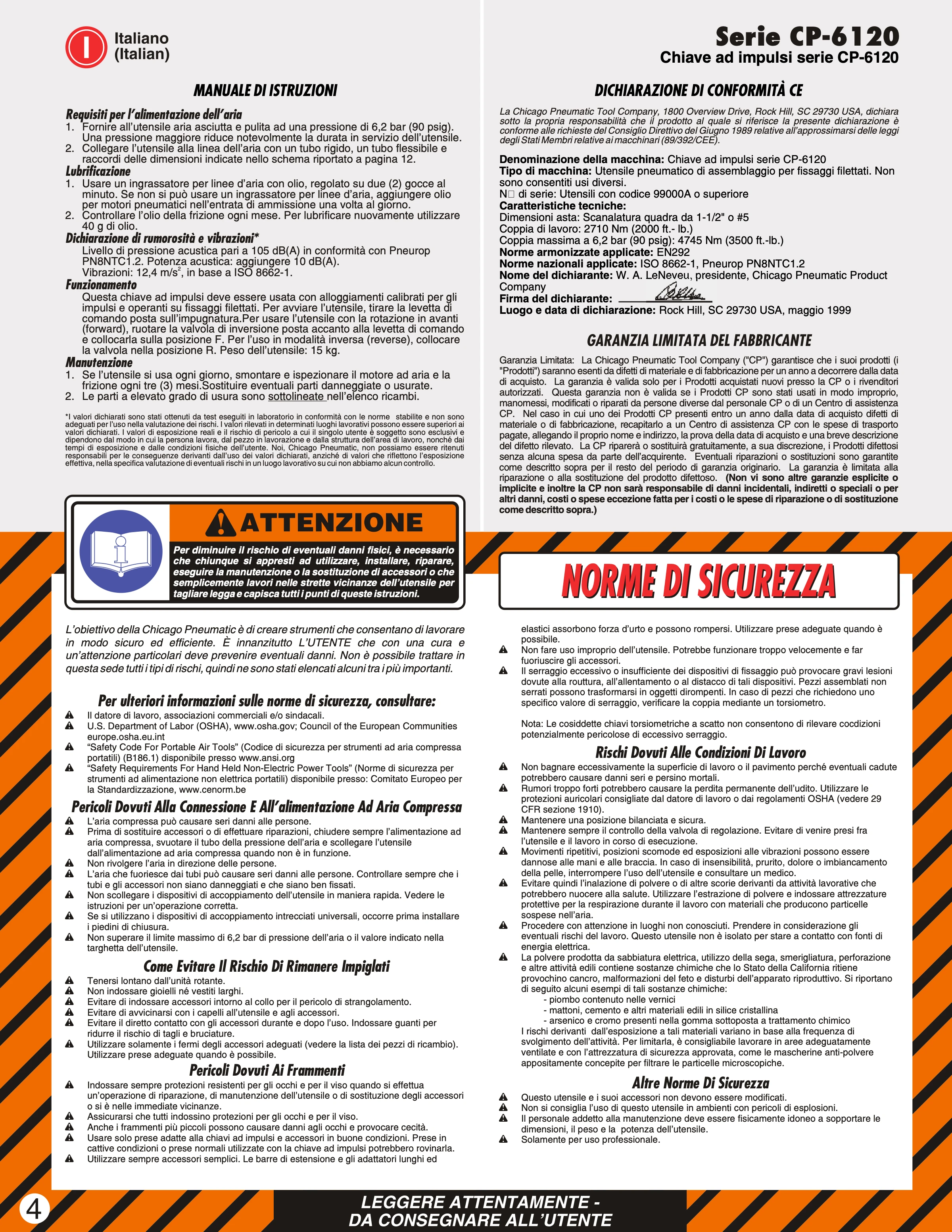

Chicago Pneumatic CP 6120 PDF page 4 of 13 — Page 4 of 13

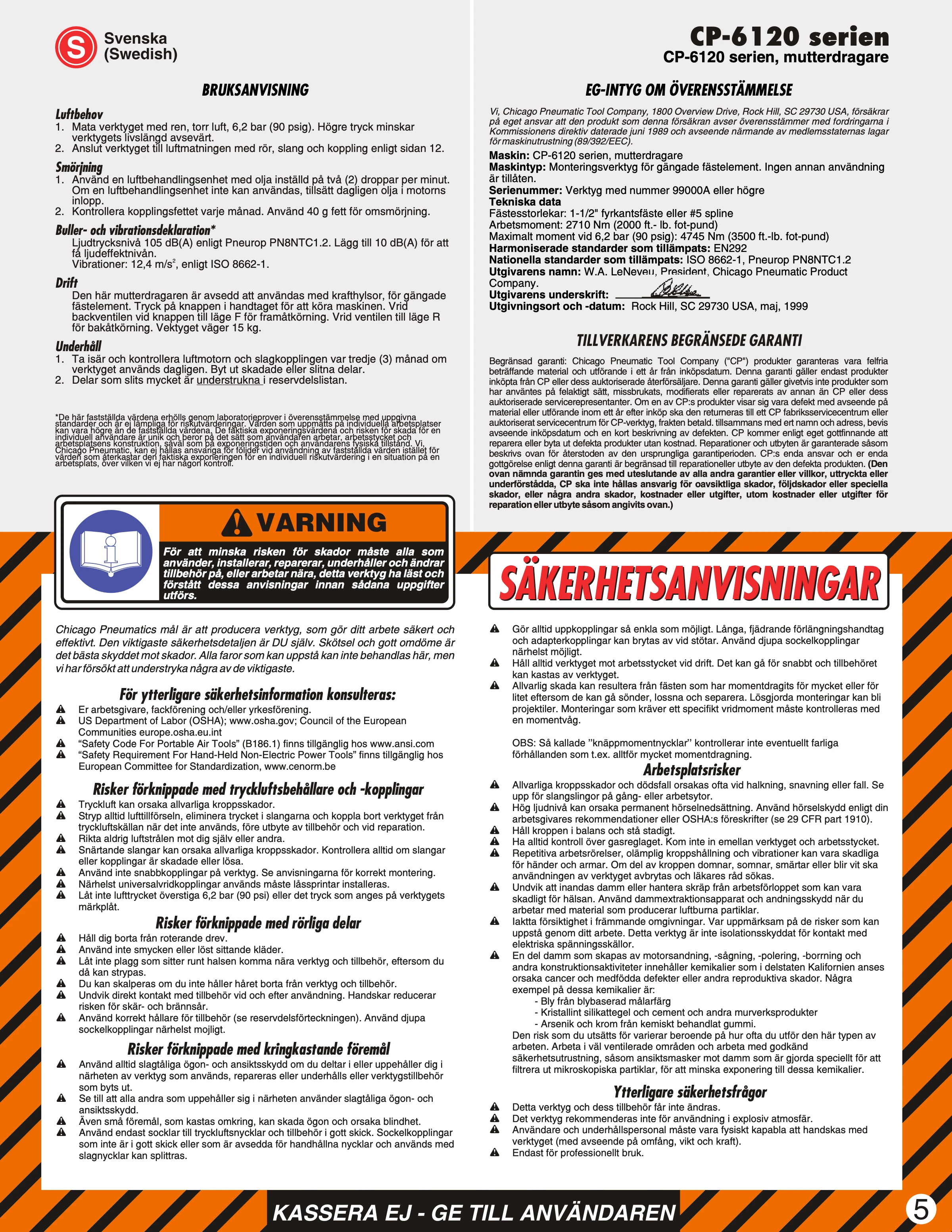

Chicago Pneumatic CP 6120 PDF page 5 of 13 — Page 5 of 13

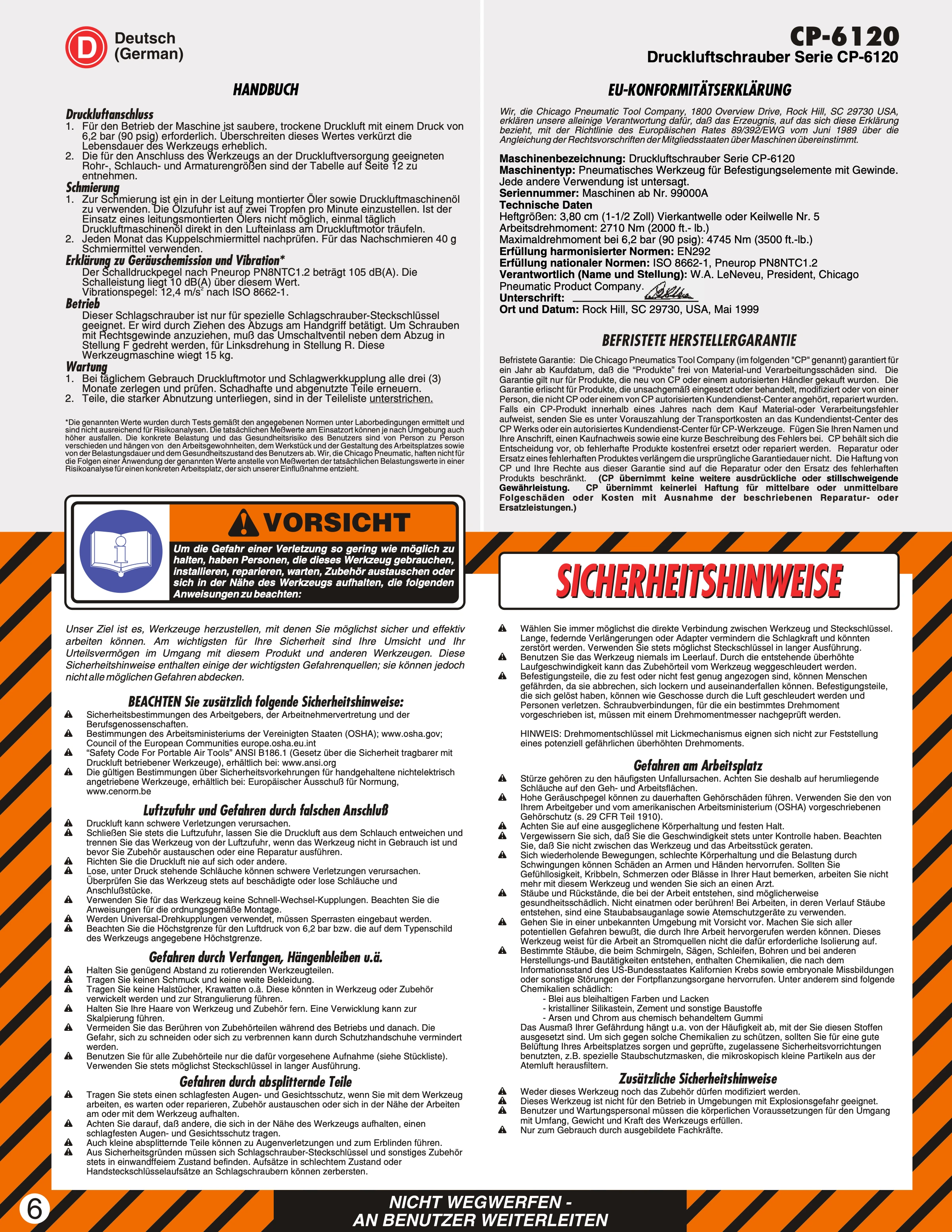

Chicago Pneumatic CP 6120 PDF page 6 of 13 — Page 6 of 13

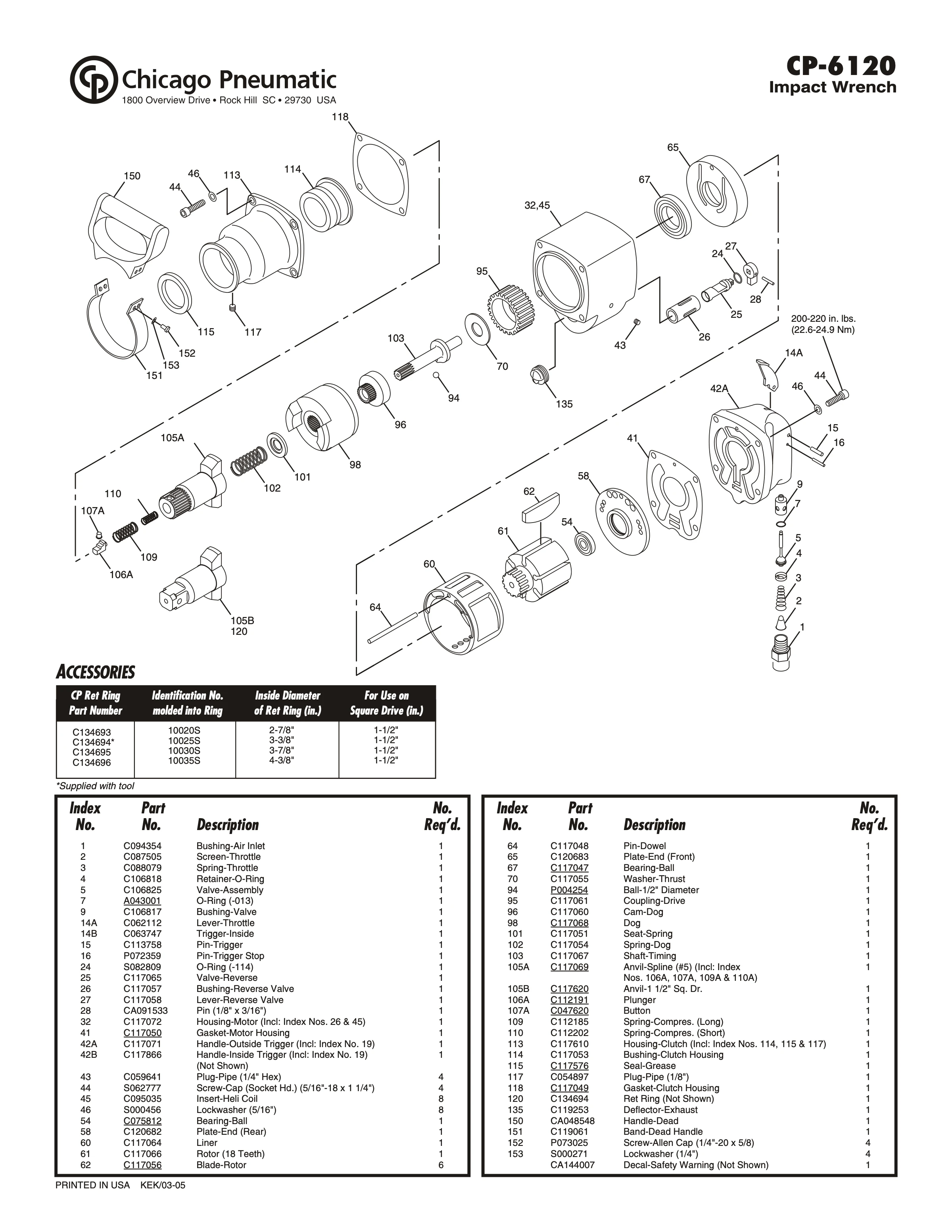

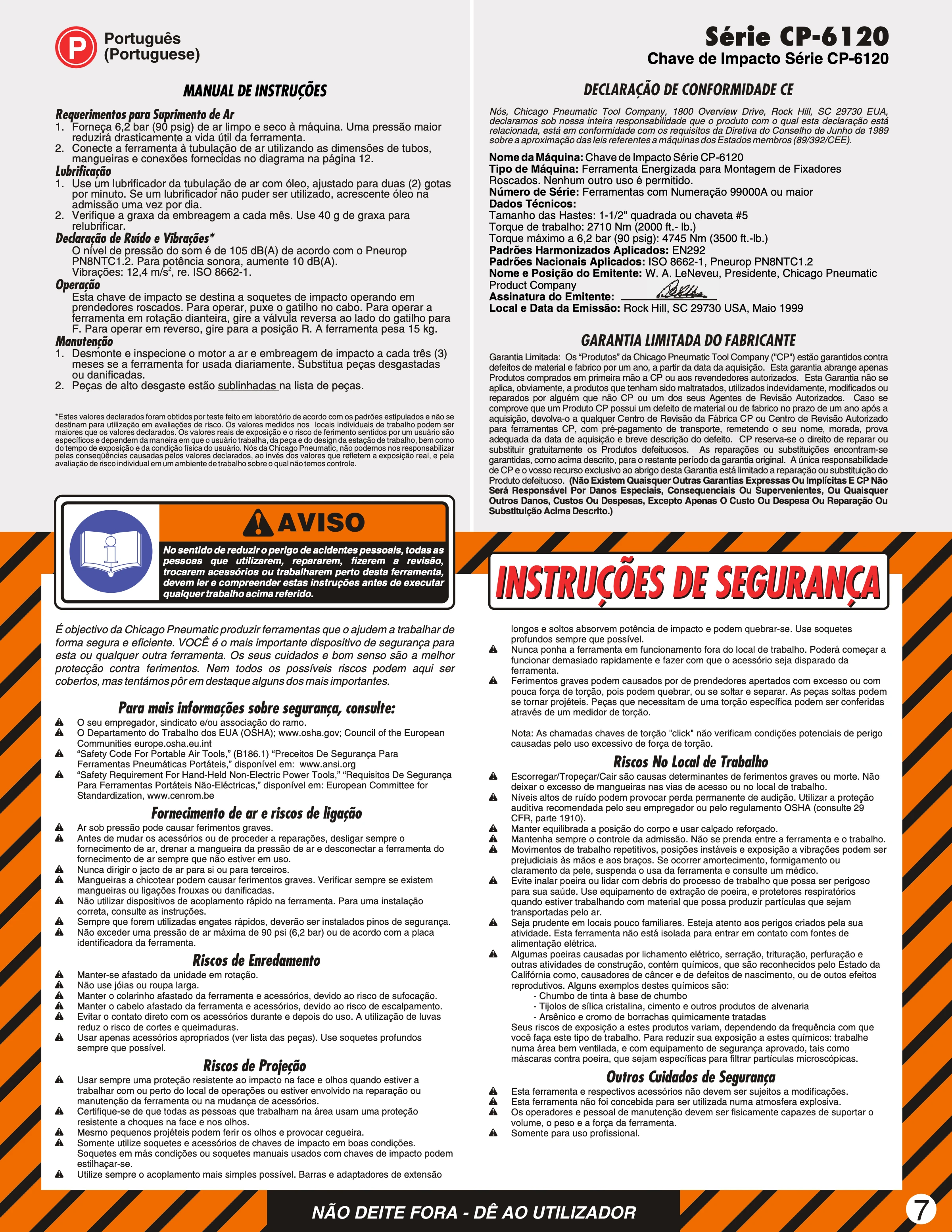

Chicago Pneumatic CP 6120 PDF page 7 of 13 — Page 7 of 13

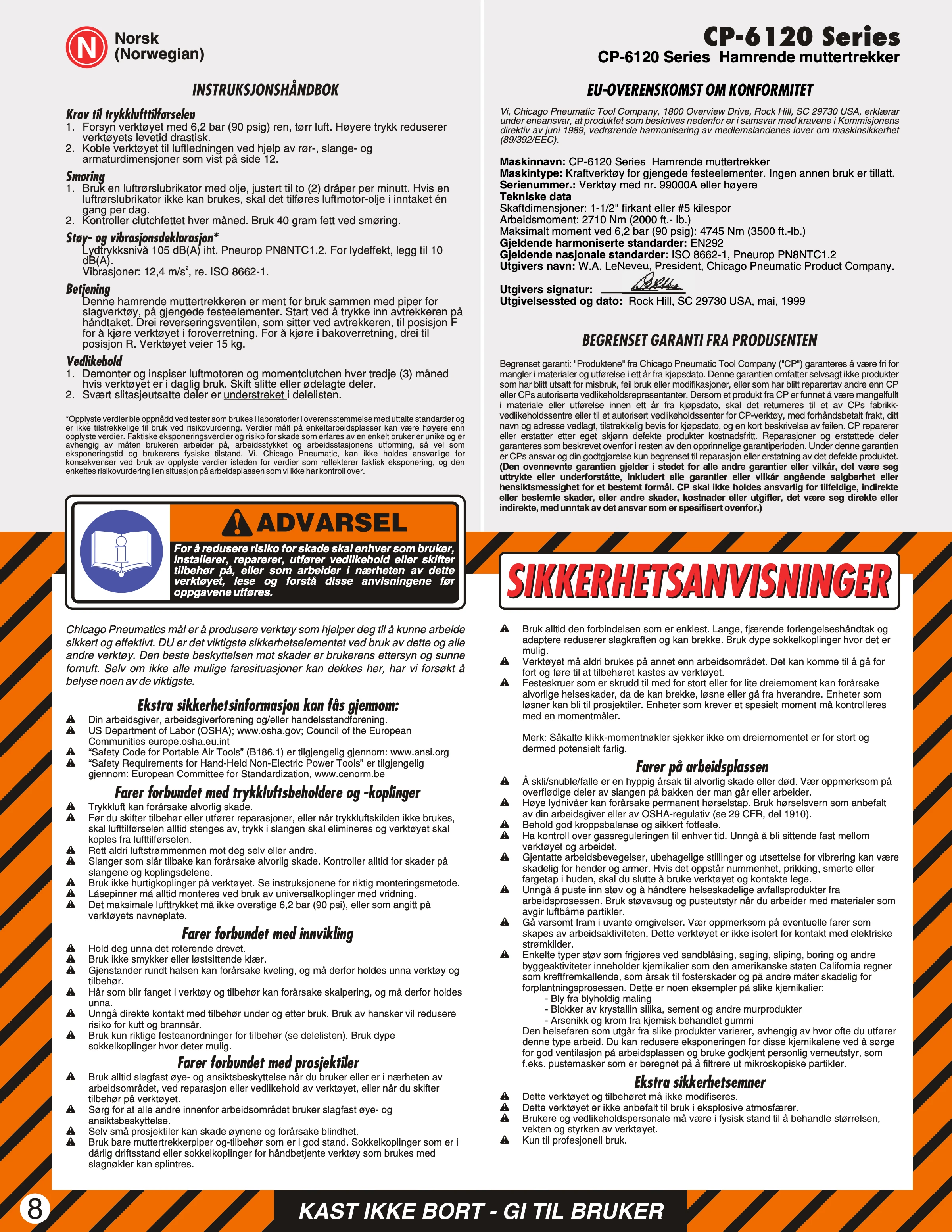

Chicago Pneumatic CP 6120 PDF page 8 of 13 — Page 8 of 13

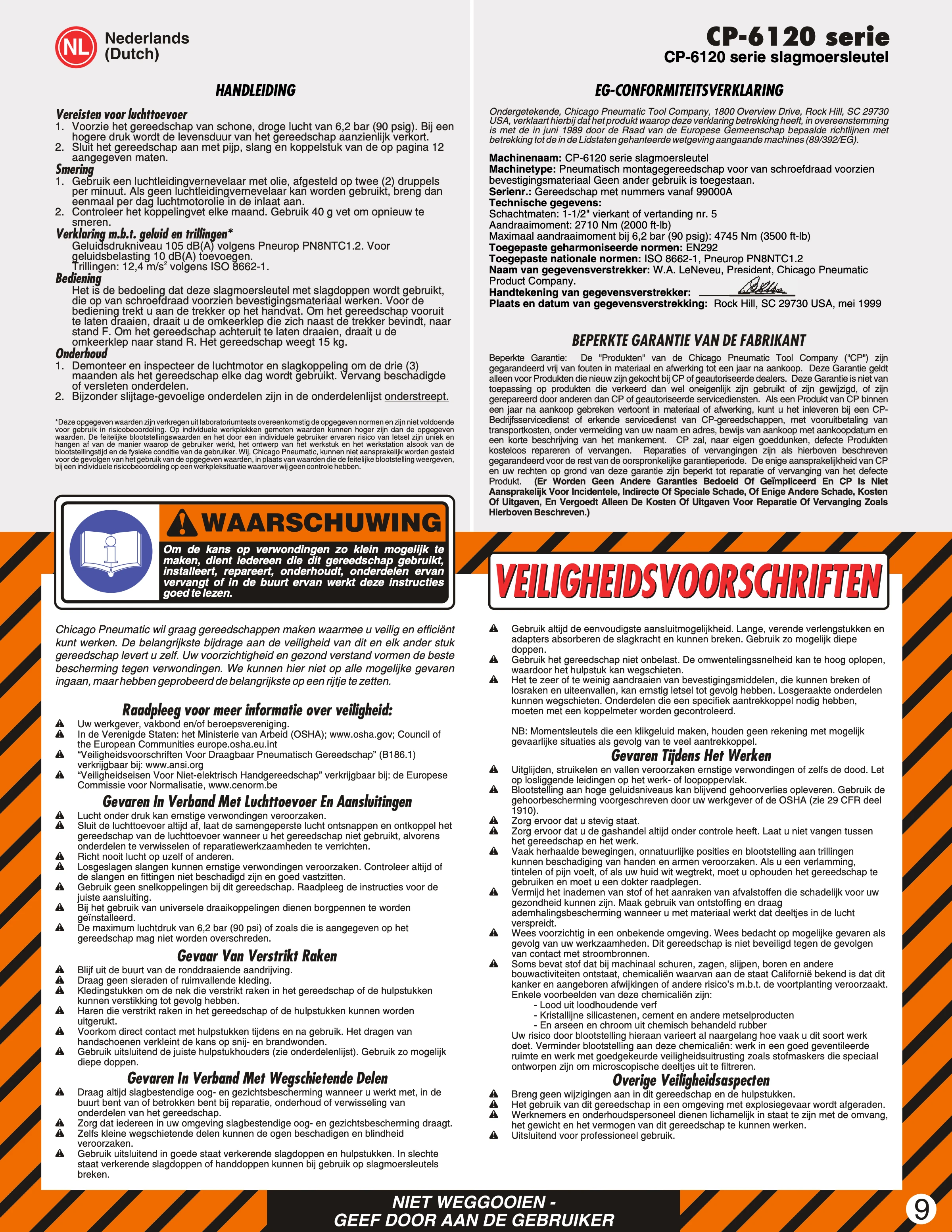

Chicago Pneumatic CP 6120 PDF page 9 of 13 — Page 9 of 13

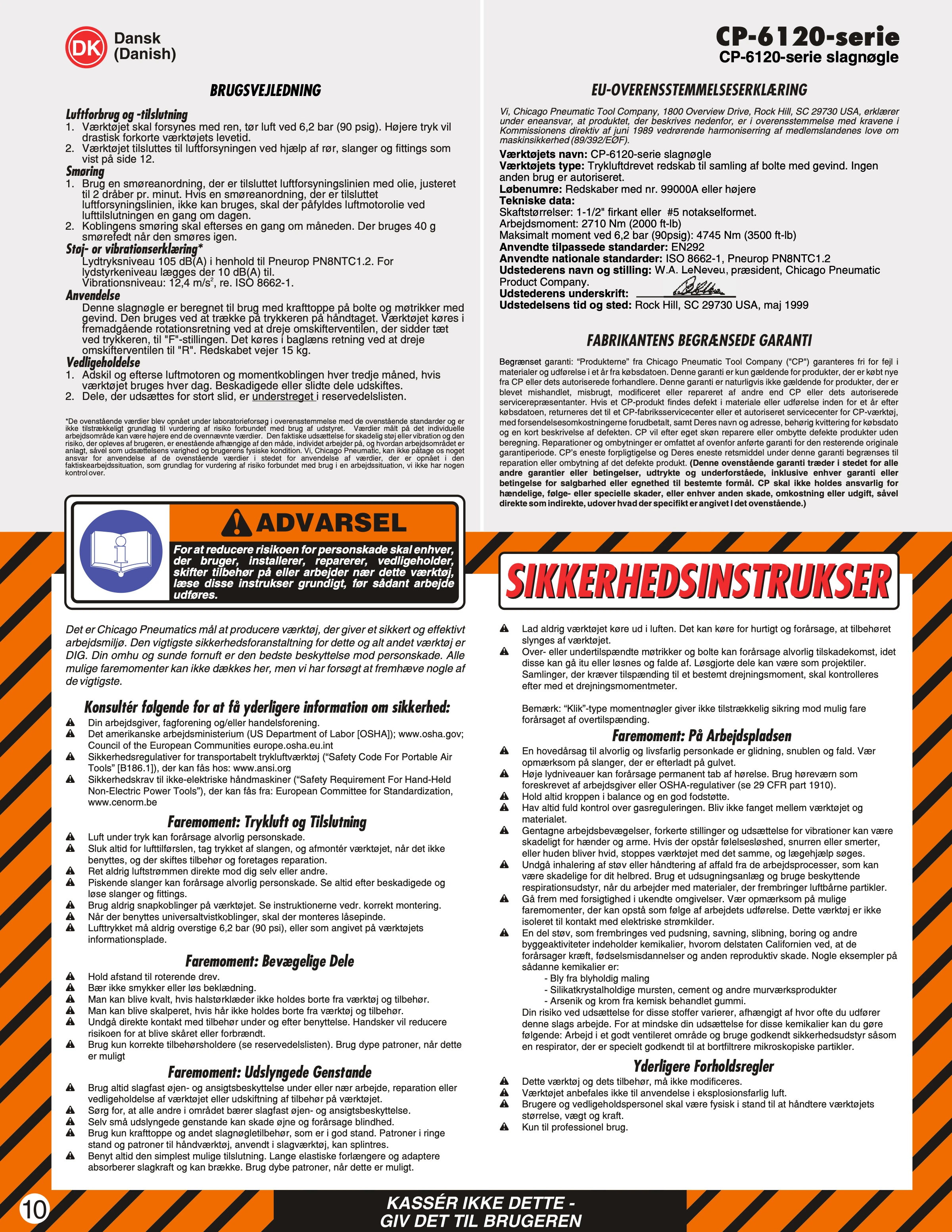

Chicago Pneumatic CP 6120 PDF page 10 of 13 — Page 10 of 13

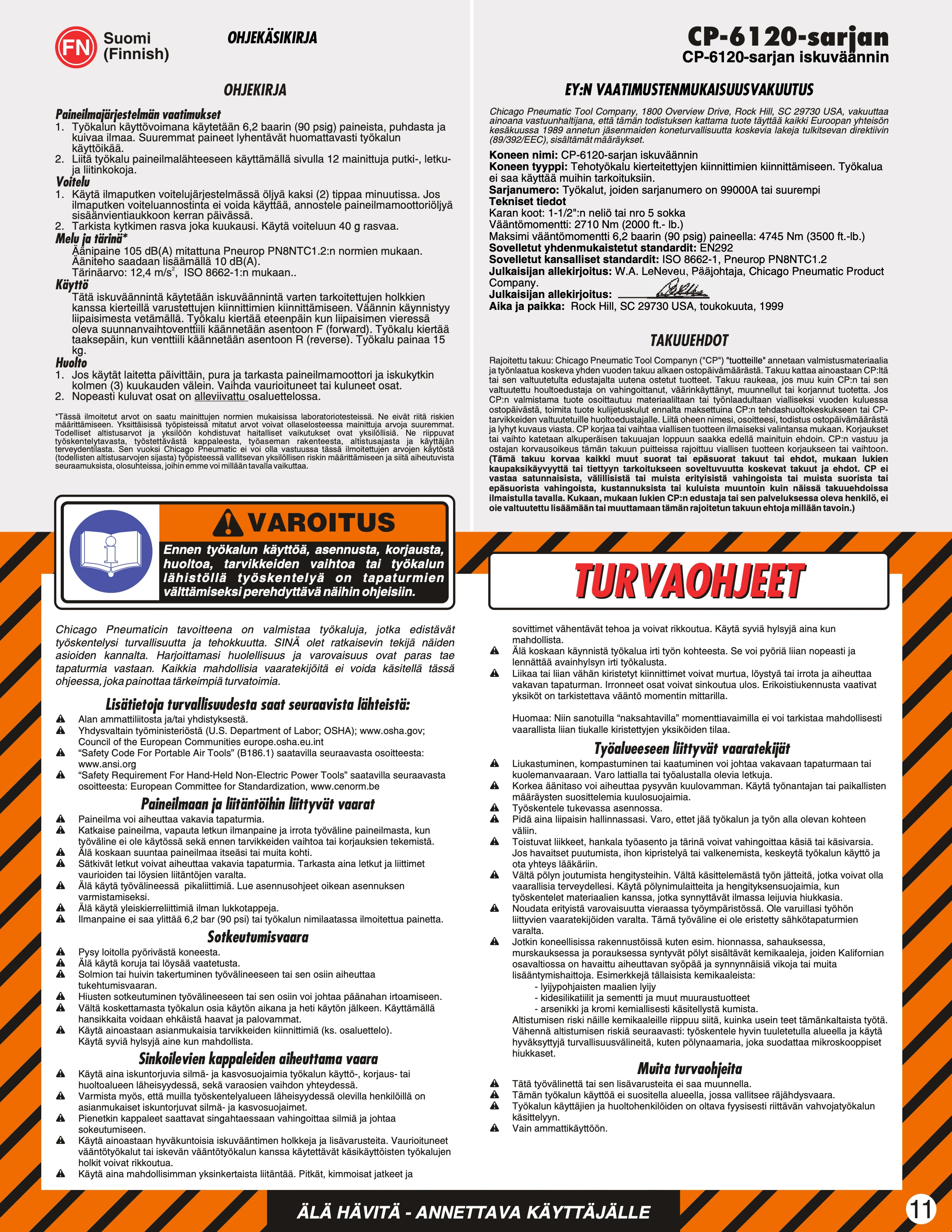

Chicago Pneumatic CP 6120 PDF page 11 of 13 — Page 11 of 13

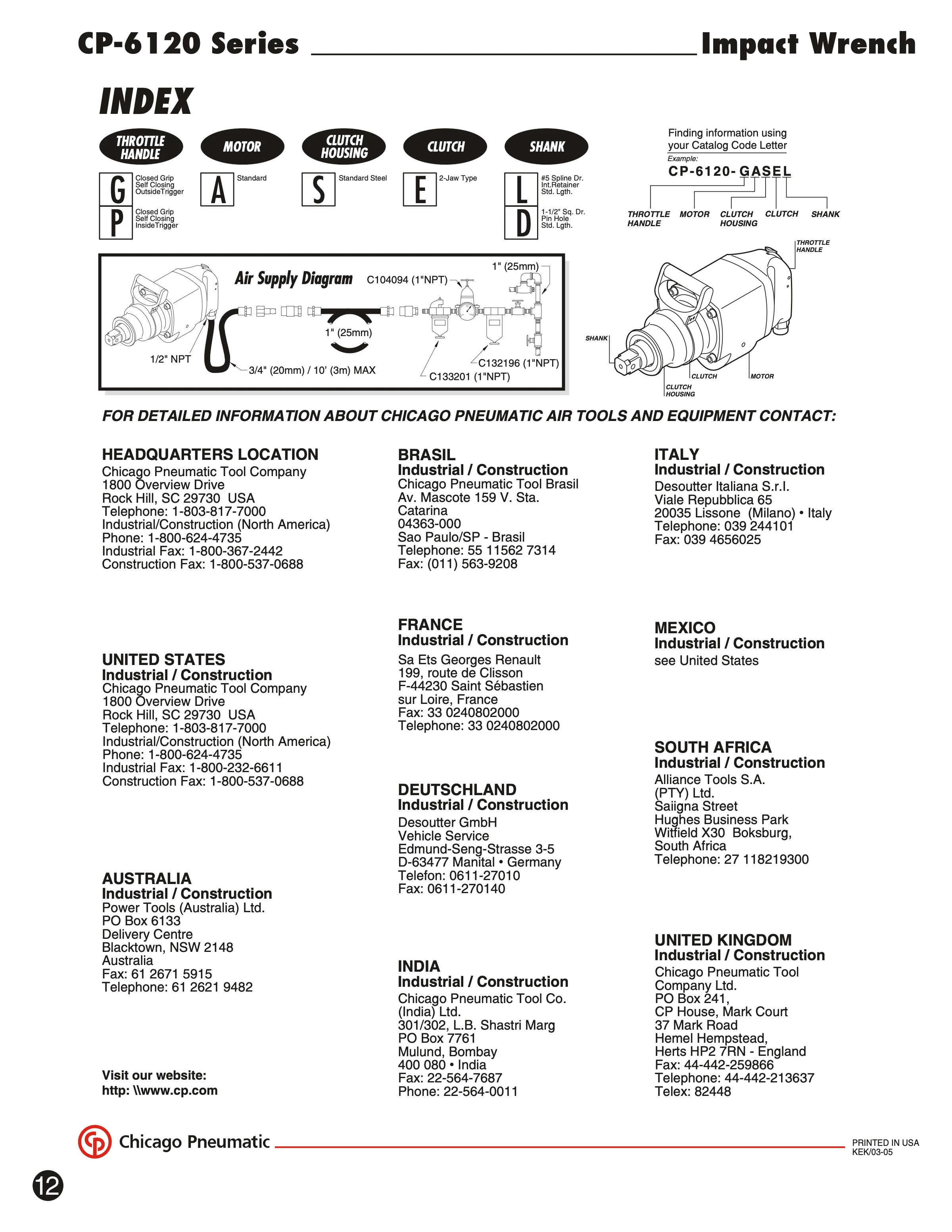

Chicago Pneumatic CP 6120 PDF page 12 of 13 — Page 12 of 13

Chicago Pneumatic CP 6120 PDF page 13 of 13 — Page 13 of 13
