Match the model and version on the drawing to your tool. Include the part number or diagram callout when requesting a quote.
All 25 PDF pages appear below. Scroll inside the drawing to see each page, or open the original PDF ↗ for searchable text and full-resolution detail.
Fit drawing. Pinch to zoom on touchscreens.

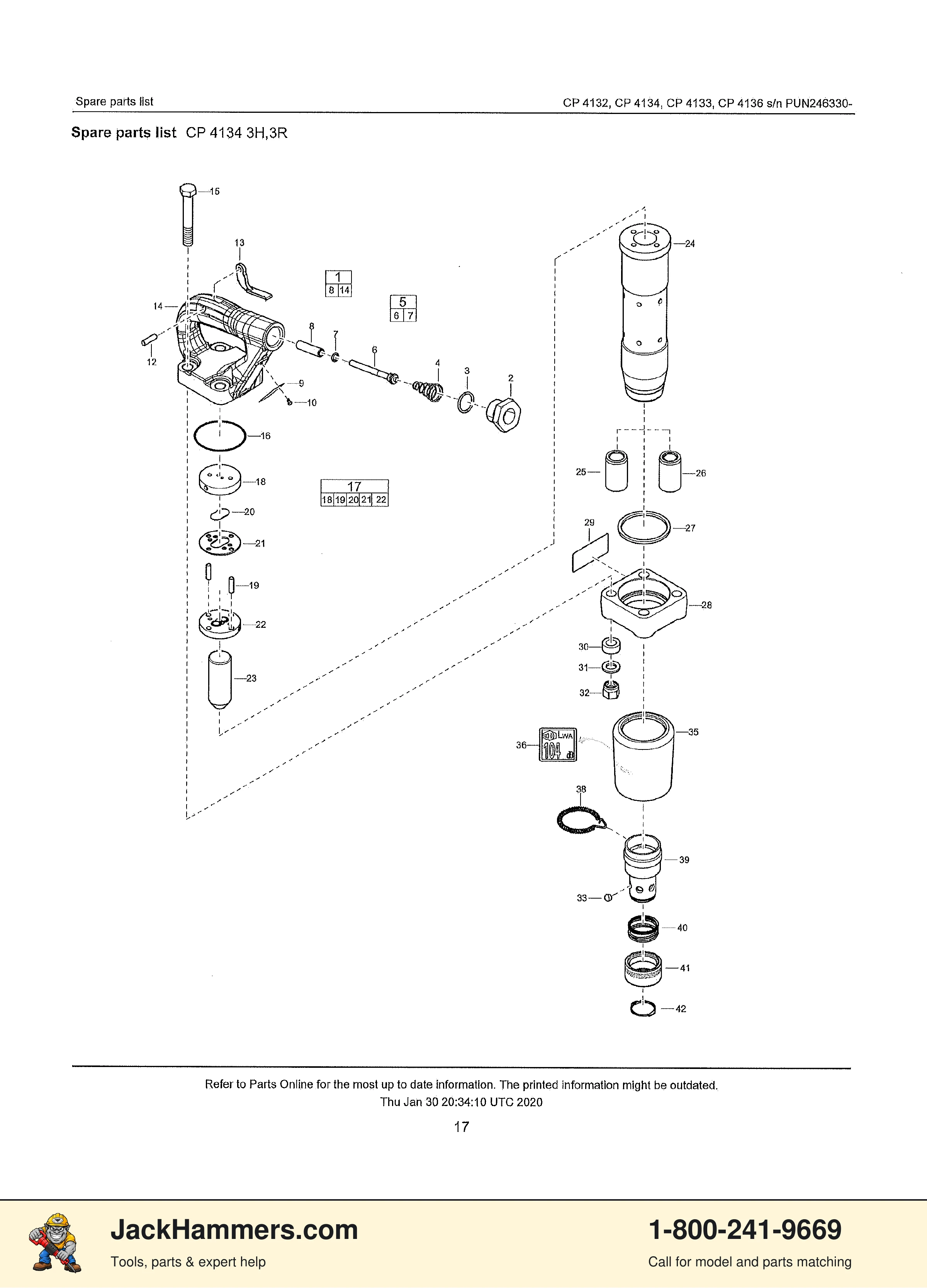

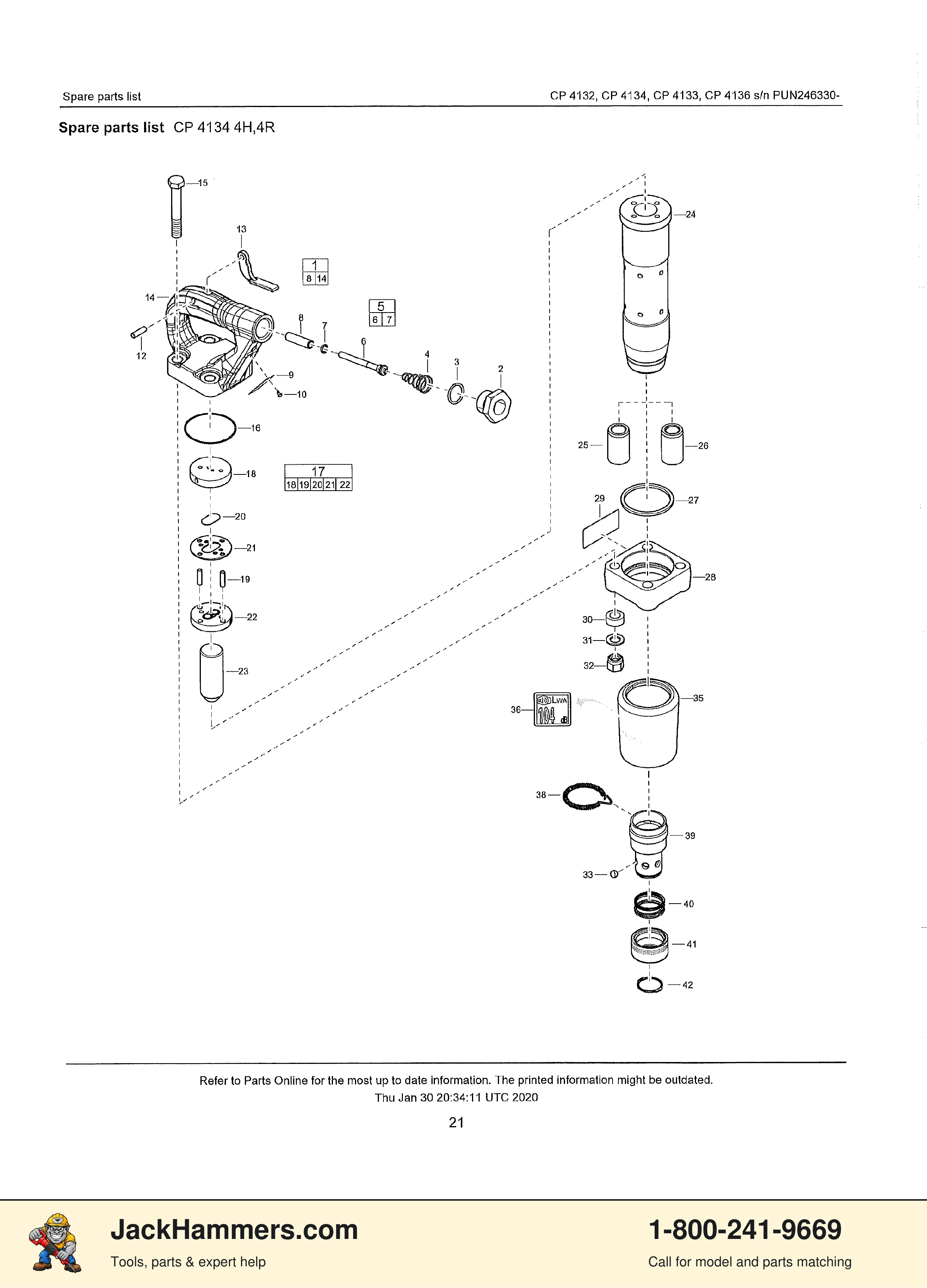

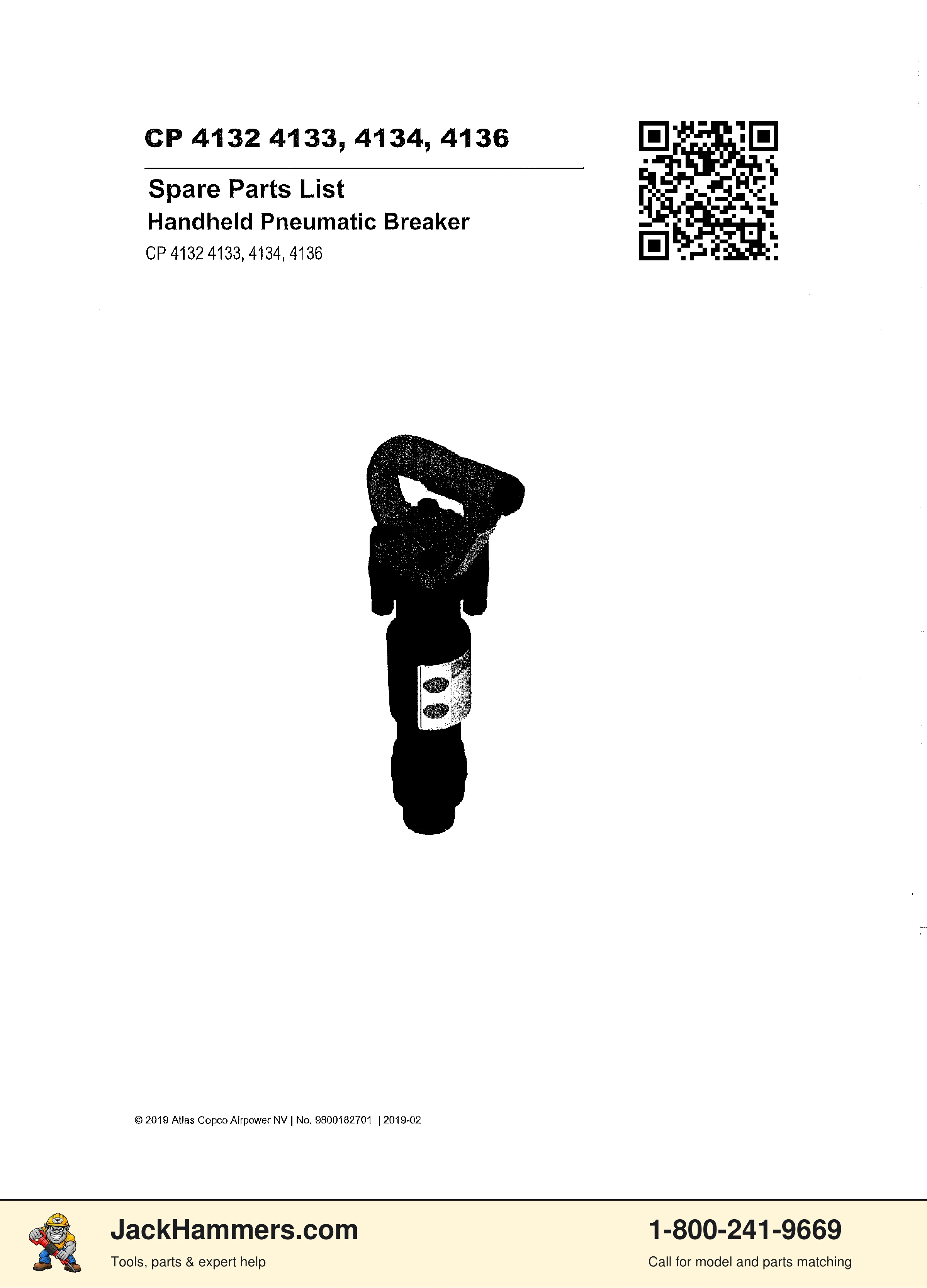

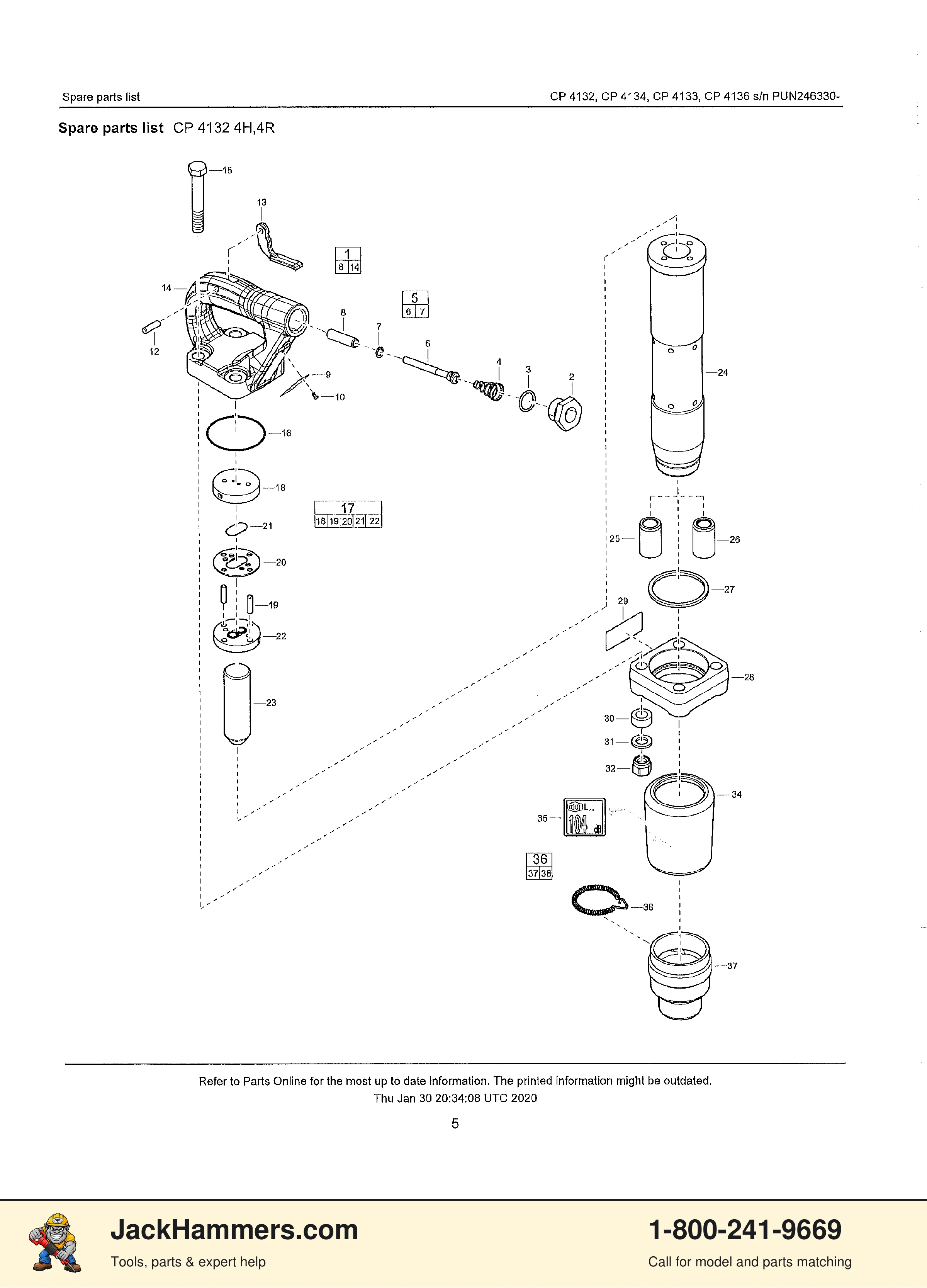

Page 1 of 25Page 2 of 25Page 3 of 25Page 4 of 25Page 5 of 25Page 6 of 25Page 7 of 25Page 8 of 25Page 9 of 25Page 10 of 25Page 11 of 25Page 12 of 25Page 13 of 25Page 14 of 25Page 15 of 25Page 16 of 25Page 17 of 25Page 18 of 25Page 19 of 25Page 20 of 25Page 21 of 25Page 22 of 25Page 23 of 25Page 24 of 25Page 25 of 25
