Match the model and version on the drawing to your tool. Include the part number or diagram callout when requesting a quote.
All 21 PDF pages appear below. Scroll inside the drawing to see each page, or open the original PDF ↗ for searchable text and full-resolution detail.
Fit drawing. Pinch to zoom on touchscreens.

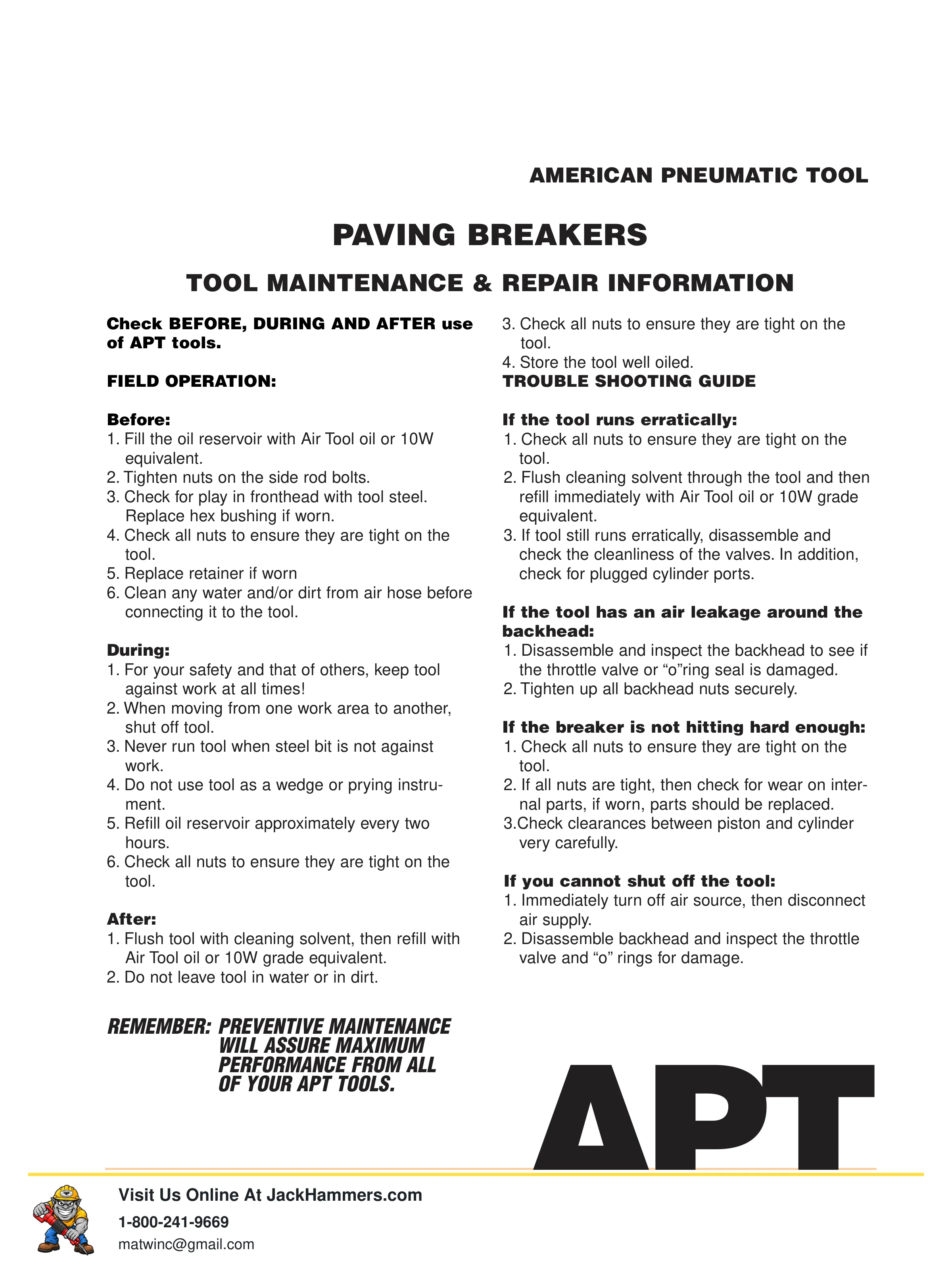

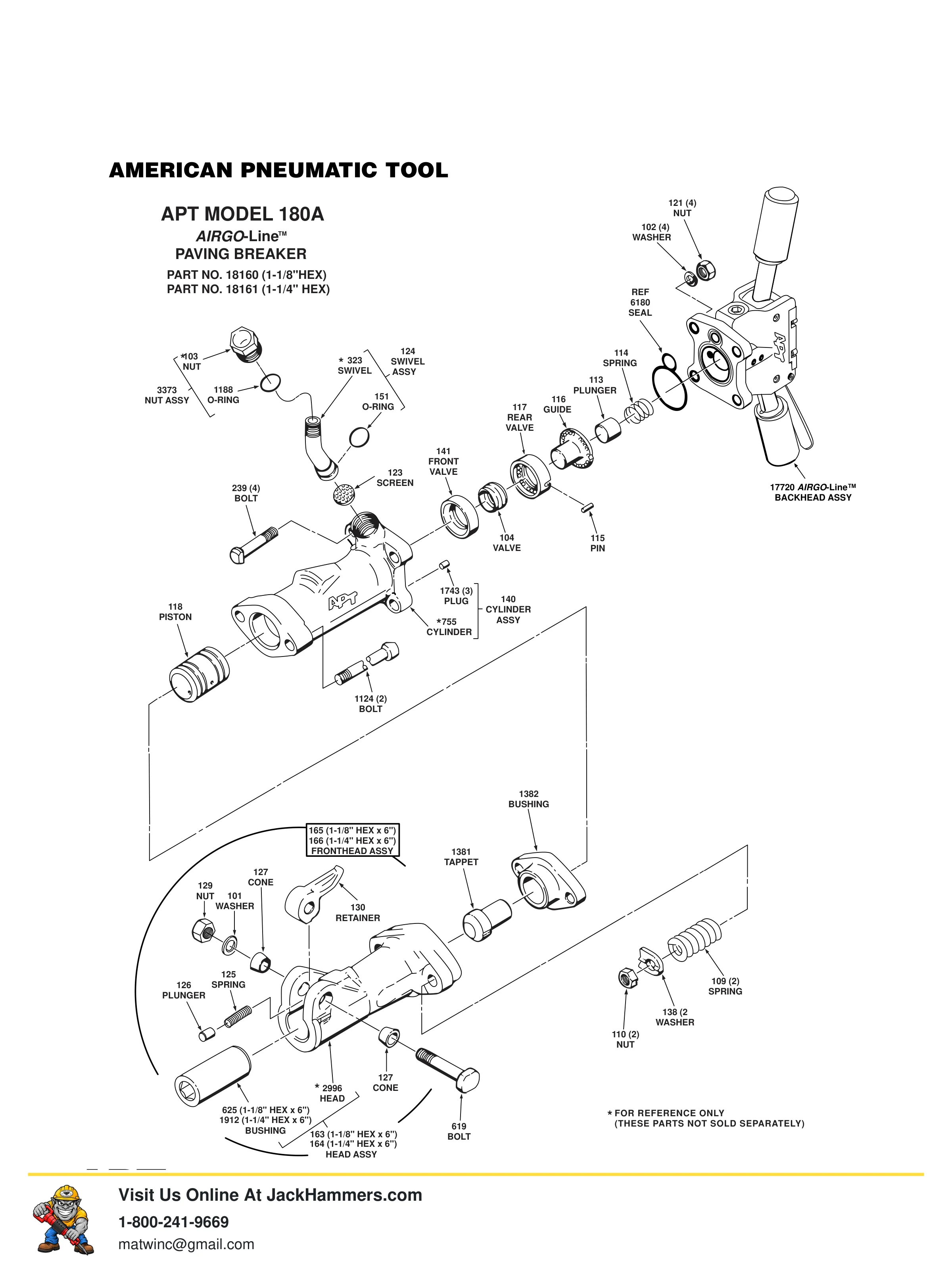

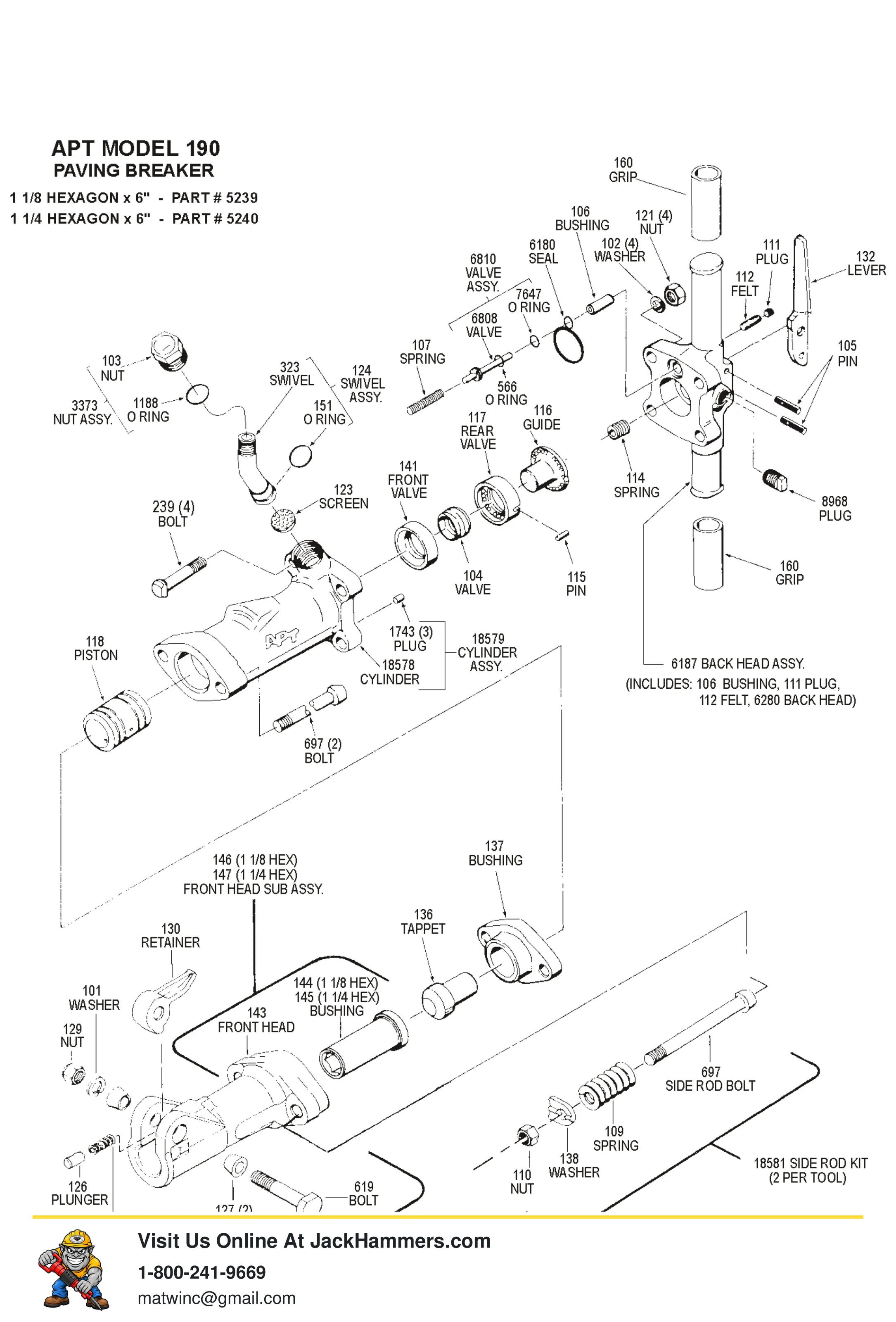

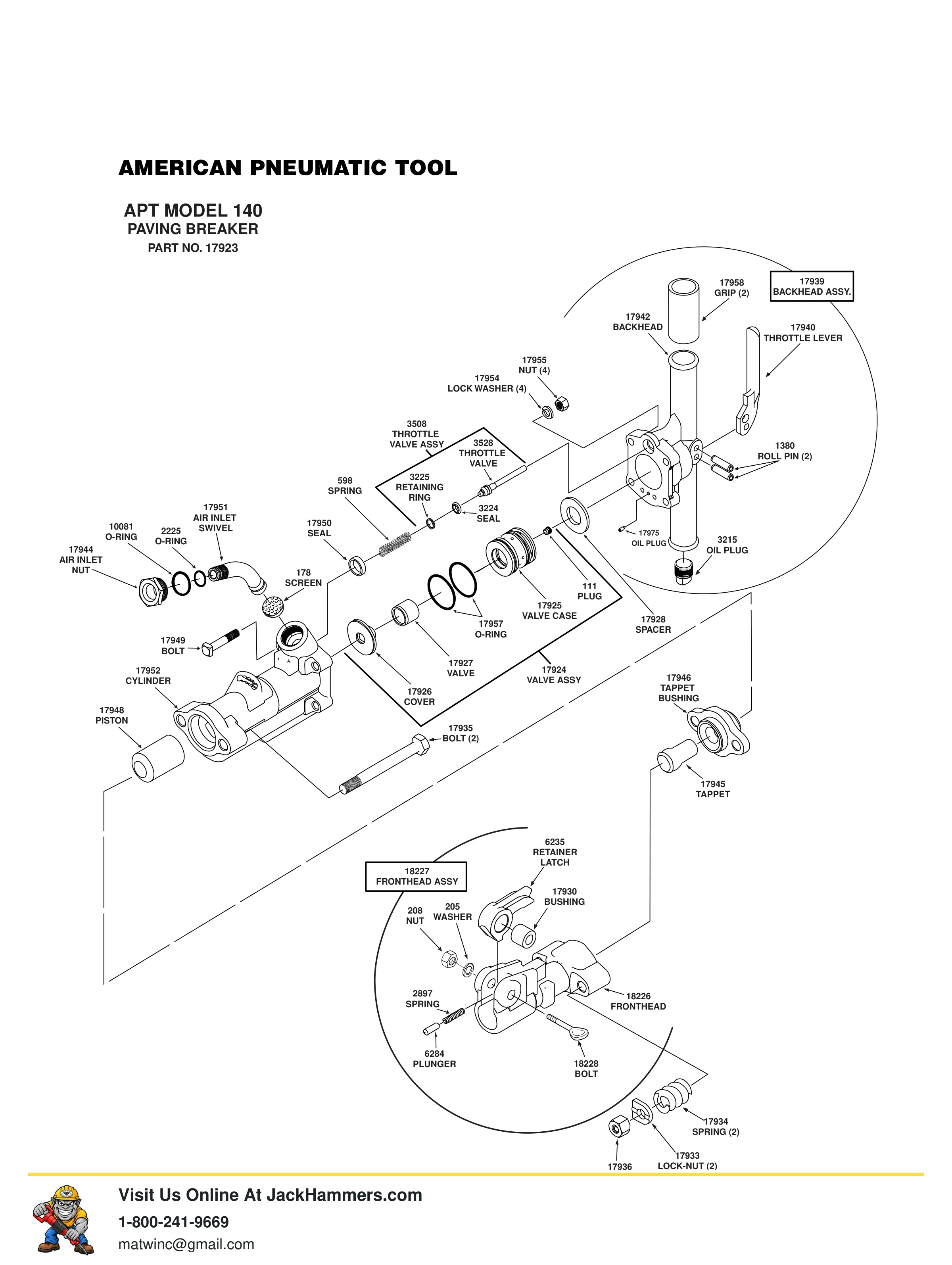

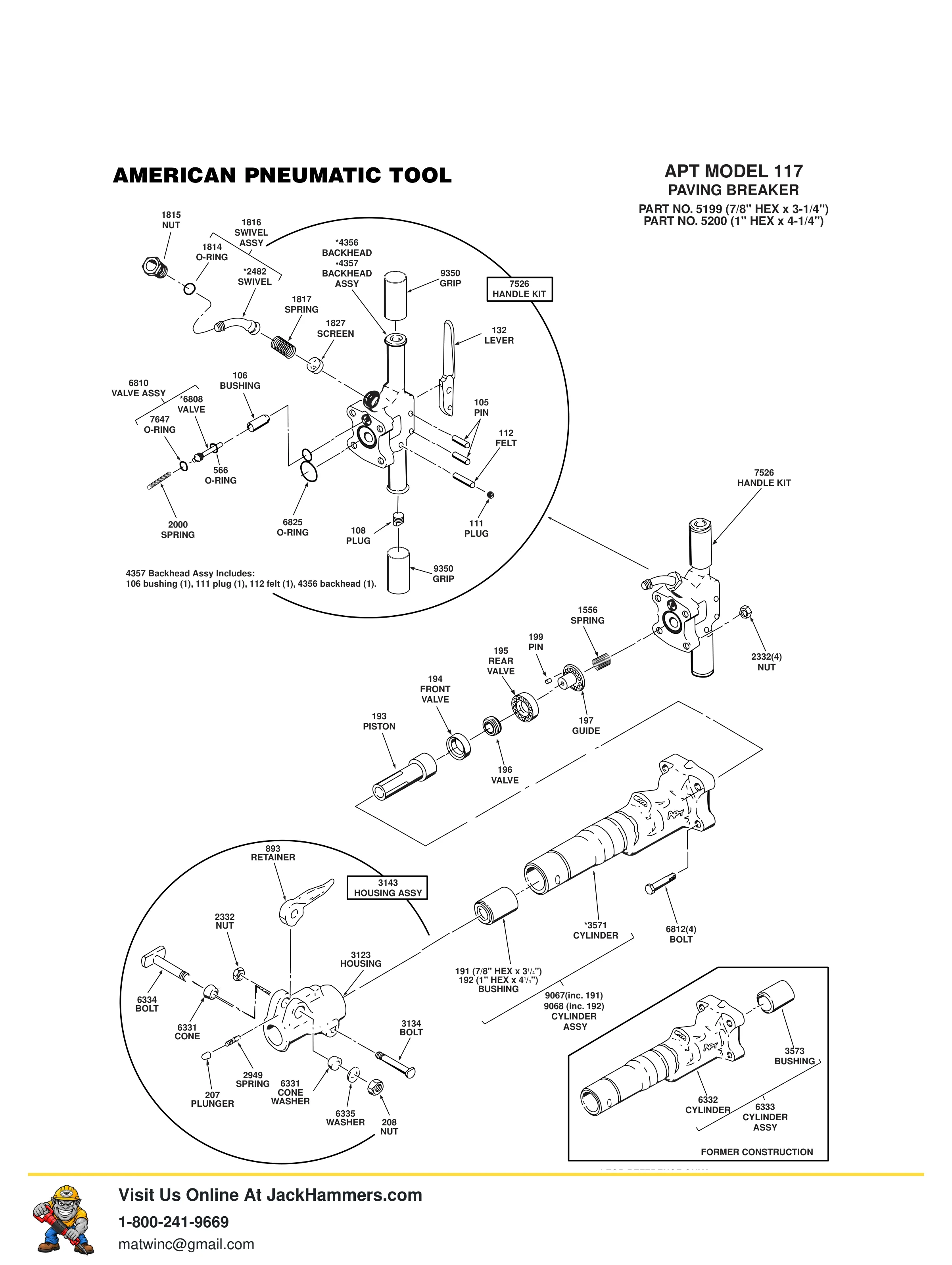

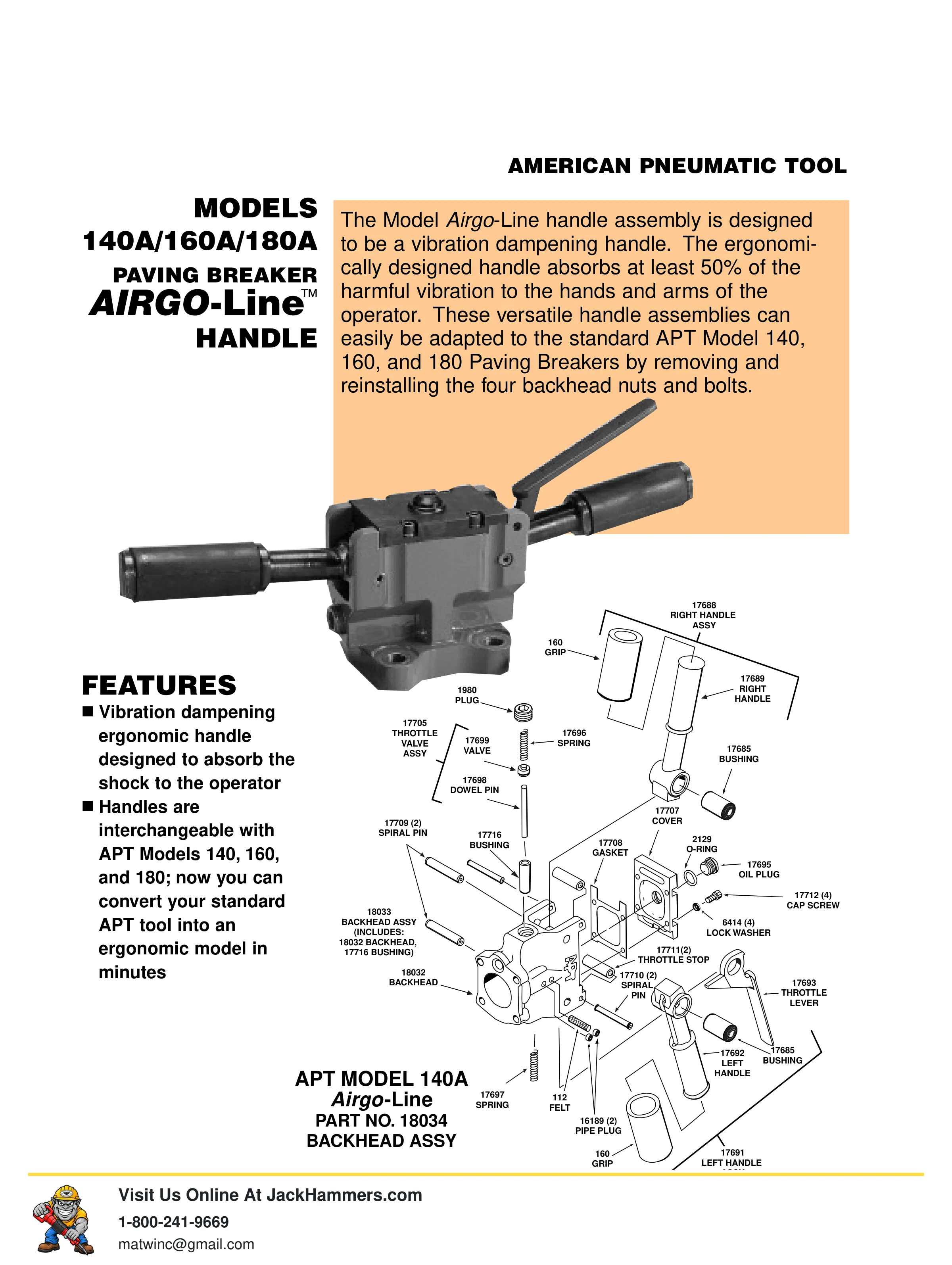

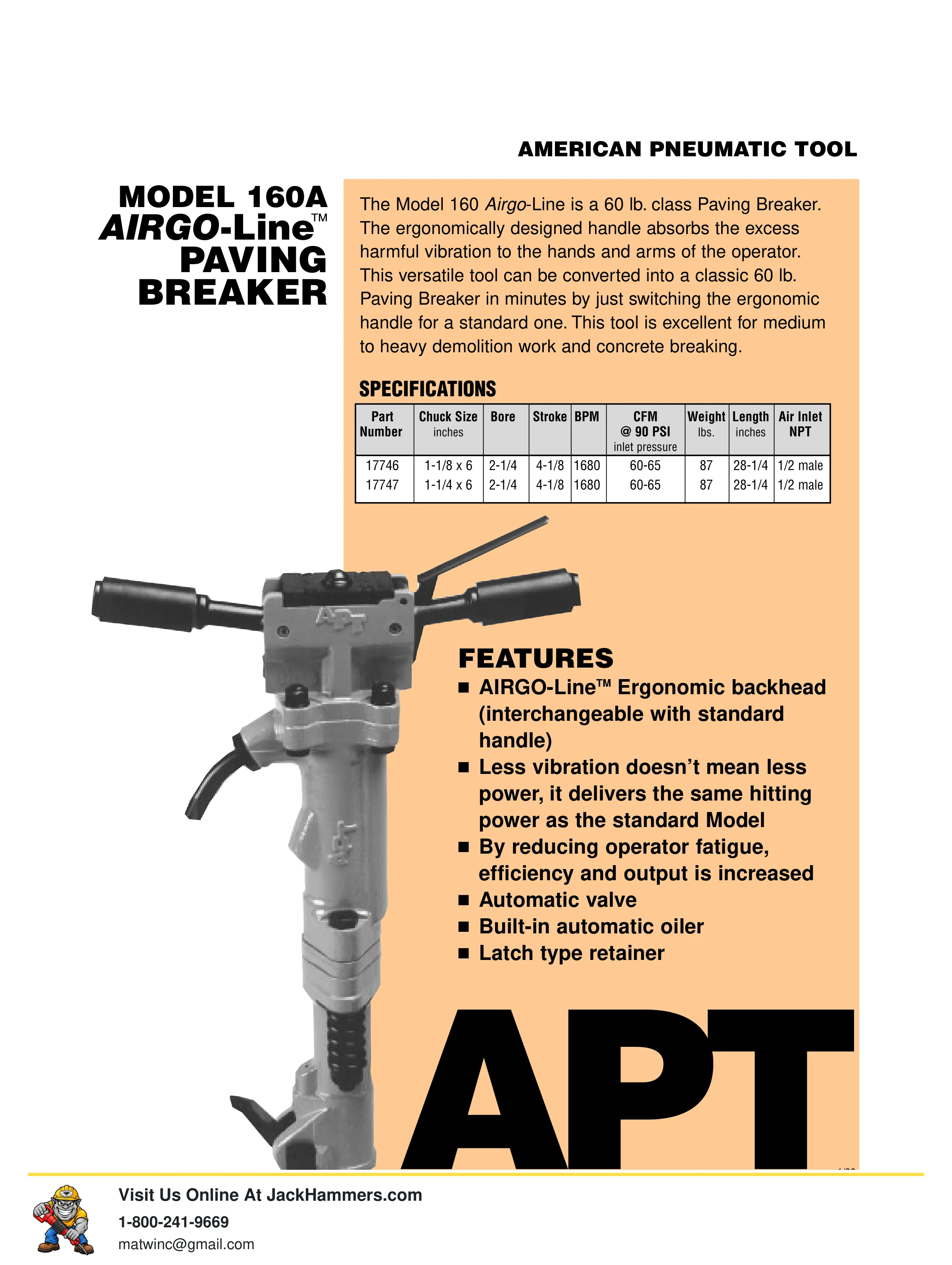

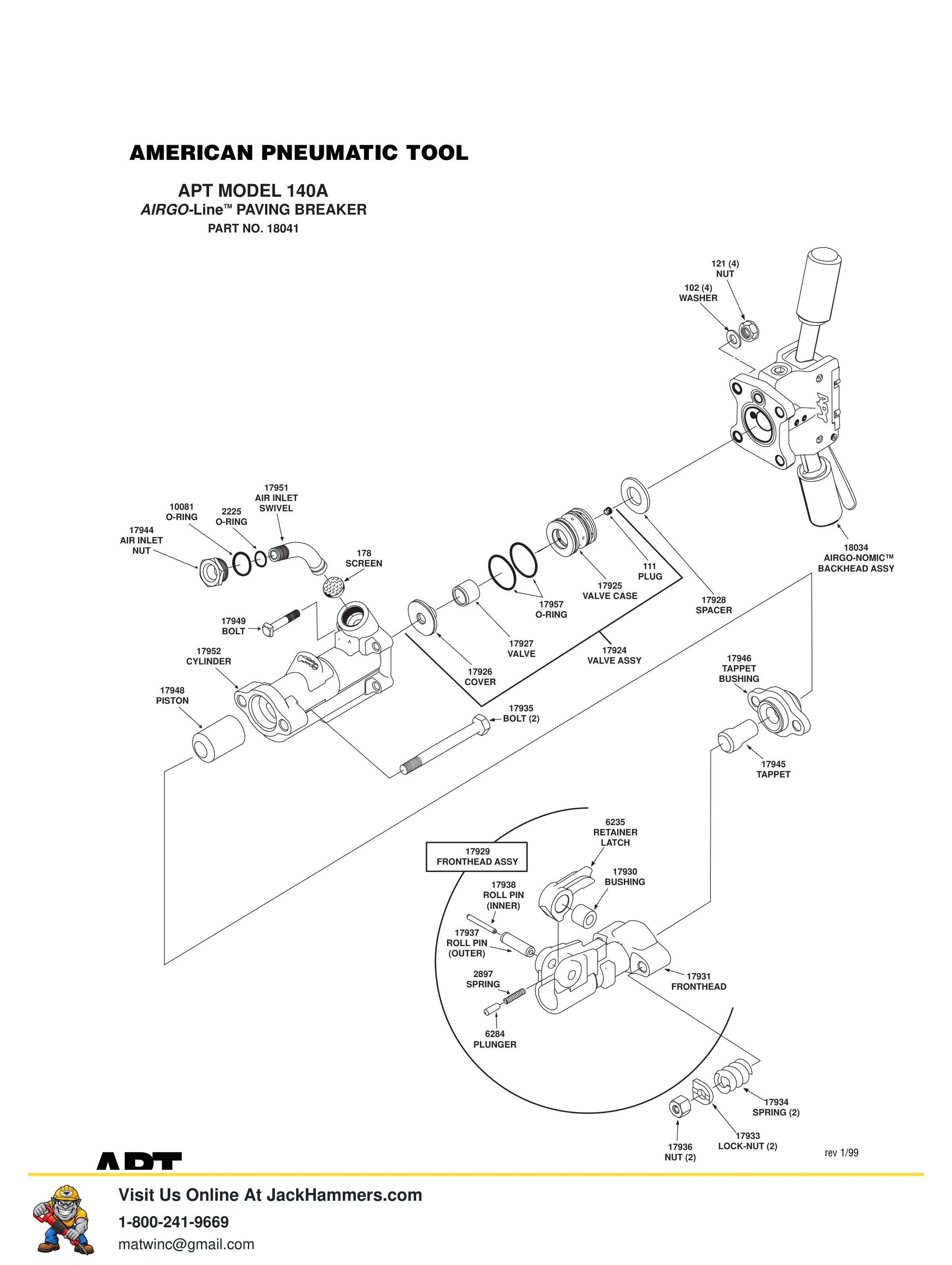

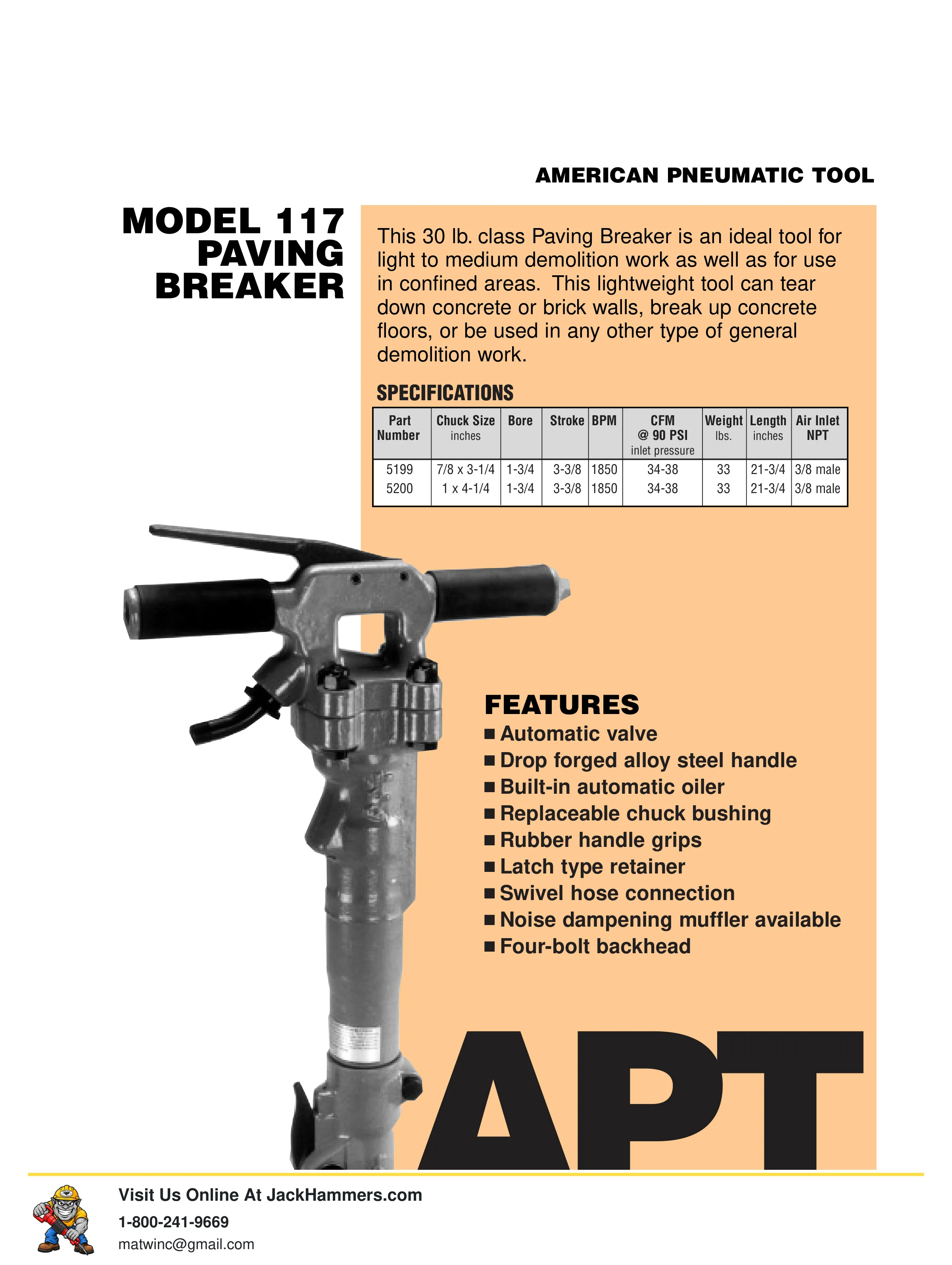

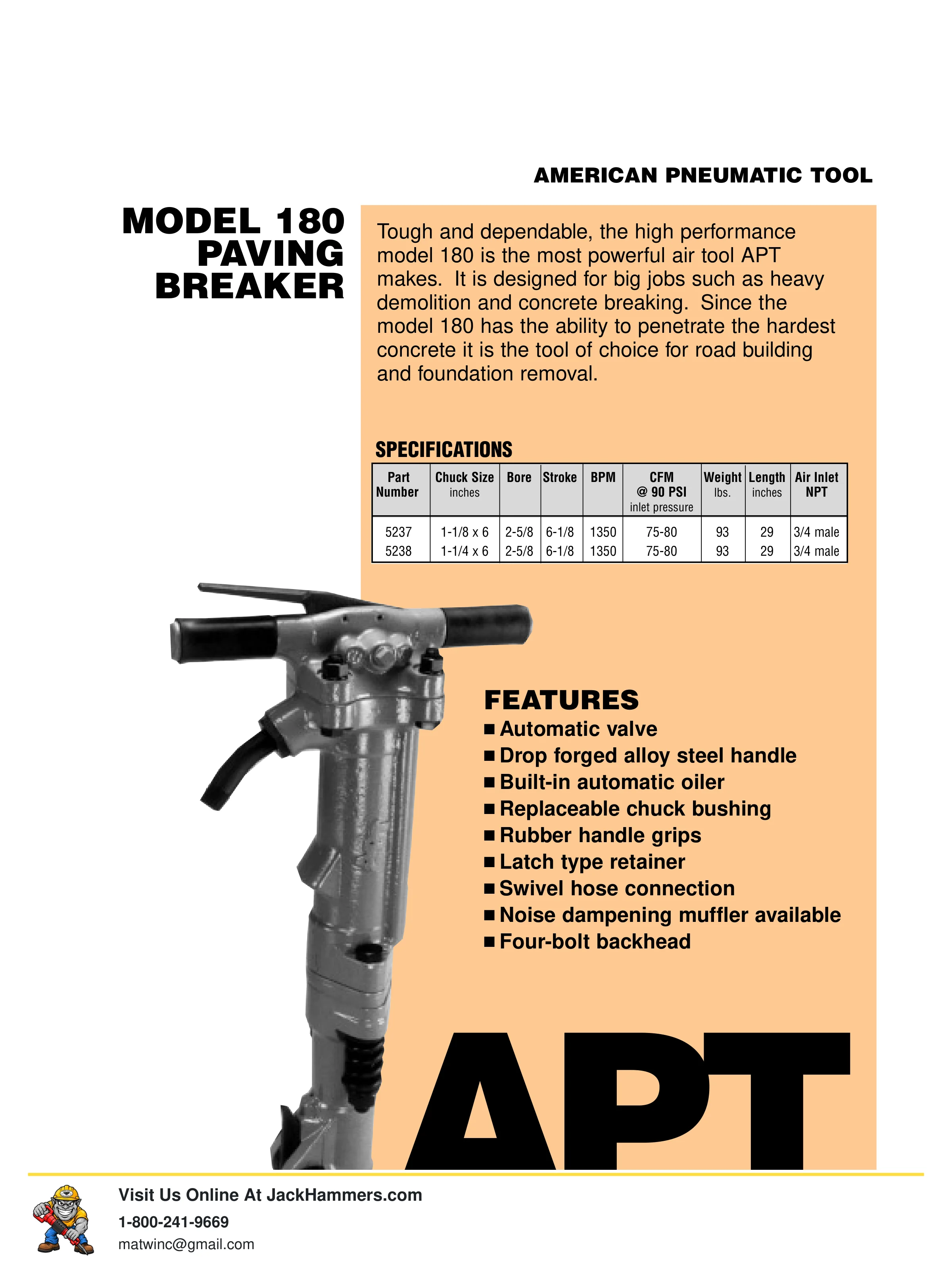

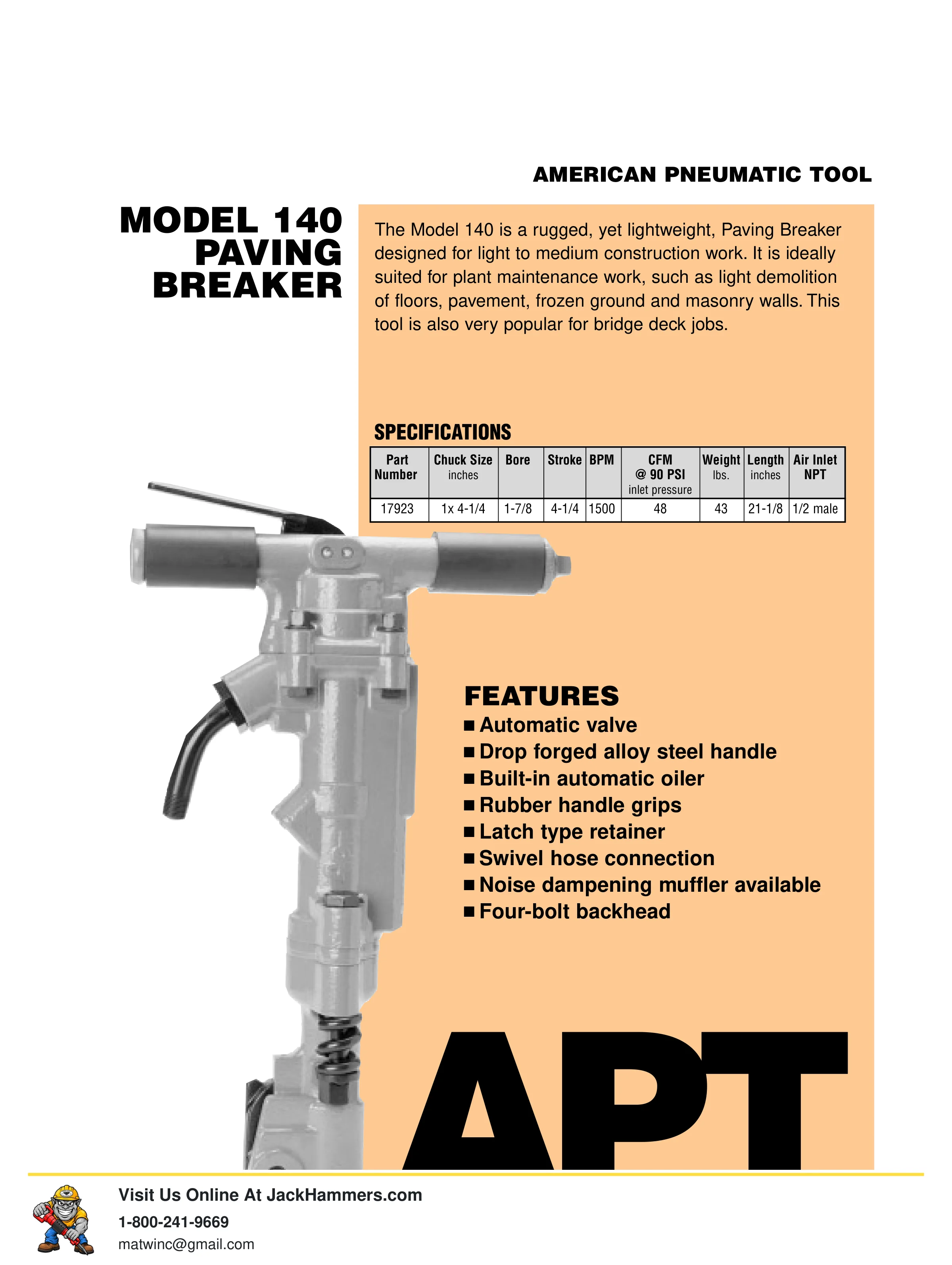

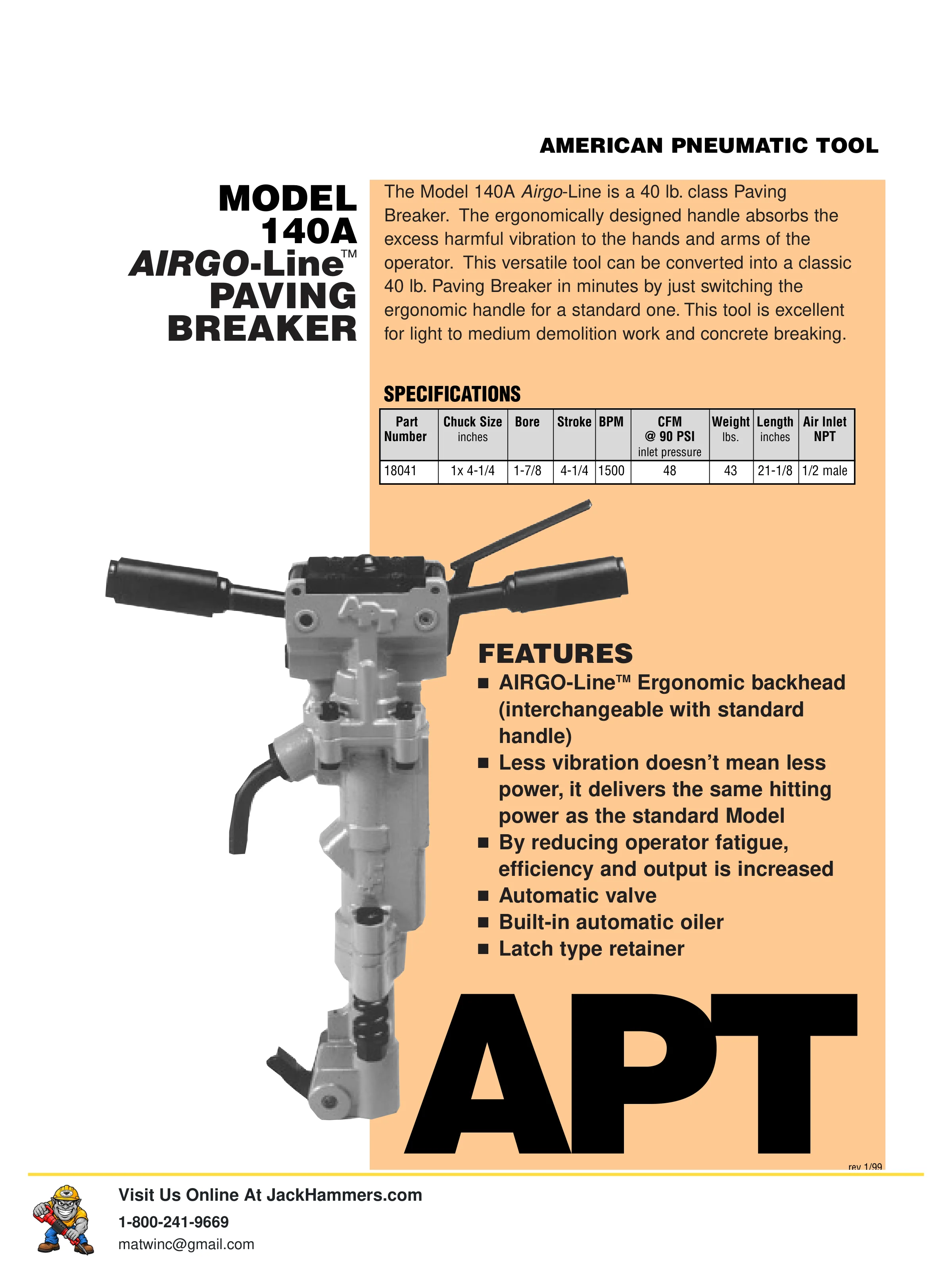

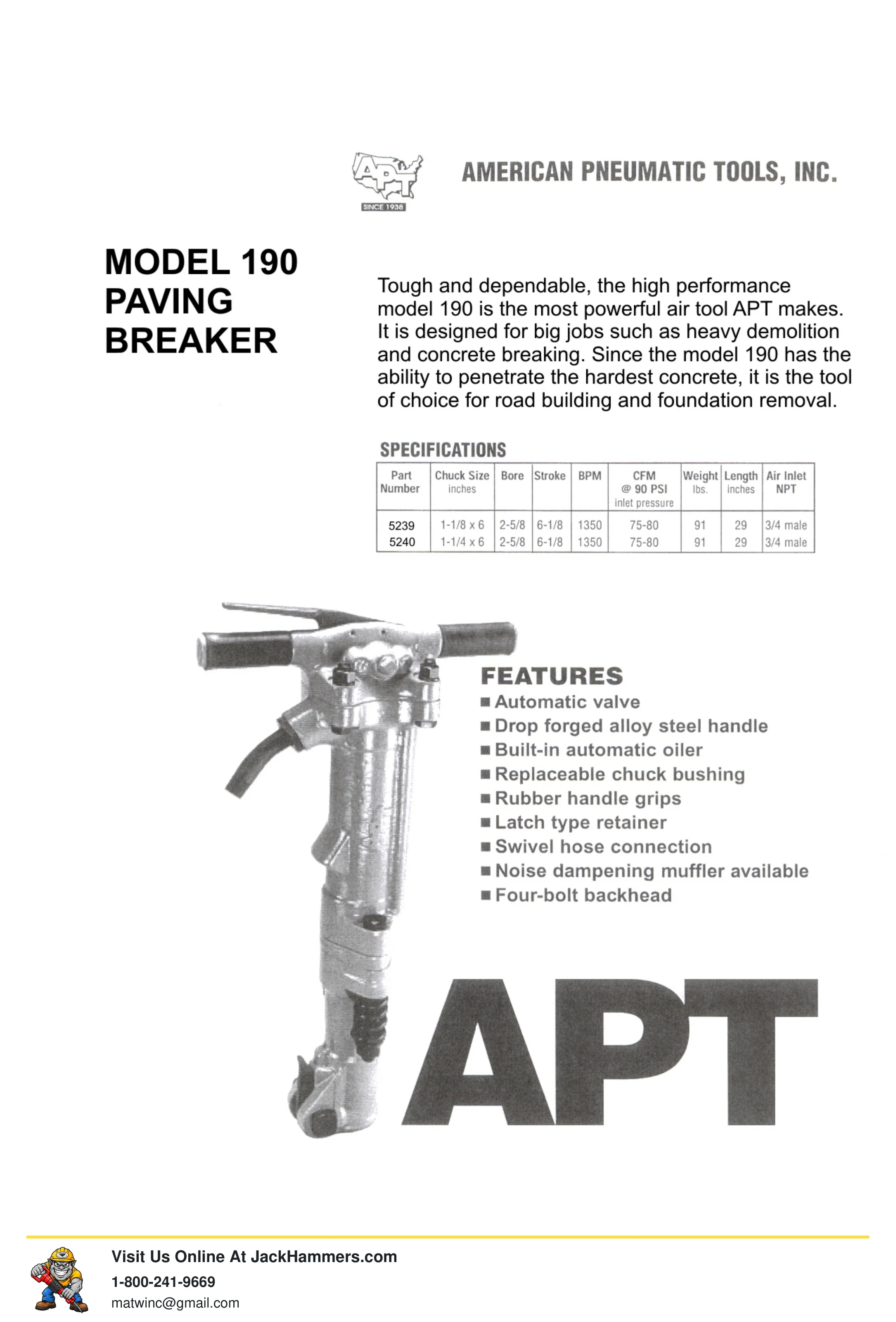

Page 1 of 21Page 2 of 21Page 3 of 21Page 4 of 21Page 5 of 21Page 6 of 21Page 7 of 21Page 8 of 21Page 9 of 21Page 10 of 21Page 11 of 21Page 12 of 21Page 13 of 21Page 14 of 21Page 15 of 21Page 16 of 21Page 17 of 21Page 18 of 21Page 19 of 21Page 20 of 21Page 21 of 21
