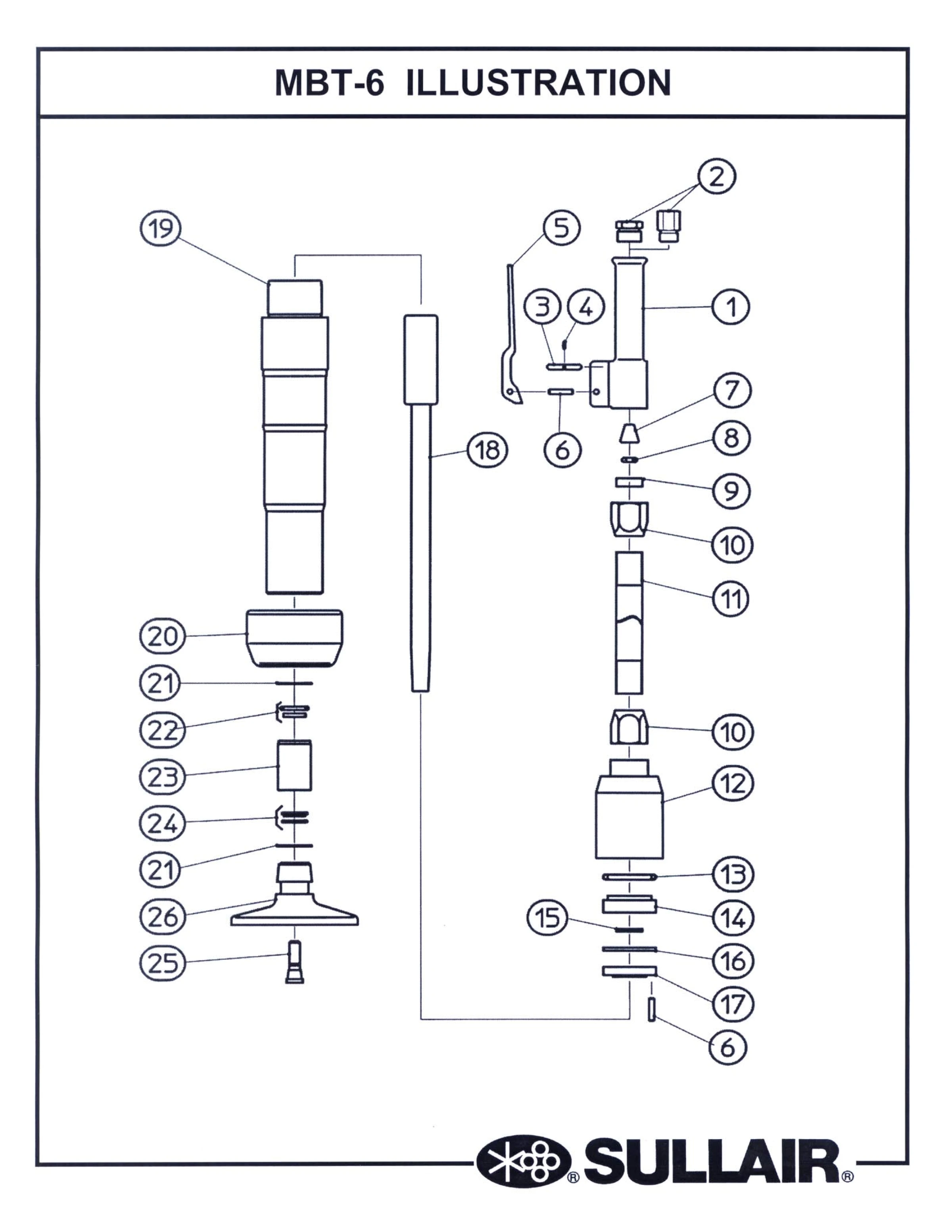

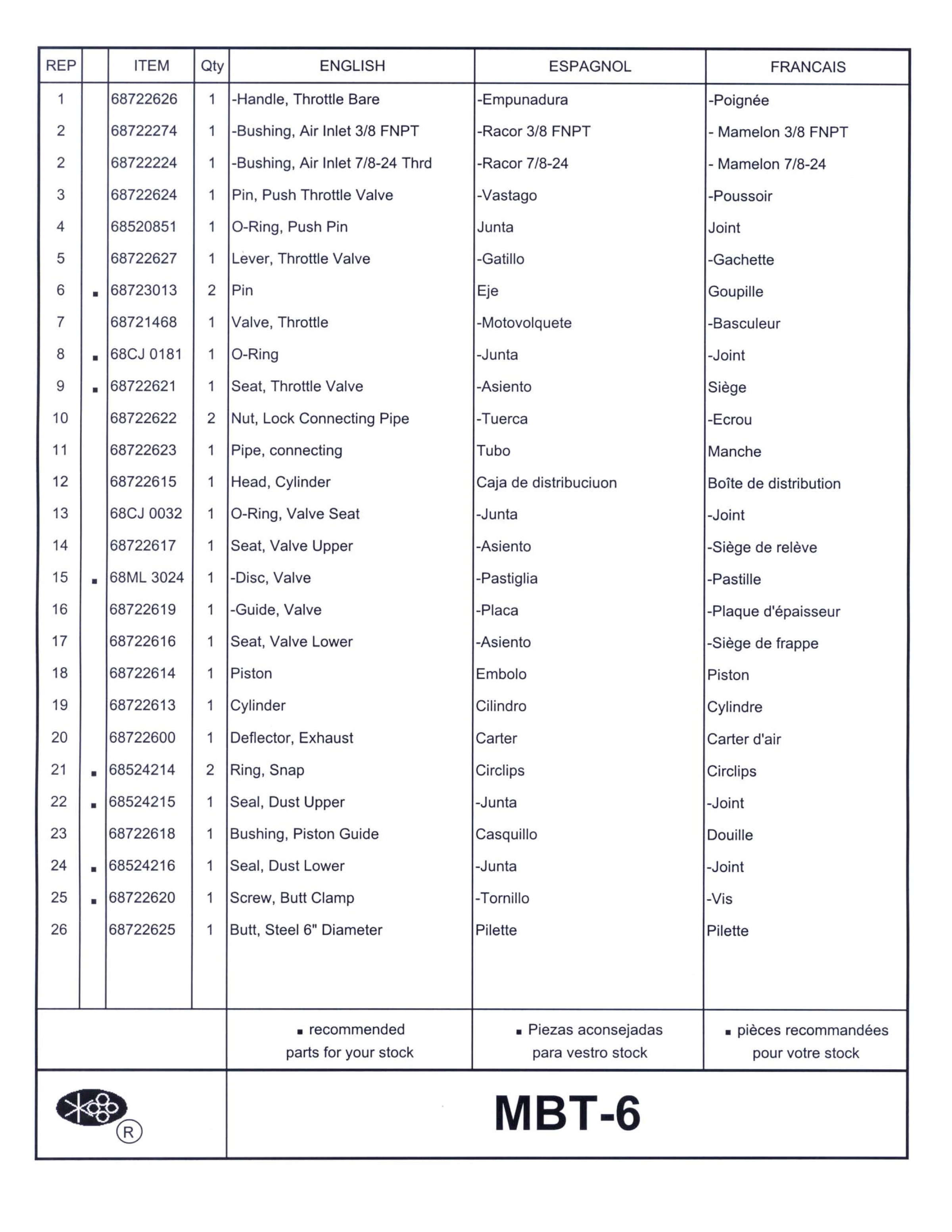

Match the model and version on the drawing to your tool. Include the part number or diagram callout when requesting a quote.

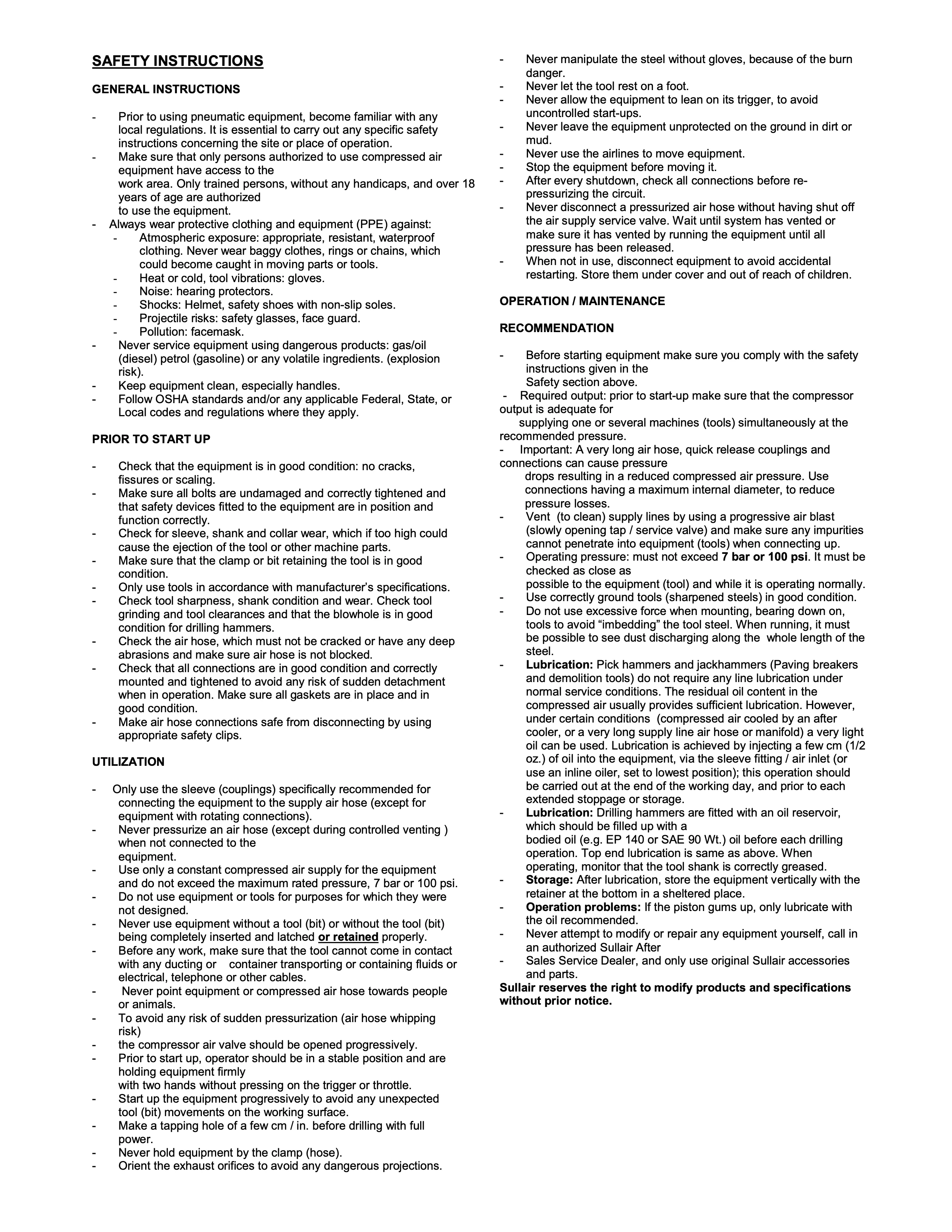

All 9 PDF pages appear below. Scroll inside the drawing to see each page, or open the original PDF ↗ for searchable text and full-resolution detail.
Fit drawing. Pinch to zoom on touchscreens.
