Airrex

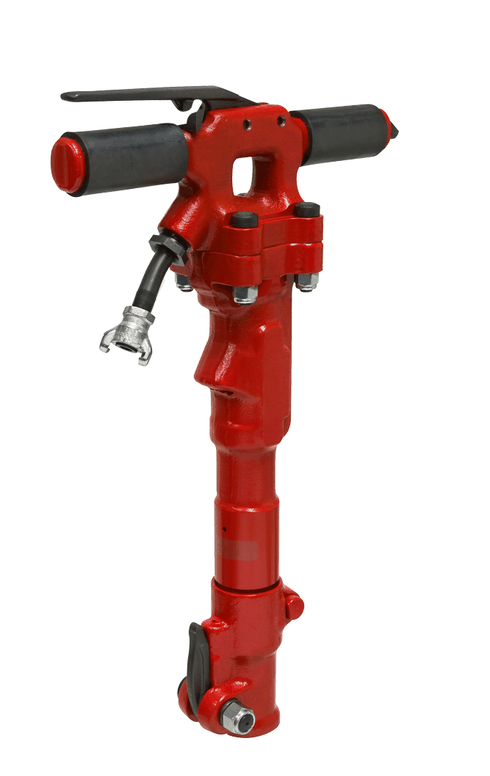

T117 Paving Breaker
This 30 lb class Paving Breaker is an ideal tool for light to medium demolition work as well as use in confined areas.
Complete tool: T117-78Tool part # T117-78
7/8" x 3-1/4" HEX (A)
Your BEST price is just a call away.
Adds the complete tool shown above—not an individual replacement part. Add more tools to build one quote request, then review your quote list.
1-800-241-9669
Need help with a model or part? Talk to Mining Auger & Tool Works.
Technical Specs
| Model | T-117-78 | T-117-100 |
|---|---|---|
| Weight | 33 lbs. | 33 lbs. |
| Length | 21-3/4" | 21-3/4" |
| Bore | 1-3/4" | 1-3/4" |
| Stroke | 3-3/8" | 3-3/8" |
| Blows/min | 1850 | 1850 |
| Air Con | 38cfm | 38cfm |
| PSI | 90psi | 90psi |
| Chuck | 7/8" x 3-1/4" | 1 x 4-1/4" |
Complete tool configurations
Match the model, shank and part number. These are complete tools, not replacement parts.
| Model | Shank / Details | Part Number | Quote |
|---|---|---|---|
| T117-78 | 7/8" x 3-1/4" HEX (A) | T117-78 | |
| T117-100 | 1" x 4-1/4" HEX (C) | T117-100 |
Accessory Tools
Match the shank, collar and size to your tool. Each button adds that individual accessory to your quote list.
| Tool | Length under collar (in.) | Details |  7/8" × 3-1/4" shankPart Number & Quote |  1" × 4-1/4" shankPart Number & Quote |
|---|---|---|---|---|
 Asphalt Cutter | 11" | 5" Wide Blade | 78-ac | 100-ac |
 Bushing Tool | 8" | 16 Teeth | 78-bt | 100-bt |
 Clay Spade | 16" | 5-1/2" Wide Blade | 78-cs | 100-cs |
 Digging Chisel | 16" | 3" Wide Blade | 78-dc | 100-dc |
 Pin Driver | 8" | Socket: 3/8" Deep x 1-3/4" Dia. | 78-sd | 100-sd |
 Frost Wedge | 17" | 2" Wide Blade | 78-fw | 100-fw |
 Ground Rod Driver | — | SOCKET DIAMETER: 11/16" | 78-grd(a) | 100-grd(a) |
| — | Socket diameter13/16" | 78-grd(b) | 100-grd(b) | |
| — | Socket diameter1" | 78-grd(c) | 100-grd(c) | |
| — | Socket diameter1-1/8" | 78-grd(d) | 100-grd(d) | |
 Moil Point | 14" | LONGER LENGTHS AVAILABLE | 78p-14 | 100p-14 |
| 18" | LONGER LENGTHS AVAILABLE | 78p-18 | 100p-18 | |
 Narrow Chisel | 14" | LONGER LENGTHS AVAILABLE | 78c-14 | 100c-14 |
| 18" | LONGER LENGTHS AVAILABLE | 78c-18 | 100c-18 | |
 Wide Chisel | 14" | LONGER LENGTHS AVAILABLE | 78c3-14 | 100c3-14 |
| 18" | LONGER LENGTHS AVAILABLE | 78c3-18 | 100c3-18 | |
 Pipe Driver | 11" | PIPE SIZE: 1" | 78-pd(a) | 100-pd(a) |
| 11" | Pipe size1-1/4" | 78-pd(b) | 100-pd(b) | |
| 11" | Pipe size1-1/2" | 78-pd(c) | 100-pd(c) | |
| 11" | Pipe size2" | 78-pd(d) | 100-pd(d) | |
 Rock Buster | 13" | Taper Range: 1-1/4" to 2-1/4" Dia | 78-rb | 100-rb |
 Splitting Wedge | 17-1/2" | Drill Hole Size 2 x 12" Deep | 78-sw | 100-sw |
 Detachable Shank | 7-3/4" | FOR USE WITH: TAMPER PAD TENT STAKE DRIVER SHEATHING DRIVER | 78-ds | 100-ds |
| Separate attachments — use with a detachable shank. Confirm the holder and fit. | ||||
 Tamping Pad | — | 6" SQUARE | tps-6 | |
| — | 8" SQUARE | tps-8 | ||
| — | 7" ROUND | tpr-7 | ||
 Tent Stake Driver | — | 2" | tsd-200 | |
| — | 2-1/2" | tsd-250 | ||
 Sheathing Driver | — | 2" | tsh-200 | |
| — | 3" | tsh-300 | ||
Longer lengths available for most tools. Call 800-241-9669 for help matching your tool.
