American Pneumatic
119 Clay and Trench Digger
Overview
This Extended “T” Handle hammer is the same as the APT 118 except that it has an extra long handle.
The unique long handle feature makes it ideal for digging down into deep hard trenches and holes. The APT119 is used in a wide variety of applications including: Trench Digging, Concrete Demolition, Clay Digging, Tunnel Excavating, Foundation Work, Pin Driving and much more.
Features & Applications
- Ideally suited for Deep Vertical Work.
- Latch Tool Retainer
- Two Chuck Options.
- Extended Forged T-handle, Rubber Grips.
- Built-in Automatic Oiler.
- Replaceable Chuck Bushing.
- Case Hardened Alloy Steel Cylinder.
- Useful for Hard Clay Excavation, Pin Driving, Light Demolition.
Model & part-number identification

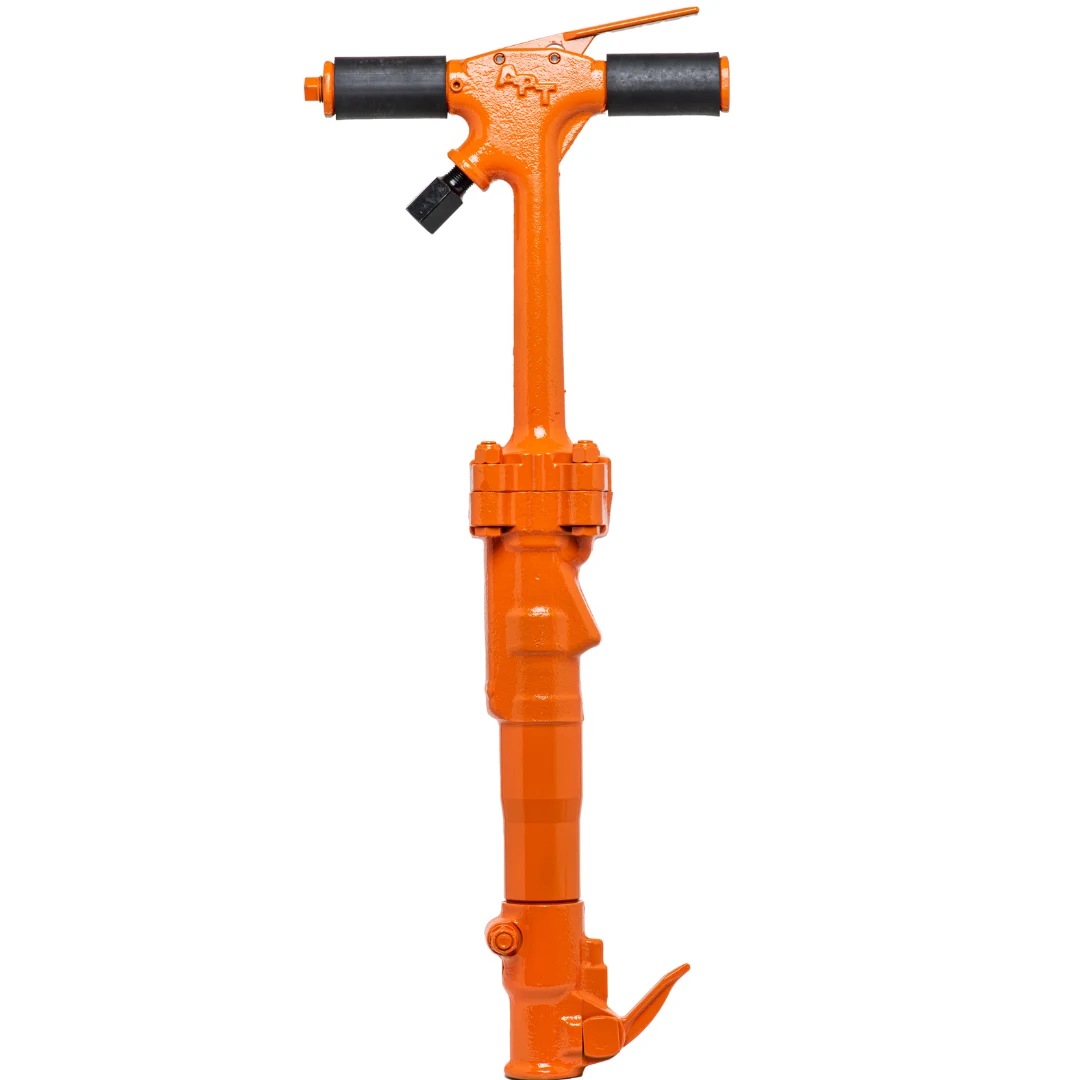

American Pneumatic APT 119 (M119) Trench Hammer
Old Part No. 5203 New Part No. 1280583344 (7/8” × 3-1/4”)
Old Part No. 5204, New Part No. 1280583345 ( 1” x 4-1/4”)
Complete tool: 119-78Tool part # 5203
7/8" x 3-1/4" HEX (A)
Your BEST price is just a call away.
Adds the complete tool shown above—not an individual replacement part. Add more tools to build one quote request, then review your quote list.
1-800-241-9669
Need help with a model or part? Talk to Mining Auger & Tool Works.
Technical Specs
| Part # | 5203 | 5204 |
|---|---|---|
| Weight | 37 lbs. | 37 lbs. |
| Length | 31" | 31" |
| Bore | 1-3/4" | 1-3/4" |
| Stroke | 3-3/8" | 3-3/8" |
| Blows/min | 1850 | 1850 |
| Air Con | 36cfm | 36cfm |
| PSI | 90psi | 90psi |
| Chuck | 7/8" x 3-1/4" | 1" x 4-1/4" |
Complete tool configurations
Match the model, shank and part number. These are complete tools, not replacement parts.
| Model | Shank / Details | Part Number | Quote |
|---|---|---|---|
| 119-78 | 7/8" x 3-1/4" HEX (A) | 5203 | |
| 119-100 | 1" x 4-1/4" HEX (C) | 5204 |
Accessory Tools
Match the shank, collar and size to your tool. Each button adds that individual accessory to your quote list.
| Tool | Length under collar (in.) | Details |  7/8" × 3-1/4" shankPart Number & Quote |  1" × 4-1/4" shankPart Number & Quote |
|---|---|---|---|---|
 Asphalt Cutter | 11" | 5" Wide Blade | 78-ac | 100-ac |
 Bushing Tool | 8" | 16 Teeth | 78-bt | 100-bt |
 Clay Spade | 16" | 5-1/2" Wide Blade | 78-cs | 100-cs |
 Digging Chisel | 16" | 3" Wide Blade | 78-dc | 100-dc |
 Pin Driver | 8" | Socket: 3/8" Deep x 1-3/4" Dia. | 78-sd | 100-sd |
 Frost Wedge | 17" | 2" Wide Blade | 78-fw | 100-fw |
 Ground Rod Driver | — | SOCKET DIAMETER: 11/16" | 78-grd(a) | 100-grd(a) |
| — | Socket diameter13/16" | 78-grd(b) | 100-grd(b) | |
| — | Socket diameter1" | 78-grd(c) | 100-grd(c) | |
| — | Socket diameter1-1/8" | 78-grd(d) | 100-grd(d) | |
 Moil Point | 14" | LONGER LENGTHS AVAILABLE | 78p-14 | 100p-14 |
| 18" | LONGER LENGTHS AVAILABLE | 78p-18 | 100p-18 | |
 Narrow Chisel | 14" | LONGER LENGTHS AVAILABLE | 78c-14 | 100c-14 |
| 18" | LONGER LENGTHS AVAILABLE | 78c-18 | 100c-18 | |
 Wide Chisel | 14" | LONGER LENGTHS AVAILABLE | 78c3-14 | 100c3-14 |
| 18" | LONGER LENGTHS AVAILABLE | 78c3-18 | 100c3-18 | |
 Detachable Shank | 7-3/4" | FOR USE WITH: TAMPER PAD TENT STAKE DRIVER SHEATHING DRIVER | 78-ds | 100-ds |
| Separate attachments — use with a detachable shank. Confirm the holder and fit. | ||||
 Tamping Pad | — | 6" SQUARE | tps-6 | |
| — | 8" SQUARE | tps-8 | ||
| — | 7" ROUND | tpr-7 | ||
 Tent Stake Driver | — | 2" | tsd-200 | |
| — | 2-1/2" | tsd-250 | ||
 Sheathing Driver | — | 2" | tsh-200 | |
| — | 3" | tsh-300 | ||
Longer lengths available for most tools. Call 800-241-9669 for help matching your tool.
