Rhino

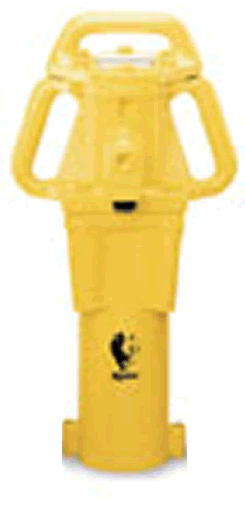

PD-55 Post Driver
The PD-55 is easily operated by one man and is the perfect choice for driving ground rods, delineator posts and various types of steel posts.
(All drivers are equipped with the exclusive Rhino Alloy, Double Valve Piston.)
Complete tool: PD-55Tool part # 70013
Medium Duty Post Driver 3-7/8" I.D. Master Chuck
Your BEST price is just a call away.
Adds the complete tool shown above—not an individual replacement part. Add more tools to build one quote request, then review your quote list.
1-800-241-9669Need help with a model or part? Talk to Mining Auger & Tool Works.
Technical Specs
| Item | Description |
|---|---|
| Top Cover: | Ductile iron casting, high in strength and ductility has a 1" (25.4 mm) diameter handle designed into the cover for easy handling and carrying. O-Ring sealed. |
| Body: | Ductile iron casting, with excellent wear resistant characteristics. The air inlet is cast into the body and tapped with 3/4" NPT female threaded ports, along with 1" (25.4 mm) diameter ergonomically designed side handles for easy handling and carrying. Chuck bolts pass thru the lower body flange into tapped holes in the chuck mounting plate allowing special chucks to be made in a wide variety of shapes and sizes. |
| Piston: | Alloy steel heat-treated with a ground surface with hard chrome plate. Designed with 2 round valve ports to give better lubrication and load distribution to the valve ring while running. |
| Master Chuck and Chuck Adapters: | The 3-7/8" (98.4 mm) I.D. master chuck is an all-welded, reinforced steel and tubing construction. The chuck is equipped with extra long chuck adapter attachment lugs. Standard chuck adapters are available in the following sizes: 1" (25.4 mm) I.D., 1 1/2" (38.1 mm) I.D., 2" (50.8 mm) I.D., 2 1/2" ( 63.5 mm) I.D., 3" (76.2 mm) I.D., 3 1/2" (88.9 mm) I.D. and three channel post adapters for 1.2 to 1.5 lbs/ft, 2 to 2.75 lbs/ft, and 3 to 4 lbs/ft posts. |
| Weight: | Approximately 54.6 lbs (24.8 kg) |
| Fasteners: | S.A.E. grade-5 bolts with belleville lock washers. All fasteners are plated. |
| Air Consumption: | 42 CFM (1.19 m³/min) @ 90 PSI (6.4 kg/cm²) |
Complete tool configurations
Match the model, shank and part number. These are complete tools, not replacement parts.
| Model | Shank / Details | Part Number | Quote |
|---|---|---|---|
| PD-55 | Medium Duty Post Driver 3-7/8" I.D. Master Chuck | 70013 |
Accessory Tools
Match the shank, collar and size to your tool. Each button adds that individual accessory to your quote list.
The numbered illustration corresponds to the adapters below; item 10 is not pictured.
| Diagram item & description | Part Number & Quote |
|---|---|
| Item 6 — 1" (25.4 mm) I.D. Chuck Adapter | 070614 |
| Item 5 — 1-1/2" (38.1 mm) I.D. Chuck Adapter | 070613 |
| Item 4 — 2" (50.8 mm) I.D. Chuck Adapter | 070612 |
| Item 10 — 2" (50.8mm) Heavy Channel Post Chuck Adapter (not shown) | 070615 |
| Item 3 — 2-1/2" (63.5 mm) I.D. Chuck Adapter | 070611 |
| Item 2 — 3" (76.2 mm) I.D. Chuck Adapter | 070610 |
| Item 1 — 3-1/2" (88.9 mm) I.D. Chuck Adapter | 070609 |
| Item 7 — Channel Post Chuck Adapter - 1.2 to 1.5 lbs/ft Posts | 070617 |
| Item 8 — Channel Post Chuck Adapter - 2 to 2.75 lbs/ft Posts | 070618 |
| Item 9 — Channel Post Chuck Adapter - 3 to 4 lbs/ft Posts | 070619 |
Longer lengths available for most tools. Call 800-241-9669 for help matching your tool.
