American Pneumatic
133 D Handle Rivet Buster
Overview
APT 133-D Inside Trigger, 8” Stroke, Demolition Hammer.
It is the same Hammer as the APT133-PG Except for the Handle Configuration.
The 133 is an Extremely Powerful Handheld Hammer producing nearly as much Breaking Energy as a 60lb Hammer.
This tool is Excellent for all positions of Demolition Hammering including Horizontal and Overhead work. Because of its light weight and ease of handling it is frequently used on Parking Ramps, Bridge Decks, Road Work, Cleaning Concrete Ready Mix Trucks and all around concrete breaking. Additionally, with the correct accessory tools it is used for Cutting Rivets, Removing Rivets Driving Pins and more.
Features & Applications
- Often used for Weight Limit Restricted jobs.
- Rivet cutting and Removal, Pin Driving, and Cleaning Concrete Ready Mix Trucks.
- “D” Style Handle, Inside Trigger, Hardened Alloy Steel Cylinder.
- Uses Jumbo 11X Tool Steel.
- Replaceable Upper and Lower Sleeves and Bumpers.
- Uses convenient Retainer Lock Springs
- Air Requirement: Approximately 42–46 cfm at 90 psi.
Model & part-number identification

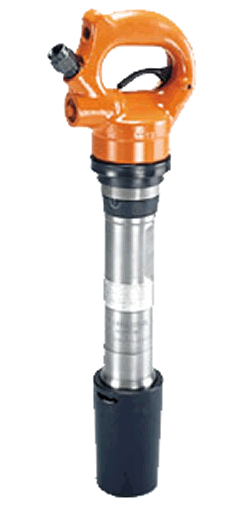

American Pneumatic APT 133 (M133CN) Rivet Buster
Old Part No. 18768 (Jumbo 11X Shank)
Complete tool: 133Tool part # 5216
APT 133 Rivet Buster
Your BEST price is just a call away.
Adds the complete tool shown above—not an individual replacement part. Add more tools to build one quote request, then review your quote list.
1-800-241-9669
Need help with a model or part? Talk to Mining Auger & Tool Works.
Technical Specs
| Specification | 133 |
|---|---|
| Tool part number | 5216 |
| Weight | 30 lbs. |
| Length | 22-1/2" |
| Bore | 1-3/16" |
| Stroke | 8" |
| Blows/min | 1140 |
| Air consumption | 42-46cfm @ 90psi inlet |
| Air Inlet | 1/2″ female NPT |
| Complete tool |
Accessory Tools
Rivet buster accessories. Each “Add to Quote” button adds that individual accessory. Match your tool’s shank and retainer.
| Tool | Length under collar (in.) | Part Number & Quote |
|---|---|---|
 Bull Point | 12" | JB-12P |
| 18" | JB-18P | |
 Narrow Chisel (For concrete) | 12" | JB-12C |
| 18" | JB-18C | |
 Alloy Narrow Chisel for Rivet Cutting | 10" | JB-10RC |
 Ripper Chisel (for thin steel plate) | 10" | JB-RIP |
 Wide ChiselRequires J-LSS(Lower Split Sleeve) | 15" | JB-15WC |
 Back-Out Punch | 8" | JB-P03-8 |
| 12" | JB-P03-12 |
Longer lengths available for most tools. Call 800-241-9669.
