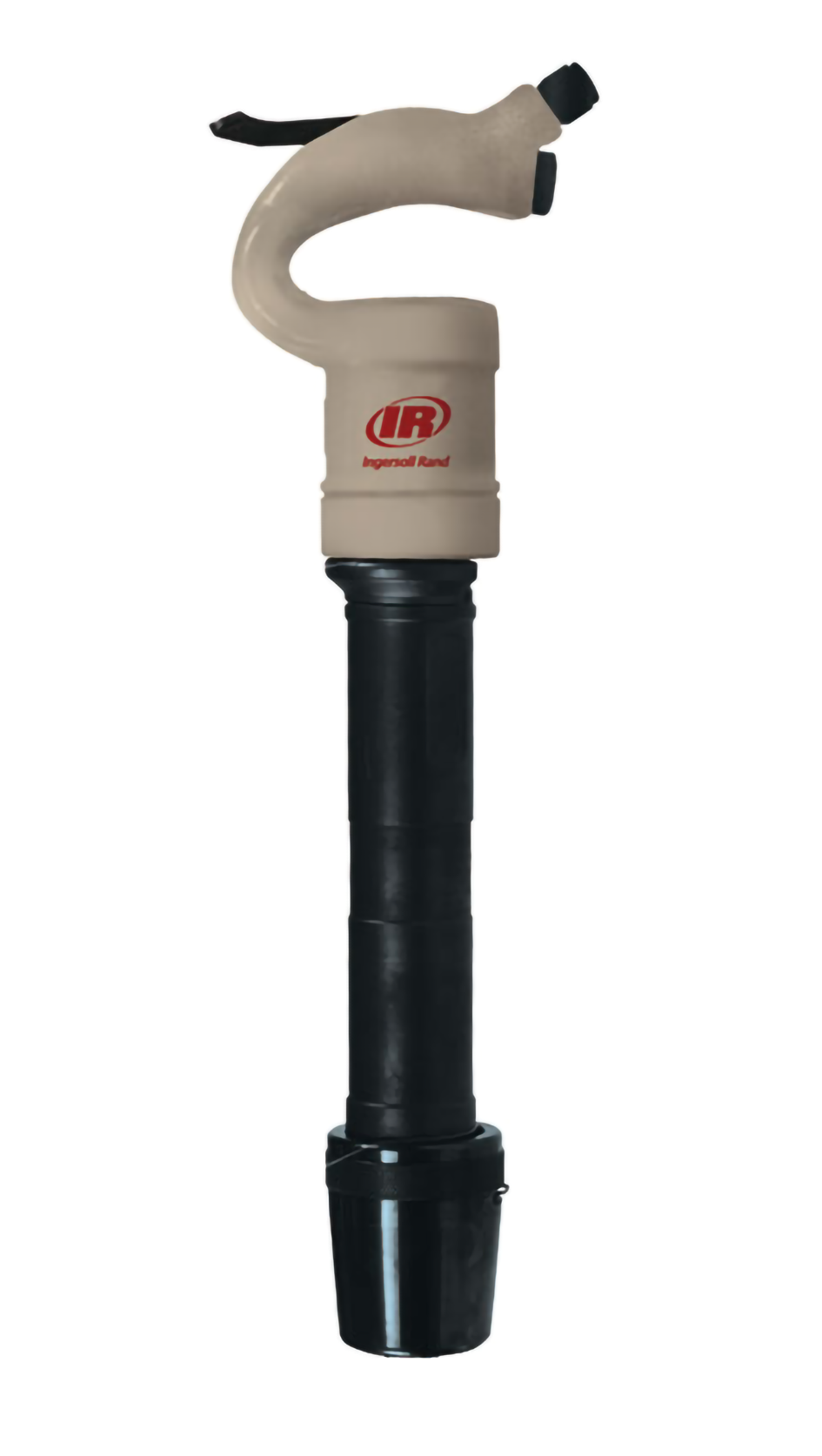

Ingersoll Rand
Model: 9001 Series
Rivet Buster
The Ingersoll Rand Model 9001A Rivet Buster was originally designed to cut rivets off metal structures. This model is widely known as a tough, powerful tool, with the ability to perform medium to heavy duty demolition work. The ratio of its high impact energy versus its weight makes the Rivet Buster series the most efficient tools produced by Ingersoll Rand. The Model 9001A meets the weight requirements for bridge deck repair work and are also popular for cutting up underground tanks.
Features:
- 9” stroke
- Drop forged, C-style steel handle
- Deep case-hardened alloy steel cylinder
- Uses extra heavy duty tool steel
- Heavy duty upper and lower sleeves
- Adjustable exhaust deflector
| Model | Product Detail | Part Number |  |
| IR 9001A | 9001 Series Rivet Buster | 9001A |
| Part # | Weight | Length | Bore | Stroke | Blows/min | Air Con | Air Inlet |
| 9001A | 25 lbs. | 22-1/2" | 1-1/16" | 9" | 900 | 40cfm @ 90psi inlet | 3/8″ female NPT |
Rivet Buster Bits |
||
| Longer Lengths Available for Most Tools - Call: 800‐241‐9669 | ||
| Tool: | Under Collar Length (inch): | Part Number |
Bull Point |
12" | JB-12P |
| 18" | JB-18P |
|
Narrow Chisel (For concrete) |
12" | JB-12C |
| 18" | JB-18C |
|
Alloy Narrow Chisel for Rivet Cutting |
10" | JB-10RC |
Ripper Chisel (for thin steel plate) |
10" | JB-RIP |
Wide Chisel [Note: Requires J-LSS (Lower Split Sleeve)] |
15" | JB-15WC |
Back-Out Punch |
8" | JB-P03-8 |
| 12" | JB-P03-12 |
|
| Longer Lengths Available for Most Tools - Call: 800‐241‐9669 | ||
9001 Series Safety Manual
