TAMCO

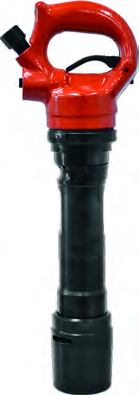

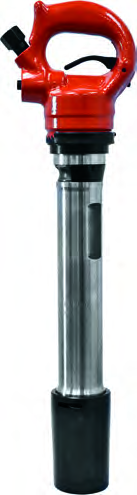

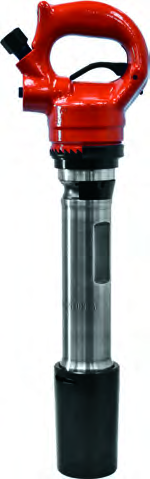

RB633 / RB133 / RB1133 Rivet Buster
TAMCO.
American-made jumbo rivet busters with 6-, 8- and 11-inch strokes. The catalog identifies these tools as domestically manufactured using U.S.-made components.
Applications include bridge-deck repair, concrete demolition, rivets, bolts and underground tanks.
Complete tool: RB633Tool part # RB633
RB633. Type: Jumbo. Confirm the required fit before ordering.
Your BEST price is just a call away.
Adds the complete tool shown above—not an individual replacement part. Add more tools to build one quote request, then review your quote list.
1-800-241-9669Need help with a model or part? Talk to Mining Auger & Tool Works.
Technical Specs
| Specification | RB633 | RB133 | RB1133 |
|---|---|---|---|
| Type | Jumbo | Jumbo | Jumbo |
| Stroke | 6" | 8" | 11" |
| Bore | 1-3/16" (30.2mm) | 1-3/16" (30.2mm) | 1-3/16" (30.2mm) |
| Impact Rate | 1100 BPM | 960 BPM | 850 BPM |
| Length | 20-1/2" | 22" | 25" |
| Weight | 27.5 lbs | 30 lbs | 34 lbs |
| Air Inlet Thread | 1/2" (19mm) | 1/2" (19mm) | 1/2" (19mm) |
| Air Consumption | 26-29 CFM | 44 CFM | 39 CFM |
| Hose Size | 1/2" (19mm) | 1/2" (19mm) | 1/2" (19mm) |
| Maximum Air Pressure | 90 PSI | 90 PSI | 90 PSI |
Specification RB633
- Type
- Jumbo
- Stroke
- 6"
- Bore
- 1-3/16" (30.2mm)
- Impact Rate
- 1100 BPM
- Length
- 20-1/2"
- Weight
- 27.5 lbs
- Air Inlet Thread
- 1/2" (19mm)
- Air Consumption
- 26-29 CFM
- Hose Size
- 1/2" (19mm)
- Maximum Air Pressure
- 90 PSI
Specification RB133
- Type
- Jumbo
- Stroke
- 8"
- Bore
- 1-3/16" (30.2mm)
- Impact Rate
- 960 BPM
- Length
- 22"
- Weight
- 30 lbs
- Air Inlet Thread
- 1/2" (19mm)
- Air Consumption
- 44 CFM
- Hose Size
- 1/2" (19mm)
- Maximum Air Pressure
- 90 PSI
Specification RB1133
- Type
- Jumbo
- Stroke
- 11"
- Bore
- 1-3/16" (30.2mm)
- Impact Rate
- 850 BPM
- Length
- 25"
- Weight
- 34 lbs
- Air Inlet Thread
- 1/2" (19mm)
- Air Consumption
- 39 CFM
- Hose Size
- 1/2" (19mm)
- Maximum Air Pressure
- 90 PSI
Complete tool configurations
Match the model, shank and part number. These are complete tools, not replacement parts.
| Model | Shank / Details | Part Number | Quote |
|---|---|---|---|
| RB633 | RB633. Type: Jumbo. Confirm the required fit before ordering. | RB633 | |
| RB133 | RB133. Type: Jumbo. Confirm the required fit before ordering. | RB133 | |
| RB1133 | RB1133. Type: Jumbo. Confirm the required fit before ordering. | RB1133 |
Accessory Tools
Match the shank, collar and size to your tool. Each button adds that individual accessory to your quote list.
| Dimensions / Details | Jumbo 11X |
|---|---|
| Under-collar length (inches)10" | jb-10rc |
| Dimensions / Details | Jumbo 11X |
|---|---|
| Under-collar length (inches)8" | jb-p03-8 |
| Under-collar length (inches)12" | jb-p03-12 |
| Dimensions / Details | Jumbo 11X |
|---|---|
| Under-collar length (inches)12" | jb-12p |
| Under-collar length (inches)18" | jb-18p |
| Dimensions / Details | Jumbo 11X |
|---|---|
| Under-collar length (inches)12" | jb-12c |
| Under-collar length (inches)18" | jb-18c |
| Dimensions / Details | Jumbo 11X |
|---|---|
| Under-collar length (inches)10" | jb-rip |
Longer lengths available for most tools. Call 800-241-9669 for help matching your tool.
