RB110 / RB-110D Rivet Buster
Manufactured by Toku and offered through TAMCO.
Rivet busters for demolition, bridge decks, tank work and cutting rivet heads. Heat-treated alloy cylinders, exhaust deflectors and safety piston stoppers.

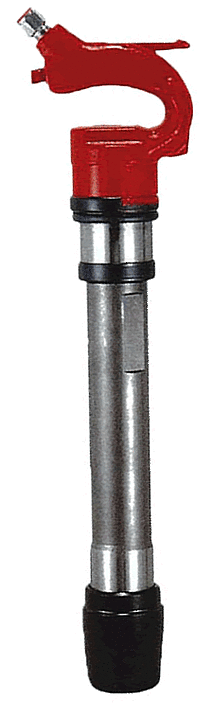

Choose the gooseneck or D-handle model. The main photograph shows the gooseneck tool; the catalog publishes one specification column for the pair.
Complete tool: RB110Tool part # RB110
RB110: gooseneck handle, jumbo steel.
Your BEST price is just a call away.
Adds the complete tool shown above—not an individual replacement part. Add more tools to build one quote request, then review your quote list.
1-800-241-9669
Need help with a model or part? Talk to Mining Auger & Tool Works.
Technical Specs
| Specification | RB110 | RB-110D |
|---|---|---|
| Shank Size | Jumbo | Jumbo |
| Piston Stroke | 11-15/16" (303mm) | 11-15/16" (303mm) |
| Piston Diameter | 1-3/16" (30.2mm) | 1-3/16" (30.2mm) |
| Impact Rate | 680 BPM | 680 BPM |
| Weight | 35 lbs (14.6kg) | 35 lbs (14.6kg) |
| Overall Length | 26" (660mm) | 26" (660mm) |
| Air Consumption | 32.9 CFM | 32.9 CFM |
| Air Inlet Thread | 3/8" NPT | 3/8" NPT |
| Hose Size | 1/2" (19mm) | 1/2" (19mm) |
| Maximum Air Pressure | 90 PSI | 90 PSI |
Complete tool configurations
Match the model, shank and part number. These are complete tools, not replacement parts.
| Model | Shank / Details | Part Number | Quote |
|---|---|---|---|
| RB110 | RB110: gooseneck handle, jumbo steel. | RB110 | |
| RB-110D | RB-110D: D-handle, jumbo steel. | RB-110D |
Accessory Tools
Match the shank, collar and size to your tool. Each button adds that individual accessory to your quote list.
| Dimensions / Details | Jumbo 11X |
|---|---|
| Under-collar length (inches)10" | jb-10rc |
| Dimensions / Details | Jumbo 11X |
|---|---|
| Under-collar length (inches)8" | jb-p03-8 |
| Under-collar length (inches)12" | jb-p03-12 |
| Dimensions / Details | Jumbo 11X |
|---|---|
| Under-collar length (inches)12" | jb-12p |
| Under-collar length (inches)18" | jb-18p |
| Dimensions / Details | Jumbo 11X |
|---|---|
| Under-collar length (inches)12" | jb-12c |
| Under-collar length (inches)18" | jb-18c |
| Dimensions / Details | Jumbo 11X |
|---|---|
| Under-collar length (inches)10" | jb-rip |
Longer lengths available for most tools. Call 800-241-9669 for help matching your tool.
