Airrex

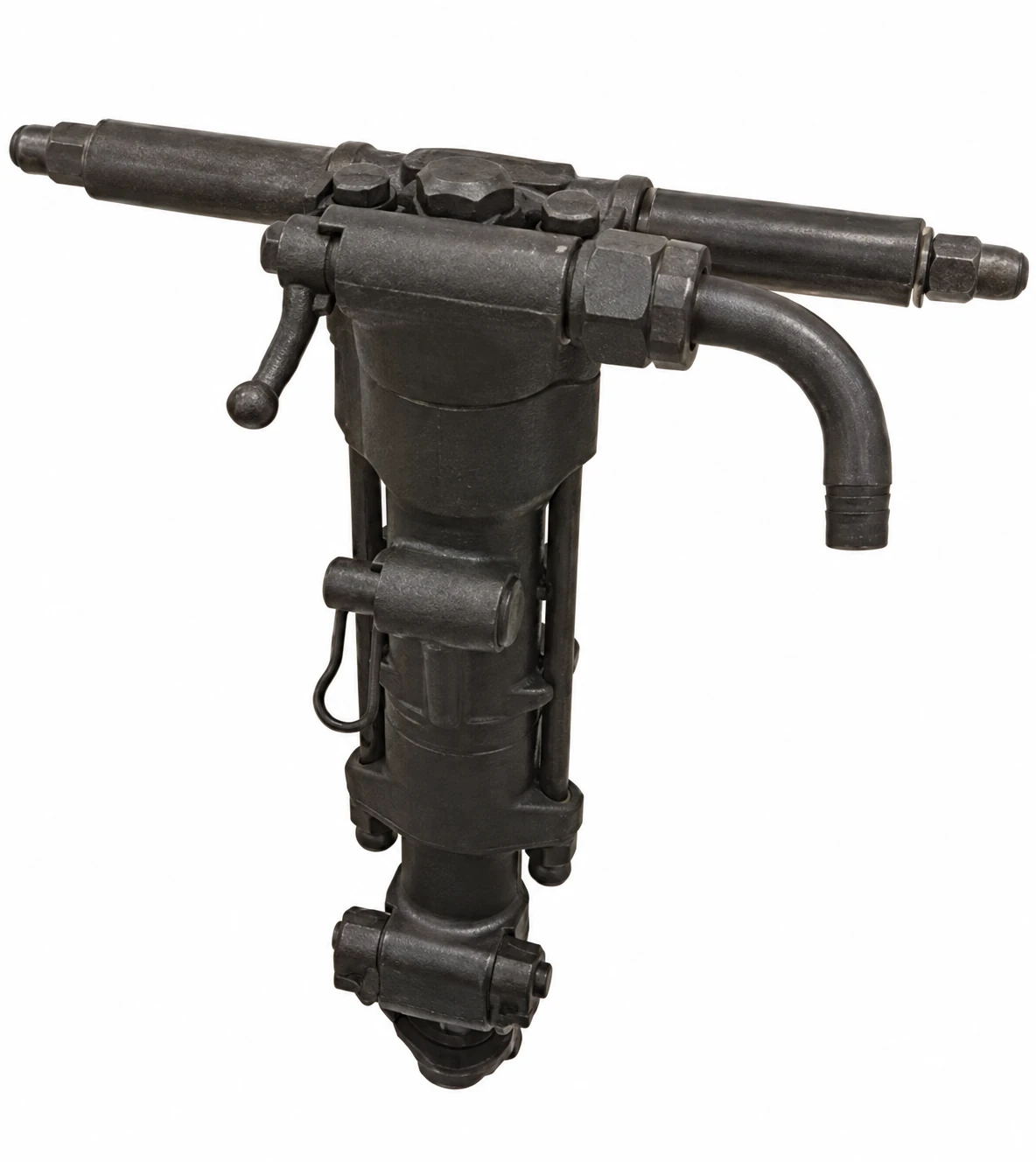

6588 Rock Drill
See complete drill models, specifications and accessory options below.
Technical Specs
Compare complete drills. + Quote adds one item; review your quote list to adjust quantities.
| Description | Model B | Model C |
|---|---|---|
| Part no | 6588-B | 6588-C |
| Weight (lb) | 53 | 53 |
| Length incl. drill steel retainer (inch) | 23 | 23 |
| Drill steel chuck hex (inch) | 7/8 x 4-1/4 | 1 x 4-1/4 |
| Impact frequency (blows/min) | 2040 | 2040 |
| Impact frequency (Hz) | 34 | 34 |
| Rotation Speed (rpm) | 215 | 215 |
| Penetration Rate (inch/min) | 16.7 | 16.7 |
| Hose connection (inch) | 3/4 | 3/4 |
| Air consumption (cfm) | 123 @ 92 PSI | 123 @ 92 PSI |
| Complete tool | Model BPart 6588-B7/8" x 4-1/4" HEX (B) | Model CPart 6588-C1" x 4-1/4" HEX (C) |
Accessory Tools
“H” Thread Rods & Bits
Drill rodsBH series · 7/8" × 4-1/4" shank  | ||
|---|---|---|
| Length under collar Feet (Inches) | Rod part number & quote | |
| 1' (12") | BH-1 | |
| 1'6" (18") | BH-1.5 | |
| 2' (24") | BH-2 | |
| 3' (36") | BH-3 | |
| 4' (48") | BH-4 | |
| 5' (60") | BH-5 | |
| 6' (72") | BH-6 | |
Drill rodsCH series · 1" × 4-1/4" shank | ||
| Length under collar Feet (Inches) | Rod part number & quote | |
| 1' (12") | CH-1 | |
| 1'6" (18") | CH-1.5 | |
| 2' (24") | CH-2 | |
| 3' (36") | CH-3 | |
| 4' (48") | CH-4 | |
| 5' (60") | CH-5 | |
| 6' (72") | CH-6 | |
| Rock bitsBits shown fit all “H” thread rods in this chart. Choose diameter independently of rod length. | ||
| Diameter (inches) |  Cross carbide insert bitFor broken & rough rock |  Button carbide insert bitFor fast penetration |
| 1-1/4" | HC-125 | HB-125 |
| 1-3/8" | HC-138 | HB-138 |
| 1-1/2" | HC-150 | HB-150 |
| 1-5/8" | HC-158 | HB-158 |
| 1-3/4" | HC-175 | HB-175 |
| 1-7/8" | HC-178 | HB-178 |
| 2" | HC-200 | HB-200 |
1-inch Rope / R25 / 100 Rods & Bits
Drill rodsBZ series · 7/8" × 4-1/4" shank  | ||
|---|---|---|
| Length under collar Feet (Inches) | Rod part number & quote | |
| 1' (12") | BZ-1 | |
| 1'6" (18") | BZ-1.5 | |
| 2' (24") | BZ-2 | |
| 3' (36") | BZ-3 | |
| 4' (48") | BZ-4 | |
| 5' (60") | BZ-5 | |
| 6' (72") | BZ-6 | |
Drill rodsCZ series · 1" × 4-1/4" shank | ||
| Length under collar Feet (Inches) | Rod part number & quote | |
| 1' (12") | CZ-1 | |
| 1'6" (18") | CZ-1.5 | |
| 2' (24") | CZ-2 | |
| 3' (36") | CZ-3 | |
| 4' (48") | CZ-4 | |
| 5' (60") | CZ-5 | |
| 6' (72") | CZ-6 | |
| Rock bitsBits shown fit the 1-inch Rope / R25 / 100 rods in this chart. Choose diameter independently of rod length. | ||
| Diameter (inches) | Cross carbide insert bitFor broken & rough rock | Button carbide insert bitFor fast penetration |
| 1-1/4" | ZX-125 | ZB-125 |
| 1-3/8" | ZX-138 | ZB-138 |
| 1-1/2" | ZX-150 | ZB-150 |
| 1-5/8" | ZX-158 | ZB-158 |
| 1-3/4" | ZX-175 | ZB-175 |
| 1-7/8" | ZX-178 | ZB-178 |
| 2" | ZX-200 | ZB-200 |
1 Piece Plug Bits
| B series · 7/8" × 4-1/4" shank | |||
|---|---|---|---|
| Length under collar (inches) | Drill depth (inches) | Drill diameter (inches) | Part number & quote |
| 9" | 6" | 5/8" | B9-58 |
| 9" | 6" | 3/4" | B9-75 |
| 9" | 6" | 7/8" | B9-78 |
| 9" | 6" | 1" | B9-100 |
| 9" | 6" | 1-1/8" | B9-118 |
| 9" | 6" | 1-1/4" | B9-125 |
| 9" | 6" | 1-1/2" | B9-150 |
| 12" | 9" | 5/8" | B12-58 |
| 12" | 9" | 3/4" | B12-75 |
| 12" | 9" | 7/8" | B12-78 |
| 12" | 9" | 1" | B12-100 |
| 12" | 9" | 1-1/8" | B12-118 |
| 12" | 9" | 1-1/4" | B12-125 |
| 12" | 9" | 1-1/2" | B12-150 |
| 18" | 15" | 5/8" | B18-58 |
| 18" | 15" | 3/4" | B18-75 |
| 18" | 15" | 7/8" | B18-78 |
| 18" | 15" | 1" | B18-100 |
| 18" | 15" | 1-1/8" | B18-118 |
| 18" | 15" | 1-1/4" | B18-125 |
| 18" | 15" | 1-1/2" | B18-150 |
| 24" | 21" | 5/8" | B24-58 |
| 24" | 21" | 3/4" | B24-75 |
| 24" | 21" | 7/8" | B24-78 |
| 24" | 21" | 1" | B24-100 |
| 24" | 21" | 1-1/8" | B24-118 |
| 24" | 21" | 1-1/4" | B24-125 |
| 24" | 21" | 1-1/2" | B24-150 |
| 30" | 27" | 5/8" | B30-58 |
| 30" | 27" | 3/4" | B30-75 |
| 30" | 27" | 7/8" | B30-78 |
| 30" | 27" | 1" | B30-100 |
| 30" | 27" | 1-1/8" | B30-118 |
| 30" | 27" | 1-1/4" | B30-125 |
| 30" | 27" | 1-1/2" | B30-150 |
| C series · 1" × 4-1/4" shank | |||
| Length under collar (inches) | Drill depth (inches) | Drill diameter (inches) | Part number & quote |
| 9" | 6" | 5/8" | C9-58 |
| 9" | 6" | 3/4" | C9-75 |
| 9" | 6" | 7/8" | C9-78 |
| 9" | 6" | 1" | C9-100 |
| 9" | 6" | 1-1/8" | C9-118 |
| 9" | 6" | 1-1/4" | C9-125 |
| 9" | 6" | 1-1/2" | C9-150 |
| 12" | 9" | 5/8" | C12-58 |
| 12" | 9" | 3/4" | C12-75 |
| 12" | 9" | 7/8" | C12-78 |
| 12" | 9" | 1" | C12-100 |
| 12" | 9" | 1-1/8" | C12-118 |
| 12" | 9" | 1-1/4" | C12-125 |
| 12" | 9" | 1-1/2" | C12-150 |
| 18" | 15" | 5/8" | C18-58 |
| 18" | 15" | 3/4" | C18-75 |
| 18" | 15" | 7/8" | C18-78 |
| 18" | 15" | 1" | C18-100 |
| 18" | 15" | 1-1/8" | C18-118 |
| 18" | 15" | 1-1/4" | C18-125 |
| 18" | 15" | 1-1/2" | C18-150 |
| 24" | 21" | 5/8" | C24-58 |
| 24" | 21" | 3/4" | C24-75 |
| 24" | 21" | 7/8" | C24-78 |
| 24" | 21" | 1" | C24-100 |
| 24" | 21" | 1-1/8" | C24-118 |
| 24" | 21" | 1-1/4" | C24-125 |
| 24" | 21" | 1-1/2" | C24-150 |
| 30" | 27" | 5/8" | C30-58 |
| 30" | 27" | 3/4" | C30-75 |
| 30" | 27" | 7/8" | C30-78 |
| 30" | 27" | 1" | C30-100 |
| 30" | 27" | 1-1/8" | C30-118 |
| 30" | 27" | 1-1/4" | C30-125 |
| 30" | 27" | 1-1/2" | C30-150 |
Longer lengths available for most tools. Call 800-241-9669 for help matching your tool.
