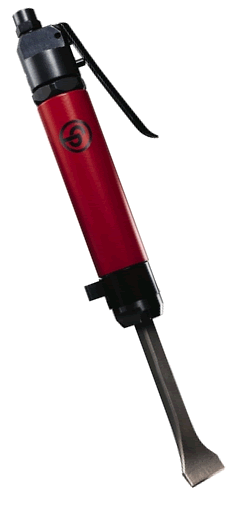

Chicago Pneumatic RP9538 Pneumatic Needle and Chisel Scaler
Overview
Chicago Pneumatic RP9538 is a pneumatic needle and chisel scaler for surface cleaning. The manufacturer catalog lists 19 needles, each 3 mm in diameter, and a 4,600 BPM impact rate; request current availability by model and part number.
Features & Applications
- Converts between needle scaler and weld-flux chipper; quick-change chisel retainer; adjustable sleeve
- 35 mm curved chisel 2050499653; replacement 19-needle steel set P100146
RP9538 Part Numbers
Chicago Pneumatic RP9538 Pneumatic Needle and Chisel Scaler
Needle / chisel scaler · Part No. 6151969538
1/2 in square
Match the model, chuck and complete-tool part number. Compare the configurations below when requesting a quote.
Choose Your Complete Tool
Match the model, chuck and complete-tool part number. Add the configuration you need to your quote list.
| Model | Configuration | Part Number | Quote |
|---|---|---|---|
| Needle / chisel scaler | 1/2 in square | 6151969538 |
Technical Specs
| Specification | Needle / chisel scaler6151969538 |
|---|---|
| Weight (lb) | 6.2 |
| Weight (kg) | 2.8 |
| Length (in) | 18 |
| Length (mm) | 457 |
| Impact rate (bpm) | 4600 |
| Air consumption (cfm at 90 psi) | 15.5 |
| Air inlet | 1/4 in NPTF |
| Needle capacity | 19 x 3 mm (1/8 in) |
| Chisel shank | 1/2 in square |
| Piston bore x stroke (mm) | 25 x 28.6 |
