Match the model and version on the drawing to your tool. Include the part number or diagram callout when requesting a quote.
All 11 PDF pages appear below. Scroll inside the drawing to see each page, or open the original PDF ↗ for searchable text and full-resolution detail.
Fit drawing. Pinch to zoom on touchscreens.

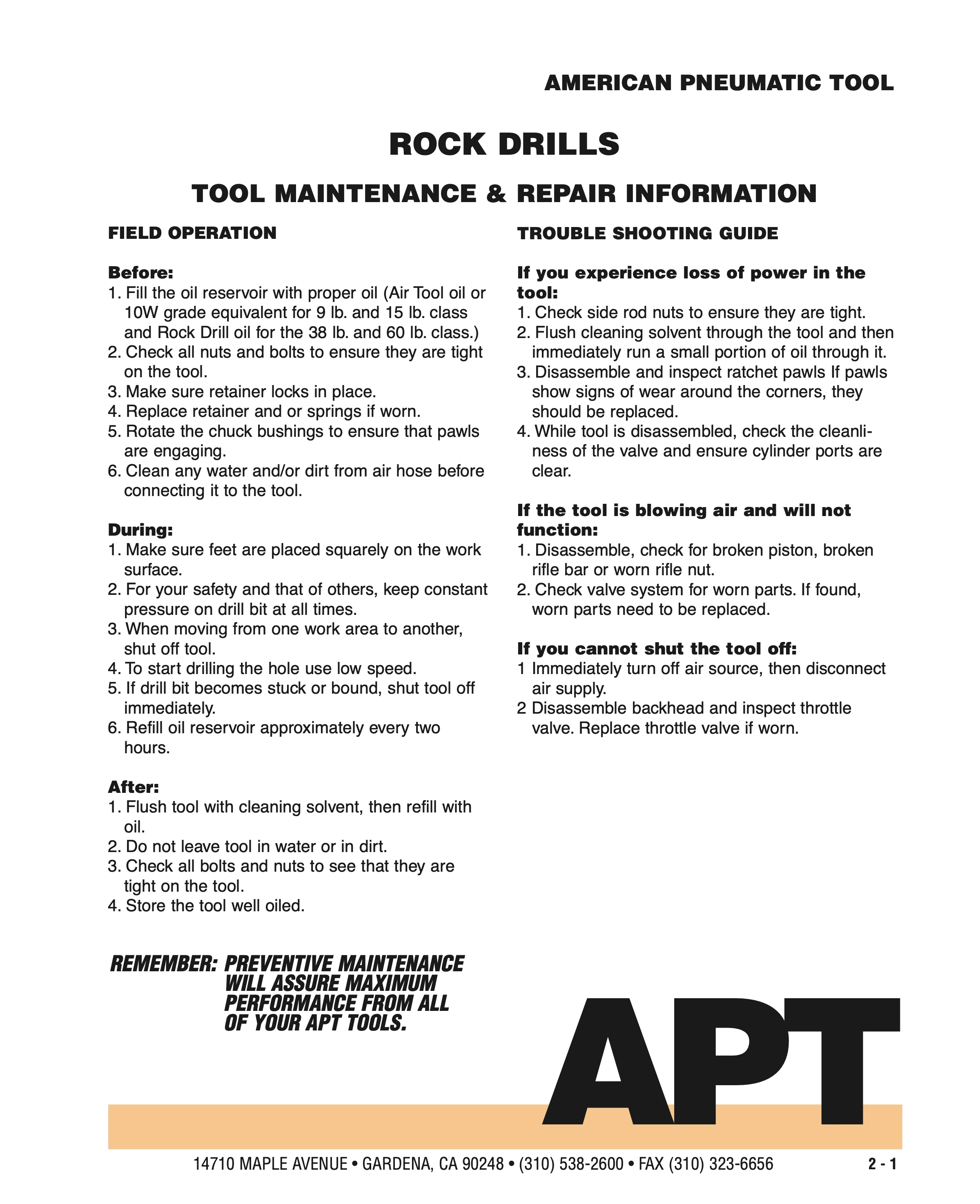

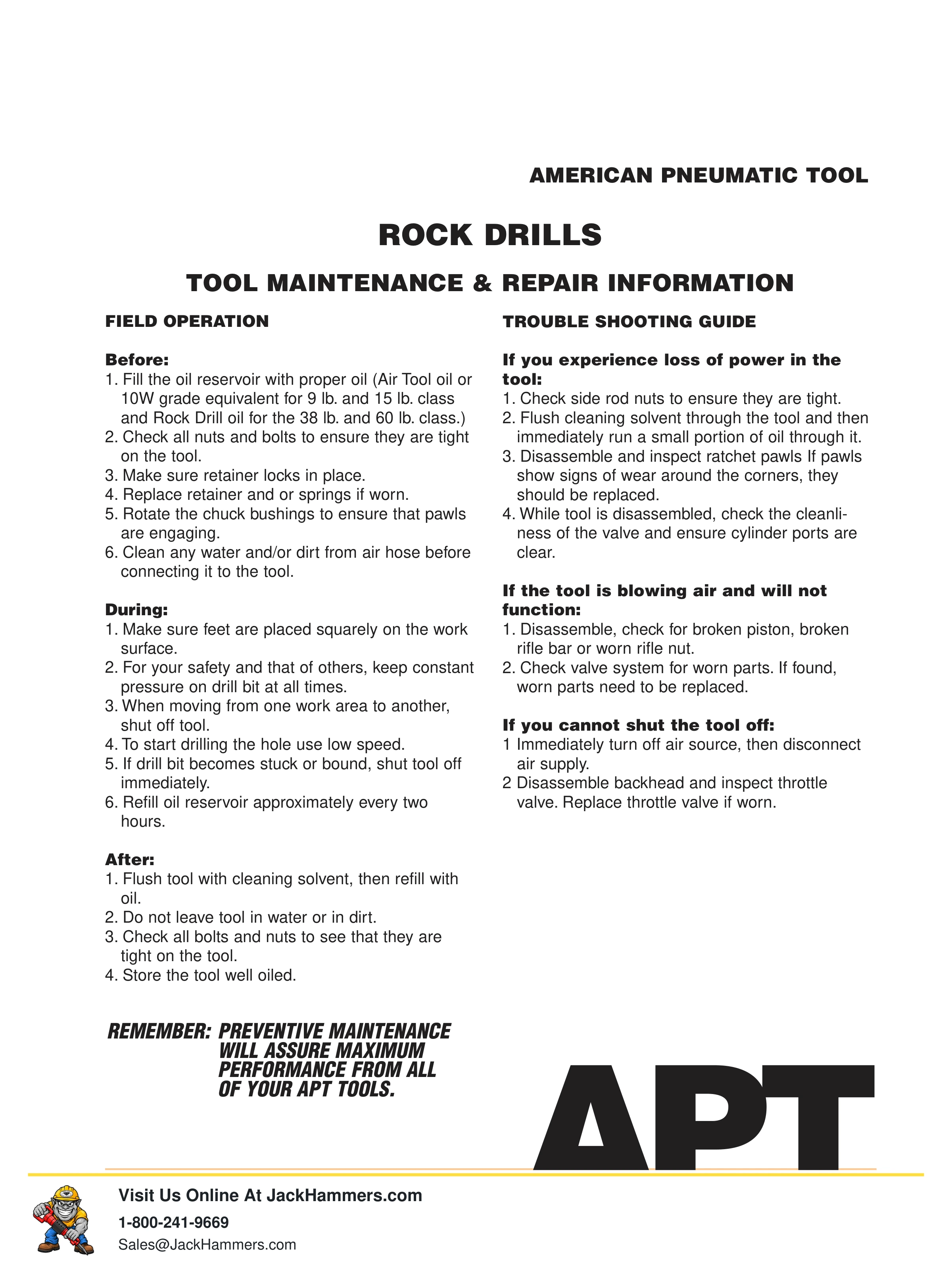

Page 1 of 11

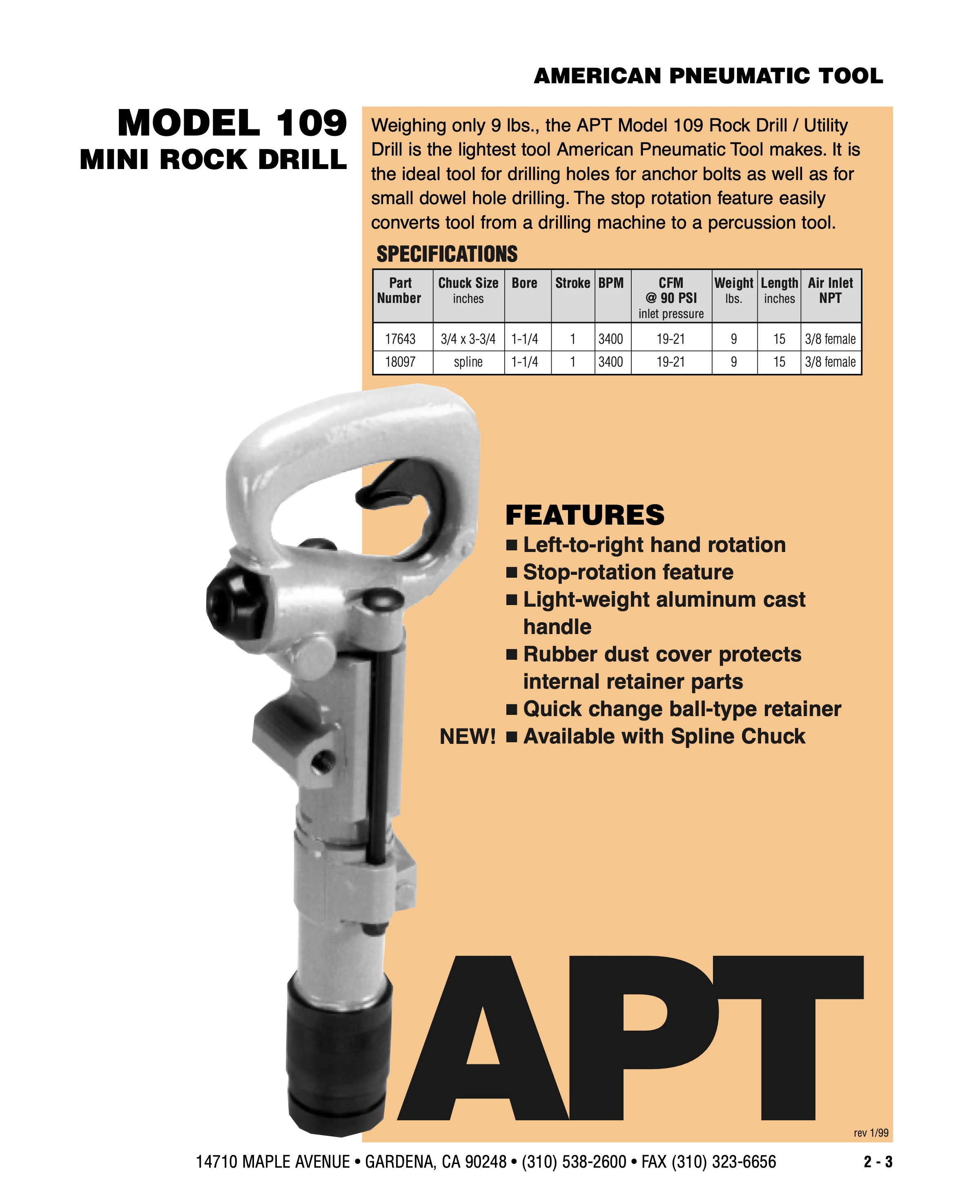

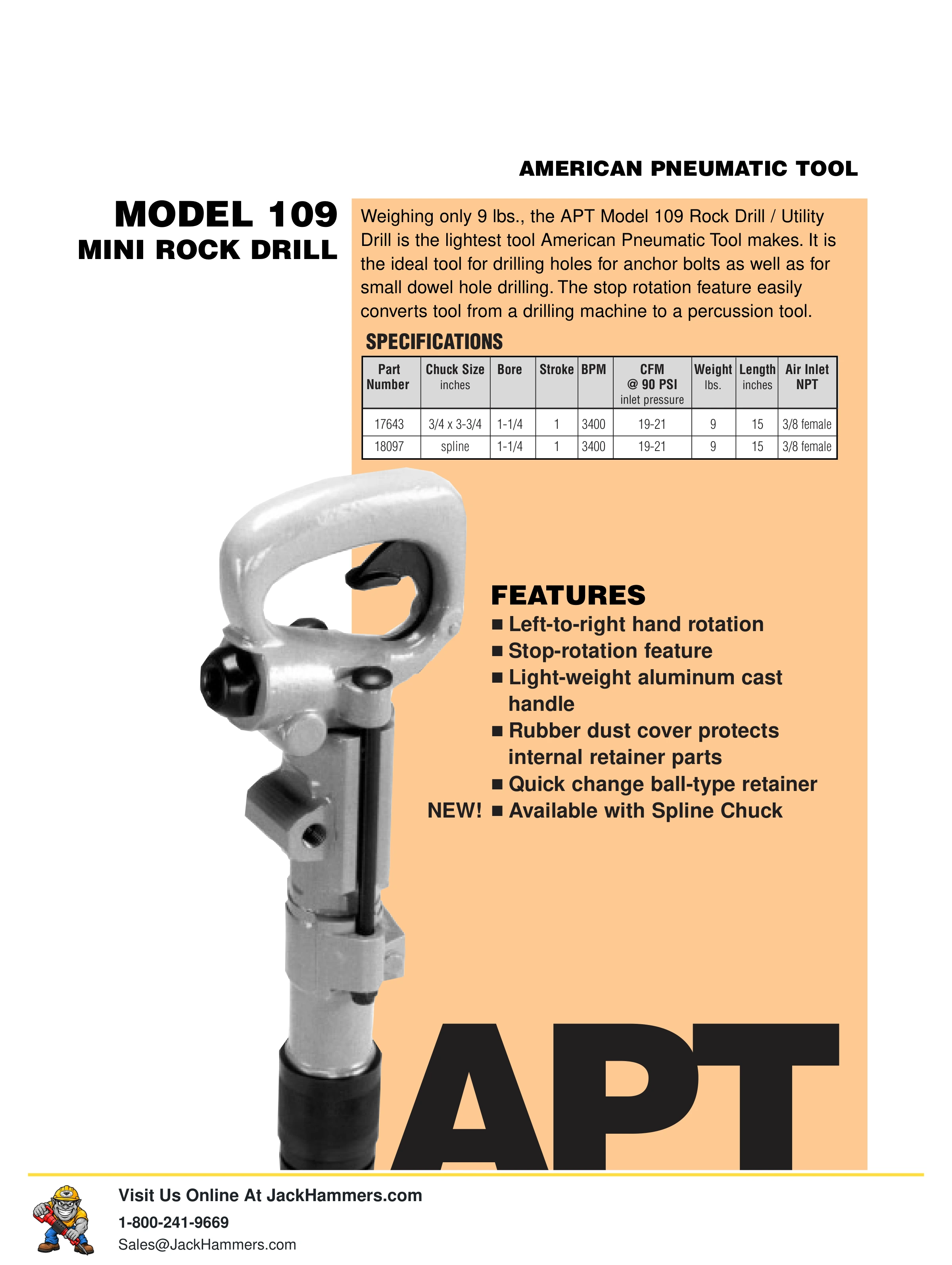

Page 2 of 11

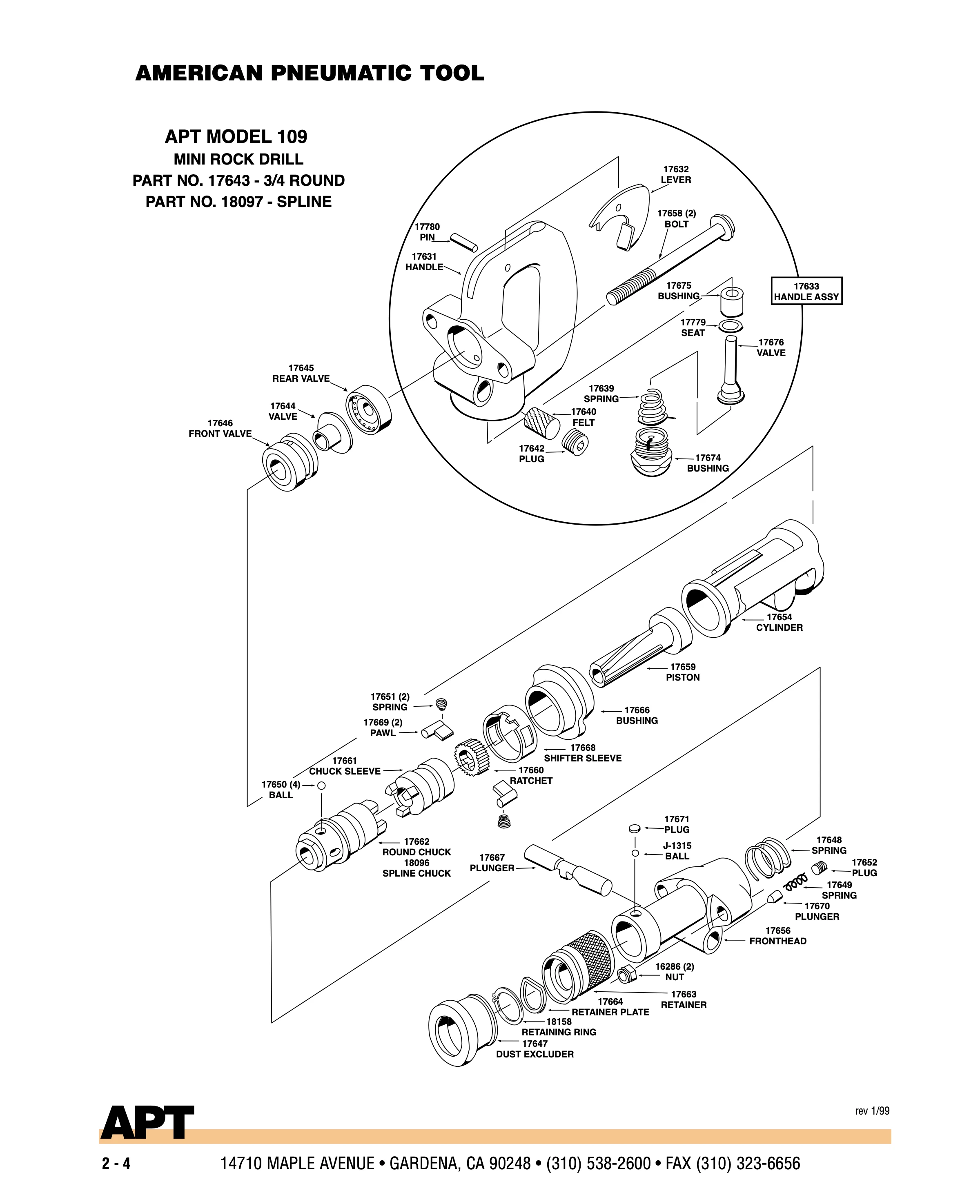

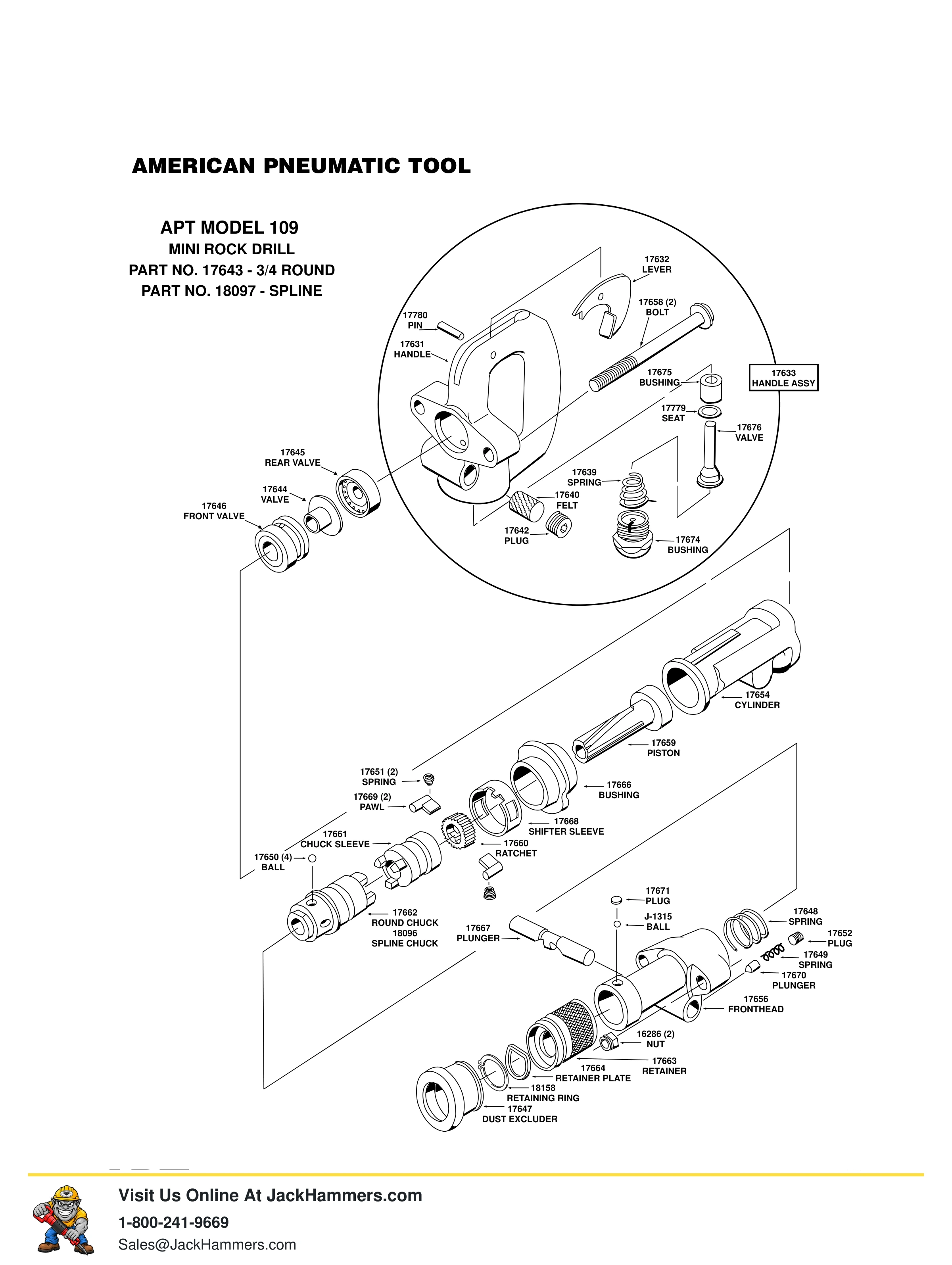

Page 3 of 11

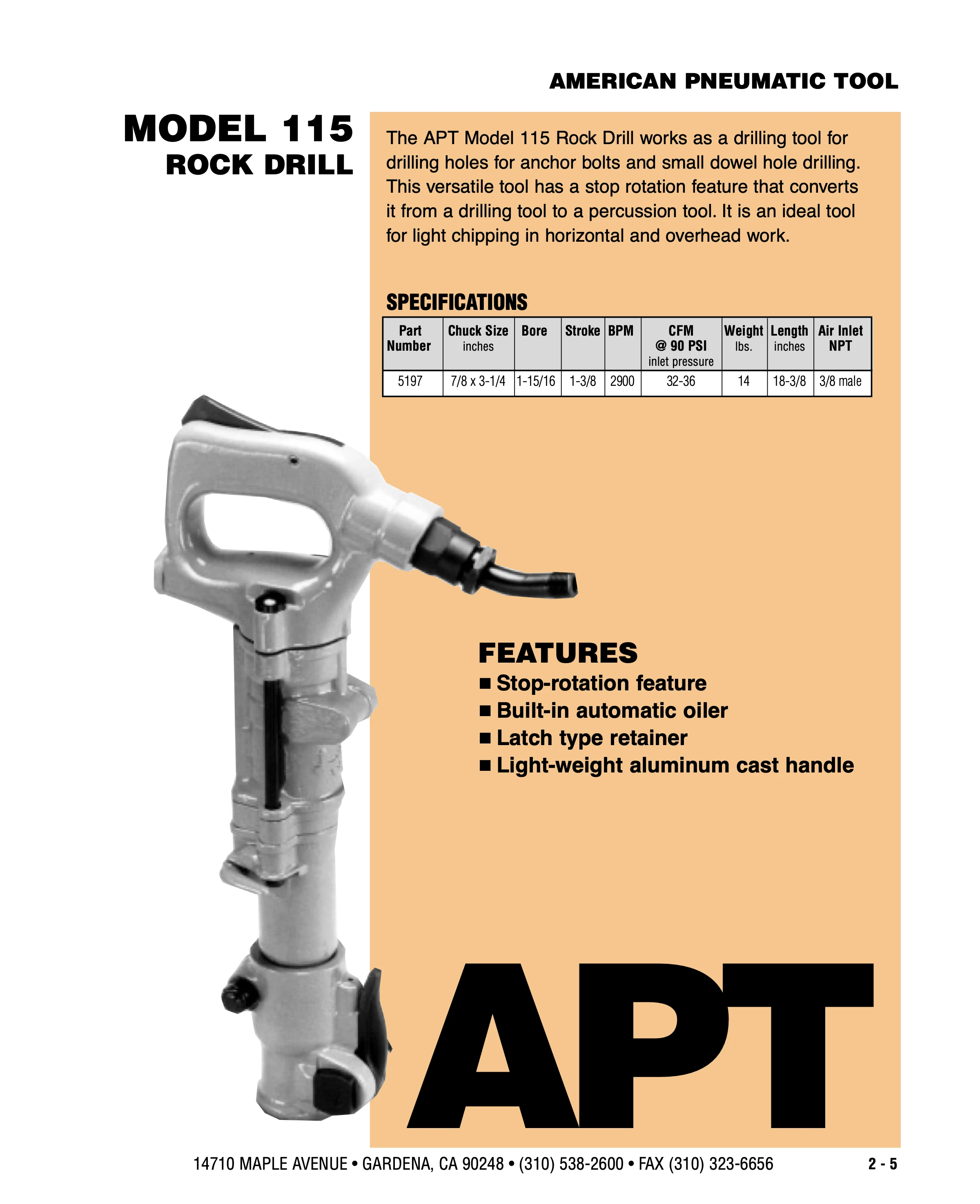

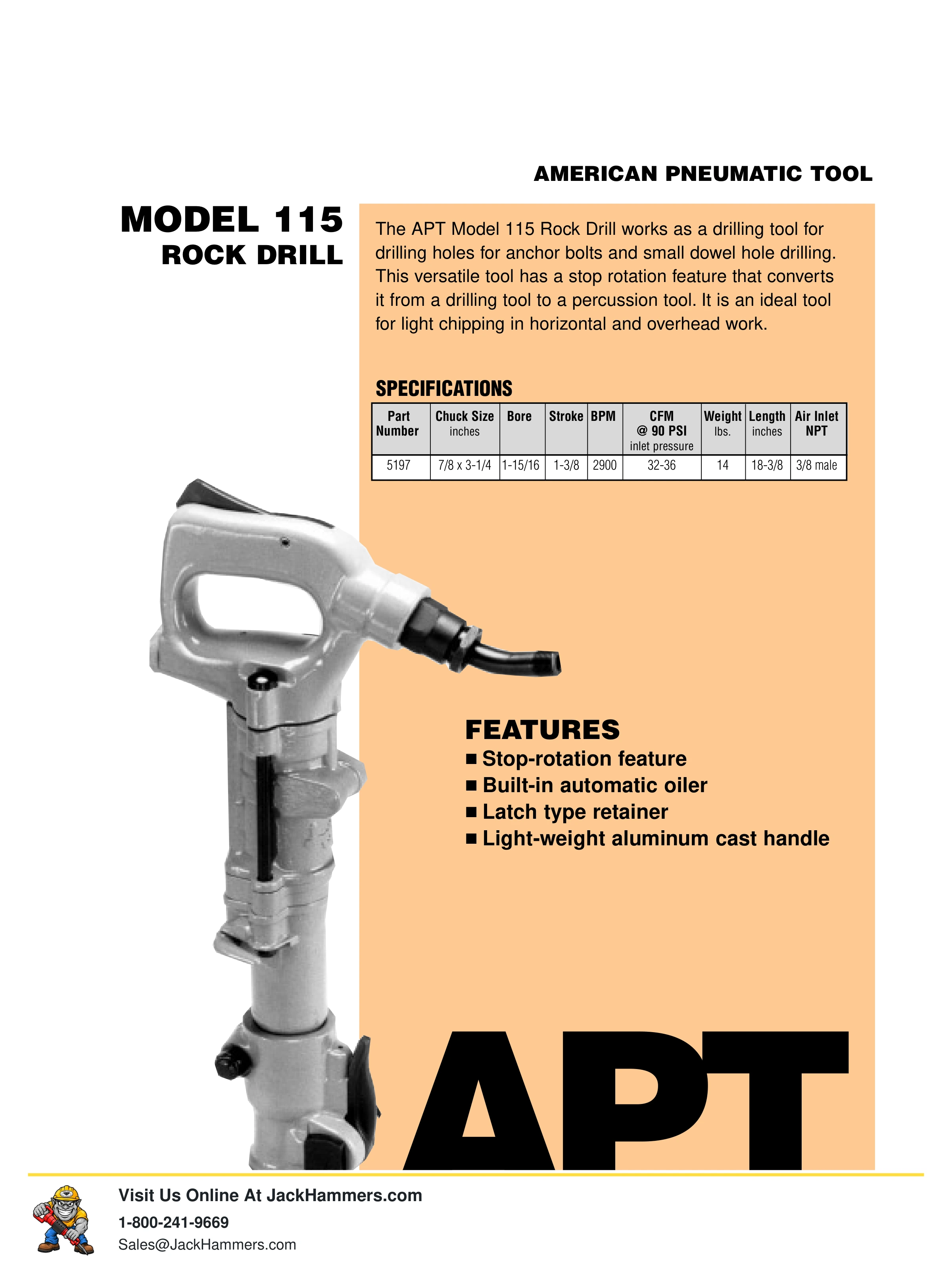

Page 4 of 11

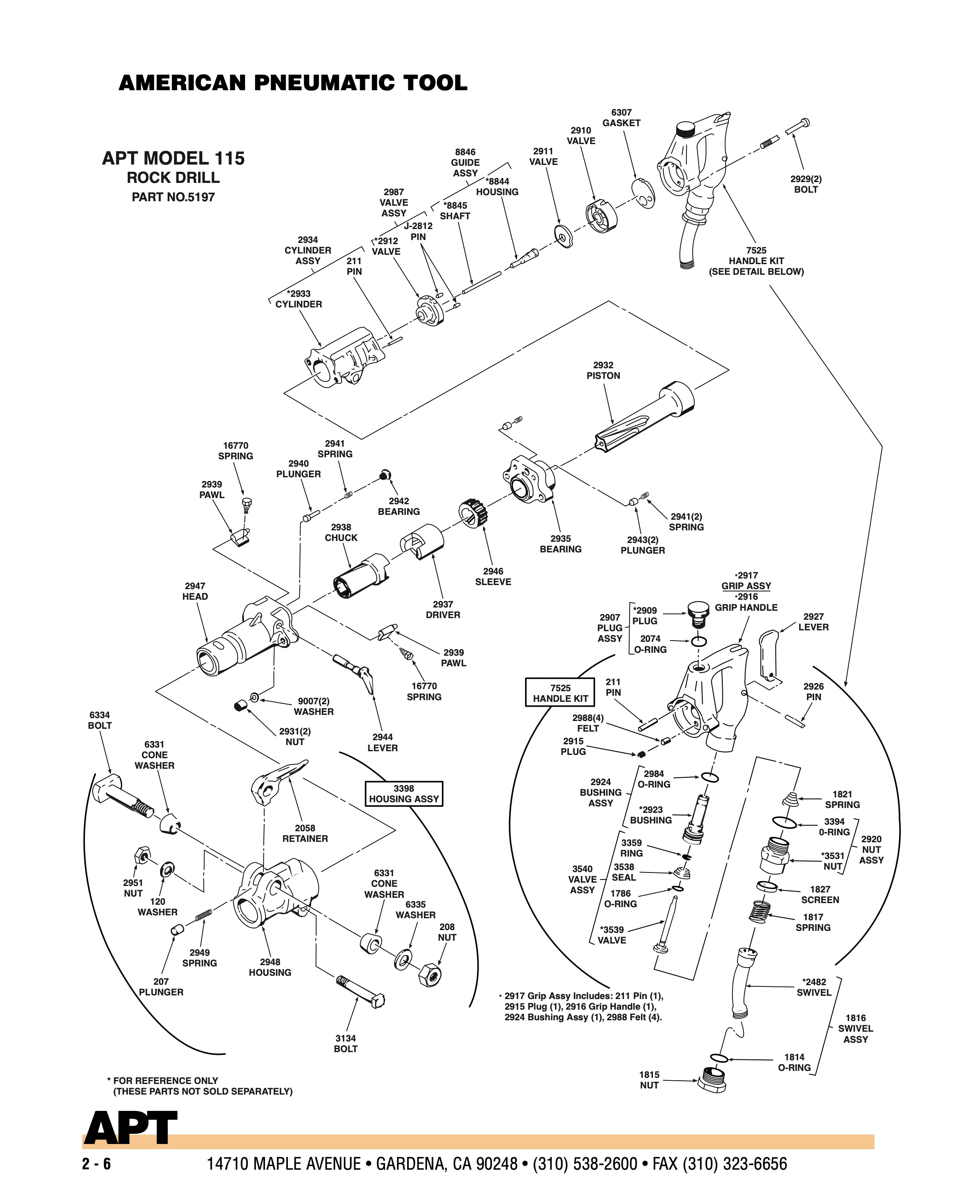

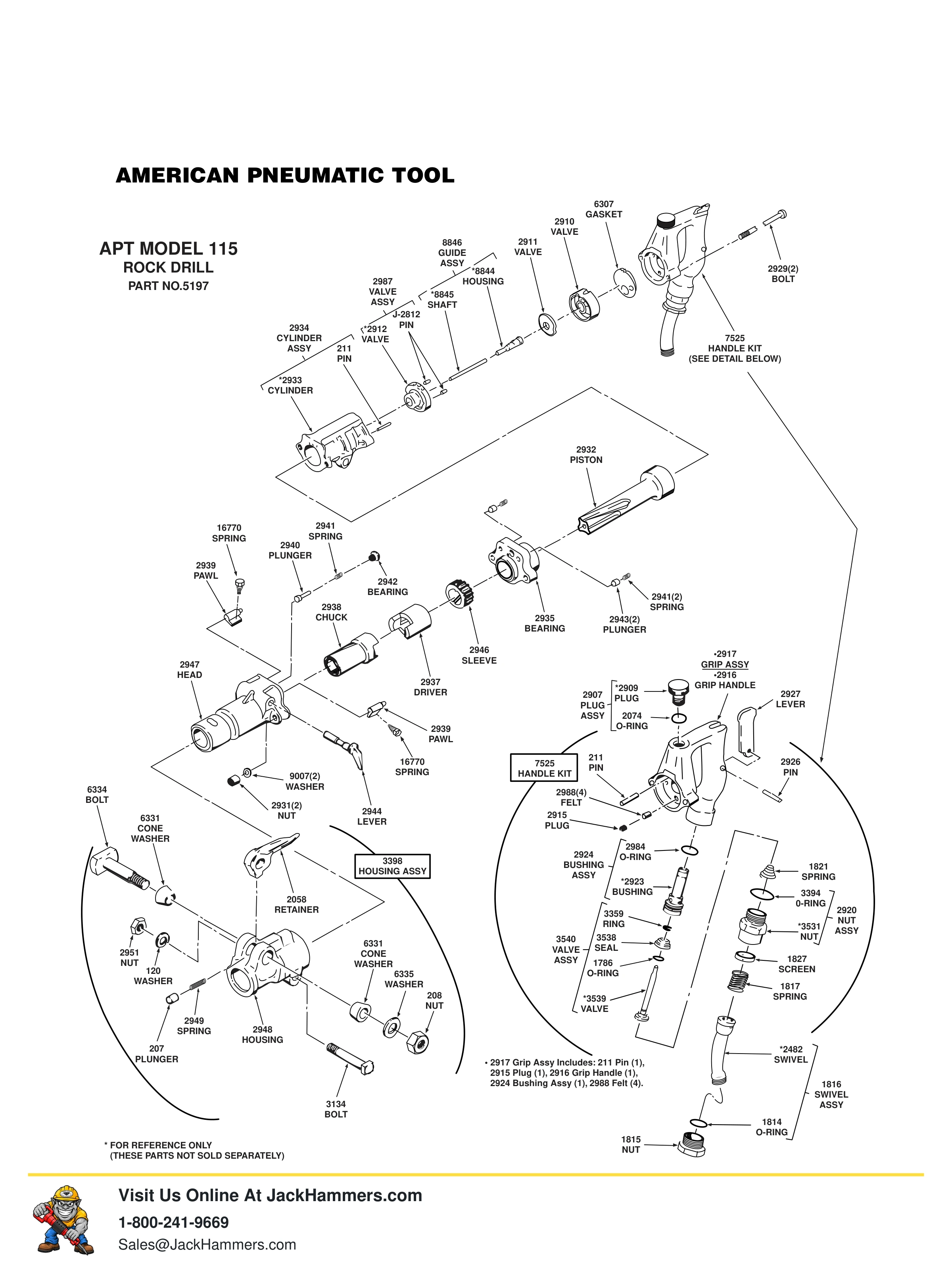

Page 5 of 11

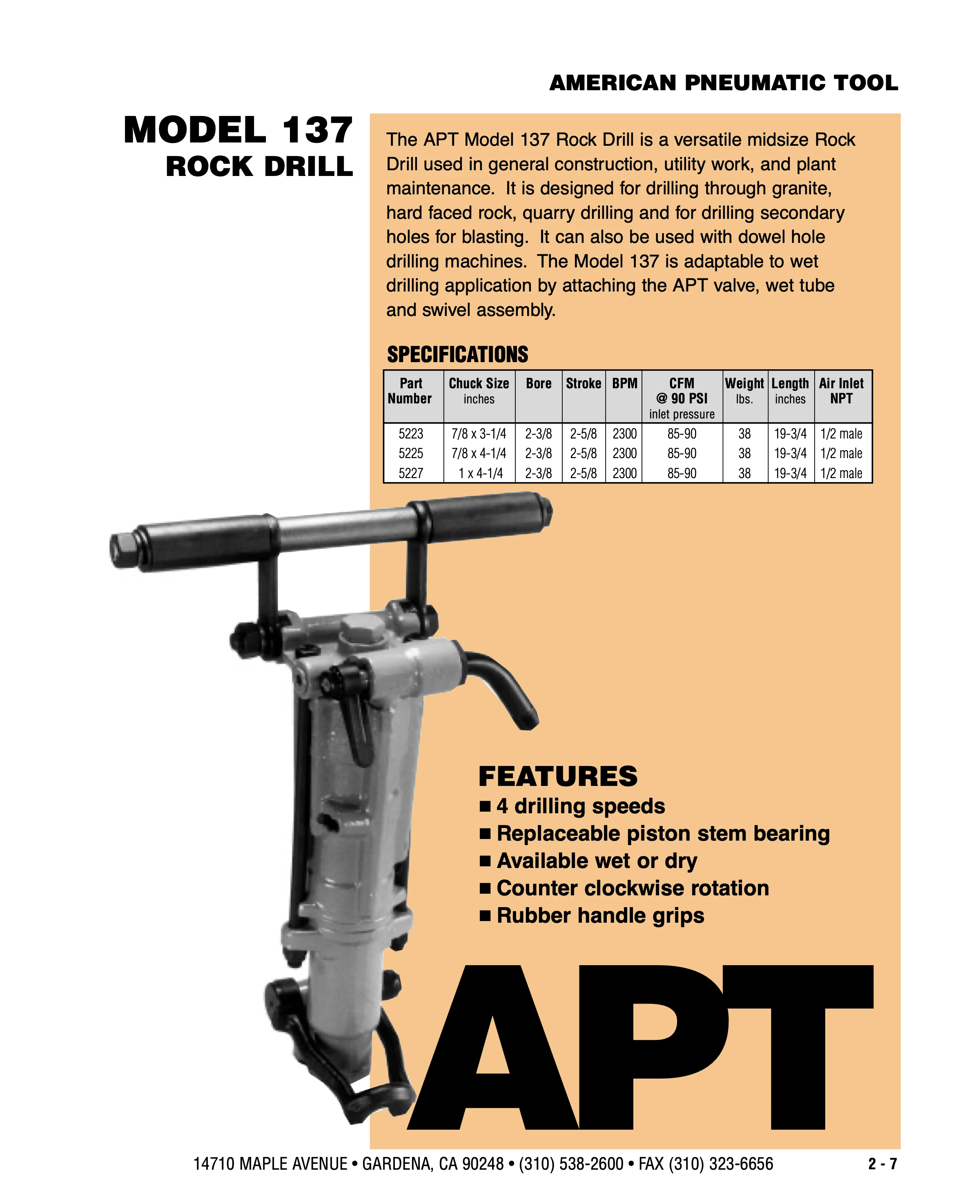

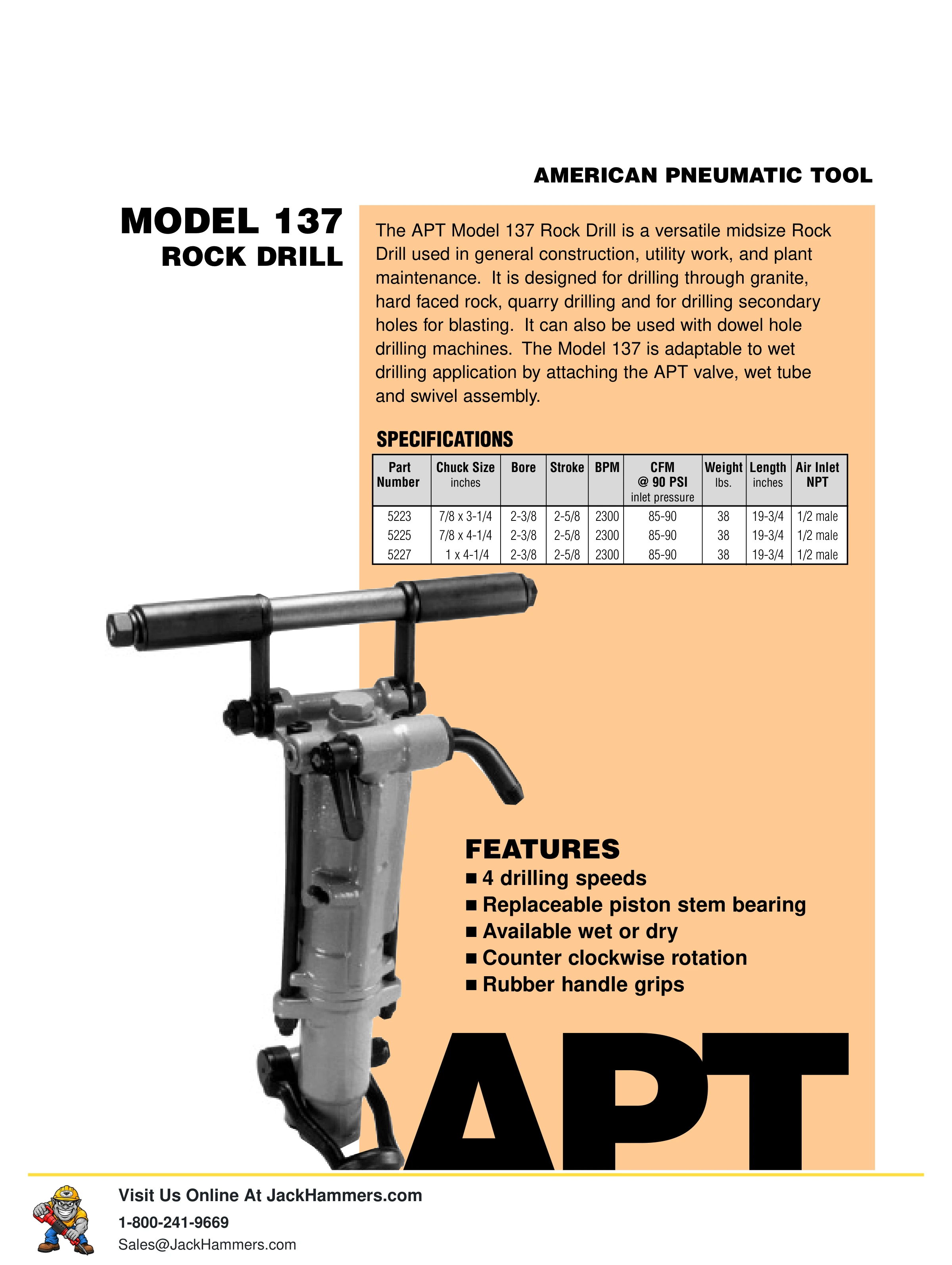

Page 6 of 11

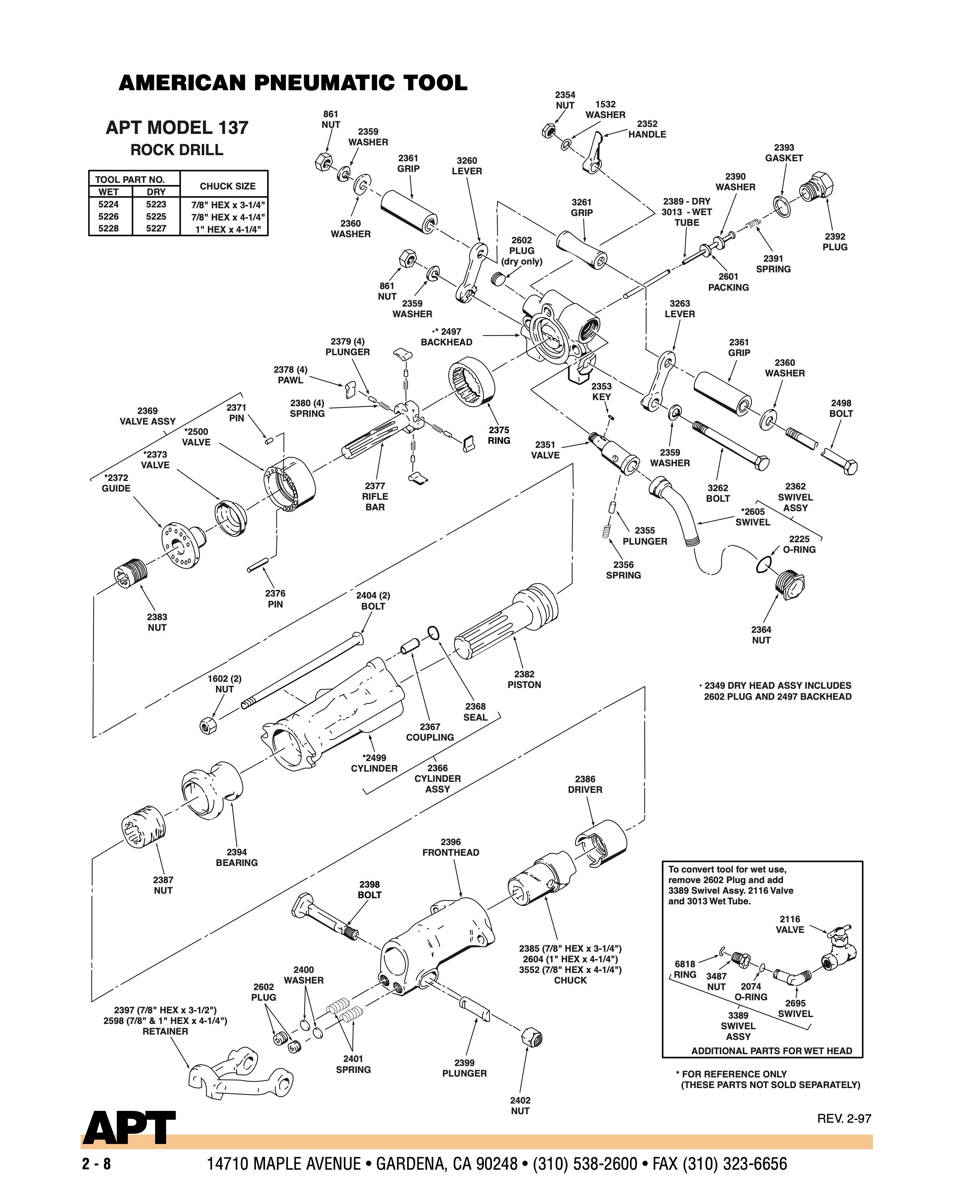

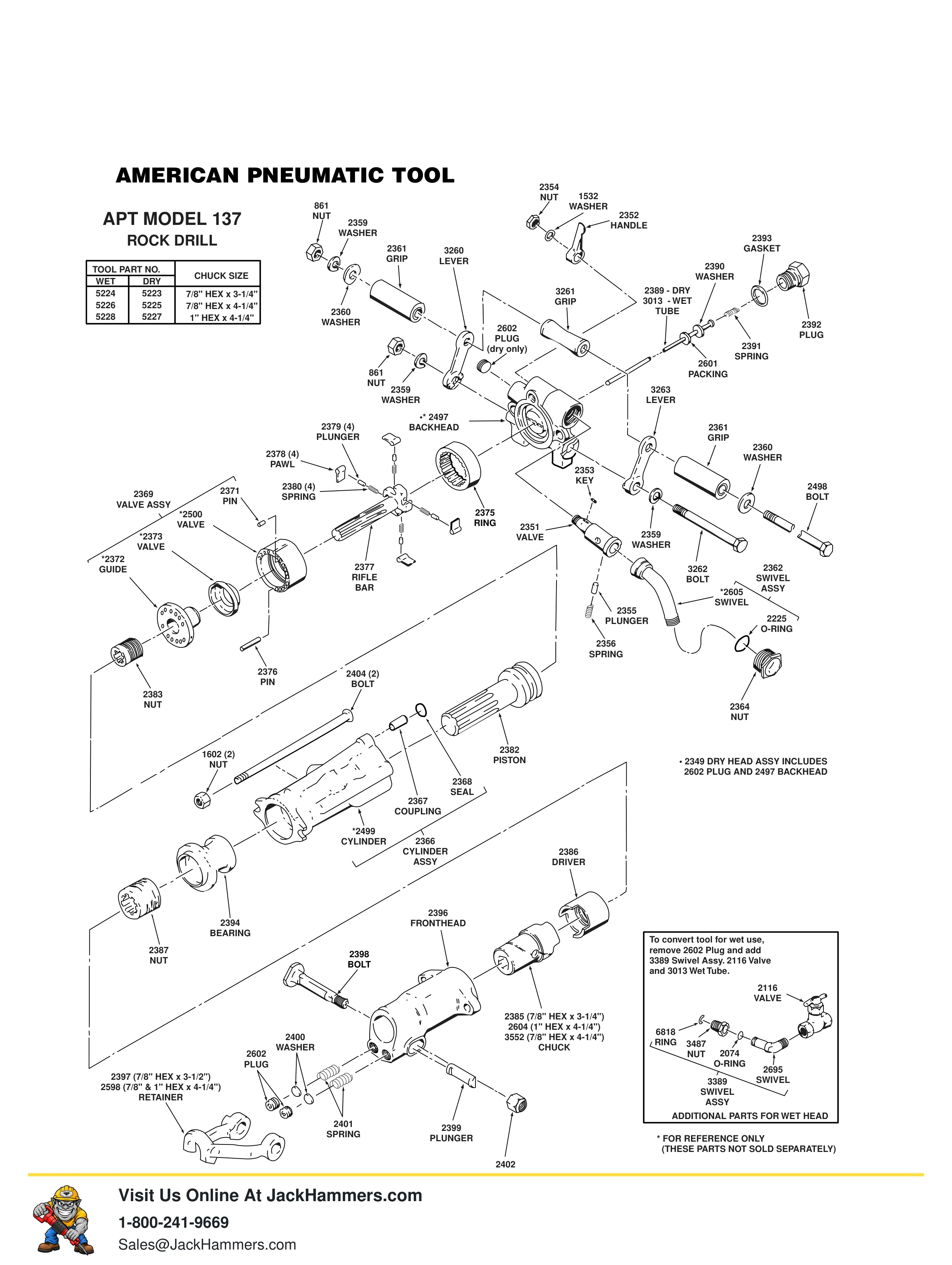

Page 7 of 11

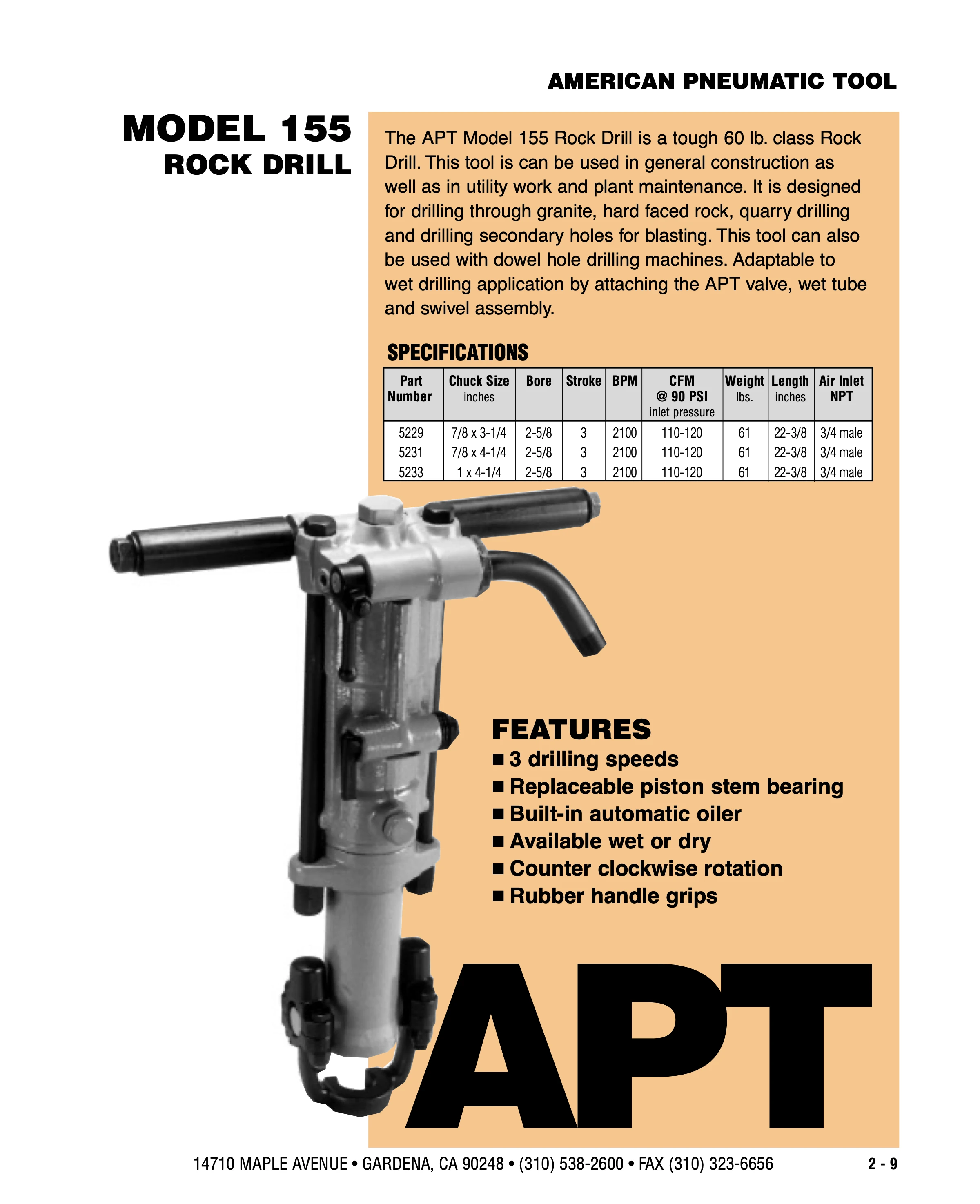

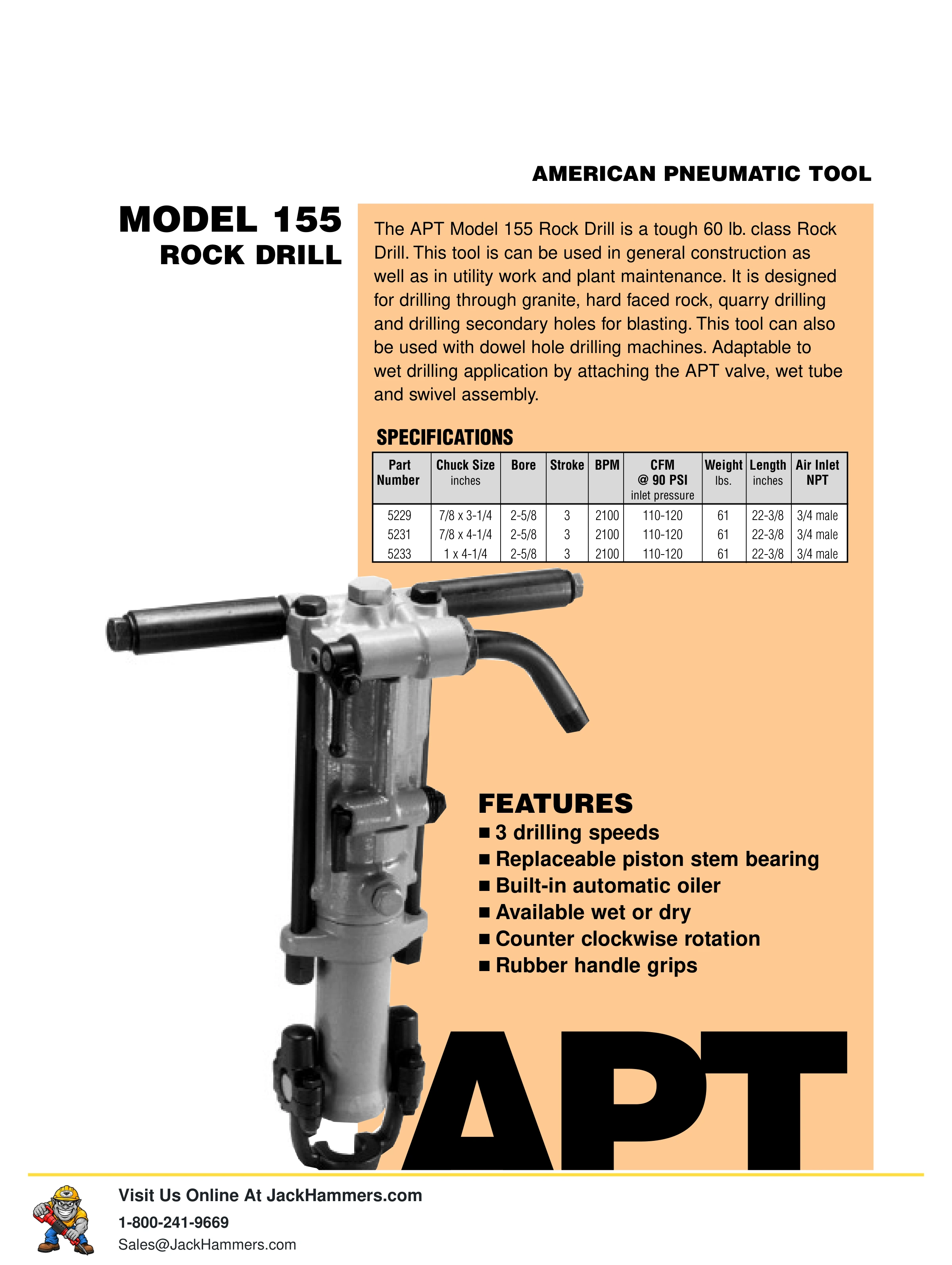

Page 8 of 11

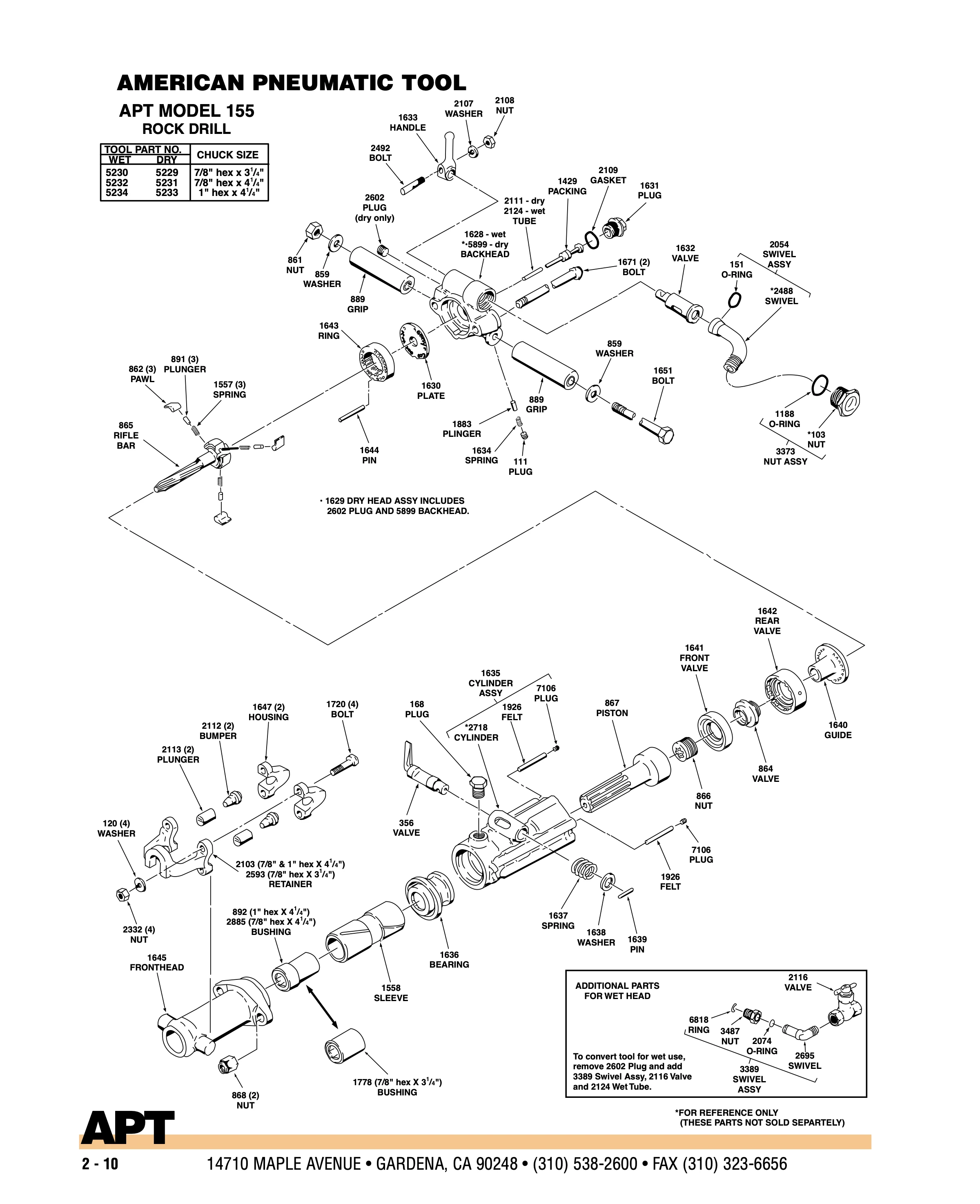

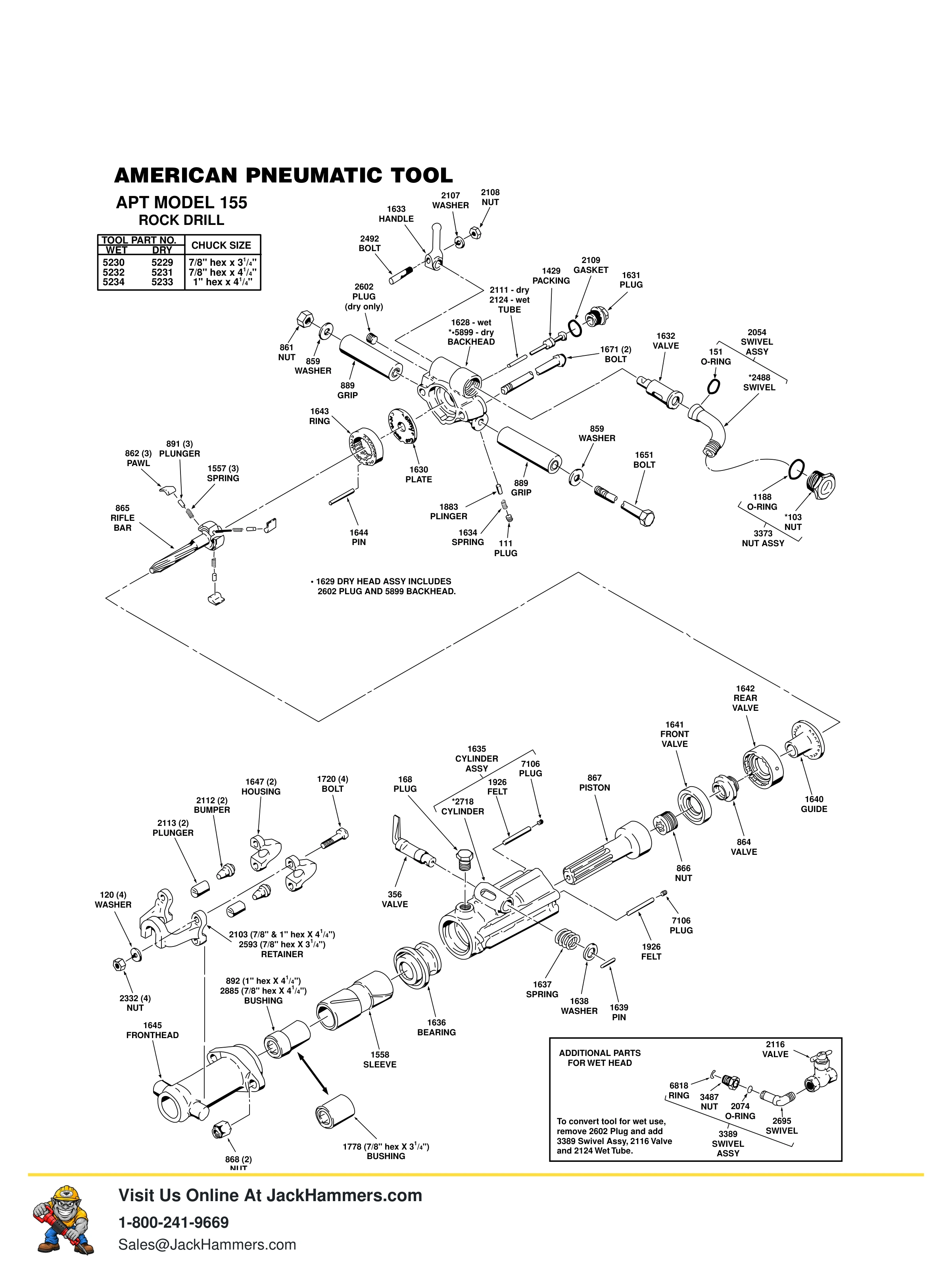

Page 9 of 11

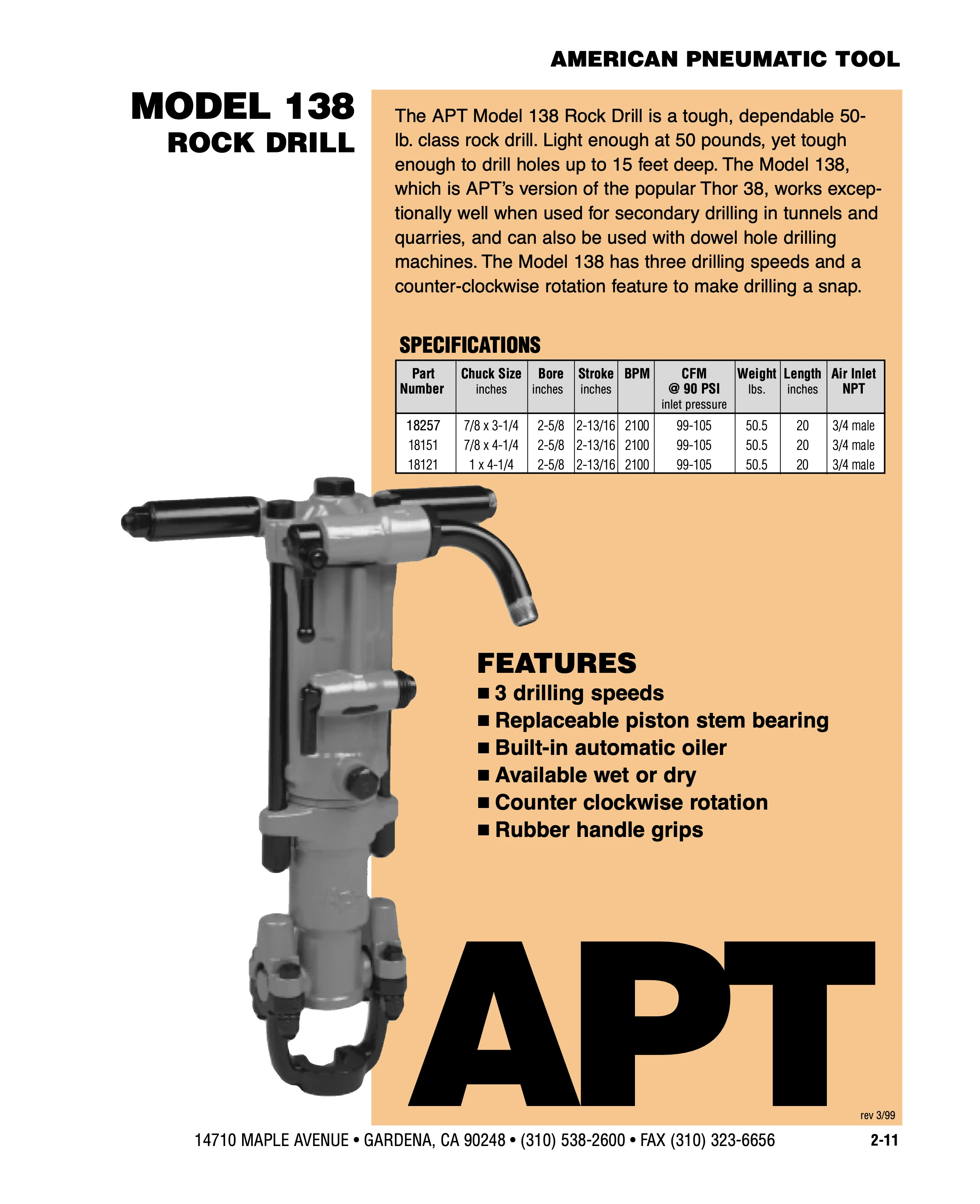

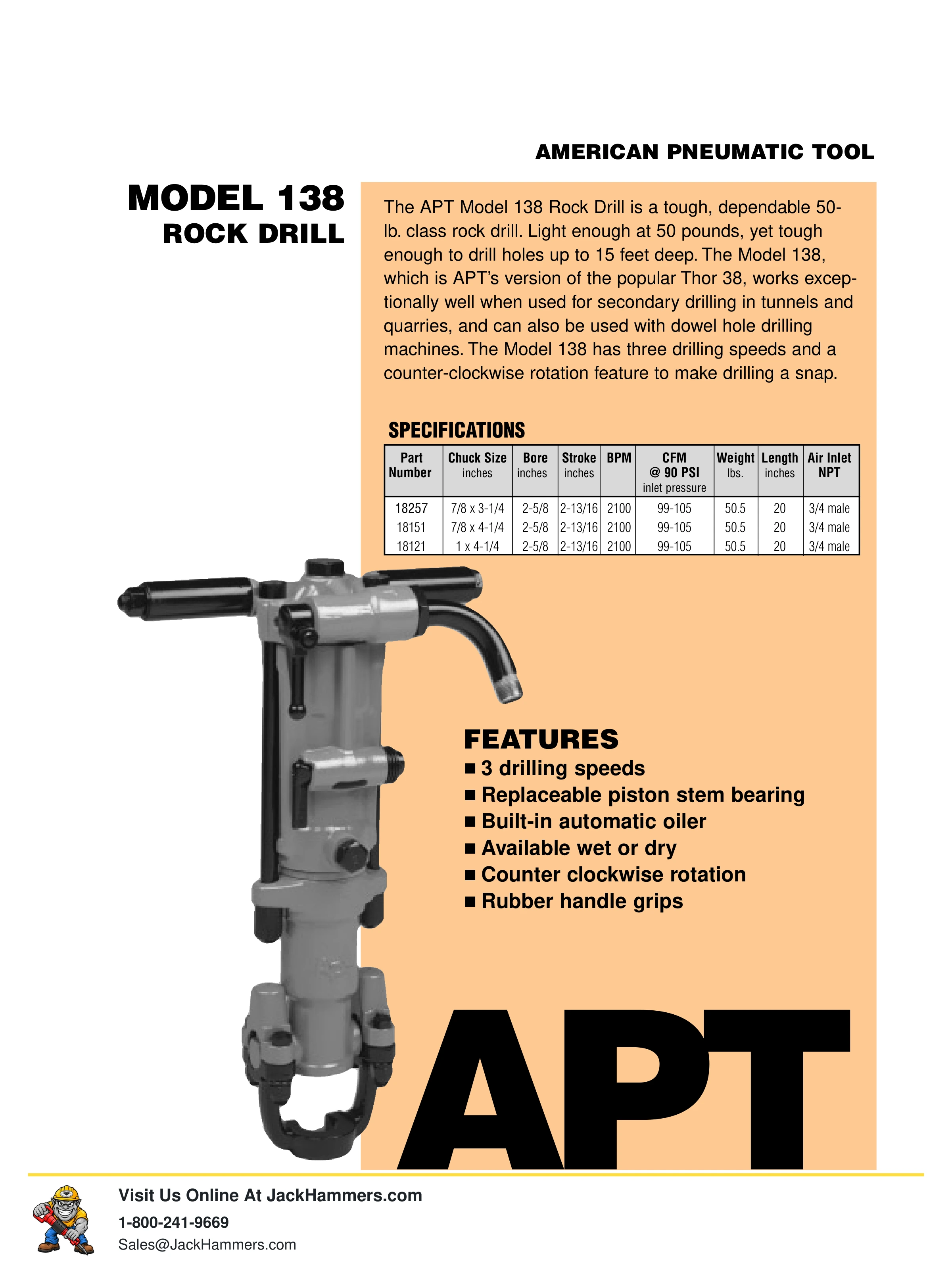

Page 10 of 11

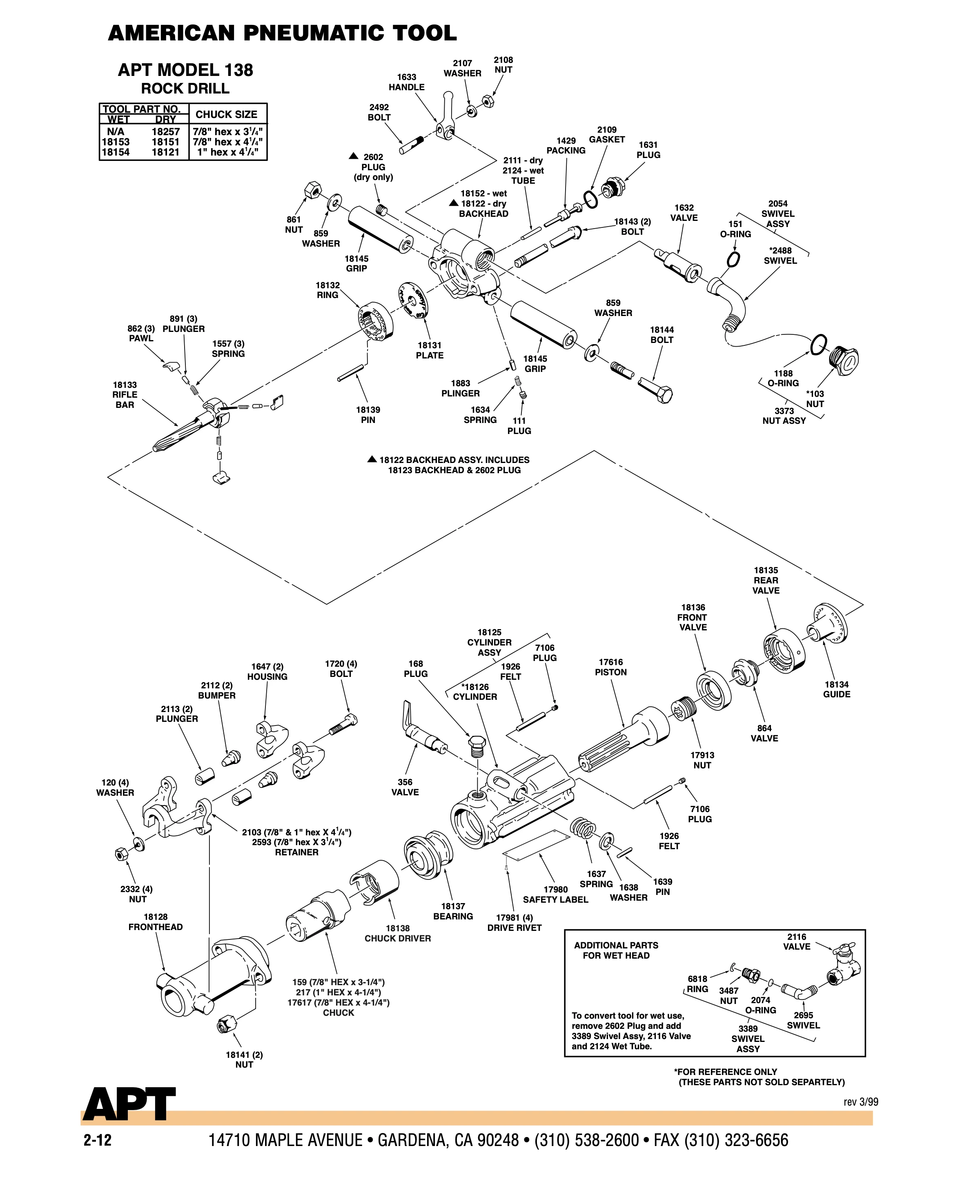

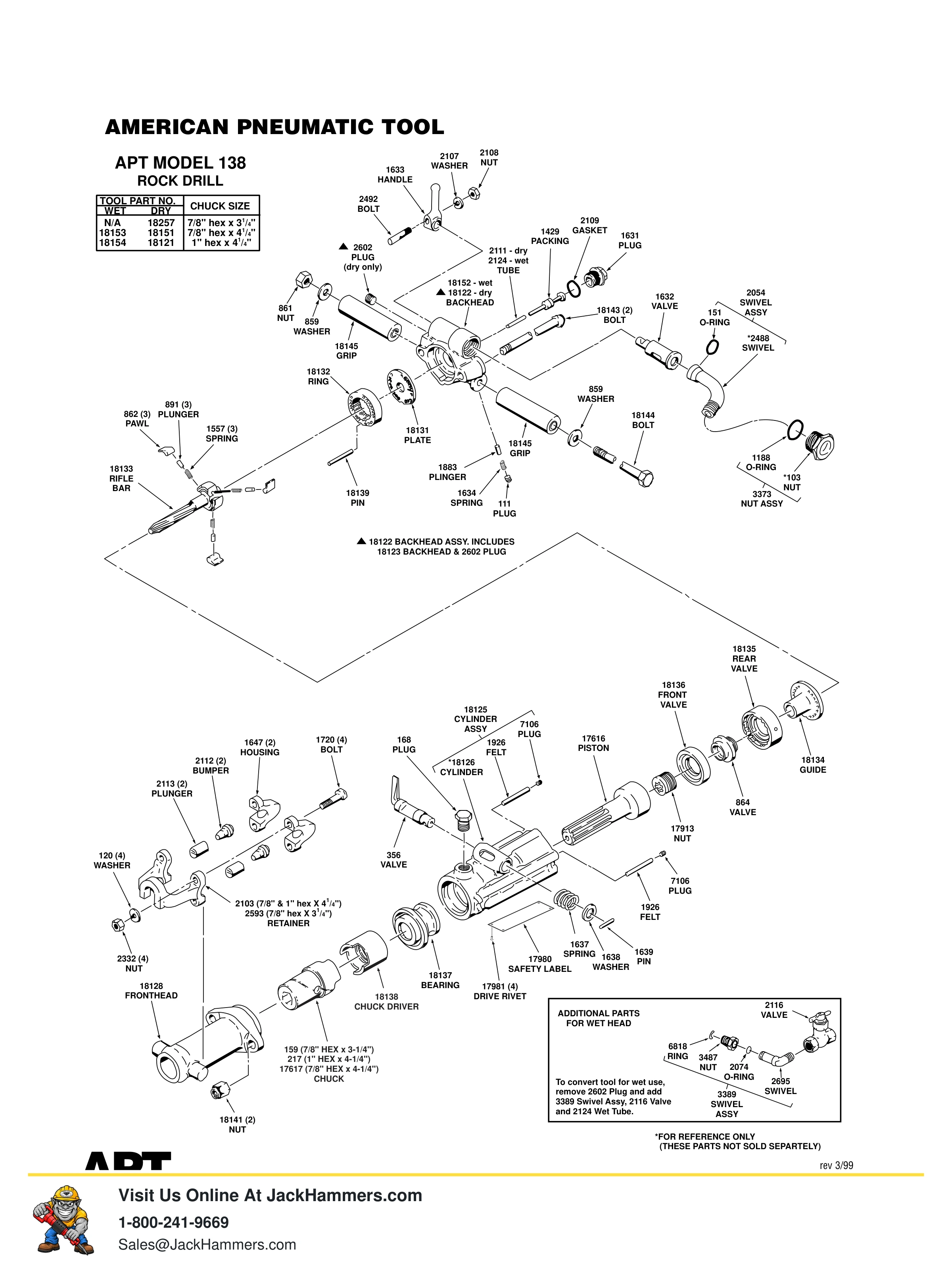

Page 11 of 11
