Chicago Pneumatic 4125

CP4125 2R / 2H / 3R / 3H / 4R / 4H parts drawing preview
Request a Quote1-800-241-9669
← Back to tool detailsOpen original PDF ↗Download original

Match the model and version on the drawing to your tool. Include the part number or diagram callout when requesting a quote.

All 8 PDF pages appear below. Scroll inside the drawing to see each page, or open the original PDF ↗ for searchable text and full-resolution detail.

Fit drawing. Pinch to zoom on touchscreens.
Page 1 of 8

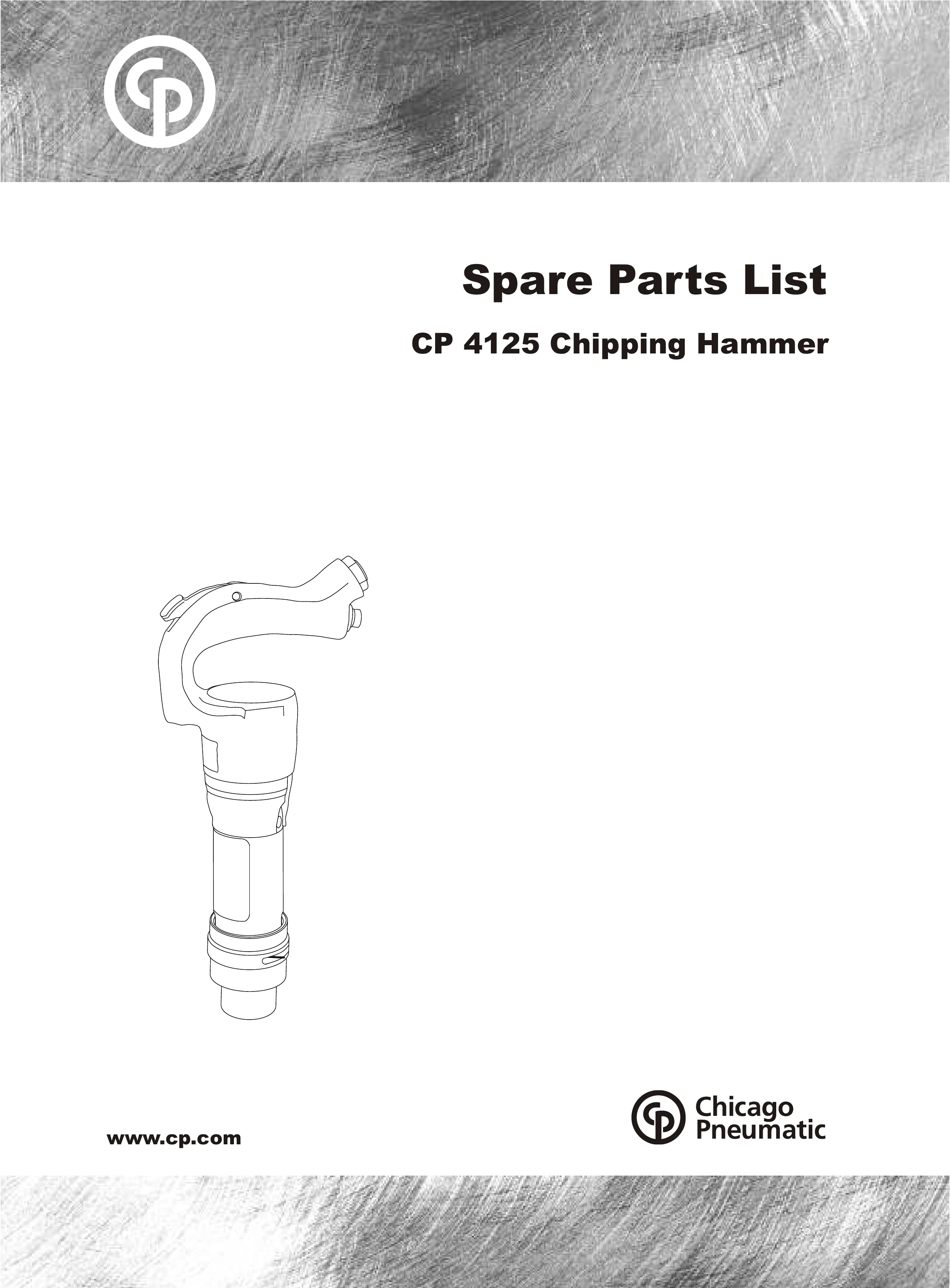

Chicago Pneumatic 4125 PDF page 1 of 8
Page 2 of 8

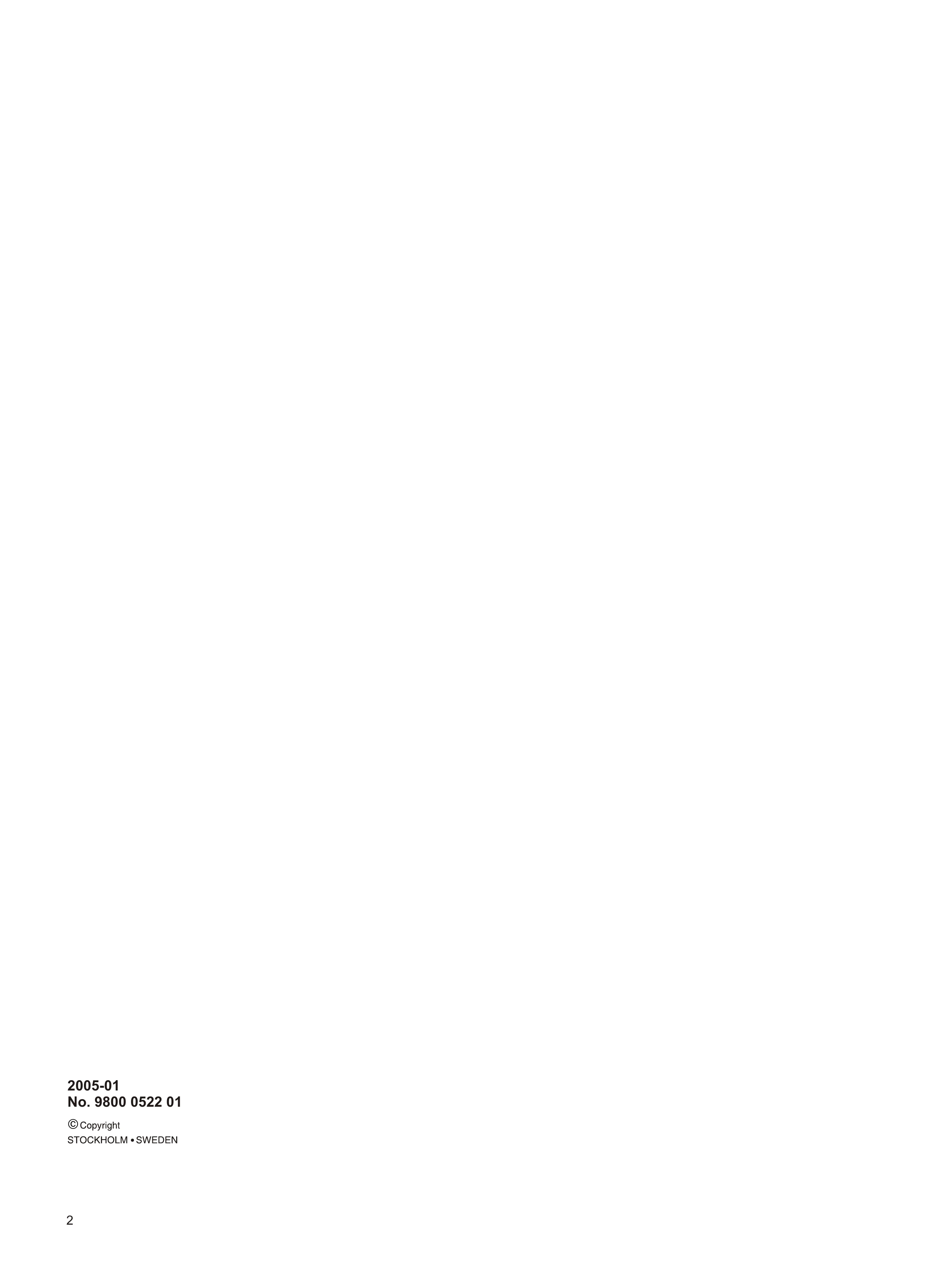

Chicago Pneumatic 4125 PDF page 2 of 8
Page 3 of 8

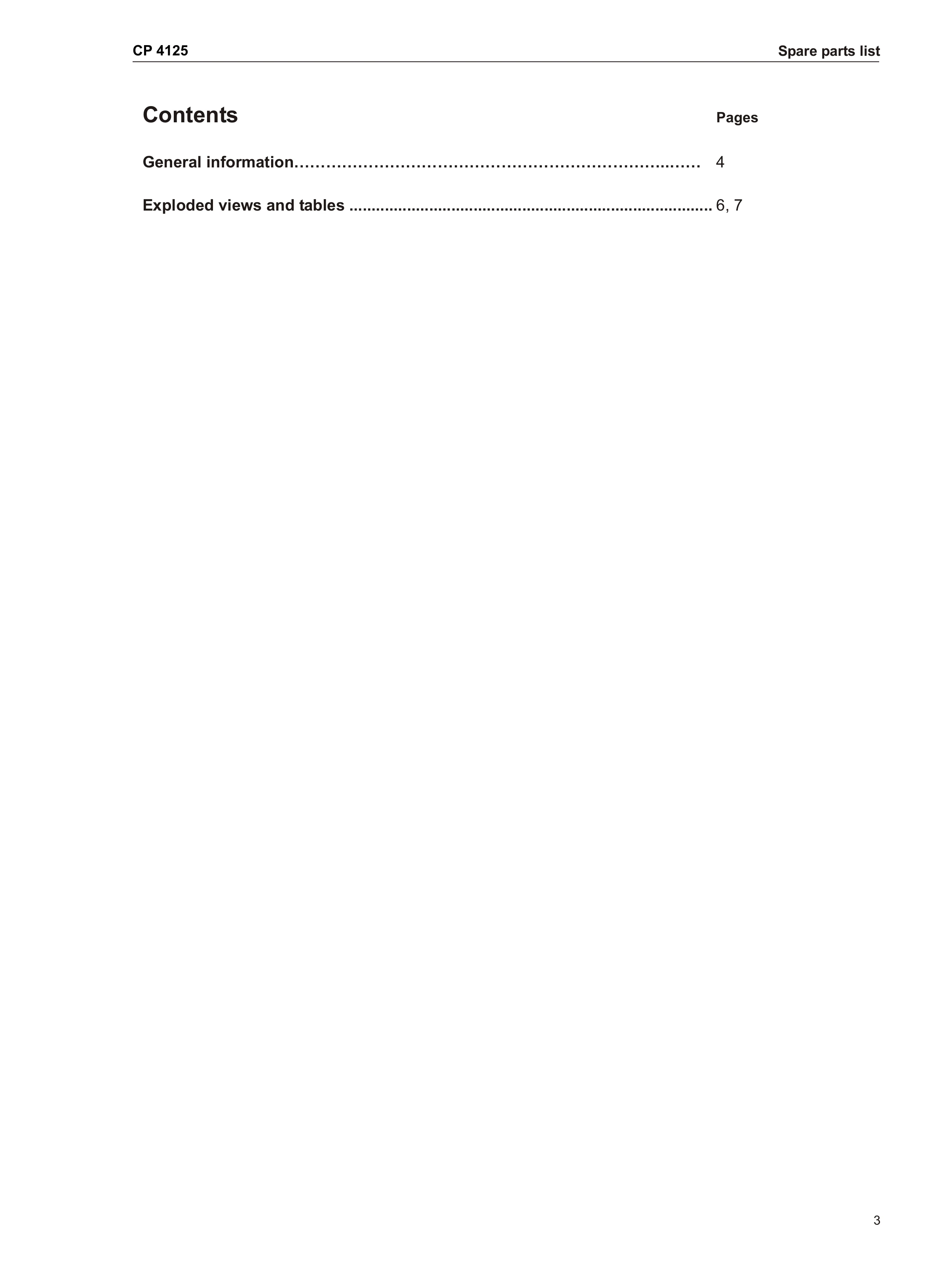

Chicago Pneumatic 4125 PDF page 3 of 8
Page 4 of 8

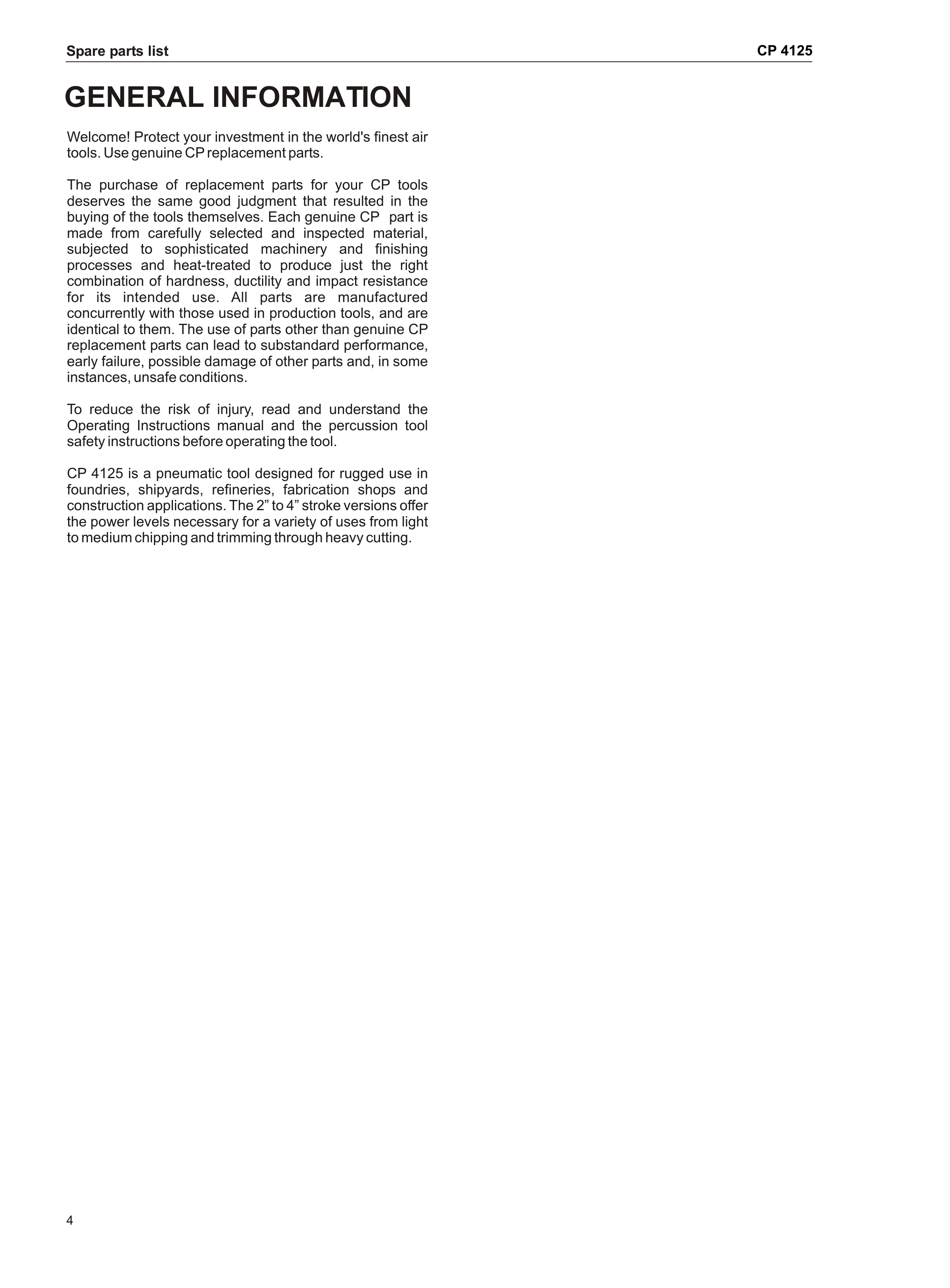

Chicago Pneumatic 4125 PDF page 4 of 8
Page 5 of 8
Chicago Pneumatic 4125 PDF page 5 of 8
Page 6 of 8

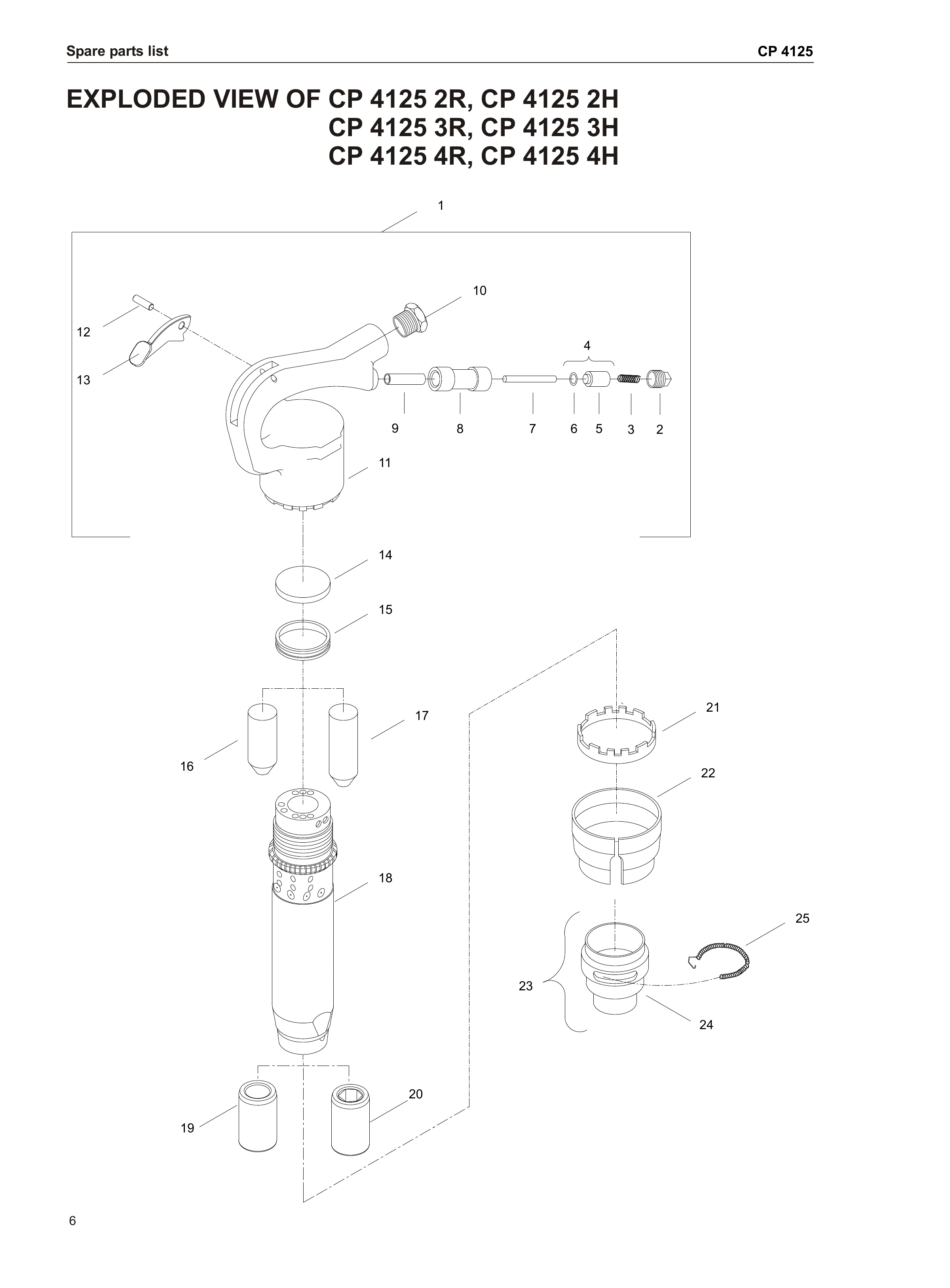

Chicago Pneumatic 4125 PDF page 6 of 8
Page 7 of 8

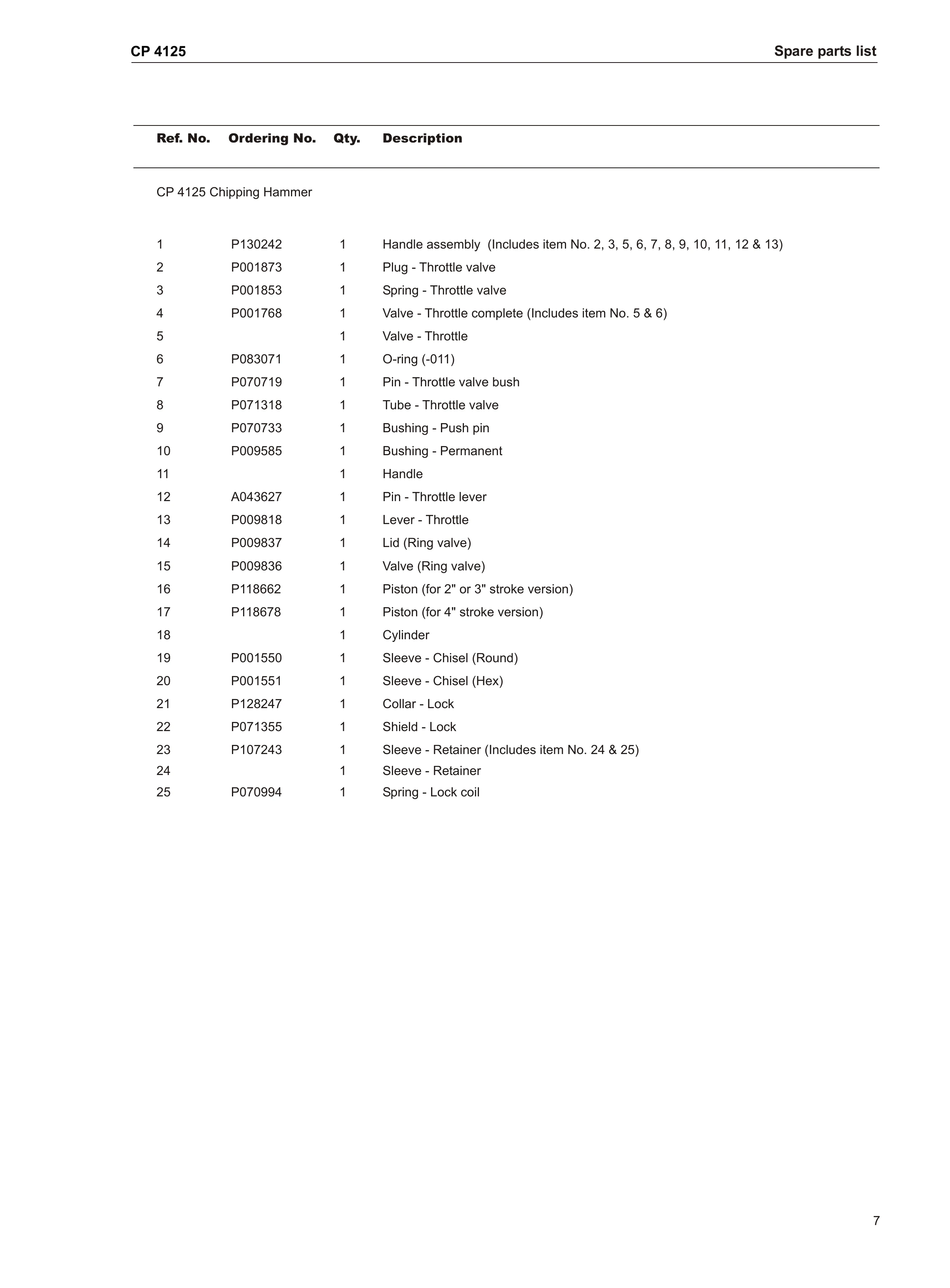

Chicago Pneumatic 4125 PDF page 7 of 8
Page 8 of 8

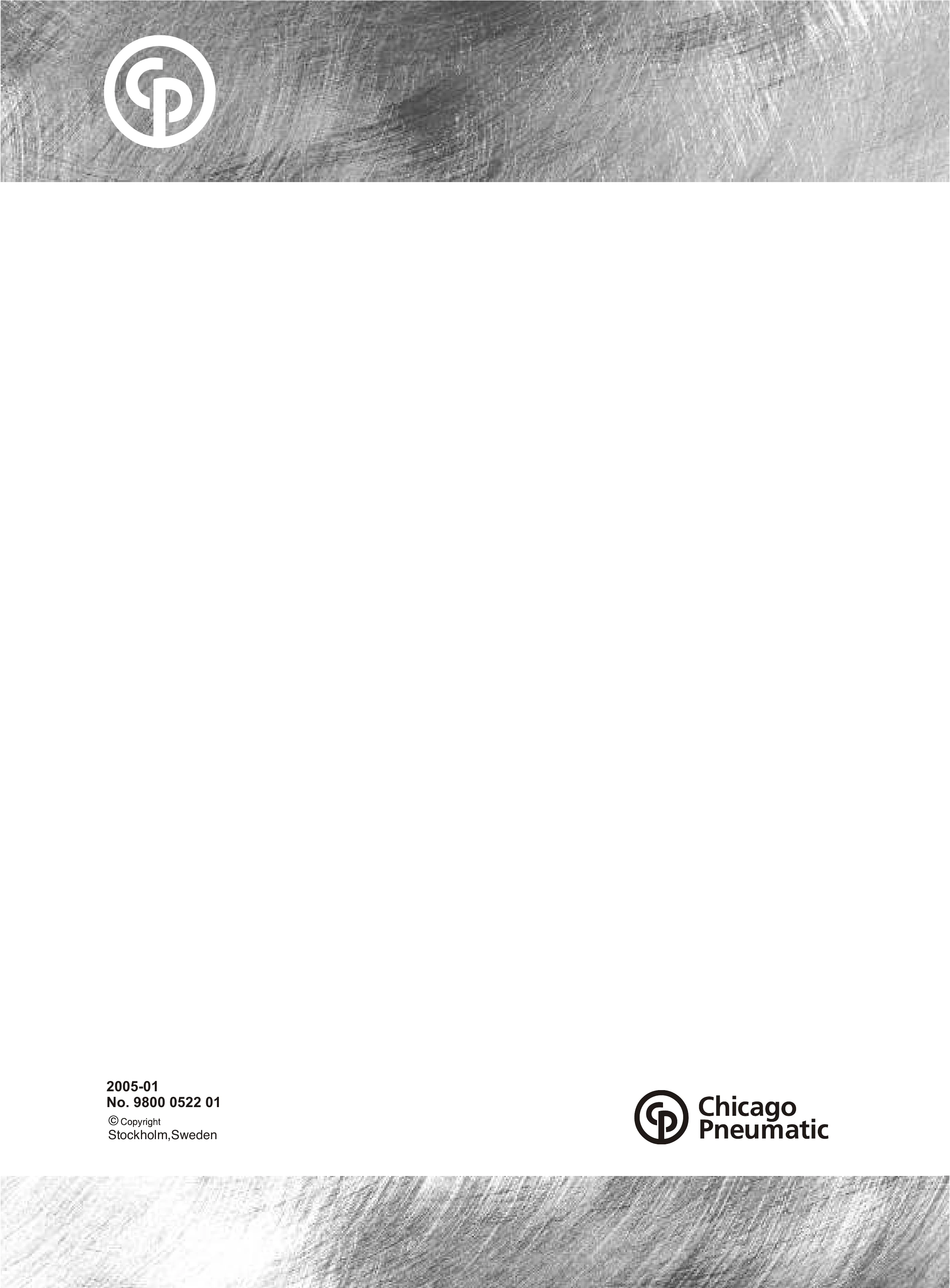

Chicago Pneumatic 4125 PDF page 8 of 8
