Chicago Pneumatic

4125Chipping Hammer

View larger image

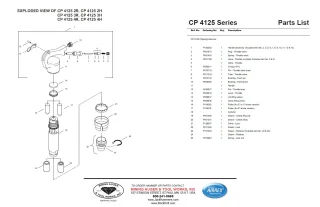

Parts drawing ↗

Select Chuck(Hex or Round) Parts ↗

Choose Your Chuck Before Adding to EZ Quote.

Safety manual (PDF) ↗

Supplied byJackHammers.com

1-800-241-9669

Overview

This general purpose chipping hammer has been used for many years in foundry, fabrication shops and general construction. It is used for medium duty applications, such as chipping concrete and other similar jobs.

Available in 2", 3" and 4" stroke versions.

4125 Part Numbers

4125-2H · 2″ stroke · Part No. 8900000111
.580″ Hex

4125-3H · 3″ stroke · Part No. 8900000113
.580″ Hex

4125-4H · 4″ stroke · Part No. 8900000115
.580″ Hex

4125-2R · 2″ stroke · Part No. 8900000110
.680″ Round

4125-3R · 3″ stroke · Part No. 8900000112
.680″ Round

4125-4R · 4″ stroke · Part No. 8900000114
.680″ Round

Confirm the model, chuck, collar and retainer when requesting a quote.

Need help? 1-800-241-9669

Step 1

Select Chuck Size:

Selected shank: .580″ Hex. Match the collar and actual retainer before ordering.

Ready to Order? Call Now

Step 2

Select Stroke:

4125 model comparison and selection
Select Your Hammer
Part Number	8900000111	8900000113	8900000115
Stroke (inches)	2	3	4
Chuck Size (inches)	.580 Hex	.580 Hex	.580 Hex
Bore (inches)	1-1/8	1-1/8	1-1/8
Blows/Min. [/sec.]	2400 [40]	1920 [32]	1500 [25]
CFM	26	27	28
PSI	90	90	90
Weight (lbs.)	13	14-1/4	15-1/2
Length (inches)	13-1/4	14-1/4	15-1/4

Part Number: 8900000111
Stroke (inches): 2
Chuck Size (inches): .580 Hex
Bore (inches): 1-1/8
Blows/Min. [/sec.]: 2400 [40]
CFM: 26
PSI: 90
Weight (lbs.): 13
Length (inches): 13-1/4

Part Number: 8900000113
Stroke (inches): 3
Chuck Size (inches): .580 Hex
Bore (inches): 1-1/8
Blows/Min. [/sec.]: 1920 [32]
CFM: 27
PSI: 90
Weight (lbs.): 14-1/4
Length (inches): 14-1/4

Part Number: 8900000115
Stroke (inches): 4
Chuck Size (inches): .580 Hex
Bore (inches): 1-1/8
Blows/Min. [/sec.]: 1500 [25]
CFM: 28
PSI: 90
Weight (lbs.): 15-1/2
Length (inches): 15-1/4

4125 model comparison and selection
Select Your Hammer
Part Number	8900000110	8900000112	8900000114
Stroke (inches)	2	3	4
Chuck Size (inches)	.680 Rnd	.680 Rnd	.680 Rnd
Bore (inches)	1-1/8	1-1/8	1-1/8
Blows/Min. [/sec.]	2400 [40]	1920 [32]	1500 [25]
CFM	26	27	28
PSI	90	90	90
Weight (lbs.)	13	14-1/4	15-1/2
Length (inches)	13-1/4	14-1/4	15-1/4

Part Number: 8900000110
Stroke (inches): 2
Chuck Size (inches): .680 Rnd
Bore (inches): 1-1/8
Blows/Min. [/sec.]: 2400 [40]
CFM: 26
PSI: 90
Weight (lbs.): 13
Length (inches): 13-1/4

Part Number: 8900000112
Stroke (inches): 3
Chuck Size (inches): .680 Rnd
Bore (inches): 1-1/8
Blows/Min. [/sec.]: 1920 [32]
CFM: 27
PSI: 90
Weight (lbs.): 14-1/4
Length (inches): 14-1/4

Part Number: 8900000114
Stroke (inches): 4
Chuck Size (inches): .680 Rnd
Bore (inches): 1-1/8
Blows/Min. [/sec.]: 1500 [25]
CFM: 28
PSI: 90
Weight (lbs.): 15-1/2
Length (inches): 15-1/4

Selected: 4125-2H · 8900000111.580″ HexConfirm retainer style

Hammer Quantity

Find replacement parts ↗

Your Quote

0 items · 0 pieces

Add a hammer or accessory to get started.

Step 3

Select Points, Chisels, Etc

Standard Solid Retainer for Oval Collar Tools

The following Points, Chisels, etc. are used with Standard Solid Retainers.

.580″ Hex × Oval Collar

Match the collar and retainer on your hammer.

Compare retainer and collar styles →

Longer Lengths, Additional Blades AvailableCall 1-800-241-9669

Moil Point

.580″ Hex × Oval Collar

Standard Lengths: 12″ / 18″ / 24″

Length Under CollarQuantity

12″OCHS-12P

18″OCHS-18P

24″OCHS-24P

Request Longer Lengths

Narrow Chisel

.580″ Hex × Oval Collar

Standard Lengths: 12″ / 18″ / 24″

Length Under CollarQuantity

12″OCHS-12C

18″OCHS-18C

24″OCHS-24C

Request Longer Lengths

2″ Wide Blade Chisel

.580″ Hex × Oval Collar

Standard Lengths: 12″ / 18″ / 24″

Length Under CollarQuantity

12″OCHS-12C2

18″OCHS-18C2

24″OCHS-24C2

Request Longer Lengths

3″ Wide Blade Chisel

.580″ Hex × Oval Collar

Standard Lengths: 12″ / 18″ / 24″

Length Under CollarQuantity

12″OCHS-12C3

18″OCHS-18C3

24″OCHS-24C3

Request Longer Lengths

4½″ Clay Spade

.580″ Hex × Oval Collar

Standard Lengths: 10″

Length Under CollarQuantity

10″OCHS-CS

All-Steel Bushing Tool

.580″ Hex × Oval Collar

Standard Lengths: 8″

Length Under CollarQuantity

8″OCHS-BT

Pin Driver

.580″ Hex × Oval Collar

Request the Size You Need.

Tell us your Pin Diameter, Length, and Chuck Configuration.

Longer Lengths, Additional Blades AvailableCall 1-800-241-9669
