Match the model and version on the drawing to your tool. Include the part number or diagram callout when requesting a quote.
All 16 PDF pages appear below. Scroll inside the drawing to see each page, or open the original PDF ↗ for searchable text and full-resolution detail.
Fit drawing. Pinch to zoom on touchscreens.

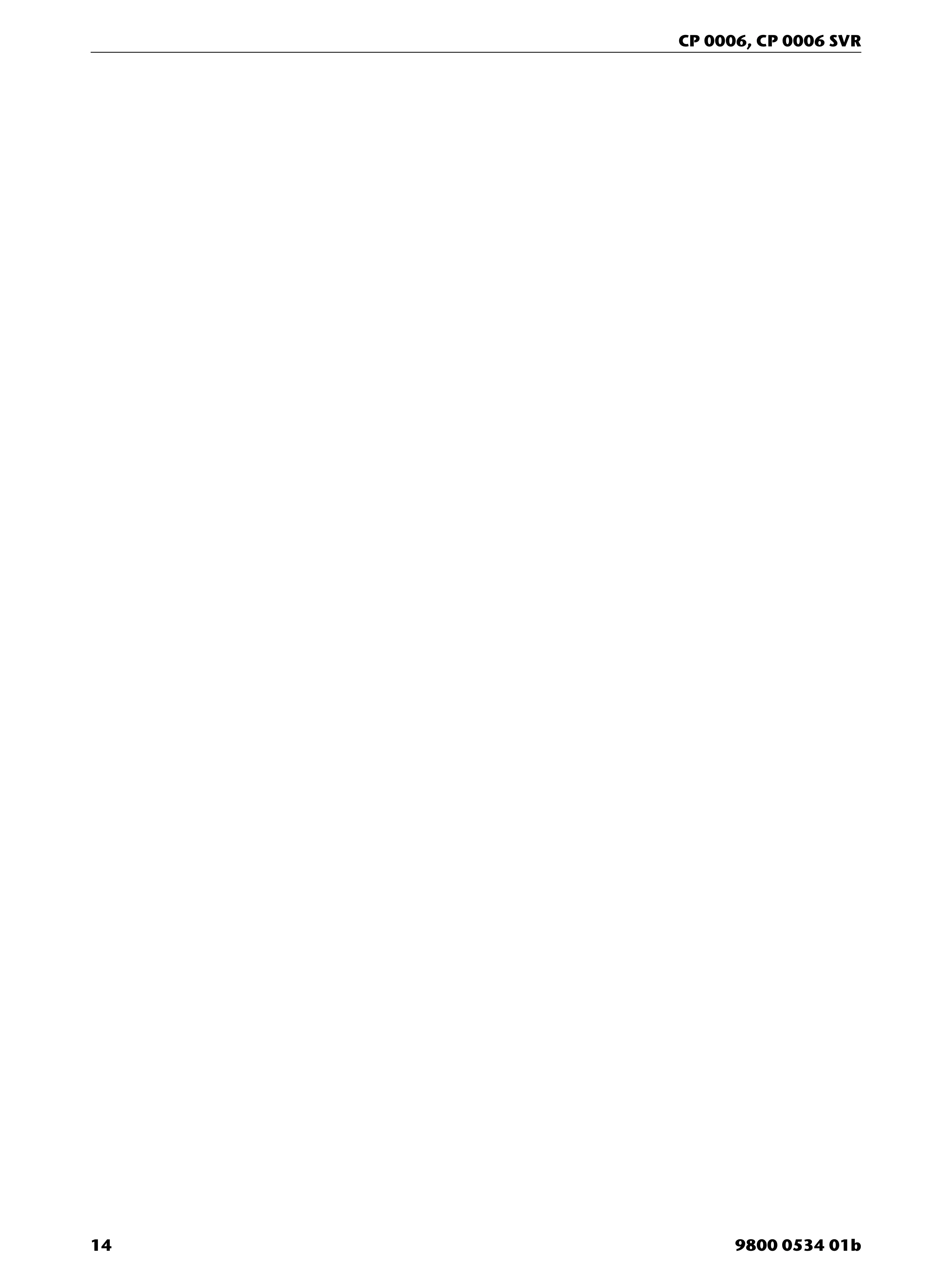

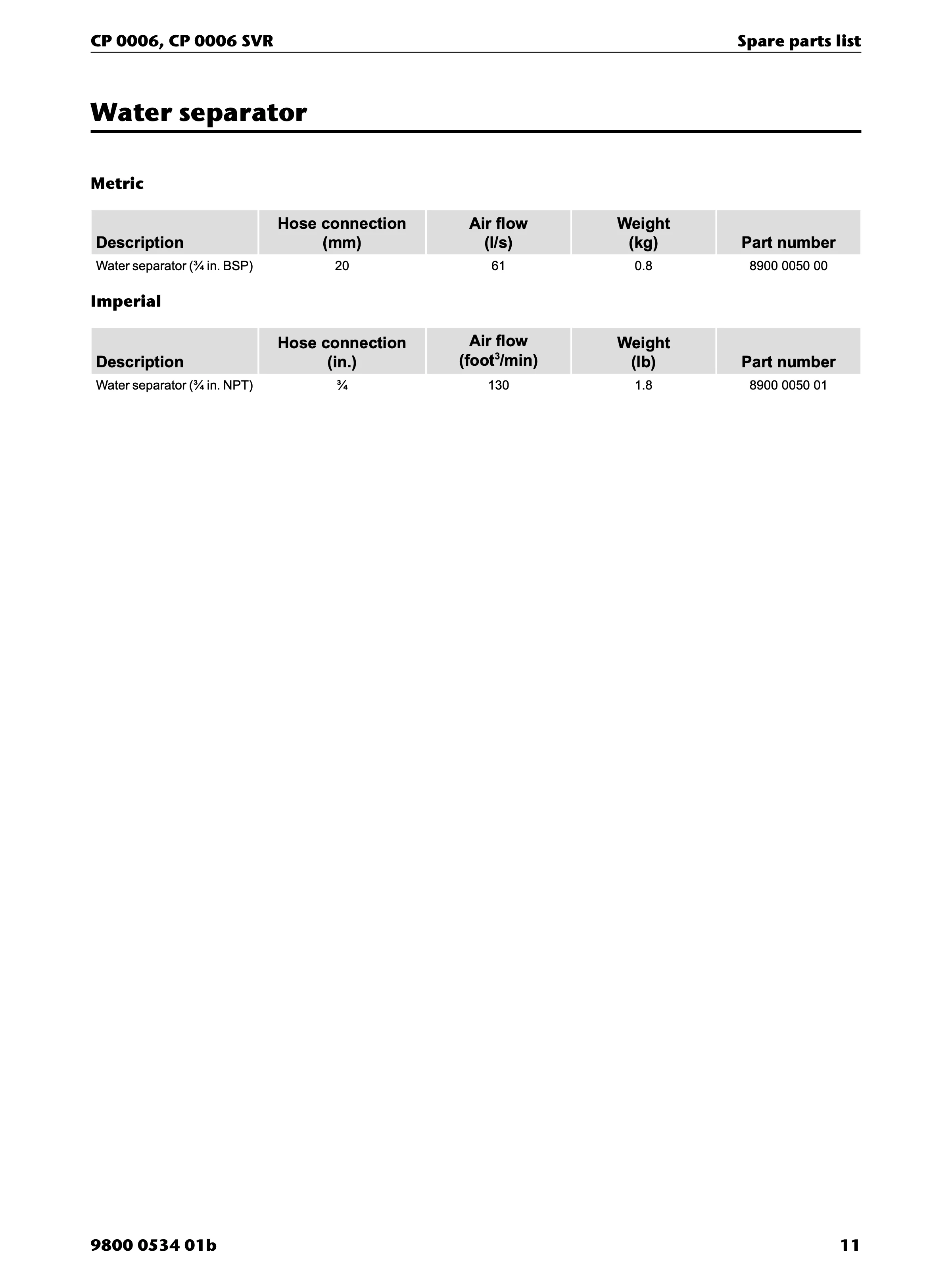

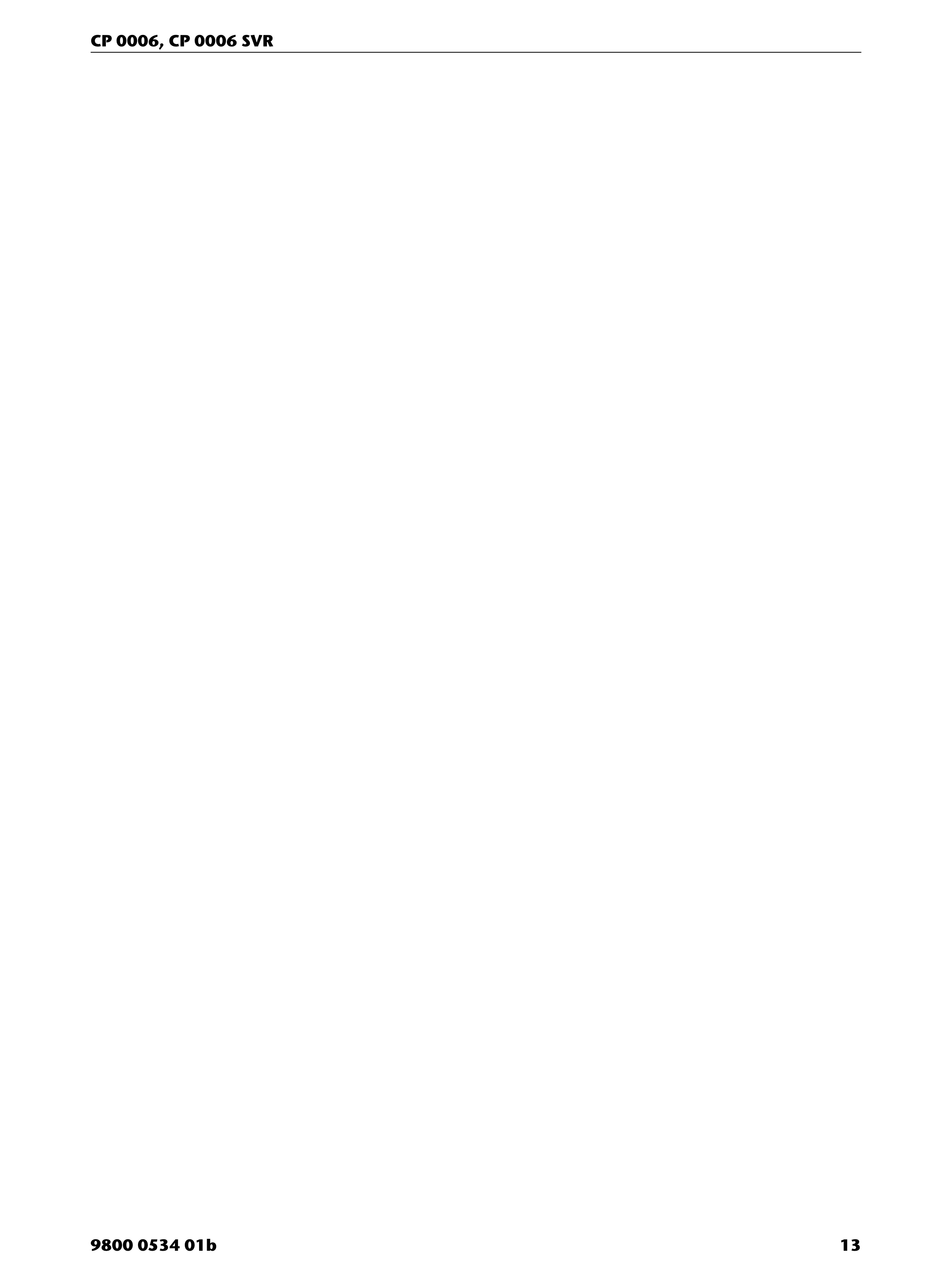

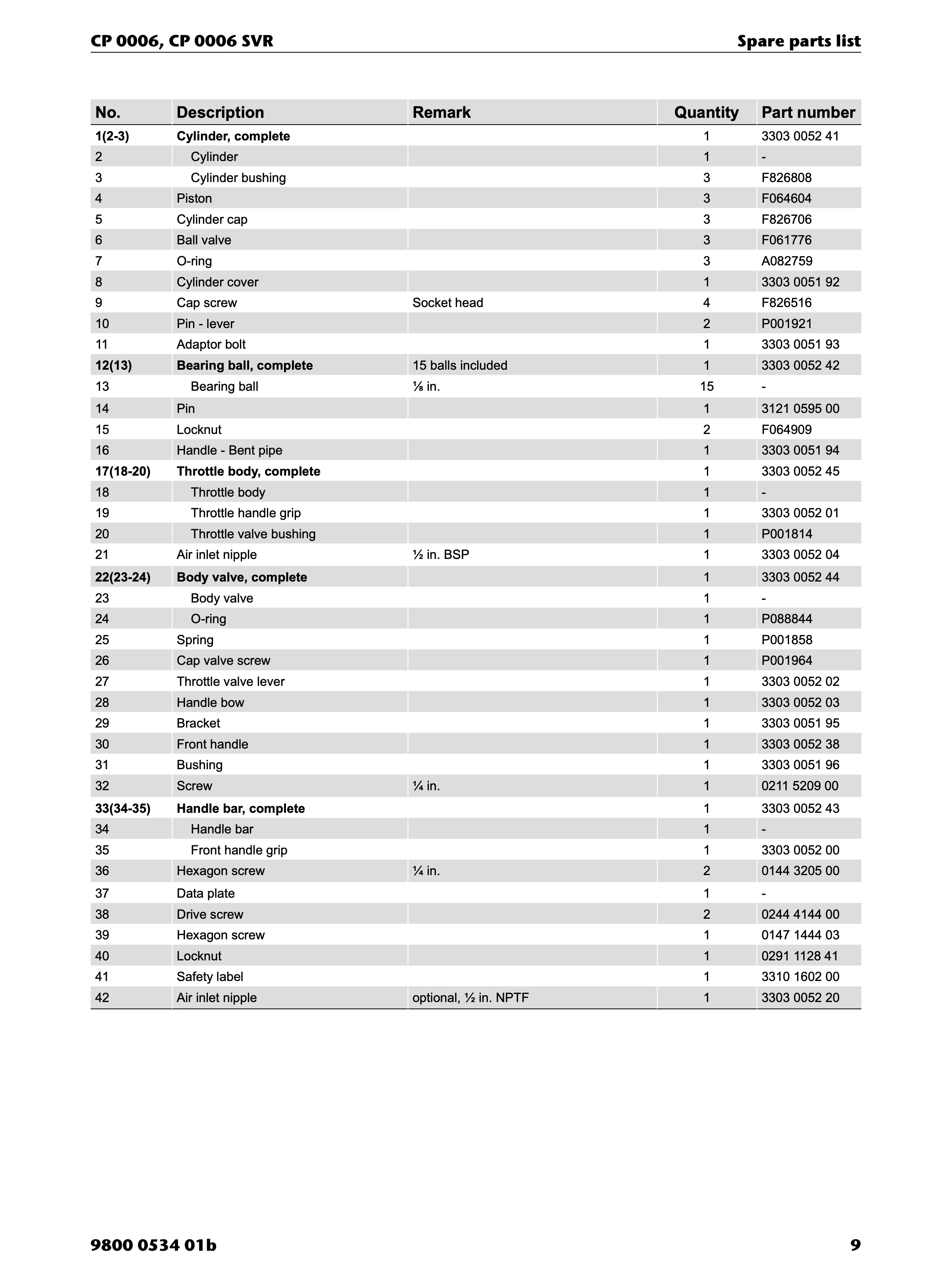

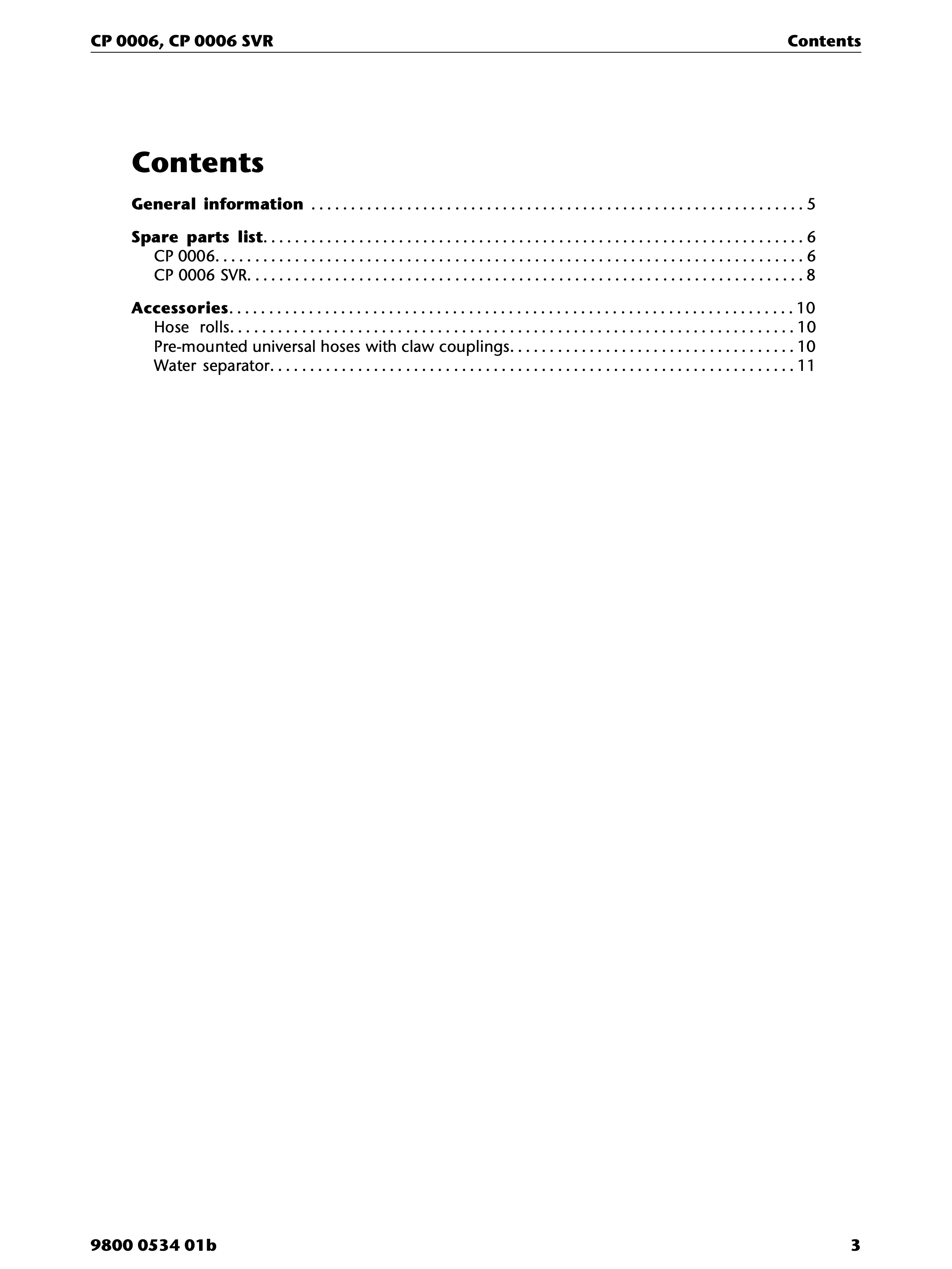

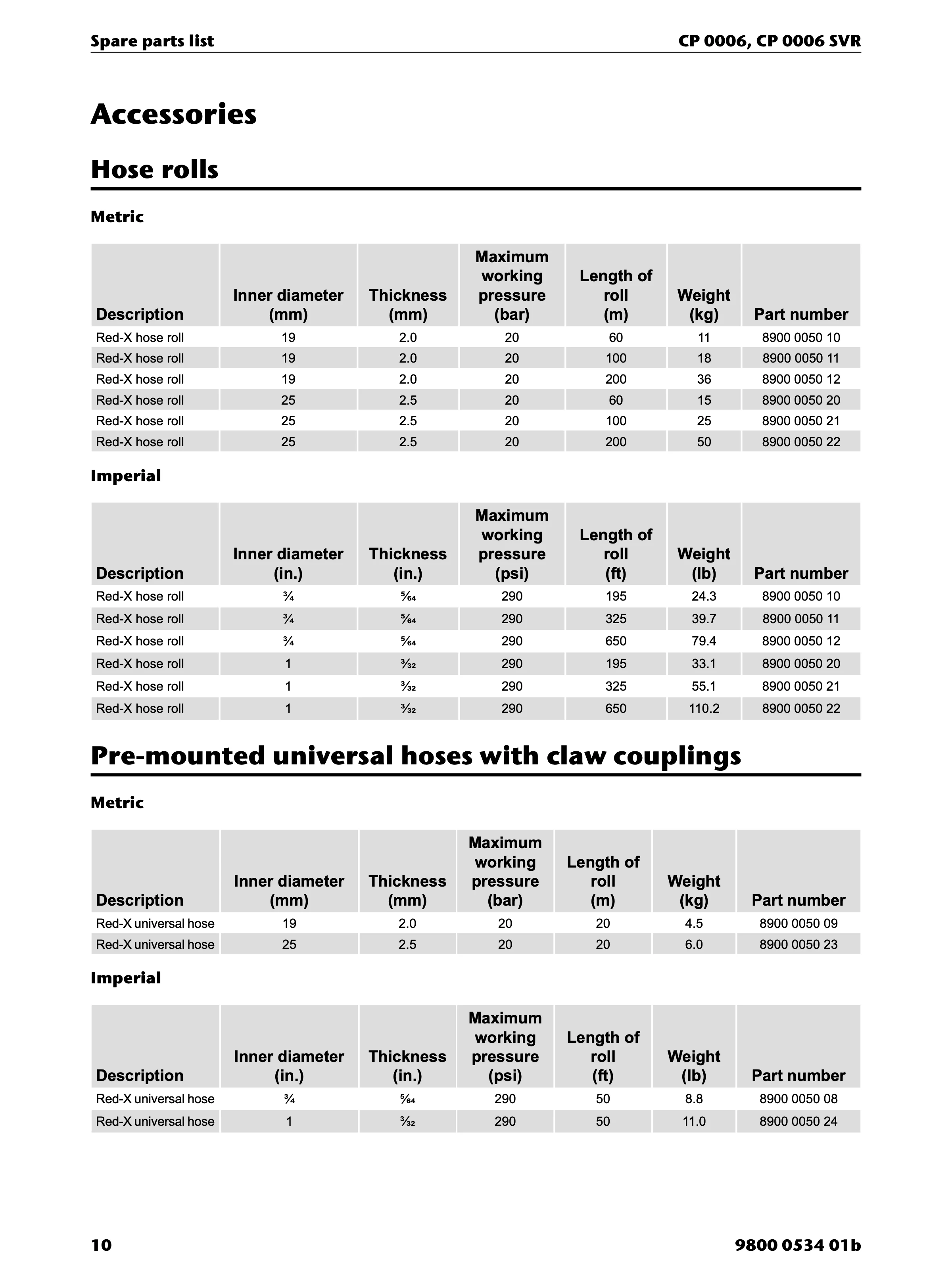

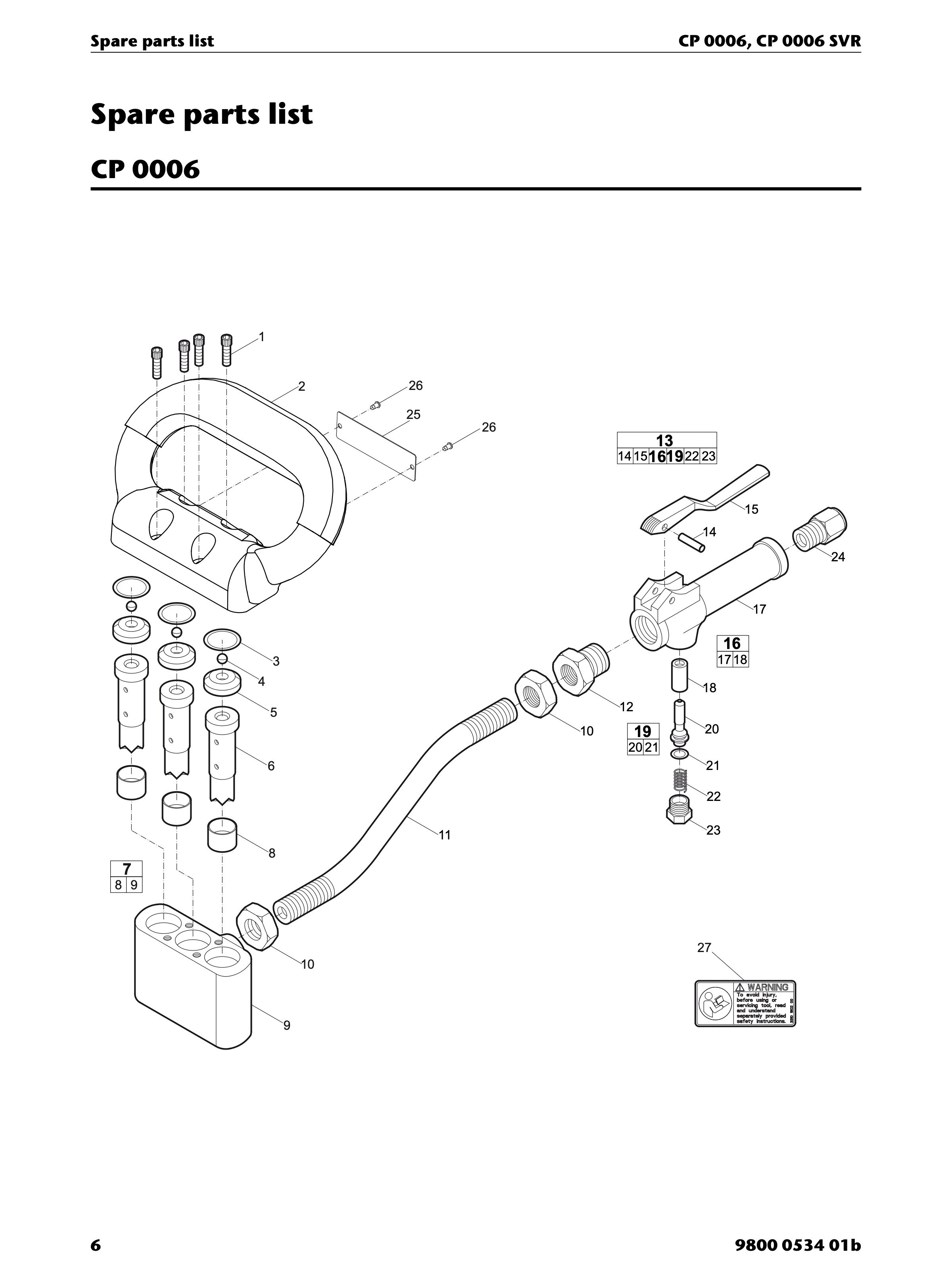

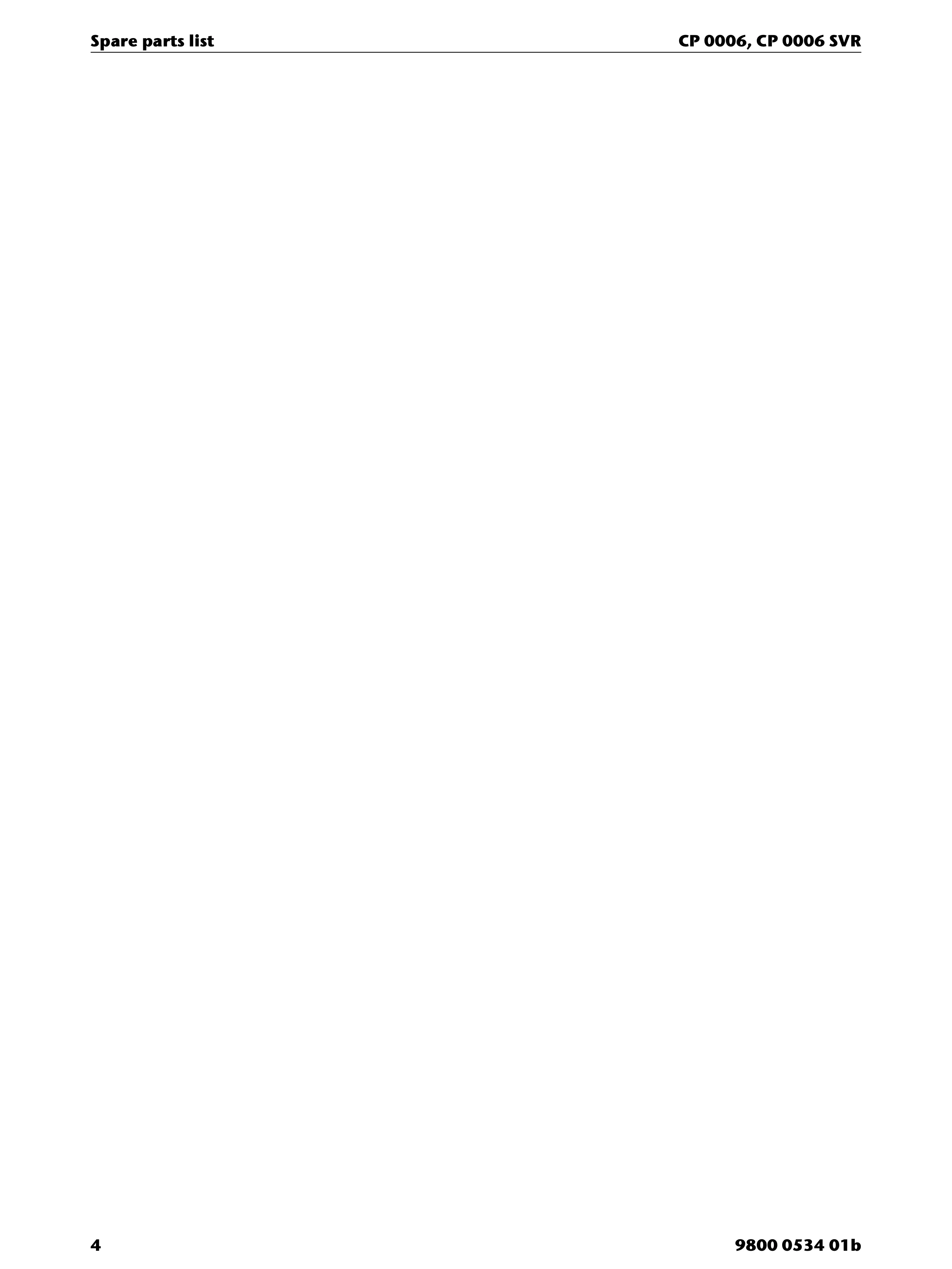

Page 1 of 16Page 2 of 16Page 3 of 16Page 4 of 16Page 5 of 16Page 6 of 16Page 7 of 16Page 8 of 16Page 9 of 16Page 10 of 16Page 11 of 16Page 12 of 16Page 13 of 16Page 14 of 16Page 15 of 16Page 16 of 16
