Chicago Pneumatic

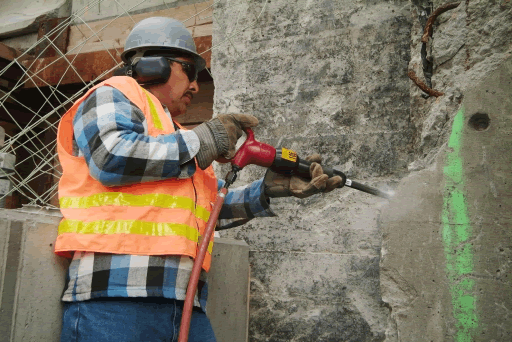

0012 Chipping Hammer
General purpose hammer, includes standard muffler. Also available with a screw on retainer.
Choose your complete tool
2 models. + Quote adds one complete tool; adjust quantities in your quote list.
.580 Hex Shank x Oval Collar
| Model / stroke | Part number | Quote |
|---|---|---|
| 0012-2H2" stroke | 8900000103 |
.680 Round Shank x Oval Collar
| Model / stroke | Part number | Quote |
|---|---|---|
| 0012-2R2" stroke | 8900000102 |
Technical Specs
| Model: | 0012-2H | 0012-2R |
|---|---|---|
| Part # | 8900 0001 03 | 8900 0001 02 |
| Chuck Size (inches) | .580 Hex | .680 Rnd |
| Stroke (inches) | 2 | 2 |
| Bore (inches) | 1-1/8 | 1-1/8 |
| Blows/Min. [/sec.] | 2600 [43] | 2600 [43] |
| PSI | 90 | 90 |
| CFM | 20 | 20 |
| Weight (lbs.) | 12 | 12 |
| Length (inches) | 16 | 16 |
Accessory Tools
Match the collar and shank. Standard retainers use oval collars; deluxe quick-change ball retainers use round collars. These connections are not interchangeable.
Oval collar bits
For standard retainers.
| Length under collar (in.) |  OCHS.580 Hex |  OCRS.680 Round |
|---|---|---|
 Moil Point | ||
| 12" | ochs-12p | ocrs-12p |
| 18" | ochs-18p | ocrs-18p |
| 24" | ochs-24p | ocrs-24p |
 Narrow Chisel | ||
| 12" | ochs-12c | ocrs-12c |
| 18" | ochs-18c | ocrs-18c |
| 24" | ochs-24c | ocrs-24c |
 2in. Wide Blade Chisel | ||
| 12" | ochs-12c2 | ocrs-12c2 |
| 18" | ochs-18c2 | ocrs-18c2 |
| 24" | ochs-24c2 | ocrs-24c2 |
 3in. Wide Blade Chisel | ||
| 12" | ochs-12c3 | ocrs-12c3 |
| 18" | ochs-18c3 | ocrs-18c3 |
| 24" | ochs-24c3 | ocrs-24c3 |
 4-1/2in. Wide Clay Spade | ||
| 10" | ochs-cs | ocrs-cs |
 1 Pc. All-Steel Bushing Tool | ||
| 8" | ochs-bt | ocrs-bt |
Round collar bits
For deluxe quick-change ball retainers.
| Length under collar (in.) |  RCHS.580 Hex |  RCRS.680 Round |
|---|---|---|
| Moil Point | ||
| 12" | rchs-12p | rcrs-12p |
| 18" | rchs-18p | rcrs-18p |
| 24" | rchs-24p | rcrs-24p |
| Narrow Chisel | ||
| 12" | rchs-12c | rcrs-12c |
| 18" | rchs-18c | rcrs-18c |
| 24" | rchs-24c | rcrs-24c |
| 2in. Wide Blade Chisel | ||
| 12" | rchs-12c2 | rcrs-12c2 |
| 18" | rchs-18c2 | rcrs-18c2 |
| 24" | rchs-24c2 | rcrs-24c2 |
| 3in. Wide Blade Chisel | ||
| 12" | rchs-12c3 | rcrs-12c3 |
| 18" | rchs-18c3 | rcrs-18c3 |
| 24" | rchs-24c3 | rcrs-24c3 |
| 4-1/2in. Wide Clay Spade | ||
| 10" | rchs-cs | rcrs-cs |
| 1 Pc. All-Steel Bushing Tool | ||
| 8" | rchs-bt | rcrs-bt |
Longer lengths available for most tools. Call 800-241-9669 for help matching your tool.
