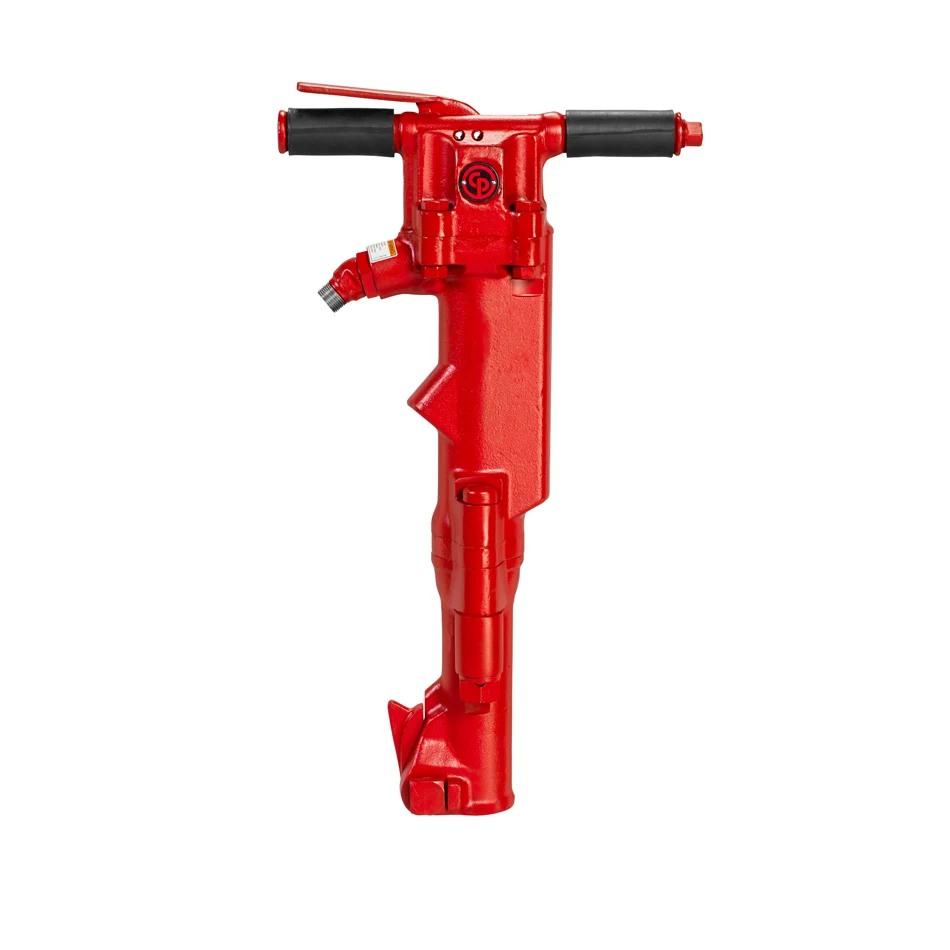

Chicago Pneumatic CP1260 Series Paving Breaker / Jackhammer
Overview
Chicago Pneumatic CP1260 is a pneumatic paving breaker / jackhammer in the standard configuration. Match the actual tool weight, chuck and complete-tool part number to the job; nominal weight class is a separate manufacturer designation. Chicago Pneumatic CP1260S is a pneumatic paving breaker / jackhammer with a muffler. Match the actual tool weight, chuck and complete-tool part number to the job; nominal weight class is a separate manufacturer designation. Chicago Pneumatic CP1260SVR is a pneumatic paving breaker / jackhammer with a muffler and vibration-reduced handles. Match the actual tool weight, chuck and complete-tool part number to the job; nominal weight class is a separate manufacturer designation.
Features & Applications
- All listed models: Retainer: Latch.
- All listed models: Compare 2 complete-tool configurations by model and manufacturer part number.
- CP1260: Muffler included: No.
- CP1260, CP1260S: Vibration-reduced handles: No.
- All listed models: Backhead: 4-bolt.
- CP1260S, CP1260SVR: Muffler included: Yes.
- CP1260SVR: Vibration-reduced handles: Yes.
CP1260 Series Part Numbers
Chicago Pneumatic CP1260 Series Paving Breaker / Jackhammer
CP1260 · Part No. 8900003029
1-1/8 x 6 hex
CP1260 · Part No. 8900003028
1-1/4 x 6 hex
CP1260S · Part No. 8900003031
1-1/8 x 6 hex
CP1260S · Part No. 8900003030
1-1/4 x 6 hex
CP1260SVR · Part No. 8900003033
1-1/8 x 6 hex
CP1260SVR · Part No. 8900003032
1-1/4 x 6 hex
Match the model, chuck and complete-tool part number. Compare the configurations below when requesting a quote.
Safety & operating manual (PDF)
Parts drawings by model
- 9870048100 ROMPEDOR CP 1260 SVR (1 1/4) Spare parts list: Handheld pneumatic breakers MHN091728 - MHN258175
- 9870054100 ROMPEDOR CP 1260 SVR (1 1/4) Spare Parts List: Handheld Pneumatic Breakers PUN002426 - PUN935923 PN2226199 - PN2231072 PN5213563 - PN5213564
- 9870054000 CP 1260 SVR (1 1/8) Spare Parts List: Handheld Pneumatic Breakers PUN008406 - PUN930776 PN2227686 - PN2232787 PN4210125 - PN4252648
- 9870054600 CP 1260 SVR (1 1/8) Spare parts list: Handheld pneumatic breakers MHN159128 - MHN211113
- 9870053700 CP 1260 S H28 X 160 Spare Parts List: Handheld Pneumatic Breakers PUN001691 - PUN936038 PN4213411 - PN4214557 PN5213949 - PN5215567
- 9870054300 CP 1260 S H28 X 160 Spare parts list: Handheld pneumatic breakers MHN071166 - MHN252377
- 9870053800 CP 1260 S (1 1/4) Spare Parts List: Handheld Pneumatic Breakers PUN001821 - PUN936008 PN2225690 - PN2230244 PN3213649 - PN3213664
- 9870054400 CP 1260 S (1 1/4) Spare parts list: Handheld pneumatic breakers MHN092989 - MHN255985
- 9800135501 CP 1260 H28 X 160 Spare Parts List: Handheld Pneumatic Breakers PUN000001 - PUN225000 PN2225615 - PN2232661 PN3210559 -
- 9870054200 CP 1260 (1 1/4) Spare parts list: Handheld pneumatic breakers MHN090196 - MHN254471
- 9870055000 CP 1260 (1 1/4) Spare Parts List: Handheld Pneumatic Breakers PUN000112 - PUN936407 PN2225556 - PN2232764 PN3210996 - PN3250916
Match the model, product number and serial range.
Choose Your Complete Tool
Match the model, chuck and complete-tool part number. Add the configuration you need to your quote list.
| Model | Configuration | Part Number | Quote |
|---|---|---|---|
| CP1260 | 1-1/8 x 6 hex | 8900003029 | |
| CP1260 | 1-1/4 x 6 hex | 8900003028 |
| Model | Configuration | Part Number | Quote |
|---|---|---|---|
| CP1260S | 1-1/8 x 6 hex | 8900003031 | |
| CP1260S | 1-1/4 x 6 hex | 8900003030 |
| Model | Configuration | Part Number | Quote |
|---|---|---|---|
| CP1260SVR | 1-1/8 x 6 hex | 8900003033 | |
| CP1260SVR | 1-1/4 x 6 hex | 8900003032 |
Technical Specs
| Specification | CP12608900003029 | CP12608900003028 |
|---|---|---|
| Chuck / shank (in) | 1-1/8 x 6 hex | 1-1/4 x 6 hex |
| Weight (lb) | 64 | 64 |
| Length (in) | 27 | 27 |
| Air consumption (CFM at 90 PSI) | 63 | 63 |
| Air consumption reference pressure (PSI) | 90 | 90 |
| Nominal weight class (lb) | 60 | 60 |
| Air inlet (in) | 3/4 NPT | 3/4 NPT |
| Retainer | Latch | Latch |
| Muffler included | No | No |
| Vibration-reduced handles | No | No |
| Handle | Standard handle | Standard handle |
| Backhead | 4-bolt | 4-bolt |
| Impact rate (BPM at 6 bar / 87 PSI) | 1300 | 1300 |
| Impact-rate measurement pressure | 6bar (87psi) | 6bar (87psi) |
| Specification | CP1260S8900003031 | CP1260S8900003030 |
|---|---|---|
| Chuck / shank (in) | 1-1/8 x 6 hex | 1-1/4 x 6 hex |
| Weight (lb) | 65 | 65 |
| Length (in) | 27 | 27 |
| Air consumption (CFM at 90 PSI) | 63 | 63 |
| Air consumption reference pressure (PSI) | 90 | 90 |
| Nominal weight class (lb) | 60 | 60 |
| Air inlet (in) | 3/4 NPT | 3/4 NPT |
| Retainer | Latch | Latch |
| Muffler included | Yes | Yes |
| Vibration-reduced handles | No | No |
| Handle | Standard handle | Standard handle |
| Backhead | 4-bolt | 4-bolt |
| Impact rate (BPM at 6 bar / 87 PSI) | 1300 | 1300 |
| Impact-rate measurement pressure | 6bar (87psi) | 6bar (87psi) |
| Specification | CP1260SVR8900003033 | CP1260SVR8900003032 |
|---|---|---|
| Chuck / shank (in) | 1-1/8 x 6 hex | 1-1/4 x 6 hex |
| Weight (lb) | 75 | 75 |
| Length (in) | 29 | 29 |
| Air consumption (CFM at 90 PSI) | 63 | 63 |
| Air consumption reference pressure (PSI) | 90 | 90 |
| Nominal weight class (lb) | 60 | 60 |
| Air inlet (in) | 3/4 NPT | 3/4 NPT |
| Retainer | Latch | Latch |
| Muffler included | Yes | Yes |
| Vibration-reduced handles | Yes | Yes |
| Handle | Vibration reduced handle | Vibration reduced handle |
| Backhead | 4-bolt | 4-bolt |
| Impact rate (BPM at 6 bar / 87 PSI) | 1300 | 1300 |
| Impact-rate measurement pressure | 6bar (87psi) | 6bar (87psi) |
Accessory Tools
Match the shank, collar and size to your tool. Each button adds that individual accessory to your quote list.
| Tool | Length under collar (in.) | Details |  1-1/8" × 6" shankPart Number & Quote |  1-1/4" × 6" shankPart Number & Quote |
|---|---|---|---|---|
 Asphalt Cutter | 11" | 5" Wide Blade | 118-ac | 125-ac |
 Bushing Tool | 8" | 16 Teeth | 118-bt | 125-bt |
 Clay Spade | 16" | 5-1/2" Wide Blade | 118-cs | 125-cs |
 Digging Chisel | 16" | 3" Wide Blade | 118-dc | 125-dc |
 Pin Driver | 8" | Socket: 3/8" Deep x 1-3/4" Dia. | 118-sd | 125-sd |
 Frost Wedge | 17" | 2" Wide Blade | 118-fw | 125-fw |
 Ground Rod Driver | — | SOCKET DIAMETER: 11/16" | 118-grd(a) | 125-grd(a) |
| — | Socket diameter13/16" | 118-grd(b) | 125-grd(b) | |
| — | Socket diameter1" | 118-grd(c) | 125-grd(c) | |
| — | Socket diameter1-1/8" | 118-grd(d) | 125-grd(d) | |
 Moil Point | 14" | LONGER LENGTHS AVAILABLE | 118p-14 | 125p-14 |
| 18" | LONGER LENGTHS AVAILABLE | 118p-18 | 125p-18 | |
 Narrow Chisel | 14" | LONGER LENGTHS AVAILABLE | 118c-14 | 125c-14 |
| 18" | LONGER LENGTHS AVAILABLE | 118c-18 | 125c-18 | |
 Wide Chisel | 14" | LONGER LENGTHS AVAILABLE | 118c3-14 | 125c3-14 |
| 18" | LONGER LENGTHS AVAILABLE | 118c3-18 | 125c3-18 | |
 Pipe Driver | 11" | PIPE SIZE: 1" | 118-pd(a) | 125-pd(a) |
| 11" | Pipe size1-1/4" | 118-pd(b) | 125-pd(b) | |
| 11" | Pipe size1-1/2" | 118-pd(c) | 125-pd(c) | |
| 11" | Pipe size2" | 118-pd(d) | 125-pd(d) | |
 Rock Buster | 13" | Taper Range: 1-1/4" to 2-1/4" Dia | 118-rb | 125-rb |
 Splitting Wedge | 17-1/2" | Drill Hole Size 2 x 12" Deep | 118-sw | 125-sw |
 Detachable Shank | 7-3/4" | FOR USE WITH: TAMPER PAD TENT STAKE DRIVER SHEATHING DRIVER | 118-ds | 125-ds |
| Separate attachments — use with a detachable shank. Confirm the holder and fit. | ||||
 Tamping Pad | — | 6" SQUARE | tps-6 | |
| — | 8" SQUARE | tps-8 | ||
| — | 7" ROUND | tpr-7 | ||
 Tent Stake Driver | — | 2" | tsd-200 | |
| — | 2-1/2" | tsd-250 | ||
 Sheathing Driver | — | 2" | tsh-200 | |
| — | 3" | tsh-300 | ||
Longer lengths available for most tools. Call 800-241-9669 for help matching your tool.
