TAMCO

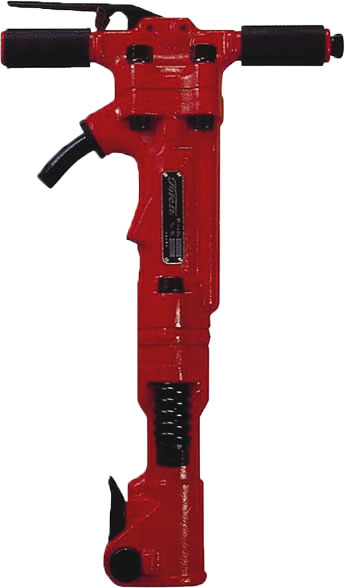

PB60 Paving Breaker
Manufactured by Toku and offered through TAMCO.
Four-bolt back head, drop-forged alloy steel construction, forged latch retainer, replaceable chuck bushing and safety lever. Optional mufflers are available.
Complete tool: PB60Tool part # PB60
PB60. Shank Size: 1-1/8" x 6" 1-1/4" x 6". Confirm the required fit before ordering.
Your BEST price is just a call away.
Adds the complete tool shown above—not an individual replacement part. Add more tools to build one quote request, then review your quote list.
1-800-241-9669
Need help with a model or part? Talk to Mining Auger & Tool Works.
Technical Specs
| Specification | PB60 |
|---|---|
| Shank Size | 1-1/8" x 6" 1-1/4" x 6" |
| Piston Stroke | 4" (100mm) |
| Piston Diameter | 2-1/4" (57.15mm) |
| Impact Rate | 1,400 BPM |
| Weight | 66 lbs (30kg) |
| Overall Length | 25-3/8" (645mm) |
| Air Consumption | 70 CFM |
| Air Inlet Thread | 3/4" NPT |
| Hose Size | 3/4" (19mm) |
| Maximum Air Pressure | 90 PSI |
Complete tool configurations
Match the model, shank and part number. These are complete tools, not replacement parts.
| Model | Shank / Details | Part Number | Quote |
|---|---|---|---|
| PB60 | PB60. Shank Size: 1-1/8" x 6" 1-1/4" x 6". Confirm the required fit before ordering. | PB60 |
Accessory Tools
Match the shank, collar and size to your tool. Each button adds that individual accessory to your quote list.
| Tool | Length under collar (in.) | Details |  1-1/8" × 6" shankPart Number & Quote |  1-1/4" × 6" shankPart Number & Quote |
|---|---|---|---|---|
 Asphalt Cutter | 11" | 5" Wide Blade | 118-ac | 125-ac |
 Bushing Tool | 8" | 16 Teeth | 118-bt | 125-bt |
 Clay Spade | 16" | 5-1/2" Wide Blade | 118-cs | 125-cs |
 Detachable Shank | 7-3/4" | FOR USE WITH: TAMPER PAD TENT STAKE DRIVER SHEATHING DRIVER | 118-ds | 125-ds |
 Digging Chisel | 16" | 3" Wide Blade | 118-dc | 125-dc |
 Frost Wedge | 17" | 2" Wide Blade | 118-fw | 125-fw |
 Ground Rod Driver | — | SOCKET DIAMETER: 11/16" | 118-grd(a) | 125-grd(a) |
| — | Socket diameter13/16" | 118-grd(b) | 125-grd(b) | |
| — | Socket diameter1" | 118-grd(c) | 125-grd(c) | |
| — | Socket diameter1-1/8" | 118-grd(d) | 125-grd(d) | |
 Moil Point | 14" | LONGER LENGTHS AVAILABLE | 118p-14 | 125p-14 |
| 18" | LONGER LENGTHS AVAILABLE | 118p-18 | 125p-18 | |
 Narrow Chisel | 14" | LONGER LENGTHS AVAILABLE | 118c-14 | 125c-14 |
| 18" | LONGER LENGTHS AVAILABLE | 118c-18 | 125c-18 | |
 Pin Driver | 8" | Socket: 3/8" Deep x 1-3/4" Dia. | 118-sd | 125-sd |
 Pipe Driver | 11" | PIPE SIZE: 1" | 118-pd(a) | 125-pd(a) |
| 11" | Pipe size1-1/4" | 118-pd(b) | 125-pd(b) | |
| 11" | Pipe size1-1/2" | 118-pd(c) | 125-pd(c) | |
| 11" | Pipe size2" | 118-pd(d) | 125-pd(d) | |
 Rock Buster | 13" | Taper Range: 1-1/4" to 2-1/4" Dia | 118-rb | 125-rb |
 Splitting Wedge | 17-1/2" | Drill Hole Size 2 x 12" Deep | 118-sw | 125-sw |
 Wide Chisel | 14" | LONGER LENGTHS AVAILABLE | 118c3-14 | 125c3-14 |
| 18" | LONGER LENGTHS AVAILABLE | 118c3-18 | 125c3-18 |
Longer lengths available for most tools. Call 800-241-9669 for help matching your tool.
