Atlas Copco

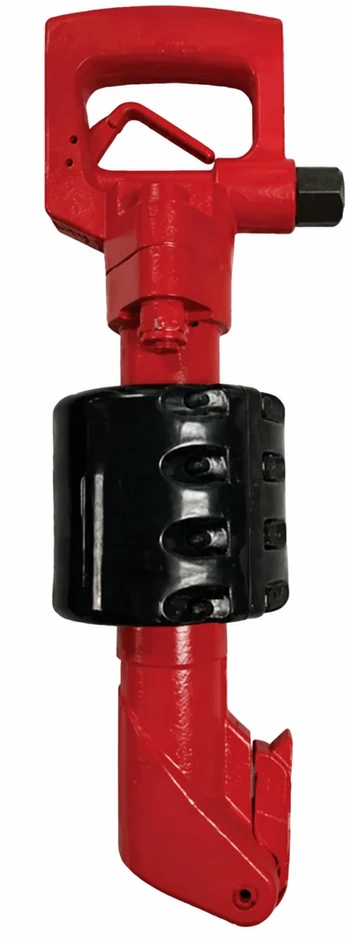

TEX10 Clay Digger
Complete tool: TEX 10PSTool part # 8461021130
7/8" x 3-1/4" HEX (A)
Your BEST price is just a call away.
Adds the complete tool shown above—not an individual replacement part. Add more tools to build one quote request, then review your quote list.
1-800-241-9669
Need help with a model or part? Talk to Mining Auger & Tool Works.
Technical Specs
| Description | TEX 10PS |
|---|---|
| Part no | 8461021130 |
| Tool shank (inch) | 7/8 x 3-1/4 |
| Weight (lb) | 22.5 |
| Air consumption at 92 psi (cfm) | 36 |
| Length (inch) | 20-1/2 |
| Impact frequency (blows/min) | 1350 |
| Impact frequency (Hz) | 22.5 |
| Tool Retainer | Cap |
| Vibration level 3 axes (ISO 20643) (m/sec²) | 22.4 |
| Sound power level guaranteed (2000/14/EC) (Lw, dB(A)) | 102 |
| Sound pressure level (ISO 11203) (Lp, r = 1m) | 90 |
| Description | TEX 10PS KL |
|---|---|
| Part no | 8461021132 |
| Tool shank (inch) | 7/8 x 3-1/4 |
| Weight (lb) | 23.6 |
| Air consumption at 92 psi (cfm) | 36 |
| Length (inch) | 20 |
| Impact frequency (blows/min) | 1350 |
| Impact frequency (Hz) | 22.5 |
| Tool Retainer | kick-latch |
| Vibration level 3 axes (ISO 20643) (m/sec²) | 22.4 |
| Sound power level guaranteed (2000/14/EC) (Lw, dB(A)) | 103 |
| Sound pressure level (ISO 11203) (Lp, r = 1m) | 91 |
Complete tool configurations
Match the model, shank and part number. These are complete tools, not replacement parts.
| Model | Shank / Details | Part Number | Quote |
|---|---|---|---|
| TEX 10PS | 7/8" x 3-1/4" HEX (A) | 8461021130 | |
| TEX 10PS KL | 7/8" x 3-1/4" HEX (A) Kick-latch | 8461021132 |
Accessory Tools
Match the shank, collar and size to your tool. Each button adds that individual accessory to your quote list.
| Tool | Length under collar (in.) | Details |  7/8" × 3-1/4" shankPart Number & Quote |
|---|---|---|---|
 Asphalt Cutter | 11" | 5" Wide Blade | 78-ac |
 Bushing Tool | 8" | 16 Teeth | 78-bt |
 Clay Spade | 16" | 5-1/2" Wide Blade | 78-cs |
 Digging Chisel | 16" | 3" Wide Blade | 78-dc |
 Pin Driver | 8" | Socket: 3/8" Deep x 1-3/4" Dia. | 78-sd |
 Frost Wedge | 17" | 2" Wide Blade | 78-fw |
 Ground Rod Driver | — | SOCKET DIAMETER: 11/16" | 78-grd(a) |
| — | Socket diameter13/16" | 78-grd(b) | |
| — | Socket diameter1" | 78-grd(c) | |
| — | Socket diameter1-1/8" | 78-grd(d) | |
 Moil Point | 14" | LONGER LENGTHS AVAILABLE | 78p-14 |
| 18" | LONGER LENGTHS AVAILABLE | 78p-18 | |
 Narrow Chisel | 14" | LONGER LENGTHS AVAILABLE | 78c-14 |
| 18" | LONGER LENGTHS AVAILABLE | 78c-18 | |
 Wide Chisel | 14" | LONGER LENGTHS AVAILABLE | 78c3-14 |
| 18" | LONGER LENGTHS AVAILABLE | 78c3-18 | |
 Detachable Shank | 7-3/4" | FOR USE WITH: TAMPER PAD TENT STAKE DRIVER SHEATHING DRIVER | 78-ds |
| Separate attachments — use with a detachable shank. Confirm the holder and fit. | |||
 Tamping Pad | — | 6" SQUARE | tps-6 |
| — | 8" SQUARE | tps-8 | |
| — | 7" ROUND | tpr-7 | |
 Tent Stake Driver | — | 2" | tsd-200 |
| — | 2-1/2" | tsd-250 | |
 Sheathing Driver | — | 2" | tsh-200 |
| — | 3" | tsh-300 | |
Longer lengths available for most tools. Call 800-241-9669 for help matching your tool.
