TAMCO

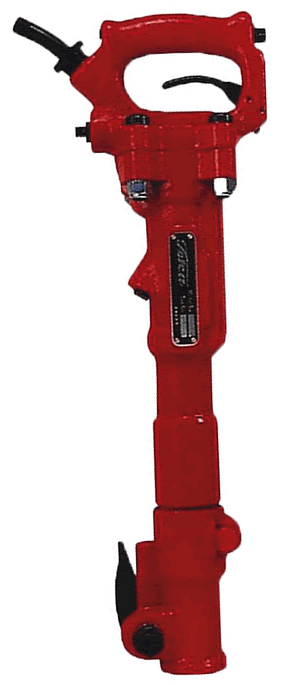

CD30 Clay Digger
Manufactured by Toku and offered through TAMCO.
CD30 is a D-handle clay digger for packed soil and clay around forms, footers and construction areas.
Complete tool: CD30Tool part # CD30
CD30. Shank Size: 7/8" x 3-1/4" 1" x 4-1/4". Confirm the required fit before ordering.
Your BEST price is just a call away.
Adds the complete tool shown above—not an individual replacement part. Add more tools to build one quote request, then review your quote list.
1-800-241-9669
Need help with a model or part? Talk to Mining Auger & Tool Works.
Technical Specs
| Specification | CD30 |
|---|---|
| Shank Size | 7/8" x 3-1/4" 1" x 4-1/4" |
| Piston Stroke | 3-11/32" (85mm) |
| Piston Diameter | 1-3/4" (44.45mm) |
| Impact Rate | 1,550 BPM |
| Weight | 30 lbs (13.6kg) |
| Overall Length | 22" (559mm) |
| Air Consumption | 49 CFM |
| Air Inlet Thread | 3/8" NPT |
| Hose Size | 3/4" (19mm) |
| Maximum Air Pressure | 90 PSI |
Complete tool configurations
Match the model, shank and part number. These are complete tools, not replacement parts.
| Model | Shank / Details | Part Number | Quote |
|---|---|---|---|
| CD30 | CD30. Shank Size: 7/8" x 3-1/4" 1" x 4-1/4". Confirm the required fit before ordering. | CD30 |
Accessory Tools
Match the shank, collar and size to your tool. Each button adds that individual accessory to your quote list.
| Tool | Length under collar (in.) | Details |  7/8" × 3-1/4" shankPart Number & Quote |  1" × 4-1/4" shankPart Number & Quote |
|---|---|---|---|---|
 Asphalt Cutter | 11" | 5" Wide Blade | 78-ac | 100-ac |
 Bushing Tool | 8" | 16 Teeth | 78-bt | 100-bt |
 Clay Spade | 16" | 5-1/2" Wide Blade | 78-cs | 100-cs |
 Detachable Shank | 7-3/4" | FOR USE WITH: TAMPER PAD TENT STAKE DRIVER SHEATHING DRIVER | 78-ds | 100-ds |
 Digging Chisel | 16" | 3" Wide Blade | 78-dc | 100-dc |
 Frost Wedge | 17" | 2" Wide Blade | 78-fw | 100-fw |
 Ground Rod Driver | — | SOCKET DIAMETER: 11/16" | 78-grd(a) | 100-grd(a) |
| — | Socket diameter13/16" | 78-grd(b) | 100-grd(b) | |
| — | Socket diameter1" | 78-grd(c) | 100-grd(c) | |
| — | Socket diameter1-1/8" | 78-grd(d) | 100-grd(d) | |
 Moil Point | 14" | LONGER LENGTHS AVAILABLE | 78p-14 | 100p-14 |
| 18" | LONGER LENGTHS AVAILABLE | 78p-18 | 100p-18 | |
 Narrow Chisel | 14" | LONGER LENGTHS AVAILABLE | 78c-14 | 100c-14 |
| 18" | LONGER LENGTHS AVAILABLE | 78c-18 | 100c-18 | |
 Pin Driver | 8" | Socket: 3/8" Deep x 1-3/4" Dia. | 78-sd | 100-sd |
 Pipe Driver | 11" | PIPE SIZE: 1" | 78-pd(a) | 100-pd(a) |
| 11" | Pipe size1-1/4" | 78-pd(b) | 100-pd(b) | |
| 11" | Pipe size1-1/2" | 78-pd(c) | 100-pd(c) | |
| 11" | Pipe size2" | 78-pd(d) | 100-pd(d) | |
 Rock Buster | 13" | Taper Range: 1-1/4" to 2-1/4" Dia | 78-rb | 100-rb |
 Splitting Wedge | 17-1/2" | Drill Hole Size 2 x 12" Deep | 78-sw | 100-sw |
 Wide Chisel | 14" | LONGER LENGTHS AVAILABLE | 78c3-14 | 100c3-14 |
| 18" | LONGER LENGTHS AVAILABLE | 78c3-18 | 100c3-18 |
Longer lengths available for most tools. Call 800-241-9669 for help matching your tool.
