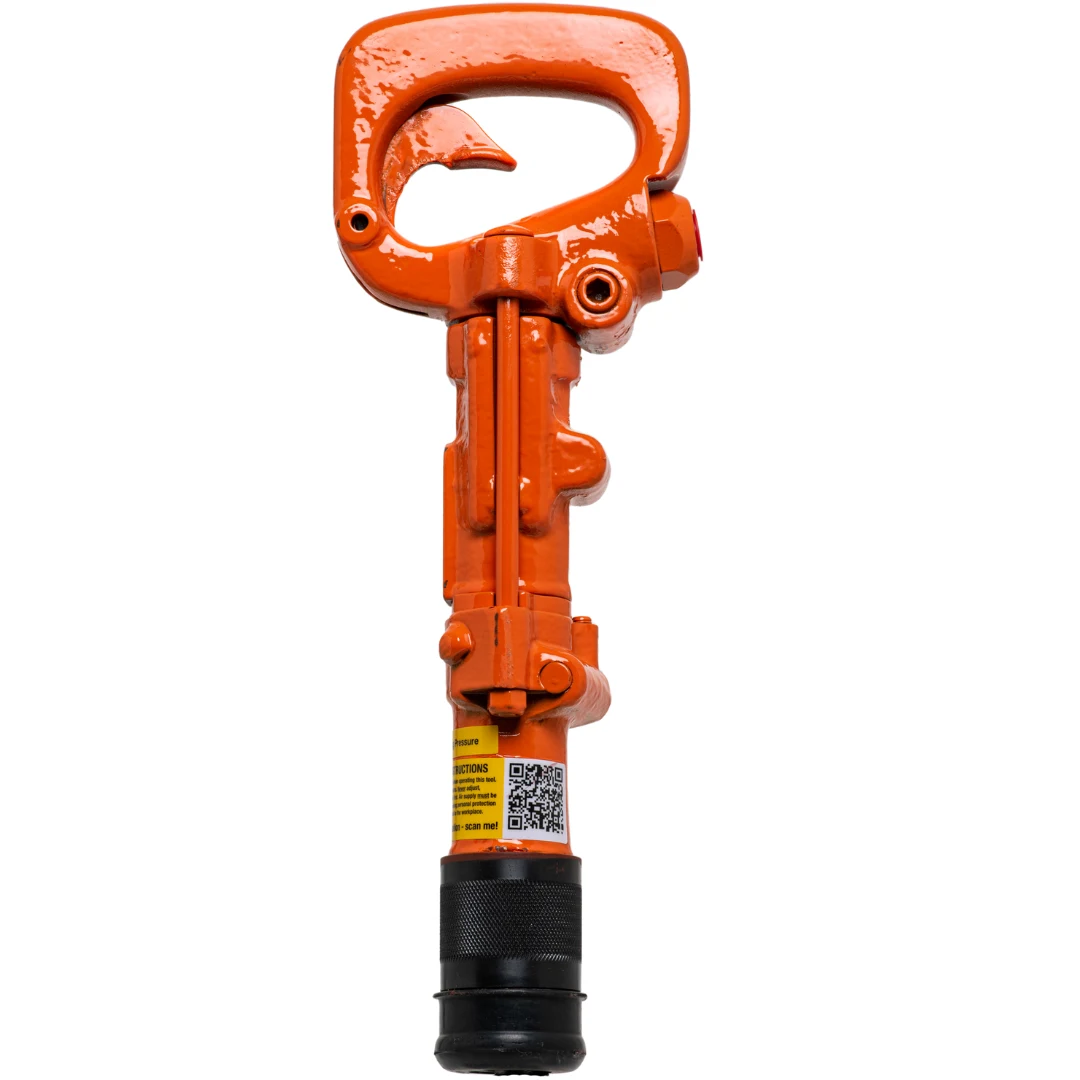

American Pneumatic
109 Series Rock Drill
Overview
APT 109 is a 9lb, “D” Handle, Clockwise Rotation Rock Drill.
The 109 is an Extremely Small and Lightweight Rock Drill. It is designed for Drilling Small Diameter Holes in Solid Concrete and Natural Stone.
(Uses 1piece Bits, 5/16”Dia to 1-3/4”Dia). Practically 1”Dia should be considered Maximum.
This Rock Drill is commonly used for Underwater Drilling, Industrial Maintenance Work, Machine Anchor Bolts and more. It Does have a “Stop Rotation” feature to allow the use of Points and Chisels, however it is Not designed for continuous periods of Chipping.
This Drill Does Not replace a dedicated Chipping Hammer.
Features & Applications
- Low Air Consumption
- Great for Overhead and Underwater Drilling
- Stop Rotation Feature
- Clockwise Rotation
Model & part-number identification
American Pneumatic APT 109 (M109) Rock Drill
Old Part No. 17643, New Part No. 1280583315
Technical Specs
Compare complete drills. + Quote adds one item; review your quote list to adjust quantities.
| Model | 109 |
|---|---|
| Part Number | 17643 |
| Chuck Size (inch) | 3/4" x 3-3/4" |
| Bore (inch) | 1-1/4 |
| Stroke Length (inch) | 1 |
| Impact frequency (blows/min) | 3400 |
| Air consumption (cfm) | 19-21 |
| Weight (lb) | 9 |
| Length (inch) | 15 |
| Air Inlet (inch) | 3/8 FNPT |
| Complete tool | 109Part 176433/4" x 3-3/4" |
Accessory Tools
C9 Series 1 Piece Plug Bits
| 3/4" round shank · 4 slots | ||
|---|---|---|
| Drill depth (inches) | Drill diameter (inches) | Part number & quote |
| 6" | 1/2" | C950-6 |
| 8" | 1-1/2" | C9150-8 |
| 8" | 1-1/4" | C9125-8 |
| 8" | 1-1/8" | C9118-8 |
| 8" | 1-3/4" | C9175-8 |
| 8" | 1-3/8" | C9138-8 |
| 8" | 1-5/8" | C9158-8 |
| 8" | 1" | C9100-8 |
| 8" | 3/4" | C975-8 |
| 8" | 3/8" Solid | C9-2 |
| 8" | 5/8" | C958-8 |
| 8" | 5/16" Solid | C9-1 |
| 8" | 7/8" | C978-8 |
| 8" | 7/16" Solid | C9-3 |
| 8" | 15/32" Solid | C9-4 |
| 18" | 1-1/16" | C9116-18 |
| 10" | 1/2" | C950-10 |
| 12" | 1-1/2" | C9150-12 |
| 12" | 1-1/4" | C9125-12 |
| 12" | 1-1/8" | C9118-12 |
| 12" | 1-3/4" | C9175-12 |
| 12" | 1-3/8" | C9138-12 |
| 12" | 1-5/8" | C9158-12 |
| 12" | 1" | C9100-12 |
| 12" | 3/4" | C975-12 |
| 12" | 5/8" | C958-12 |
| 12" | 7/8" | C978-12 |
| 24" | 1-1/16" | C9116-24 |
| 18" | 1-1/2" | C9150-18 |
| 18" | 1-1/4" | C9125-18 |
| 18" | 1-1/8" | C9118-18 |
| 18" | 1-3/8" | C9138-18 |
| 18" | 1" | C9100-18 |
| 18" | 3/4" | C975-18 |
| 18" | 5/8" | C958-18 |
| 18" | 7/8" | C978-18 |
| 24" | 1" | C9100-24 |
Longer lengths available for most tools. Call 800-241-9669 for help matching your tool.
