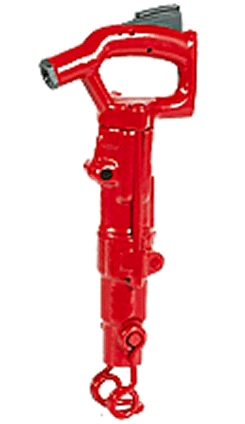

Chicago Pneumatic CP0014RR Rock Drill
Overview
Chicago Pneumatic CP0014RR, also called CP14RR in the supplied copy, is a pneumatic rotary hammer/drill with right-hand rotation. The rotation-release control changes it to hammer operation; match the 7/8 x 3-1/4-inch hex shank.
Features & Applications
- Rotation release converts the rotary hammer to hammer operation
- Spring retainer and right-hand rotation
- Retainer: Spring.

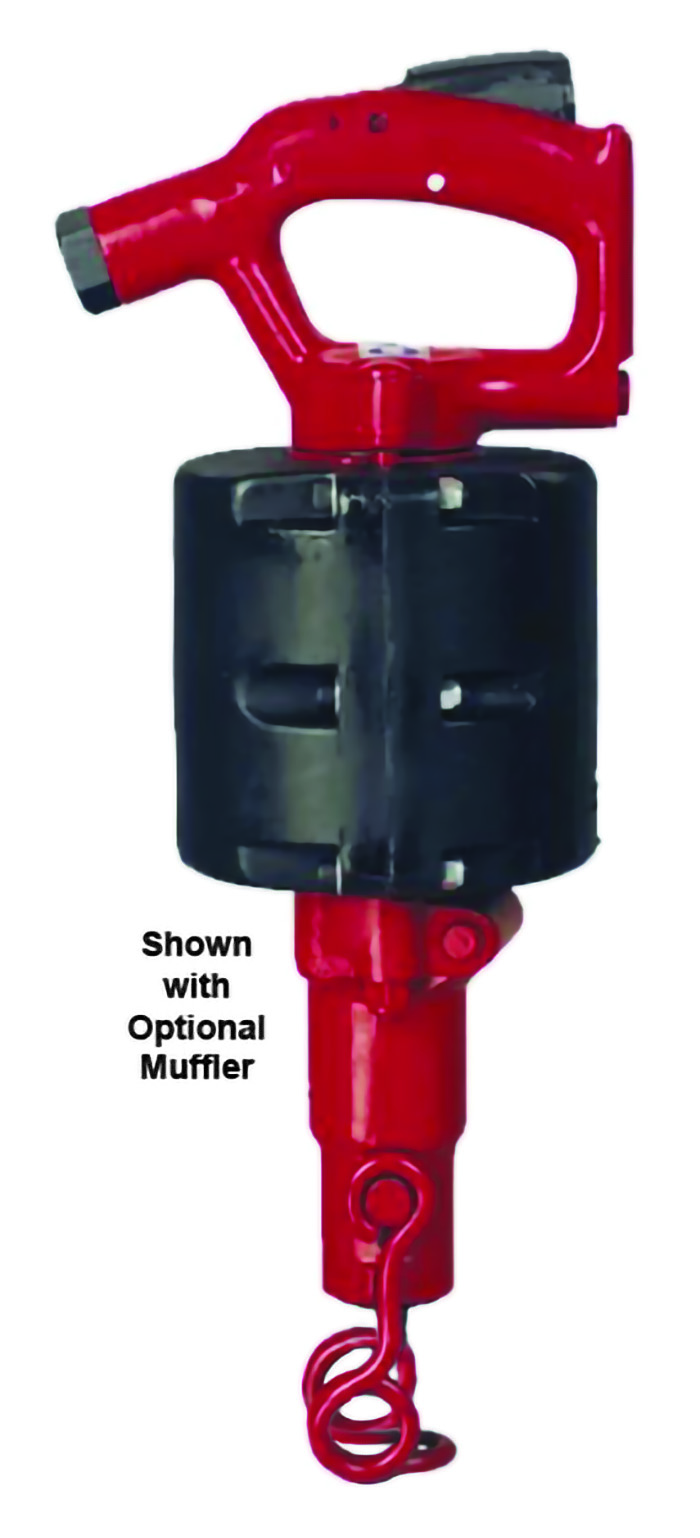

- Muffler: Optional; F827044.
- Rotation: Right-hand (clockwise).
CP0014RR Part Numbers
Chicago Pneumatic CP0014RR Rock Drill
CP0014RR · Part No. 8900002010
7/8 x 3-1/4 in hex
Match the model, chuck and complete-tool part number. Compare the configurations below when requesting a quote.
Safety & operating manual (PDF)

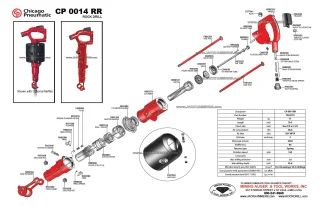

Parts drawings by model
- CTO1994 CP 0014 RR, CP 0014 RRBS Spare parts list: Handheld rotary hammers PN2225001 - PUN000001 - PUN240000
- 9870067500 CP 0014 RR H22 X 82.5 Spare parts list: Handheld pneumatic pick hammers PUN000001 - PUN240000 PN2241510 - PN2242376 PN3250516 -
Match the model, product number and serial range.
Choose Your Complete Tool
Match the model, chuck and complete-tool part number. Add the configuration you need to your quote list.
| Model | Configuration | Part Number | Quote |
|---|---|---|---|
| CP0014RR | 7/8 x 3-1/4 in hex | 8900002010 |
Technical Specs
| Specification | CP0014RR8900002010 |
|---|---|
| Net weight (lb) | 14.77 |
| Length (in) | 18.5 |
| Impact rate (bpm) | 2520 |
| Air consumption (cfm at 90 psi) | 47 |
| Air inlet | 3/8 in NPT |
| Chuck / shank | 7/8 x 3-1/4 in hex |
| Retainer | Spring |
| Rotation release | Yes |
| Maximum drilling depth (in) | 25.5 |
| Muffler | Optional; F827044 |
| Rotation | Right-hand (clockwise) |
| Piston stroke (in) | 1.38 |
| Piston bore (in) | 1.87 |
Accessory Tools
Match the shank, collar and size to your tool. Each button adds that individual accessory to your quote list.
Choose rod length and bit diameter independently. Sharing a row does not mean they must be ordered together.
 |  Cross carbide insert bitFor broken & rough rock |  Button carbide insert bitFor fast penetration | |||
|---|---|---|---|---|---|
| Length under collar Feet (Inches) | AH series · 7/8" × 3-1/4" shankRod Part Number | Bits shown fit all “H” thread rods in this chart | |||
| Diameter (in.) | Bit Part Number | Diameter (in.) | Bit Part Number | ||
| 1' (12") | AH-1 | 1-1/4" | HC-125 | 1-1/4" | HB-125 |
| 1'6" (18") | AH-1.5 | 1-3/8" | HC-138 | 1-3/8" | HB-138 |
| 2' (24") | AH-2 | 1-1/2" | HC-150 | 1-1/2" | HB-150 |
| 3' (36") | AH-3 | 1-5/8" | HC-158 | 1-5/8" | HB-158 |
| 4' (48") | AH-4 | 1-3/4" | HC-175 | 1-3/4" | HB-175 |
| 5' (60") | AH-5 | 1-7/8" | HC-178 | 1-7/8" | HB-178 |
| 6' (72") | AH-6 | 2" | HC-200 | 2" | HB-200 |
Choose rod length and bit diameter independently. Sharing a row does not mean they must be ordered together.
 | Cross carbide insert bitFor broken & rough rock | Button carbide insert bitFor fast penetration | |||
|---|---|---|---|---|---|
| Length under collar Feet (Inches) | AZ series · 7/8" × 3-1/4" shankRod Part Number | Bits shown fit the 1-inch Rope / R25 / 100 rods in this chart | |||
| Diameter (in.) | Bit Part Number | Diameter (in.) | Bit Part Number | ||
| 1' (12") | AZ-1 | 1-1/4" | ZX-125 | 1-1/4" | ZB-125 |
| 1'6" (18") | AZ-1.5 | 1-3/8" | ZX-138 | 1-3/8" | ZB-138 |
| 2' (24") | AZ-2 | 1-1/2" | ZX-150 | 1-1/2" | ZB-150 |
| 3' (36") | AZ-3 | 1-5/8" | ZX-158 | 1-5/8" | ZB-158 |
| 4' (48") | AZ-4 | 1-3/4" | ZX-175 | 1-3/4" | ZB-175 |
| 5' (60") | AZ-5 | 1-7/8" | ZX-178 | 1-7/8" | ZB-178 |
| 6' (72") | AZ-6 | 2" | ZX-200 | 2" | ZB-200 |
| Length under collar (in.) | Drill depth (in.) | Drill diameter (in.) | A series · 7/8" × 3-1/4" shankPart Number & Quote |
|---|---|---|---|
| 9" | 6" | 5/8" | A9-58 |
| 9" | 6" | 3/4" | A9-75 |
| 9" | 6" | 7/8" | A9-78 |
| 9" | 6" | 1" | A9-100 |
| 9" | 6" | 1-1/8" | A9-118 |
| 9" | 6" | 1-1/4" | A9-125 |
| 9" | 6" | 1-1/2" | A9-150 |
| 12" | 9" | 5/8" | A12-58 |
| 12" | 9" | 3/4" | A12-75 |
| 12" | 9" | 7/8" | A12-78 |
| 12" | 9" | 1" | A12-100 |
| 12" | 9" | 1-1/8" | A12-118 |
| 12" | 9" | 1-1/4" | A12-125 |
| 12" | 9" | 1-1/2" | A12-150 |
| 18" | 15" | 5/8" | A18-58 |
| 18" | 15" | 3/4" | A18-75 |
| 18" | 15" | 7/8" | A18-78 |
| 18" | 15" | 1" | A18-100 |
| 18" | 15" | 1-1/8" | A18-118 |
| 18" | 15" | 1-1/4" | A18-125 |
| 18" | 15" | 1-1/2" | A18-150 |
| 24" | 21" | 5/8" | A24-58 |
| 24" | 21" | 3/4" | A24-75 |
| 24" | 21" | 7/8" | A24-78 |
| 24" | 21" | 1" | A24-100 |
| 24" | 21" | 1-1/8" | A24-118 |
| 24" | 21" | 1-1/4" | A24-125 |
| 24" | 21" | 1-1/2" | A24-150 |
| 30" | 27" | 5/8" | A30-58 |
| 30" | 27" | 3/4" | A30-75 |
| 30" | 27" | 7/8" | A30-78 |
| 30" | 27" | 1" | A30-100 |
| 30" | 27" | 1-1/8" | A30-118 |
| 30" | 27" | 1-1/4" | A30-125 |
| 30" | 27" | 1-1/2" | A30-150 |
Longer lengths available for most tools. Call 800-241-9669 for help matching your tool.
