Chicago Pneumatic CP0032 Rock Drill
Overview

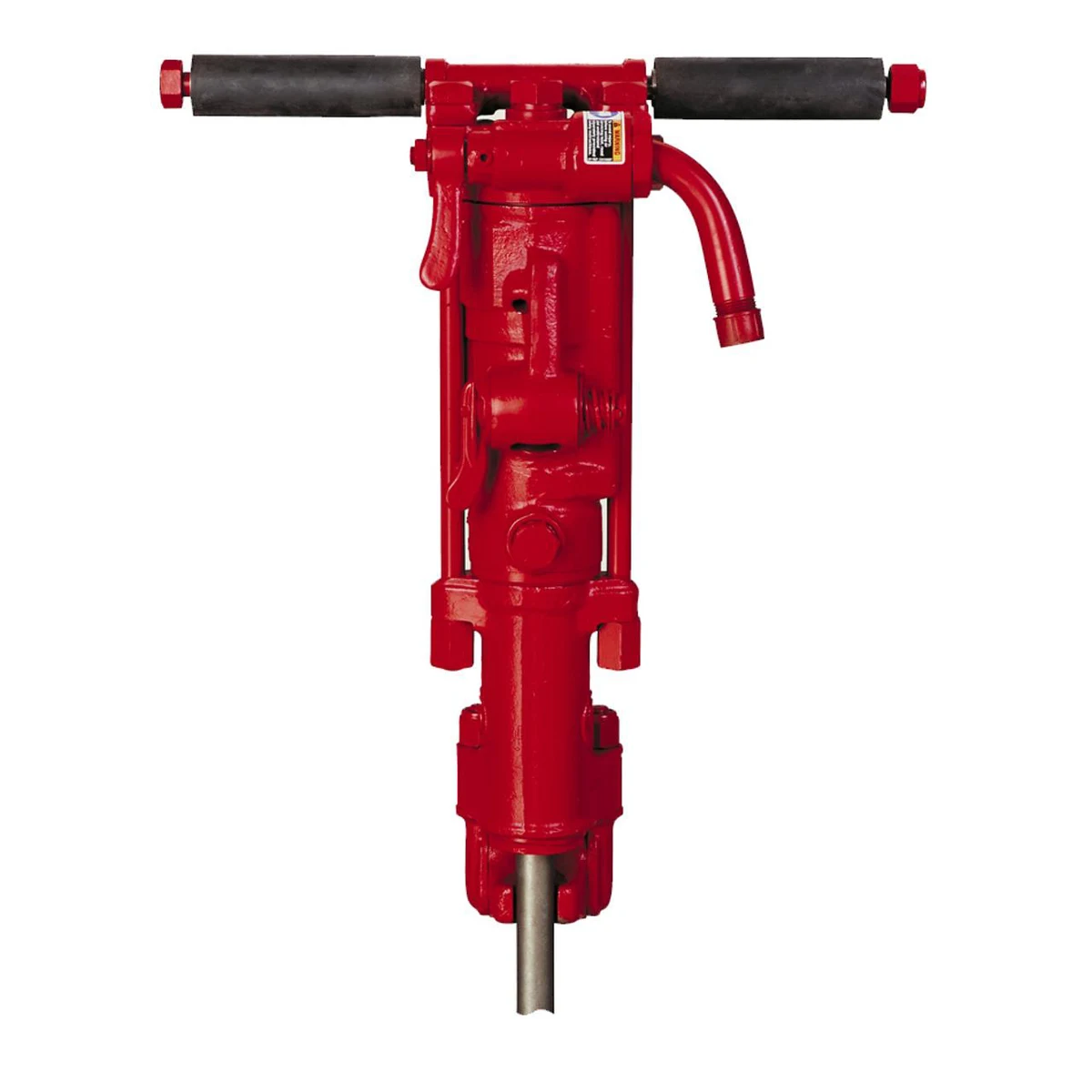

Chicago Pneumatic CP0032 is a pneumatic sinker rock drill for quarry, mining and construction work. Its blower lever supports hole cleaning; the manufacturer lists three chuck configurations.
Features & Applications
- Forged-steel housings, cushioned piston, multi-position throttle, integral oiler and double-grip handles
- Blower lever for deep-hole cleaning
- Optional muffler R125569
- Manufacturer lists water kit R147457 for CP0032A
- Rotation: Left-hand (counterclockwise).
- Compare 3 complete-tool configurations by model and manufacturer part number.
CP0032 Part Numbers
Chicago Pneumatic CP0032 Rock Drill
CP 0032A / 7/8 x 3-1/4 in hex · Part No. 8900002017
7/8 x 3-1/4 in hex
CP 0032A / 7/8 x 4-1/4 in hex · Part No. 8900002013
7/8 x 4-1/4 in hex
CP0032A-1 / 1 x 4-1/4 in hex · Part No. 8900002016
1 x 4-1/4 in hex
Match the model, chuck and complete-tool part number. Compare the configurations below when requesting a quote.
Safety & operating manual (PDF)
Match model and serial number before ordering parts.
Parts drawings by model
- 9870050900 ROMPEDOR CP 0032 A H22 X 82.5 Spare parts list: Handheld pneumatic drills PN3250073 - PN3251564 PN4230057 - PN4232908 PN5230246 - PN5232662
- bes_98001762 ROMPEDOR CP 0032 A H22 X 82.5 Spare parts list: Handheld pneumatic drills PUN000938 - PUN934886 PN2229629 - PN2243418
- 9870051200 CP 0032 H22 X 82.5 Spare parts list: Handheld pneumatic drills PUN913208 - PUN936937
- 9870051000 CP 0032 A H25 X 108 Spare parts list: Handheld pneumatic drills PUN005650 - PUN933299 PN2240627 - PN2240721 PN3250580 -
- 9870050800 CP 0032 A H22 X 108 Spare parts list: Handheld pneumatic drills PUN002055 - PUN932570 PUN936391 -
Match the model, product number and serial range.
Choose Your Complete Tool
Match the model, chuck and complete-tool part number. Add the configuration you need to your quote list.
| Model | Configuration | Part Number | Quote |
|---|---|---|---|
| CP 0032A / 7/8 x 3-1/4 in hex | 7/8 x 3-1/4 in hex | 8900002017 |
| Model | Configuration | Part Number | Quote |
|---|---|---|---|
| CP 0032A / 7/8 x 4-1/4 in hex | 7/8 x 4-1/4 in hex | 8900002013 |
| Model | Configuration | Part Number | Quote |
|---|---|---|---|
| CP0032A-1 / 1 x 4-1/4 in hex | 1 x 4-1/4 in hex | 8900002016 |
Technical Specs
| Specification | CP 0032A / 7/8 x 3-1/4 in hex8900002017 | CP 0032A / 7/8 x 4-1/4 in hex8900002013 |
|---|---|---|
| Net weight (lb) | 54 | 56 |
| Overall length with retainer (in) | 23 | 23 |
| Impact rate (bpm) | 2220 | 2220 |
| Air consumption (cfm at 90 psi) | 103 | 103 |
| Air inlet | 3/4 in NPT swivel | 3/4 in NPT swivel |
| Chuck / shank | 7/8 x 3-1/4 in hex | 7/8 x 4-1/4 in hex |
| Rotation | Left-hand (counterclockwise) | Left-hand (counterclockwise) |
| Maximum drilling diameter (in) | 2 | 2 |
| Maximum drilling depth (in) | 118 | 118 |
| Specification | CP0032A-1 / 1 x 4-1/4 in hex8900002016 |
|---|---|
| Net weight (lb) | 54 |
| Overall length with retainer (in) | 23 |
| Impact rate (bpm) | 2220 |
| Air consumption (cfm at 90 psi) | 103 |
| Air inlet | 3/4 in NPT swivel |
| Chuck / shank | 1 x 4-1/4 in hex |
| Rotation | Left-hand (counterclockwise) |
| Maximum drilling diameter (in) | 2 |
| Maximum drilling depth (in) | 118 |
Accessory Tools
Match the shank, collar and size to your tool. Each button adds that individual accessory to your quote list.
Choose rod length and bit diameter independently. Sharing a row does not mean they must be ordered together.
 |  Cross carbide insert bitFor broken & rough rock |  Button carbide insert bitFor fast penetration | |||||
|---|---|---|---|---|---|---|---|
| Length under collar Feet (Inches) | AH series · 7/8" × 3-1/4" shankRod Part Number | BH series · 7/8" × 4-1/4" shankRod Part Number | CH series · 1" × 4-1/4" shankRod Part Number | Bits shown fit all “H” thread rods in this chart | |||
| Diameter (in.) | Bit Part Number | Diameter (in.) | Bit Part Number | ||||
| 1' (12") | AH-1 | BH-1 | CH-1 | 1-1/4" | HC-125 | 1-1/4" | HB-125 |
| 1'6" (18") | AH-1.5 | BH-1.5 | CH-1.5 | 1-3/8" | HC-138 | 1-3/8" | HB-138 |
| 2' (24") | AH-2 | BH-2 | CH-2 | 1-1/2" | HC-150 | 1-1/2" | HB-150 |
| 3' (36") | AH-3 | BH-3 | CH-3 | 1-5/8" | HC-158 | 1-5/8" | HB-158 |
| 4' (48") | AH-4 | BH-4 | CH-4 | 1-3/4" | HC-175 | 1-3/4" | HB-175 |
| 5' (60") | AH-5 | BH-5 | CH-5 | 1-7/8" | HC-178 | 1-7/8" | HB-178 |
| 6' (72") | AH-6 | BH-6 | CH-6 | 2" | HC-200 | 2" | HB-200 |
Choose rod length and bit diameter independently. Sharing a row does not mean they must be ordered together.
 | Cross carbide insert bitFor broken & rough rock | Button carbide insert bitFor fast penetration | |||||
|---|---|---|---|---|---|---|---|
| Length under collar Feet (Inches) | AZ series · 7/8" × 3-1/4" shankRod Part Number | BZ series · 7/8" × 4-1/4" shankRod Part Number | CZ series · 1" × 4-1/4" shankRod Part Number | Bits shown fit the 1-inch Rope / R25 / 100 rods in this chart | |||
| Diameter (in.) | Bit Part Number | Diameter (in.) | Bit Part Number | ||||
| 1' (12") | AZ-1 | BZ-1 | CZ-1 | 1-1/4" | ZX-125 | 1-1/4" | ZB-125 |
| 1'6" (18") | AZ-1.5 | BZ-1.5 | CZ-1.5 | 1-3/8" | ZX-138 | 1-3/8" | ZB-138 |
| 2' (24") | AZ-2 | BZ-2 | CZ-2 | 1-1/2" | ZX-150 | 1-1/2" | ZB-150 |
| 3' (36") | AZ-3 | BZ-3 | CZ-3 | 1-5/8" | ZX-158 | 1-5/8" | ZB-158 |
| 4' (48") | AZ-4 | BZ-4 | CZ-4 | 1-3/4" | ZX-175 | 1-3/4" | ZB-175 |
| 5' (60") | AZ-5 | BZ-5 | CZ-5 | 1-7/8" | ZX-178 | 1-7/8" | ZB-178 |
| 6' (72") | AZ-6 | BZ-6 | CZ-6 | 2" | ZX-200 | 2" | ZB-200 |
| Length under collar (in.) | Drill depth (in.) | Drill diameter (in.) | A series · 7/8" × 3-1/4" shankPart Number & Quote | B series · 7/8" × 4-1/4" shankPart Number & Quote | C series · 1" × 4-1/4" shankPart Number & Quote |
|---|---|---|---|---|---|
| 9" | 6" | 5/8" | A9-58 | B9-58 | C9-58 |
| 9" | 6" | 3/4" | A9-75 | B9-75 | C9-75 |
| 9" | 6" | 7/8" | A9-78 | B9-78 | C9-78 |
| 9" | 6" | 1" | A9-100 | B9-100 | C9-100 |
| 9" | 6" | 1-1/8" | A9-118 | B9-118 | C9-118 |
| 9" | 6" | 1-1/4" | A9-125 | B9-125 | C9-125 |
| 9" | 6" | 1-1/2" | A9-150 | B9-150 | C9-150 |
| 12" | 9" | 5/8" | A12-58 | B12-58 | C12-58 |
| 12" | 9" | 3/4" | A12-75 | B12-75 | C12-75 |
| 12" | 9" | 7/8" | A12-78 | B12-78 | C12-78 |
| 12" | 9" | 1" | A12-100 | B12-100 | C12-100 |
| 12" | 9" | 1-1/8" | A12-118 | B12-118 | C12-118 |
| 12" | 9" | 1-1/4" | A12-125 | B12-125 | C12-125 |
| 12" | 9" | 1-1/2" | A12-150 | B12-150 | C12-150 |
| 18" | 15" | 5/8" | A18-58 | B18-58 | C18-58 |
| 18" | 15" | 3/4" | A18-75 | B18-75 | C18-75 |
| 18" | 15" | 7/8" | A18-78 | B18-78 | C18-78 |
| 18" | 15" | 1" | A18-100 | B18-100 | C18-100 |
| 18" | 15" | 1-1/8" | A18-118 | B18-118 | C18-118 |
| 18" | 15" | 1-1/4" | A18-125 | B18-125 | C18-125 |
| 18" | 15" | 1-1/2" | A18-150 | B18-150 | C18-150 |
| 24" | 21" | 5/8" | A24-58 | B24-58 | C24-58 |
| 24" | 21" | 3/4" | A24-75 | B24-75 | C24-75 |
| 24" | 21" | 7/8" | A24-78 | B24-78 | C24-78 |
| 24" | 21" | 1" | A24-100 | B24-100 | C24-100 |
| 24" | 21" | 1-1/8" | A24-118 | B24-118 | C24-118 |
| 24" | 21" | 1-1/4" | A24-125 | B24-125 | C24-125 |
| 24" | 21" | 1-1/2" | A24-150 | B24-150 | C24-150 |
| 30" | 27" | 5/8" | A30-58 | B30-58 | C30-58 |
| 30" | 27" | 3/4" | A30-75 | B30-75 | C30-75 |
| 30" | 27" | 7/8" | A30-78 | B30-78 | C30-78 |
| 30" | 27" | 1" | A30-100 | B30-100 | C30-100 |
| 30" | 27" | 1-1/8" | A30-118 | B30-118 | C30-118 |
| 30" | 27" | 1-1/4" | A30-125 | B30-125 | C30-125 |
| 30" | 27" | 1-1/2" | A30-150 | B30-150 | C30-150 |
Longer lengths available for most tools. Call 800-241-9669 for help matching your tool.
