TAMCO

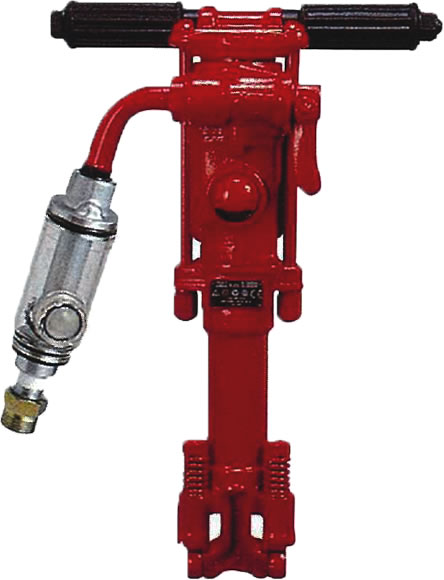

TJ15 Rock Drill
Manufactured by Toku and offered through TAMCO.
A mid-sized rock drill for road building, shaft sinking, quarrying and general construction work. The catalog specifies a removable Clear-View in-line oiler. Optional mufflers are available.
Complete tool: TJ15Tool part # TJ15
TJ15. Shank Size: 7/8" x 3-1/4" 7/8" x 4-1/4". Confirm the required fit before ordering.
Your BEST price is just a call away.
Adds the complete tool shown above—not an individual replacement part. Add more tools to build one quote request, then review your quote list.
1-800-241-9669
Need help with a model or part? Talk to Mining Auger & Tool Works.
Technical Specs
| Specification | TJ15 |
|---|---|
| Shank Size | 7/8" x 3-1/4" 7/8" x 4-1/4" |
| Piston Stroke | 1-3/4" (45mm) |
| Piston Diameter | 2-1/8" (54mm) |
| Impact Rate Speed | 2,450 BPM 250 RPM |
| Weight | 30.8 lbs (14kg) |
| Overall Length | 18-1/2" (468mm) |
| Air Consumption | 56 CFM |
| Air Inlet Thread | 3/4" NPT |
| Hose Size | 3/4" (19mm) |
| Maximum Air Pressure | 90 PSI |
Complete tool configurations
Match the model, shank and part number. These are complete tools, not replacement parts.
| Model | Shank / Details | Part Number | Quote |
|---|---|---|---|
| TJ15 | TJ15. Shank Size: 7/8" x 3-1/4" 7/8" x 4-1/4". Confirm the required fit before ordering. | TJ15 |
