American Pneumatic
140 Paving Breaker
Overview
The APT 140 is a “T” Handle Hammer that is a Light to Medium Weight tool that is designed as an all around hammer and is a step up in power over the APT 117.
The 140 is a Rapid, Hard Hitting Hammer, that is Easy to Handle and very commonly used on jobs that have Weight Limit Restrictions, such as Parking Ramps, Bridge Decks and Road Repair projects.
Additionally it is frequently used for jobs such as Sidewalk Removal, Pin Driving, and Asphalt Cutting.
The 140 is a Very Easy Hammer to Service even in the field.
Features & Applications
- Concrete and Pavement Removal, Asphalt Cutting and General Maintenance work.
- Standard Four Bolt “T” Backhead Design with Rubber Grips.
- Lightweight and Hard Hitting.
- Built-in Automatic Oiler.
- Air Requirement: 48 cfm at 90 psi.
- Often used for Weight Limit Restricted jobs.
Model & part-number identification

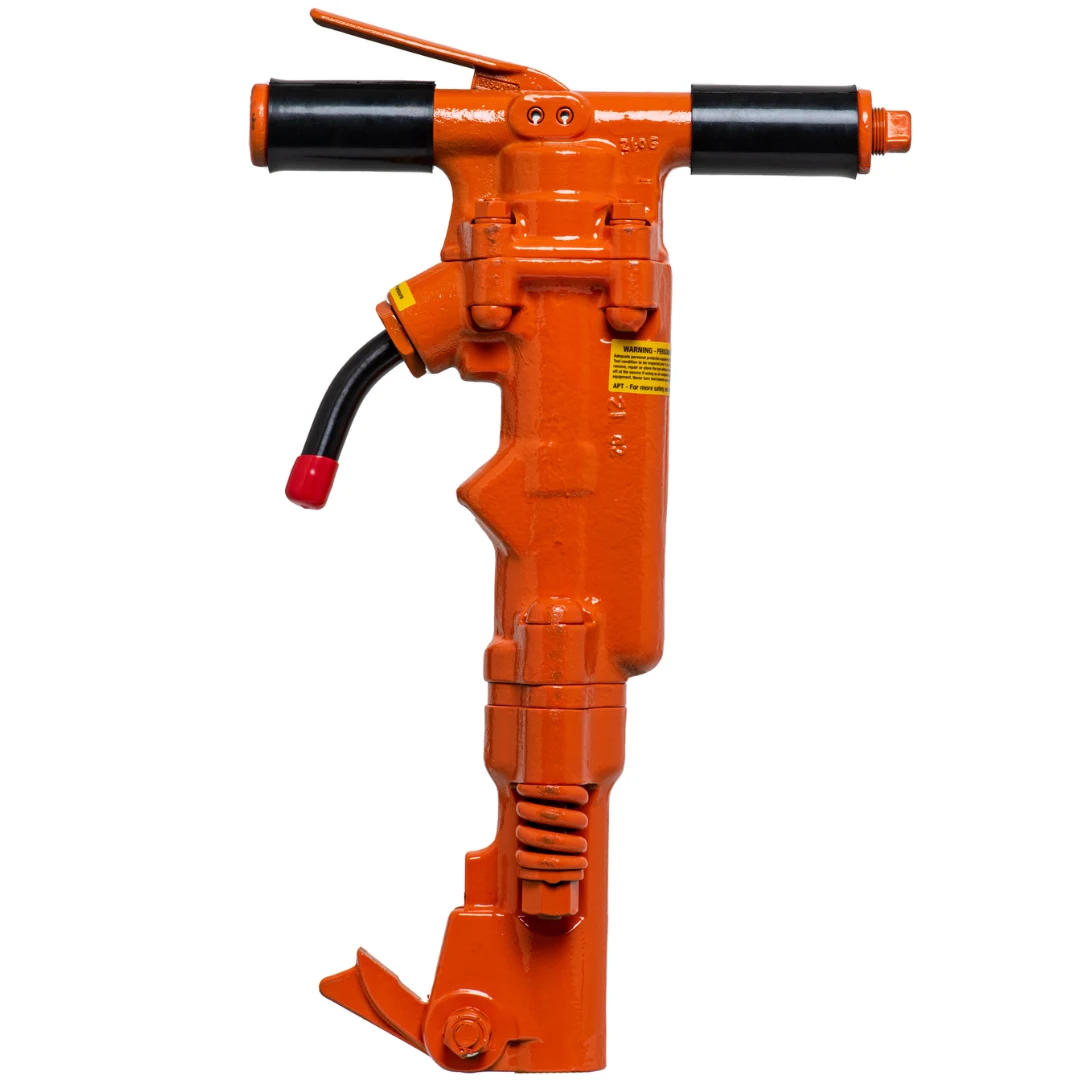

American Pneumatic APT 140 (M140) Paving Breaker
Old Part No. 17923, New Part No. 1280582247 ( 1” x 4-1/4”)
Complete tool: 140Tool part # 17923
1" x 4-1/4" HEX (C)
Your BEST price is just a call away.
Adds the complete tool shown above—not an individual replacement part. Add more tools to build one quote request, then review your quote list.
1-800-241-9669
Need help with a model or part? Talk to Mining Auger & Tool Works.
Technical Specs
| Part No. | 17923 |
|---|---|
| Chuck Size (inches) | 1x4-1/4 |
| Bore | 1-7/8 |
| Stroke | 4-1/4 |
| B.P.M. | 1500 |
| CFM @ 90 PSI inlet pressure | 48 |
| Weight (lbs.) | 43 |
| Length (inches) | 21-1/8 |
Complete tool configurations
Match the model, shank and part number. These are complete tools, not replacement parts.
| Model | Shank / Details | Part Number | Quote |
|---|---|---|---|
| 140 | 1" x 4-1/4" HEX (C) | 17923 |
Accessory Tools
Match the shank, collar and size to your tool. Each button adds that individual accessory to your quote list.
| Tool | Length under collar (in.) | Details |  1" × 4-1/4" shankPart Number & Quote |
|---|---|---|---|
 Asphalt Cutter | 11" | 5" Wide Blade | 100-ac |
 Bushing Tool | 8" | 16 Teeth | 100-bt |
 Clay Spade | 16" | 5-1/2" Wide Blade | 100-cs |
 Digging Chisel | 16" | 3" Wide Blade | 100-dc |
 Pin Driver | 8" | Socket: 3/8" Deep x 1-3/4" Dia. | 100-sd |
 Frost Wedge | 17" | 2" Wide Blade | 100-fw |
 Ground Rod Driver | — | SOCKET DIAMETER: 11/16" | 100-grd(a) |
| — | Socket diameter13/16" | 100-grd(b) | |
| — | Socket diameter1" | 100-grd(c) | |
| — | Socket diameter1-1/8" | 100-grd(d) | |
 Moil Point | 14" | LONGER LENGTHS AVAILABLE | 100p-14 |
| 18" | LONGER LENGTHS AVAILABLE | 100p-18 | |
 Narrow Chisel | 14" | LONGER LENGTHS AVAILABLE | 100c-14 |
| 18" | LONGER LENGTHS AVAILABLE | 100c-18 | |
 Wide Chisel | 14" | LONGER LENGTHS AVAILABLE | 100c3-14 |
| 18" | LONGER LENGTHS AVAILABLE | 100c3-18 | |
 Detachable Shank | 7-3/4" | FOR USE WITH: TAMPER PAD TENT STAKE DRIVER SHEATHING DRIVER | 100-ds |
| Separate attachments — use with a detachable shank. Confirm the holder and fit. | |||
 Tamping Pad | — | 6" SQUARE | tps-6 |
| — | 8" SQUARE | tps-8 | |
| — | 7" ROUND | tpr-7 | |
 Tent Stake Driver | — | 2" | tsd-200 |
| — | 2-1/2" | tsd-250 | |
 Sheathing Driver | — | 2" | tsh-200 |
| — | 3" | tsh-300 | |
Longer lengths available for most tools. Call 800-241-9669 for help matching your tool.
