Airrex

Hornet Chipping Hammer

Airrex Hornet Chipping HammerView larger image

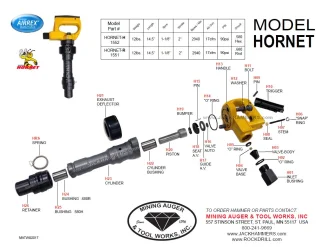

Hornet parts drawing previewParts drawing ↗
Start Here
Do This First!

Overview

Oval collar retainers are included as standard.
The strong “D” configuration is large enough to allow a comfortable, sure grip, even for a gloved hand.

Hornet Part Numbers

HORNET-H · 2″ stroke · Part No. 1451
.580″ Hex

HORNET-R · 2″ stroke · Part No. 1452
.680″ Round

Confirm the model, chuck, collar and retainer when requesting a quote.

Supplied byJackHammers.com

Need help? 1-800-241-9669

Step 1

Select Chuck Size:

You Selected.580″ Hex

Match the collar and actual retainer before ordering.
Ready to Order? Call Now
Hex or Round
Step 2

Select Stroke:

Hornet model comparison and selection
Select Your Hammer
Part Number1451
Stroke (inches)2
Chuck Size (inches).580 Hex
Bore (inches)1-1/8
Blows/Min. [/sec.]2940 [49]
PSI90
CFM17
Weight (lbs.)12
Length (inches)14-1/2
Part Number
1451
Stroke (inches)
2
Chuck Size (inches)
.580 Hex
Bore (inches)
1-1/8
Blows/Min. [/sec.]
2940 [49]
PSI
90
CFM
17
Weight (lbs.)
12
Length (inches)
14-1/2
You Selected
HORNET-HPart # 1451.580″ HexRetainer: Standard oval-collar retainer
Find replacement parts ↗

Your Quote

0 items · 0 pieces

Add a hammer or accessory to get started.

Step 3

Select Points, Chisels, Etc

Moil point, narrow chisel, 3-inch wide blade chisel, and wide clay spade fanned together
Standard Solid Retainer for Oval Collar Tools

The following Points, Chisels, etc. are used with Standard Solid Retainers.

.580″ Hex × Oval Collar

Match the collar and retainer on your hammer.

Compare retainer and collar styles →

Longer Lengths, Additional Blades AvailableCall 1-800-241-9669
Moil Point

Moil Point

.580″ Hex × Oval Collar

Standard Lengths: 12″ / 18″ / 24″

Length Under CollarQuantity
12″OCHS-12P
18″OCHS-18P
24″OCHS-24P

Request Longer Lengths
Custom Size · Quote Required
Narrow Chisel

Narrow Chisel

.580″ Hex × Oval Collar

Standard Lengths: 12″ / 18″ / 24″

Length Under CollarQuantity
12″OCHS-12C
18″OCHS-18C
24″OCHS-24C

Request Longer Lengths
Custom Size · Quote Required
2″ Wide Blade Chisel

2″ Wide Blade Chisel

.580″ Hex × Oval Collar

Standard Lengths: 12″ / 18″ / 24″

Length Under CollarQuantity
12″OCHS-12C2
18″OCHS-18C2
24″OCHS-24C2

Request Longer Lengths
Custom Size · Quote Required
3″ Wide Blade Chisel

3″ Wide Blade Chisel

.580″ Hex × Oval Collar

Standard Lengths: 12″ / 18″ / 24″

Length Under CollarQuantity
12″OCHS-12C3
18″OCHS-18C3
24″OCHS-24C3

Request Longer Lengths
Custom Size · Quote Required
4½″ Clay Spade

4½″ Clay Spade

.580″ Hex × Oval Collar

Standard Lengths: 10″

Length Under CollarQuantity
10″OCHS-CS

All-Steel Bushing Tool

All-Steel Bushing Tool

.580″ Hex × Oval Collar

Standard Lengths: 8″

Length Under CollarQuantity
8″OCHS-BT

Pin Driver

Pin Driver

.580″ Hex × Oval Collar

Request the Size You Need.

Tell us your Pin Diameter, Length, and Chuck Configuration.

Longer Lengths, Additional Blades AvailableCall 1-800-241-9669
