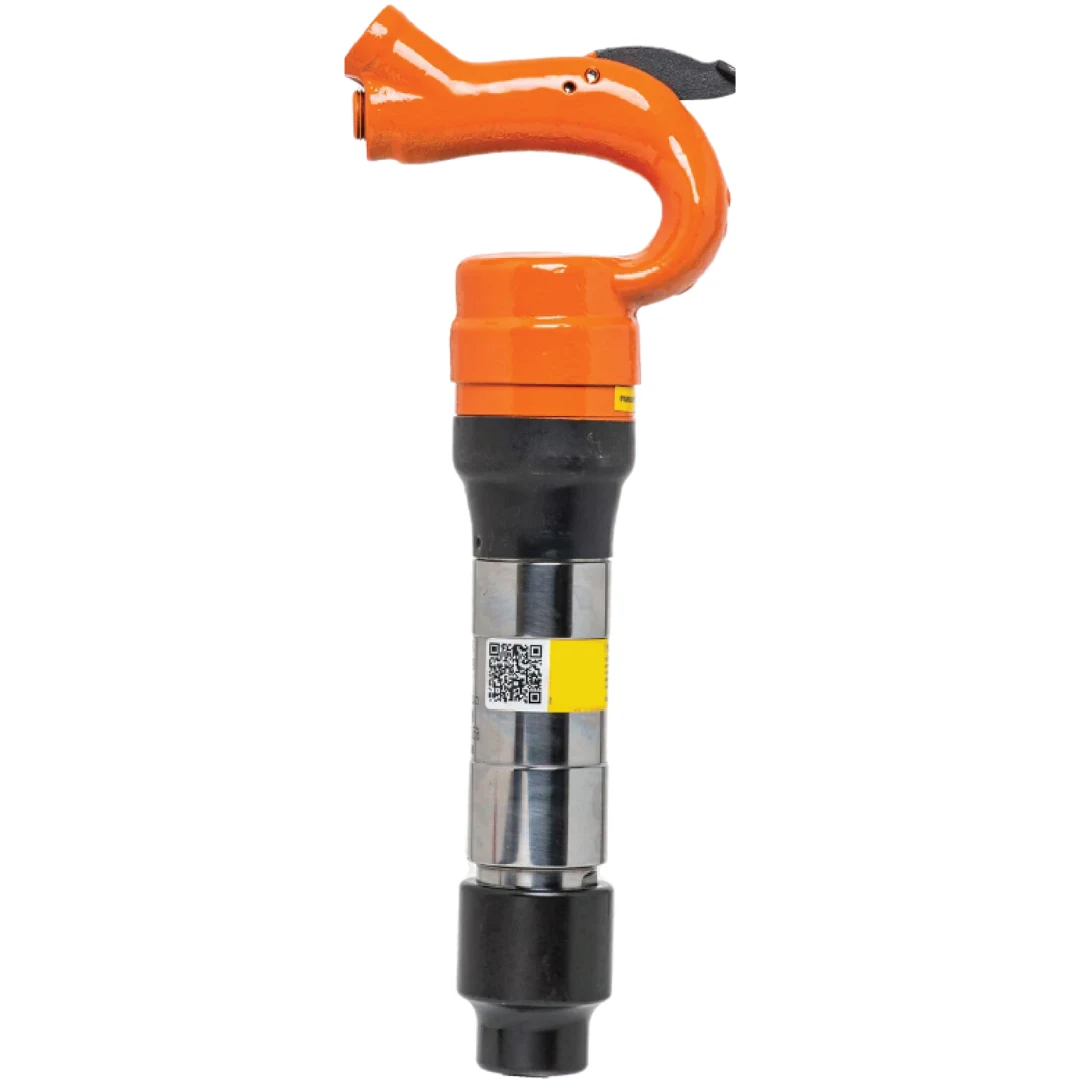

650 Series Chipping Hammer

View larger image

Parts drawing ↗

Select Chuck(Hex or Round) Parts ↗

Choose Your Chuck Before Adding to EZ Quote.

Safety manual (PDF) ↗

Supplied byJackHammers.com

1-800-241-9669

Overview

This is a “P” Handle Outside Trigger General Purpose hammer. It is a very popular tool that has been in use for many years. The Flapper Automatic Valve design allows debris to pass through and also allows for proper lubrication.

Features & Applications

Available in 2”, 3” or 4” stroke versions.
Chuck options are .680 Round or .580 Hex
Reliable Flapper Automatic valve.
Hardened Alloy Steel Cylinder.
Adjustable Exhaust Deflector.

3-inch Stroke Part Numbers (M653)

American Pneumatic APT 650 (M653) Series Chipping Hammer

Old Part No. 5300-04, New Part No. 1280582865 .680 Round x Oval Collar

Old Part No. 5301-04, New Part No. 1280582869 .580 Hex x Oval Collar

These references identify the 3-inch stroke version. Compare the configurations below, and confirm the model, chuck and retainer when requesting a quote.
