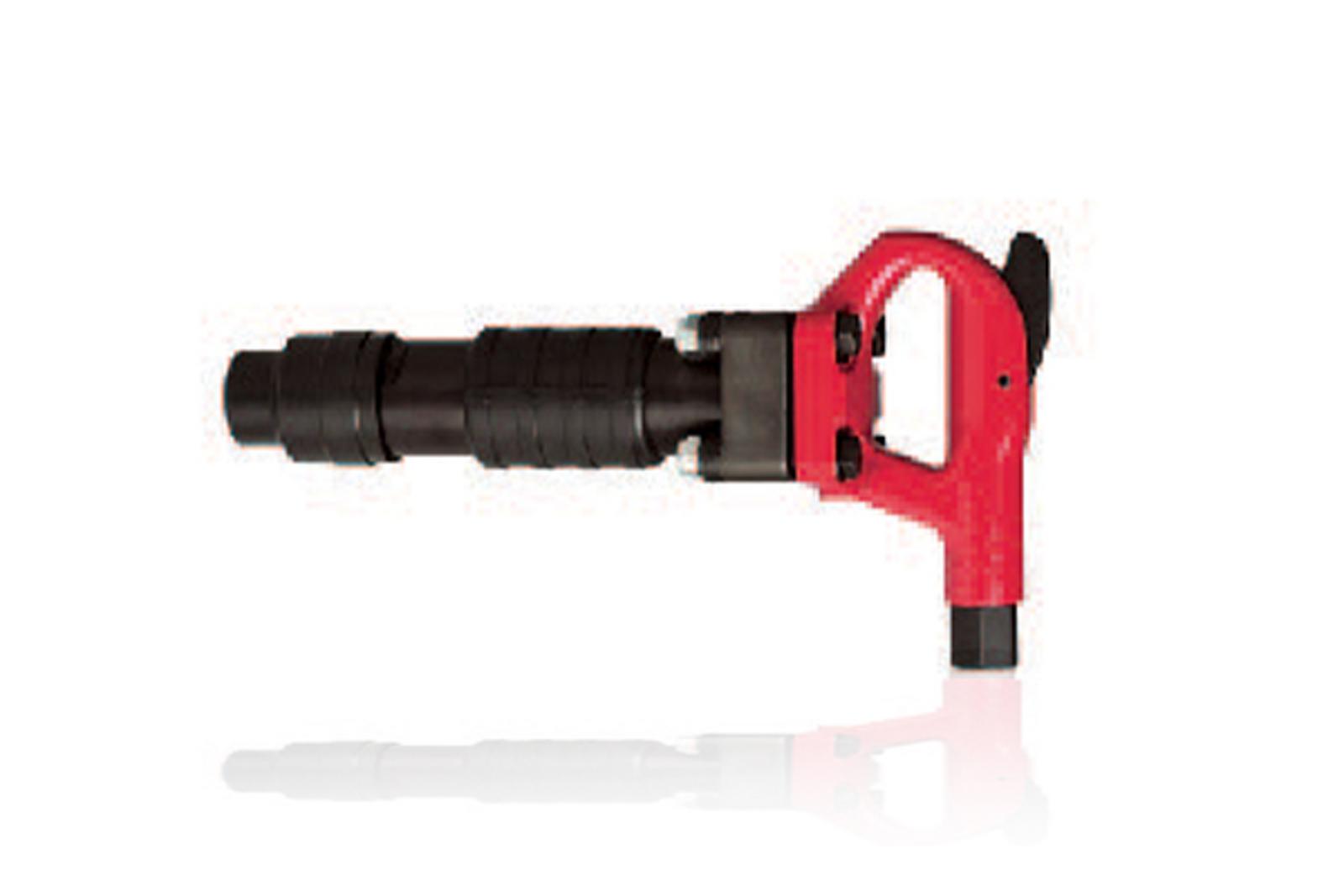

Chicago Pneumatic CP4133 Chipping Hammer — Outside Trigger

CP4133 Chipping Hammer — Outside TriggerView larger image
Manuals & Parts Diagrams ↗
Start Here
Do This First!

Overview

Chicago Pneumatic CP4133 is a four-bolt D-handle chipping hammer with an outside trigger. The manufacturer lists a standard muffler and 3- or 4-inch stroke configurations.

Features & Applications

  • Trigger: Outside trigger.Source
  • Retainer: Standard oval-collar retainer.Source
  • Compare 4 complete-tool configurations by model and manufacturer part number.Source
CP4133 Part Numbers

Chicago Pneumatic CP4133 Chipping Hammer

CP 4133 3R · Part No. 9753219584
.680 in Round × Oval Collar; 3 in strokeSource

CP 4133 3H · Part No. 9753219585
.580 in Hex × Oval Collar; 3 in strokeSource

CP 4133 4R · Part No. 9753219586
.680 in Round × Oval Collar; 4 in strokeSource

CP 4133 4H · Part No. 9753219587
.580 in Hex × Oval Collar; 4 in strokeSource

Match the model, chuck and complete-tool part number. Compare the configurations below when requesting a quote.

Supplied byJackHammers.com
1-800-241-9669
Step 1

Select Chuck Size:

You Selected.580″ Hex

Match the collar and actual retainer before ordering.
Ready to Order? Call Now
Hex or Round
Step 2

Select Stroke:

CP4133 model comparison and selection
Select Your Hammer
Part Number97532195859753219587
Cylinder stroke (in)3Source4Source
Weight (lb)18Source19Source
Length (in)17Source17Source
Impact rate (BPM)1800Source1800Source
Air consumption (CFM; test pressure not listed)33.23Source33.23Source
Air inlet7/8-24 threadSource7/8-24 threadSource
Part Number
9753219585
Cylinder stroke (in)
3Source
Weight (lb)
18Source
Length (in)
17Source
Impact rate (BPM)
1800Source
Air consumption (CFM; test pressure not listed)
33.23Source
Air inlet
7/8-24 threadSource
Part Number
9753219587
Cylinder stroke (in)
4Source
Weight (lb)
19Source
Length (in)
17Source
Impact rate (BPM)
1800Source
Air consumption (CFM; test pressure not listed)
33.23Source
Air inlet
7/8-24 threadSource
You Selected
CP 4133 3HPart # 9753219585.580″ HexRetainer: Standard oval-collar retainer
Find replacement parts ↓

Your Quote

0 items · 0 pieces

Add a hammer or accessory to get started.

Step 3

Select Points, Chisels, Etc

Moil point, narrow chisel, 3-inch wide blade chisel, and wide clay spade fanned together

The following Points, Chisels, etc. are used with Standard Oval-Collar Retainers.

.580″ Hex × Oval Collar

These configurations use the manufacturer-listed standard oval-collar retainer. Match the shank and collar before ordering.

Compare retainer and collar styles →

Longer Lengths, Additional Blades AvailableCall 1-800-241-9669
Moil Point

Moil Point

.580″ Hex × Oval Collar

Standard Lengths: 12″ / 18″ / 24″

Length Under CollarQuantity
12″OCHS-12P
18″OCHS-18P
24″OCHS-24P

Request Longer Lengths
Custom Size · Quote Required
Narrow Chisel

Narrow Chisel

.580″ Hex × Oval Collar

Standard Lengths: 12″ / 18″ / 24″

Length Under CollarQuantity
12″OCHS-12C
18″OCHS-18C
24″OCHS-24C

Request Longer Lengths
Custom Size · Quote Required
2″ Wide Blade Chisel

2″ Wide Blade Chisel

.580″ Hex × Oval Collar

Standard Lengths: 12″ / 18″ / 24″

Length Under CollarQuantity
12″OCHS-12C2
18″OCHS-18C2
24″OCHS-24C2

Request Longer Lengths
Custom Size · Quote Required
3″ Wide Blade Chisel

3″ Wide Blade Chisel

.580″ Hex × Oval Collar

Standard Lengths: 12″ / 18″ / 24″

Length Under CollarQuantity
12″OCHS-12C3
18″OCHS-18C3
24″OCHS-24C3

Request Longer Lengths
Custom Size · Quote Required
4½″ Clay Spade

4½″ Clay Spade

.580″ Hex × Oval Collar

Standard Lengths: 10″

Length Under CollarQuantity
10″OCHS-CS

All-Steel Bushing Tool

All-Steel Bushing Tool

.580″ Hex × Oval Collar

Standard Lengths: 8″

Length Under CollarQuantity
8″OCHS-BT

Pin Driver

Pin Driver

.580″ Hex × Oval Collar

Request the Size You Need.

Tell us your Pin Diameter, Length, and Chuck Configuration.

Longer Lengths, Additional Blades AvailableCall 1-800-241-9669

Ready to Order?

Call Now: 1-800-241-9669

Request Pin Driver Sizing

Tell us the Pin Diameter and Length you need. We’ll confirm the connection and availability.

.580″ Hex × Oval Collar Requested
View All Complete-Tool Configurations

Choose Your Complete Tool

Match the model, chuck and complete-tool part number. Add the configuration you need to your quote list.

CP 4133 3R
ModelConfigurationPart NumberQuote
CP 4133 3R.680 in Round × Oval Collar; 3 in stroke9753219584SourceSelect This Model
CP 4133 3H
ModelConfigurationPart NumberQuote
CP 4133 3H.580 in Hex × Oval Collar; 3 in stroke9753219585SourceSelect This Model
CP 4133 4R
ModelConfigurationPart NumberQuote
CP 4133 4R.680 in Round × Oval Collar; 4 in stroke9753219586SourceSelect This Model
CP 4133 4H
ModelConfigurationPart NumberQuote
CP 4133 4H.580 in Hex × Oval Collar; 4 in stroke9753219587SourceSelect This Model

Technical Specs

CP4133 Chipping Hammer — Outside Trigger — 9753219584, 9753219585
SpecificationCP 4133 3R9753219584CP 4133 3H9753219585
Chuck / shank.680 in Round × Oval CollarSource.580 in Hex × Oval CollarSource
Cylinder stroke (in)3Source3Source
Weight (lb)18Source18Source
Length (in)17Source17Source
Impact rate (BPM)1800Source1800Source
Air consumption (CFM; test pressure not listed)33.23Source33.23Source
Air inlet7/8-24 threadSource7/8-24 threadSource
TriggerOutside triggerSourceOutside triggerSource
RetainerStandard oval-collar retainerSourceStandard oval-collar retainerSource
Muffler includedYesSourceYesSource
Included whip hose6 ft whip hose and claw couplingSource6 ft whip hose and claw couplingSource
CP4133 Chipping Hammer — Outside Trigger — 9753219586, 9753219587
SpecificationCP 4133 4R9753219586CP 4133 4H9753219587
Chuck / shank.680 in Round × Oval CollarSource.580 in Hex × Oval CollarSource
Cylinder stroke (in)4Source4Source
Weight (lb)19Source19Source
Length (in)17Source17Source
Impact rate (BPM)1800Source1800Source
Air consumption (CFM; test pressure not listed)33.23Source33.23Source
Air inlet7/8-24 threadSource7/8-24 threadSource
TriggerOutside triggerSourceOutside triggerSource
RetainerStandard oval-collar retainerSourceStandard oval-collar retainerSource
Muffler includedYesSourceYesSource
Included whip hose6 ft whip hose and claw couplingSource6 ft whip hose and claw couplingSource

Product Questions

Which chuck options does the CP4133 use?

Choose .580 in hex to prevent chisel rotation or .680 in round to allow the chisel to rotate. Use matching oval-collar accessories.Source

Which stroke options are available for the CP4133?

The US configurations offer 3 and 4 in strokes.Source
