TAMCO

TCH SeriesChipping Hammer

TAMCO TCH Series Chipping HammerView larger image

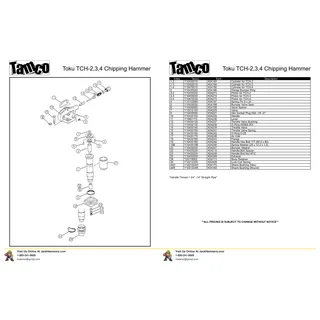

TCH Series parts drawing previewParts drawing ↗
TCH2
TCH2

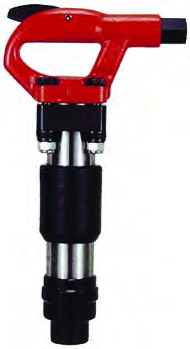

TCH3
TCH3

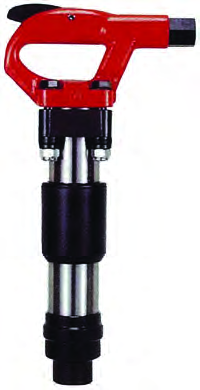

TCH4
TCH4
Select Chuck(Hex or Round) Parts ↗

Choose Your Chuck Before Adding to EZ Quote.

Supplied byJackHammers.com
1-800-241-9669

Overview

Manufactured by Toku and offered through TAMCO.

D-handle chipping hammers with a four-bolt handle, replaceable bushings, heat-treated alloy cylinders and exhaust deflectors.

Designed to operate when the chisel is in contact with the work surface to help avoid dry-firing wear. Choose .580-inch hex or .680-inch round shank, with round or oval collar; specify both when requesting a quote.

TCH Series Part Numbers

TCH2 · 2″ stroke · Part No. TCH2

TCH3 · 2-1/2″ stroke · Part No. TCH3

TCH4 · 4″ stroke · Part No. TCH4

Confirm the model, chuck, collar and retainer when requesting a quote.

Need help? 1-800-241-9669

Step 1

Select Chuck Size:

Specify Collar for Your Hammer

These models are offered with either shank and collar. Your quote request includes your selection so we can confirm the complete configuration.

Selected shank: .580″ Hex. Match the collar and actual retainer before ordering.

Ready to Order? Call Now
Step 2

Select Stroke:

TCH Series model comparison and selection
Select Your Hammer
Part NumberTCH2TCH3TCH4
Piston Stroke2" (50.8mm)2-1/2" (63.5mm)4" (101.6mm)
Shank Size.680" Round Shank or .580" Hex Shank with Round or Oval Collar (Please Specify).680" Round Shank or .580" Hex Shank with Round or Oval Collar (Please Specify).680" Round Shank or .580" Hex Shank with Round or Oval Collar (Please Specify)
Piston Diameter1-1/8" (28.54mm)1-1/8" (28.54mm)1-1/8" (28.54mm)
Impact Rate2,600 - 2,800 BPM2,000 - 2,200 BPM1,600 - 1,800 BPM
Weight18 lbs (8.1kg)19 lbs (8.55kg)20 lbs (9kg)
Overall Length14-3/4" (374.65mm)16" (406.4mm)17" (431.79mm)
Air Consumption29.75 CFM31.5 CFM33.25 CFM
Air Inlet Thread7/8" x 24" Thrds/In NPT7/8" x 24" Thrds/In NPT7/8" x 24" Thrds/In NPT
Hose Size1/2" (12.7mm)1/2" (12.7mm)1/2" (12.7mm)
Maximum Air Pressure90 PSI90 PSI90 PSI
Part Number
TCH2
Piston Stroke
2" (50.8mm)
Shank Size
.680" Round Shank or .580" Hex Shank with Round or Oval Collar (Please Specify)
Piston Diameter
1-1/8" (28.54mm)
Impact Rate
2,600 - 2,800 BPM
Weight
18 lbs (8.1kg)
Overall Length
14-3/4" (374.65mm)
Air Consumption
29.75 CFM
Air Inlet Thread
7/8" x 24" Thrds/In NPT
Hose Size
1/2" (12.7mm)
Maximum Air Pressure
90 PSI
Part Number
TCH3
Piston Stroke
2-1/2" (63.5mm)
Shank Size
.680" Round Shank or .580" Hex Shank with Round or Oval Collar (Please Specify)
Piston Diameter
1-1/8" (28.54mm)
Impact Rate
2,000 - 2,200 BPM
Weight
19 lbs (8.55kg)
Overall Length
16" (406.4mm)
Air Consumption
31.5 CFM
Air Inlet Thread
7/8" x 24" Thrds/In NPT
Hose Size
1/2" (12.7mm)
Maximum Air Pressure
90 PSI
Part Number
TCH4
Piston Stroke
4" (101.6mm)
Shank Size
.680" Round Shank or .580" Hex Shank with Round or Oval Collar (Please Specify)
Piston Diameter
1-1/8" (28.54mm)
Impact Rate
1,600 - 1,800 BPM
Weight
20 lbs (9kg)
Overall Length
17" (431.79mm)
Air Consumption
33.25 CFM
Air Inlet Thread
7/8" x 24" Thrds/In NPT
Hose Size
1/2" (12.7mm)
Maximum Air Pressure
90 PSI
Selected: TCH2 · TCH2.580″ Hex × Oval CollarSpecify oval or round collar; confirm matching retainer
Find replacement parts ↗

Your Quote

0 items · 0 pieces

Add a hammer or accessory to get started.

Step 3

Select Points, Chisels, Etc

Standard Solid Retainer for Oval Collar Tools

The following Points, Chisels, etc. are used with Standard Solid Retainers.

.580″ Hex × Oval Collar

Match the collar and retainer on your hammer.

Compare retainer and collar styles →

Longer Lengths, Additional Blades AvailableCall 1-800-241-9669
Moil Point

Moil Point

.580″ Hex × Oval Collar

Standard Lengths: 12″ / 18″ / 24″

Length Under CollarQuantity
12″OCHS-12P
18″OCHS-18P
24″OCHS-24P

Request Longer Lengths
Custom Size · Quote Required
Narrow Chisel

Narrow Chisel

.580″ Hex × Oval Collar

Standard Lengths: 12″ / 18″ / 24″

Length Under CollarQuantity
12″OCHS-12C
18″OCHS-18C
24″OCHS-24C

Request Longer Lengths
Custom Size · Quote Required
2″ Wide Blade Chisel

2″ Wide Blade Chisel

.580″ Hex × Oval Collar

Standard Lengths: 12″ / 18″ / 24″

Length Under CollarQuantity
12″OCHS-12C2
18″OCHS-18C2
24″OCHS-24C2

Request Longer Lengths
Custom Size · Quote Required
3″ Wide Blade Chisel

3″ Wide Blade Chisel

.580″ Hex × Oval Collar

Standard Lengths: 12″ / 18″ / 24″

Length Under CollarQuantity
12″OCHS-12C3
18″OCHS-18C3
24″OCHS-24C3

Request Longer Lengths
Custom Size · Quote Required
4½″ Clay Spade

4½″ Clay Spade

.580″ Hex × Oval Collar

Standard Lengths: 10″

Length Under CollarQuantity
10″OCHS-CS

All-Steel Bushing Tool

All-Steel Bushing Tool

.580″ Hex × Oval Collar

Standard Lengths: 8″

Length Under CollarQuantity
8″OCHS-BT

Pin Driver

Pin Driver

.580″ Hex × Oval Collar

Request the Size You Need.

Tell us your Pin Diameter, Length, and Chuck Configuration.

Longer Lengths, Additional Blades AvailableCall 1-800-241-9669
